mpScaleX Class Reference

#include <mathplot.h>

Inheritance diagram for mpScaleX:

Inheritance graph
[legend]
Collaboration diagram for mpScaleX:

Collaboration graph
[legend]

List of all members.

Public Member Functions

 mpScaleX (wxString name=wxT("X"))
virtual void Plot (wxDC &dc, mpWindow &w)
virtual bool HasBBox ()
virtual double GetMinX ()
virtual double GetMaxX ()
virtual double GetMinY ()
virtual double GetMaxY ()
wxString GetName () const
const wxFont & GetFont () const
const wxPen & GetPen () const
void SetName (wxString name)
void SetFont (wxFont &font)
void SetPen (wxPen &pen)
int GetYTranslated (double sizey, double y)

Protected Attributes

wxFont m_font
 Layer's font.
wxPen m_pen
 Layer's pen.
wxString m_name
 Layer's name.

Detailed Description

Plot layer implementing a x-scale ruler. The ruler is fixed at Y=0 in the coordinate system. A label is plottet at the bottom-right hand of the ruler. The scale numbering automatically adjusts to view and zoom factor.

Definition at line 362 of file mathplot.h.

Constructor & Destructor Documentation

mpScaleX::mpScaleX ( wxString  name = wxT("X")  )

Parameters:
name Label to plot by the ruler

Definition at line 249 of file mathplot.cxx.

References mpLayer::SetFont(), mpLayer::SetName(), and mpLayer::SetPen().

00250 {
00251         SetName(name);/*
00252         SetFont(*wxSMALL_FONT);
00253         SetPen(*wxGREY_PEN);*/
00254
00255         wxFont ff( *wxSMALL_FONT);
00256         wxPen pp( *wxGREY_PEN);
00257         SetPen( pp );
00258         SetFont( ff );
00259 }

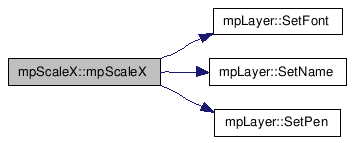

Here is the call graph for this function:

Member Function Documentation

void mpScaleX::Plot ( wxDC &  dc,
mpWindow &  w
) [virtual]

Layer plot handler. This implementation will plot the ruler adjusted to the visible area.

Implements mpLayer.

Definition at line 261 of file mathplot.cxx.

References mpWindow::GetPosX(), mpWindow::GetPosY(), mpWindow::GetScaleX(), mpWindow::GetScaleY(), mpWindow::GetScrX(), mpLayer::m_font, mpLayer::m_name, mpLayer::m_pen, and mpLN10.

00262 {
00263         dc.SetPen( m_pen);
00264         dc.SetFont( m_font);
00265
00266         const int orgy   = (int)(w.GetPosY() * w.GetScaleY());
00267         const int extend = w.GetScrX()/2;
00268
00269         dc.DrawLine( -extend, orgy, extend, orgy);
00270
00271         const double dig  = floor( log( 128.0 / w.GetScaleX() ) / mpLN10 );
00272         const double step = exp( mpLN10 * dig);
00273         const double end  = w.GetPosX() + (double)extend / w.GetScaleX();
00274
00275         wxCoord tx, ty;
00276         wxString s;
00277         wxString fmt;
00278         int tmp = (int)dig;
00279         if (tmp>=1)
00280         {
00281                 fmt = wxT("%.f");
00282         }
00283         else
00284         {
00285                 tmp=8-tmp;
00286                 fmt.Printf(wxT("%%.%df"), tmp >= -1 ? 2 : -tmp);
00287         }
00288
00289         double n = floor( (w.GetPosX() - (double)extend / w.GetScaleX()) / step ) * step ;
00290
00291         tmp=-65535;
00292         for (;n < end; n += step)
00293         {
00294                 const int p = (int)((n - w.GetPosX()) * w.GetScaleX());
00295                 dc.DrawLine( p, orgy, p, orgy+4);
00296
00297                 s.Printf(fmt, n);
00298                 dc.GetTextExtent(s, &tx, &ty);
00299                 if ((p-tx/2-tmp) > 64)
00300                 {
00301                         dc.DrawText( s, p-tx/2, orgy+4);
00302                         tmp=p+tx/2;
00303                 }
00304         }
00305
00306         dc.GetTextExtent(m_name, &tx, &ty);
00307         dc.DrawText( m_name, extend - tx - 4, orgy + 4 + ty);
00308 }

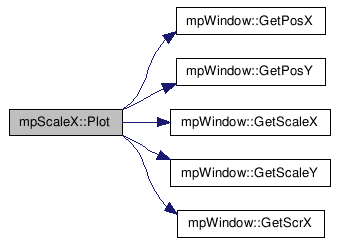

Here is the call graph for this function:

virtual bool mpScaleX::HasBBox (  )  [inline, virtual]

Check whether this layer has a bounding box. This implementation returns FALSE thus making the ruler invisible to the plot layer bounding box calculation by mpWindow.

Reimplemented from mpLayer.

Definition at line 377 of file mathplot.h.

00377 { return FALSE; }

virtual double mpLayer::GetMinX (  )  [inline, virtual, inherited]

Get inclusive left border of bounding box.

Returns:
Value

Definition at line 115 of file mathplot.h.

Referenced by mpWindow::UpdateBBox().

00115 { return -1.0; }

Here is the caller graph for this function:

virtual double mpLayer::GetMaxX (  )  [inline, virtual, inherited]

Get inclusive right border of bounding box.

Returns:
Value

Definition at line 120 of file mathplot.h.

Referenced by mpWindow::UpdateBBox().

00120 { return  1.0; }

Here is the caller graph for this function:

virtual double mpLayer::GetMinY (  )  [inline, virtual, inherited]

Get inclusive bottom border of bounding box.

Returns:
Value

Definition at line 125 of file mathplot.h.

Referenced by mpWindow::UpdateBBox().

00125 { return -1.0; }

Here is the caller graph for this function:

virtual double mpLayer::GetMaxY (  )  [inline, virtual, inherited]

Get inclusive top border of bounding box.

Returns:
Value

Definition at line 130 of file mathplot.h.

Referenced by mpWindow::UpdateBBox().

00130 { return  1.0; }

Here is the caller graph for this function:

wxString mpLayer::GetName (  )  const [inline, inherited]

Get layer name.

Returns:
Name

Definition at line 170 of file mathplot.h.

00170 { return m_name; }

const wxFont& mpLayer::GetFont (  )  const [inline, inherited]

Get font set for this layer.

Returns:
Font

Definition at line 175 of file mathplot.h.

00175 { return m_font; }

const wxPen& mpLayer::GetPen (  )  const [inline, inherited]

Get pen set for this layer.

Returns:
Pen

Definition at line 180 of file mathplot.h.

00180 { return m_pen;  }

void mpLayer::SetName ( wxString  name  )  [inline, inherited]

Set layer name

Parameters:
name Name, will be copied to internal class member

Definition at line 185 of file mathplot.h.

Referenced by mpFXY::mpFXY(), mpFY::mpFY(), mpScaleX(), and mpScaleY::mpScaleY().

00185 { m_name = name; }

Here is the caller graph for this function:

void mpLayer::SetFont ( wxFont &  font  )  [inline, inherited]

Set layer font

Parameters:
font Font, will be copied to internal class member

Definition at line 190 of file mathplot.h.

Referenced by mpScaleX(), and mpScaleY::mpScaleY().

00190 { m_font = font; }

Here is the caller graph for this function:

void mpLayer::SetPen ( wxPen &  pen  )  [inline, inherited]

Set layer pen

Parameters:
pen Pen, will be copied to internal class member

Definition at line 195 of file mathplot.h.

Referenced by HistogramWidget::drawHistogram(), Histogram::drawHistogram(), HistogramWidget::drawTransferenceFunction(), mpScaleX(), mpScaleY::mpScaleY(), pPlotterWindow::onChangeColor(), pPlotterWindow::onLoad(), and pPlotterWindow::onStartDrawing().

00195 { m_pen  = pen;  }

Here is the caller graph for this function:

int mpLayer::GetYTranslated ( double  sizey,
double  y
) [inline, inherited]

Get the translation of the Y coordinate acoording to the new orientation of the axis du to the problem identified in MACOS with the funtion 'SetAxisOrientation'

Definition at line 201 of file mathplot.h.

Referenced by pPlotterLayer::draw(), pPlotterLayer::drawFunction(), pPlotterLayer::drawPoints(), pPlotterLayer::drawSplineCurve(), pPlotterScaleY::Plot(), pPlotterScaleX::Plot(), pPlotterLayer::Plot(), and mpScaleY::Plot().

00201                                                   {
00202                 return -y+sizey;
00203         }

Here is the caller graph for this function:

Member Data Documentation

wxFont mpLayer::m_font [protected, inherited]

Layer's font.

Definition at line 206 of file mathplot.h.

Referenced by pPlotterScaleY::Plot(), pPlotterScaleX::Plot(), mpScaleY::Plot(), Plot(), mpFXY::Plot(), mpFY::Plot(), and mpFX::Plot().

wxPen mpLayer::m_pen [protected, inherited]

Layer's pen.

Definition at line 207 of file mathplot.h.

Referenced by pPlotterScaleY::Plot(), pPlotterScaleX::Plot(), pPlotterLayer::Plot(), mpScaleY::Plot(), Plot(), mpFXY::Plot(), mpFY::Plot(), and mpFX::Plot().

wxString mpLayer::m_name [protected, inherited]

Layer's name.

Definition at line 208 of file mathplot.h.

Referenced by mpScaleY::Plot(), Plot(), mpFXY::Plot(), mpFY::Plot(), and mpFX::Plot().
