vtkMPR3DDataViewer Class Reference

#include <vtkMPR3DDataViewer.h>

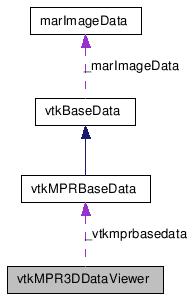

Collaboration diagram for vtkMPR3DDataViewer:

[legend]

List of all members.

Public Member Functions
	vtkMPR3DDataViewer ()
virtual	~vtkMPR3DDataViewer ()
vtkImageActor *	GetImageActor (int id)
vtkActor *	GetOutlineActor ()
virtual void	Refresh ()
virtual void	Configure ()
void	SetVisiblePosition (int idPosition, bool visible)
bool	GetVisiblePosition (int idPosition)
vtkImageActor *	GetvtkActor_saggital ()
vtkImageActor *	GetvtkActor_axial ()
vtkImageActor *	GetvtkActor_coronal ()
void	SetPositionX (int pos)
void	SetPositionY (int pos)
void	SetPositionZ (int pos)
void	SetVtkMPRBaseData (vtkMPRBaseData *vtkmprbasedata)
vtkMPRBaseData *	GetVtkMPRBaseData ()
vtkColorTransferFunction *	GetvtkColorTransferFunction ()
std::vector< double > *	GetctFunVectorPoint ()
std::vector< double > *	GetctFunVectorRed ()
std::vector< double > *	GetctFunVectorGreen ()
std::vector< double > *	GetctFunVectorBlue ()
Private Attributes
bool	_visiblePosition [3]
vtkOutlineFilter *	_outlineData
vtkPolyDataMapper *	_mapOutline
vtkActor *	_outline
vtkColorTransferFunction *	_ctfun
std::vector< double >	_ctFunVectorPoint
std::vector< double >	_ctFunVectorRed
std::vector< double >	_ctFunVectorGreen
std::vector< double >	_ctFunVectorBlue
vtkImageMapToColors *	_saggitalColors
vtkImageActor *	_saggital
vtkImageMapToColors *	_axialColors
vtkImageActor *	_axial
vtkImageMapToColors *	_coronalColors
vtkImageActor *	_coronal
vtkMPRBaseData *	_vtkmprbasedata

---

Detailed Description

Definition at line 13 of file vtkMPR3DDataViewer.h.

---

Constructor & Destructor Documentation

vtkMPR3DDataViewer::vtkMPR3DDataViewer

(

)

Definition at line 5 of file vtkMPR3DDataViewer.cxx.

References _axial, _axialColors, _coronal, _coronalColors, _ctfun, _mapOutline, _outline, _outlineData, _saggital, _saggitalColors, _visiblePosition, and _vtkmprbasedata.

{
        _visiblePosition[0]=false;
        _visiblePosition[1]=false;
        _visiblePosition[2]=false;
        _ctfun = NULL;
        _vtkmprbasedata=NULL;

        _ctfun=NULL;
        _saggitalColors=NULL;
        _saggital=NULL;
        _axialColors=NULL;
        _axial=NULL;
        _coronalColors=NULL;
        _coronal=NULL;
        _mapOutline=NULL;
        _outline=NULL;
        _outlineData=NULL;
}

vtkMPR3DDataViewer::~vtkMPR3DDataViewer

(

)

[virtual]

Definition at line 25 of file vtkMPR3DDataViewer.cxx.

References _axial, _axialColors, _coronal, _coronalColors, _ctfun, _mapOutline, _outline, _outlineData, _saggital, and _saggitalColors.

{
        _outlineData            -> Delete();
        _mapOutline                     -> Delete();
        _outline                        -> Delete();

//      if (_bwLut)                             _bwLut                          -> Delete();
//      if (_hueLut)                    _hueLut                         -> Delete();
//      if (_satLut)                    _satLut                         -> Delete();
        if (_ctfun)                             _ctfun                          -> Delete();
        if (_saggitalColors)    _saggitalColors         -> Delete();
        if (_saggital)                  _saggital                       -> Delete();
        if (_axialColors)               _axialColors            -> Delete();
        if (_axial)                             _axial                          -> Delete();
        if (_coronalColors)             _coronalColors          -> Delete();
        if (_coronal)                   _coronal                        -> Delete();

}

---

Member Function Documentation

vtkImageActor * vtkMPR3DDataViewer::GetImageActor

(

int

id

)

Definition at line 49 of file vtkMPR3DDataViewer.cxx.

References GetvtkActor_axial(), GetvtkActor_coronal(), and GetvtkActor_saggital().

Referenced by wxVtkMPR3DView::VisibleImageActor().

{
        vtkImageActor *tmpVtkActor=NULL;
        if (id==0){
                tmpVtkActor = GetvtkActor_saggital();
        }
        if (id==1){
                tmpVtkActor = GetvtkActor_coronal();
        }
        if (id==2){
                tmpVtkActor = GetvtkActor_axial();
        }
        return tmpVtkActor;
}

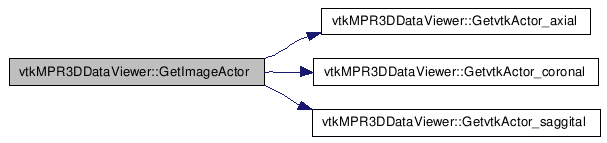

Here is the call graph for this function:

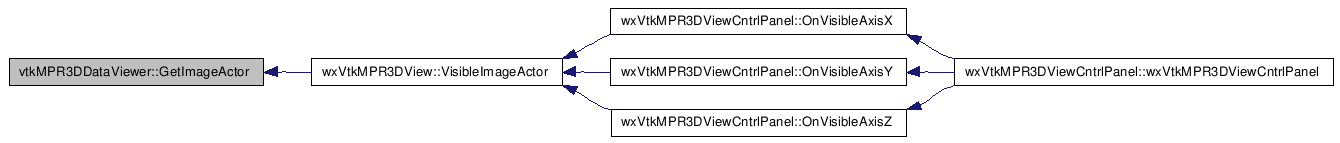

Here is the caller graph for this function:

vtkActor * vtkMPR3DDataViewer::GetOutlineActor

(

)

Definition at line 44 of file vtkMPR3DDataViewer.cxx.

References _outline.

Referenced by wxVtkMPR3DView::Configure().

{
        return _outline;
}

Here is the caller graph for this function:

void vtkMPR3DDataViewer::Refresh

(

)

[virtual]

Definition at line 64 of file vtkMPR3DDataViewer.cxx.

References _vtkmprbasedata, vtkMPRBaseData::GetX(), vtkMPRBaseData::GetY(), vtkBaseData::GetZ(), SetPositionX(), SetPositionY(), and SetPositionZ().

{
        int x = (int)(_vtkmprbasedata->GetX());
        int y = (int)(_vtkmprbasedata->GetY());
        int z = (int)(_vtkmprbasedata->GetZ());
        SetPositionX( x );
        SetPositionY( y );
        SetPositionZ( z );
}

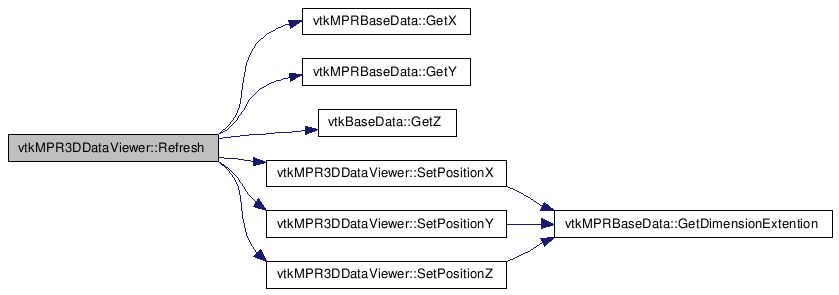

Here is the call graph for this function:

void vtkMPR3DDataViewer::Configure

(

)

[virtual]

Definition at line 114 of file vtkMPR3DDataViewer.cxx.

References _axial, _axialColors, _coronal, _coronalColors, _ctfun, _ctFunVectorBlue, _ctFunVectorGreen, _ctFunVectorPoint, _ctFunVectorRed, _mapOutline, _outline, _outlineData, _saggital, _saggitalColors, _vtkmprbasedata, and vtkBaseData::GetImageData().

Referenced by wxManualRegistration3D::AddPanelControl_B(), wxMaracas_ViewerWidget::ConfigureVTK(), wxManualRegistration3D::Create3DView(), wxManualTree_MPRWidget::Create3DViewContour(), wxSegmentationFM3DWidget::Create3DViewContour(), wxManualSegmentation_MPRWidget::Create3DViewContour(), wxMPRWidget::CreateMPRPanel4View(), wxMPRWidget::CreateView(), and wxMaracas_ViewerWidget::wxMaracas_ViewerWidget().

{
/*
  // Start by creatin a black/white lookup table.
        _bwLut = vtkLookupTable::New();
    _bwLut->SetTableRange (0, 2000);
    _bwLut->SetSaturationRange (0, 0);
    _bwLut->SetHueRange (0, 0);
    _bwLut->SetValueRange (0, 1);

  // Now create a lookup table that consists of the full hue circle
  // (from HSV).
        _hueLut = vtkLookupTable::New();
    _hueLut->SetTableRange (0, 2000);
    _hueLut->SetHueRange (0, 1);
    _hueLut->SetSaturationRange (1, 1);
    _hueLut->SetValueRange (1, 1);

  // Finally, create a lookup table with a single hue but having a range
  // in the saturation of the hue.
        _satLut = vtkLookupTable::New();
    _satLut->SetTableRange (0, 2000);
    _satLut->SetHueRange (.6, .6);
    _satLut->SetSaturationRange (0, 1);
    _satLut->SetValueRange (1, 1);
*/


        double range[2];
        _vtkmprbasedata->GetImageData()->GetScalarRange(range);
        double max = range[1];

        _ctFunVectorPoint.clear();
        _ctFunVectorPoint.push_back(max*0/4);
        _ctFunVectorPoint.push_back(max*1/4);
        _ctFunVectorPoint.push_back(max*2/4);
        _ctFunVectorPoint.push_back(max*3/4);
        _ctFunVectorPoint.push_back(max*4/4);

        _ctFunVectorRed.clear();
        _ctFunVectorRed.push_back(0.0);
        _ctFunVectorRed.push_back(1.0);
        _ctFunVectorRed.push_back(0.0);
        _ctFunVectorRed.push_back(0.0);
        _ctFunVectorRed.push_back(0.0);

        _ctFunVectorGreen.clear();
        _ctFunVectorGreen.push_back(0.0);
        _ctFunVectorGreen.push_back(0.0);
        _ctFunVectorGreen.push_back(0.0);
        _ctFunVectorGreen.push_back(1.0);
        _ctFunVectorGreen.push_back(0.2);

        _ctFunVectorBlue.clear();
        _ctFunVectorBlue.push_back(0.0);
        _ctFunVectorBlue.push_back(0.0);
        _ctFunVectorBlue.push_back(1.0);
        _ctFunVectorBlue.push_back(0.0);
        _ctFunVectorBlue.push_back(0.0);


        if(_ctfun==NULL){
                _ctfun = vtkColorTransferFunction::New();
        }
        _ctfun->RemoveAllPoints();

        int i,size=_ctFunVectorPoint.size();
        for (i=0;i<size;i++)
        {
                _ctfun->AddRGBPoint( _ctFunVectorPoint[i] , _ctFunVectorRed[i],_ctFunVectorGreen[i],_ctFunVectorBlue[i]);

        }
/*
        _ctfun->AddRGBPoint( 100 ,0 ,0,0);
        _ctfun->AddRGBPoint( 200 ,1 ,0,0);
        _ctfun->AddRGBPoint( 300 ,0 ,1,0);
        _ctfun->AddRGBPoint( 400 ,0 ,0,1);
*/
//      void *p=this; // JPRx

  // Create the first of the three planes. The filter vtkImageMapToColors
  // maps the data through the corresponding lookup table created above.  The
  // vtkImageActor is a type of vtkProp and conveniently displays an image on
  // a single quadrilateral plane. It does this using texture mapping and as
  // a result is quite fast. (Note: the input image has to be unsigned char
  // values, which the vtkImageMapToColors produces.) Note also that by
  // specifying the DisplayExtent, the pipeline requests data of this extent
  // and the vtkImageMapToColors only processes a slice of data.

        if(_saggitalColors==NULL){
                _saggitalColors = vtkImageMapToColors::New();
        }
        _saggitalColors->RemoveAllInputs();

    _saggitalColors->SetInput( _vtkmprbasedata->GetImageData() );
//    _saggitalColors->SetLookupTable(_bwLut);

    _saggitalColors->SetLookupTable(_ctfun);



        if(_saggital==NULL){
                _saggital = vtkImageActor::New();
                _saggital->SetInput(_saggitalColors->GetOutput());
        }
        //_saggitalColors->Update();



  // Create the second (axial) plane of the three planes. We use the
  // same approach as before except that the extent differs.


        if(_axialColors==NULL){
                _axialColors = vtkImageMapToColors::New();
        }

        _axialColors->RemoveAllInputs();
    _axialColors->SetInput( _vtkmprbasedata->GetImageData() );
//    _axialColors->SetLookupTable(_hueLut);
    _axialColors->SetLookupTable(_ctfun);

        if(_axial==NULL){
                _axial = vtkImageActor::New();
                _axial->SetInput(_axialColors->GetOutput());
        }

        //_axialColors->Update();


        // Create the third (coronal) plane of the three planes. We use
  // the same approach as before except that the extent differs.
        if(_coronalColors==NULL){
                _coronalColors = vtkImageMapToColors::New();
        }
        _coronalColors->RemoveAllInputs();
    _coronalColors->SetInput( _vtkmprbasedata->GetImageData() );
//    _coronalColors->SetLookupTable(_satLut);
    _coronalColors->SetLookupTable(_ctfun);

        if(_coronal==NULL){
                _coronal = vtkImageActor::New();
                _coronal->SetInput(_coronalColors->GetOutput());
        }



  // An outline provides context around the data.
  //
        if(_outlineData==NULL){
                _outlineData = vtkOutlineFilter::New();
        }
        _outlineData->RemoveAllInputs();
    _outlineData->SetInput((vtkDataSet *) _vtkmprbasedata->GetImageData() );

        if(_mapOutline==NULL){
                _mapOutline = vtkPolyDataMapper::New();
                _mapOutline->SetInput(_outlineData->GetOutput());
        }
        _mapOutline->Update();
        //_mapOutline->RemoveAllInputs();

        if(_outline==NULL){
                _outline = vtkActor::New();
                _outline->SetMapper(_mapOutline);
                _outline->GetProperty()->SetColor(0,0,0);
        }



        int ext[6];
        _vtkmprbasedata->GetImageData()->GetExtent(ext);




}

Here is the call graph for this function:

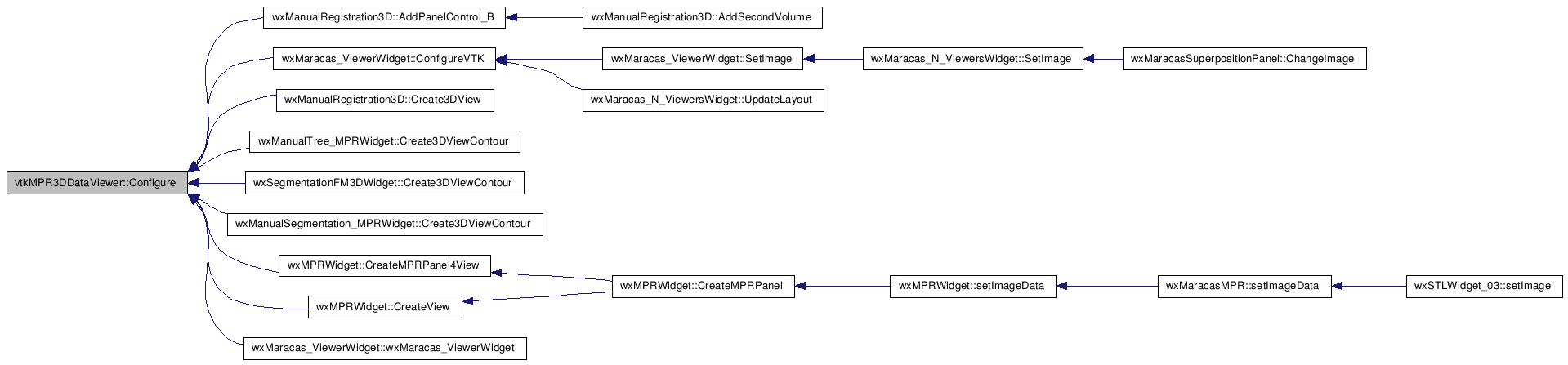

Here is the caller graph for this function:

void vtkMPR3DDataViewer::SetVisiblePosition	(	int	idPosition,
		bool	visible
	)

Definition at line 327 of file vtkMPR3DDataViewer.cxx.

References _visiblePosition.

Referenced by wxVtkMPR3DView::VisibleImageActor().

{
        _visiblePosition[idPosition]=visible;
}

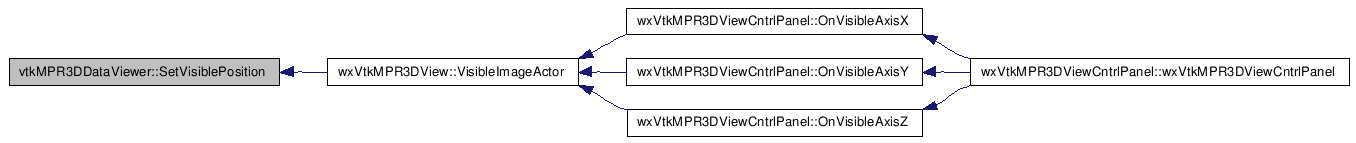

Here is the caller graph for this function:

bool vtkMPR3DDataViewer::GetVisiblePosition

(

int

idPosition

)

Definition at line 332 of file vtkMPR3DDataViewer.cxx.

References _visiblePosition.

Referenced by wxVtkMPR3DView::VisibleImageActor().

{
        return _visiblePosition[idPosition];
}

Here is the caller graph for this function:

vtkImageActor * vtkMPR3DDataViewer::GetvtkActor_saggital

(

)

Definition at line 293 of file vtkMPR3DDataViewer.cxx.

References _saggital.

Referenced by GetImageActor().

{
        return _saggital;
}

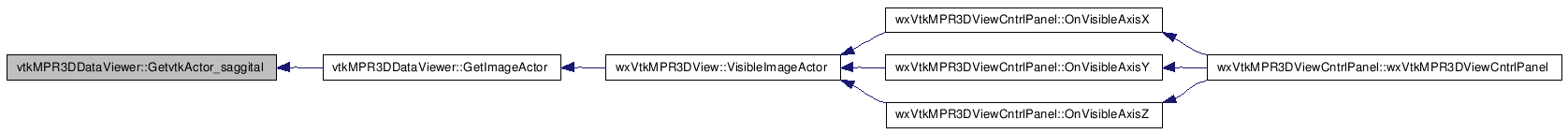

Here is the caller graph for this function:

vtkImageActor * vtkMPR3DDataViewer::GetvtkActor_axial

(

)

Definition at line 303 of file vtkMPR3DDataViewer.cxx.

References _axial.

Referenced by GetImageActor().

{
        return _axial;
}

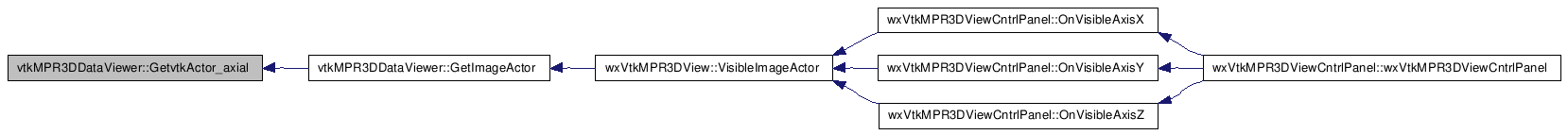

Here is the caller graph for this function:

vtkImageActor * vtkMPR3DDataViewer::GetvtkActor_coronal

(

)

Definition at line 298 of file vtkMPR3DDataViewer.cxx.

References _coronal.

Referenced by GetImageActor().

{
        return _coronal;
}

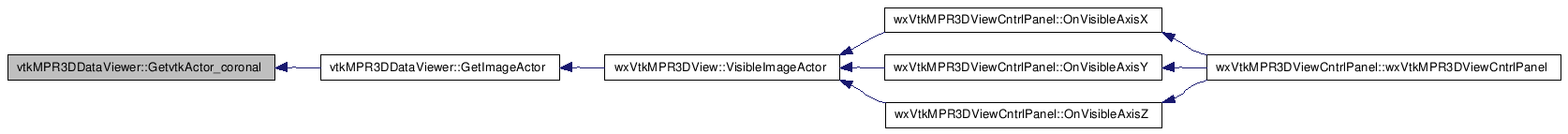

Here is the caller graph for this function:

void vtkMPR3DDataViewer::SetPositionX

(

int

pos

)

Definition at line 309 of file vtkMPR3DDataViewer.cxx.

References _saggital, _vtkmprbasedata, and vtkMPRBaseData::GetDimensionExtention().

Referenced by Refresh().

                                            {
        int x1,x2,y1,y2,z1,z2;
        _vtkmprbasedata->GetDimensionExtention(&x1,&x2,&y1,&y2,&z1,&z2);
        _saggital->SetDisplayExtent( pos , pos , y1 ,y2 , z1 , z2 );
}

Here is the call graph for this function:

Here is the caller graph for this function:

void vtkMPR3DDataViewer::SetPositionY

(

int

pos

)

Definition at line 315 of file vtkMPR3DDataViewer.cxx.

References _coronal, _vtkmprbasedata, and vtkMPRBaseData::GetDimensionExtention().

Referenced by Refresh().

                                            {
        int x1,x2,y1,y2,z1,z2;
        _vtkmprbasedata->GetDimensionExtention(&x1,&x2,&y1,&y2,&z1,&z2);
        _coronal->SetDisplayExtent(x1,x2, pos,pos, z1,z2);
}

Here is the call graph for this function:

Here is the caller graph for this function:

void vtkMPR3DDataViewer::SetPositionZ

(

int

pos

)

Definition at line 321 of file vtkMPR3DDataViewer.cxx.

References _axial, _vtkmprbasedata, and vtkMPRBaseData::GetDimensionExtention().

Referenced by Refresh().

                                            {
        int x1,x2,y1,y2,z1,z2;
        _vtkmprbasedata->GetDimensionExtention(&x1,&x2,&y1,&y2,&z1,&z2);
        _axial->SetDisplayExtent(x1,x2, y1,y2, pos,pos);
}

Here is the call graph for this function:

Here is the caller graph for this function:

void vtkMPR3DDataViewer::SetVtkMPRBaseData

(

vtkMPRBaseData *

vtkmprbasedata

)

Definition at line 74 of file vtkMPR3DDataViewer.cxx.

References _vtkmprbasedata.

Referenced by wxManualRegistration3D::AddPanelControl_B(), wxManualRegistration3D::Create3DView(), wxManualTree_MPRWidget::Create3DViewContour(), wxSegmentationFM3DWidget::Create3DViewContour(), wxManualSegmentation_MPRWidget::Create3DViewContour(), wxMPRWidget::CreateMPRPanel4View(), wxMPRWidget::CreateView(), and wxMaracas_ViewerWidget::wxMaracas_ViewerWidget().

{
        _vtkmprbasedata=vtkmprbasedata;
}

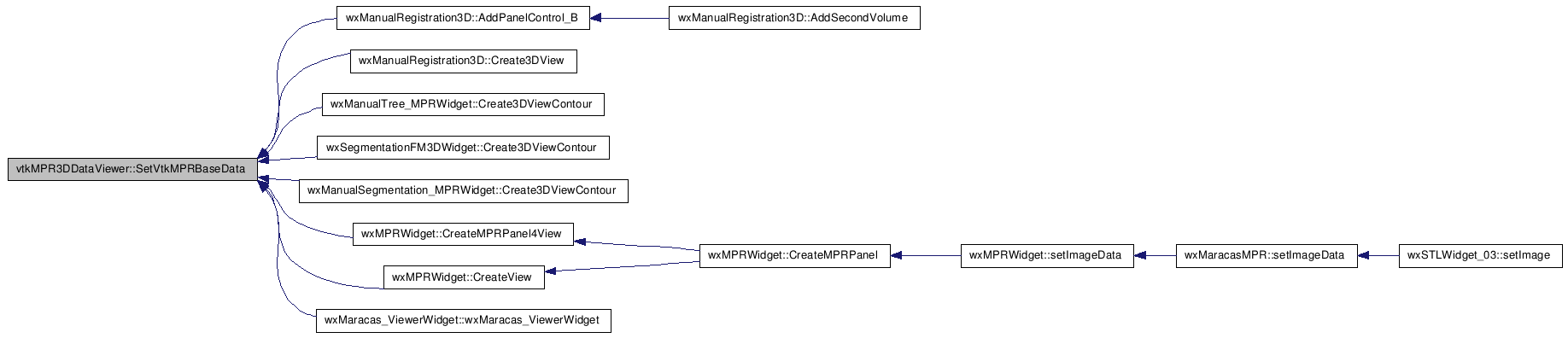

Here is the caller graph for this function:

vtkMPRBaseData * vtkMPR3DDataViewer::GetVtkMPRBaseData

(

)

Definition at line 79 of file vtkMPR3DDataViewer.cxx.

References _vtkmprbasedata.

Referenced by wxVtkMPR3DView::Configure(), wxManualTree_MPRWidget::ConfigureContour(), vtkmyPWCallback_3DPointWidget::Execute(), wxVtkMPR3DViewCntrlPanel::OnEditColorTable(), wxVtkMPR3DViewCntrlPanel::OnPositionX(), wxVtkMPR3DViewCntrlPanel::OnPositionY(), wxVtkMPR3DViewCntrlPanel::OnPositionZ(), wxManualRegistration3D::OnTracking(), wxVtkMPR3DViewCntrlPanel::Refresh(), wxVtkMPR3DView::RefreshView(), wxManualRegistration3D::RefreshView(), vtkInteractorStyle3DView::SelectMarchibCubePoint(), wxVtkMPR3DView::TestLoic1(), wxVtkMPR3DView::TestLoic2(), and wxVtkMPR3DViewCntrlPanel::UpdateControlPanel().

{
        return _vtkmprbasedata;
}

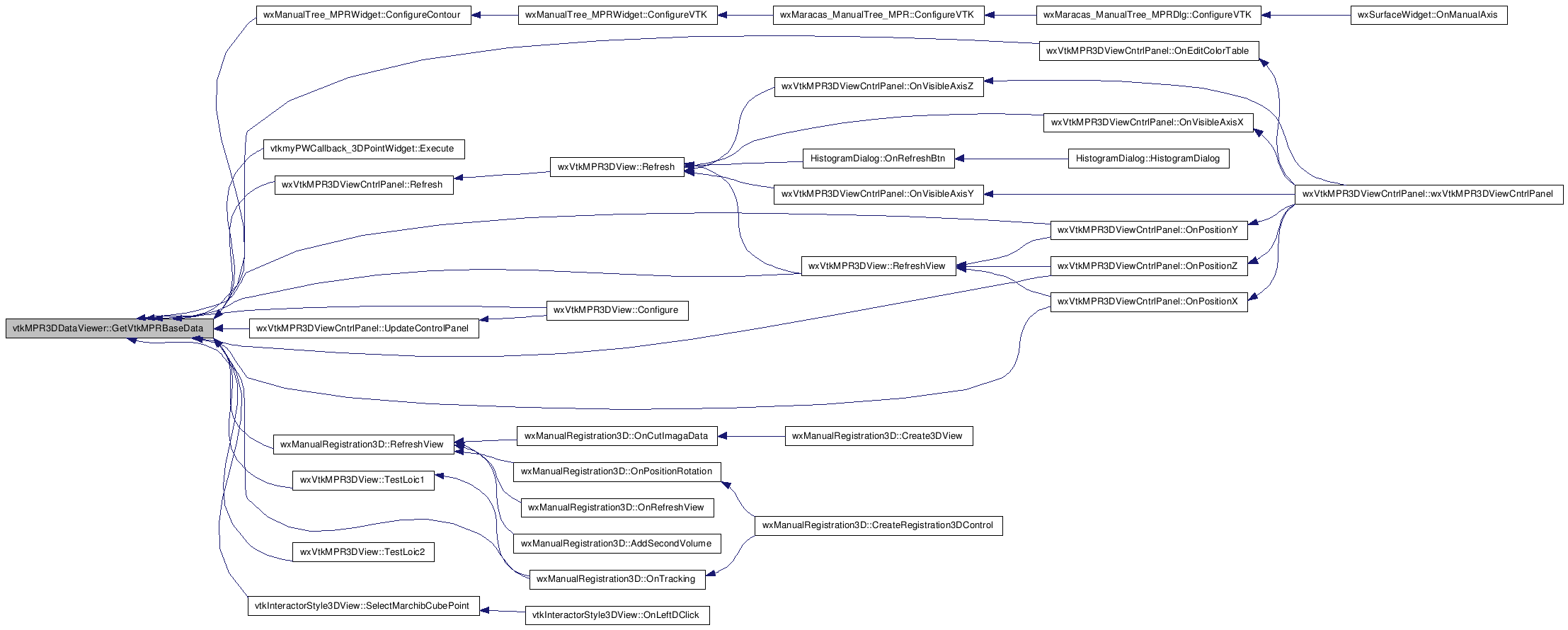

Here is the caller graph for this function:

vtkColorTransferFunction * vtkMPR3DDataViewer::GetvtkColorTransferFunction

(

)

Definition at line 85 of file vtkMPR3DDataViewer.cxx.

References _ctfun.

Referenced by wxVtkMPR3DViewCntrlPanel::OnEditColorTable().

{
        return _ctfun;
}

Here is the caller graph for this function:

std::vector< double > * vtkMPR3DDataViewer::GetctFunVectorPoint

(

)

Definition at line 91 of file vtkMPR3DDataViewer.cxx.

References _ctFunVectorPoint.

Referenced by wxVtkMPR3DViewCntrlPanel::OnEditColorTable().

{
        return &_ctFunVectorPoint;
}

Here is the caller graph for this function:

std::vector< double > * vtkMPR3DDataViewer::GetctFunVectorRed

(

)

Definition at line 96 of file vtkMPR3DDataViewer.cxx.

References _ctFunVectorRed.

Referenced by wxVtkMPR3DViewCntrlPanel::OnEditColorTable().

{
        return &_ctFunVectorRed;
}

Here is the caller graph for this function:

std::vector< double > * vtkMPR3DDataViewer::GetctFunVectorGreen

(

)

Definition at line 102 of file vtkMPR3DDataViewer.cxx.

References _ctFunVectorGreen.

Referenced by wxVtkMPR3DViewCntrlPanel::OnEditColorTable().

{
        return &_ctFunVectorGreen;
}

Here is the caller graph for this function:

std::vector< double > * vtkMPR3DDataViewer::GetctFunVectorBlue

(

)

Definition at line 108 of file vtkMPR3DDataViewer.cxx.

References _ctFunVectorBlue.

Referenced by wxVtkMPR3DViewCntrlPanel::OnEditColorTable().

{
        return &_ctFunVectorBlue;
}

Here is the caller graph for this function:

---

Member Data Documentation

bool vtkMPR3DDataViewer::_visiblePosition[3] [private]

Definition at line 40 of file vtkMPR3DDataViewer.h.

Referenced by GetVisiblePosition(), SetVisiblePosition(), and vtkMPR3DDataViewer().

vtkOutlineFilter* vtkMPR3DDataViewer::_outlineData [private]

Definition at line 43 of file vtkMPR3DDataViewer.h.

Referenced by Configure(), vtkMPR3DDataViewer(), and ~vtkMPR3DDataViewer().

vtkPolyDataMapper* vtkMPR3DDataViewer::_mapOutline [private]

Definition at line 44 of file vtkMPR3DDataViewer.h.

Referenced by Configure(), vtkMPR3DDataViewer(), and ~vtkMPR3DDataViewer().

vtkActor* vtkMPR3DDataViewer::_outline [private]

Definition at line 45 of file vtkMPR3DDataViewer.h.

Referenced by Configure(), GetOutlineActor(), vtkMPR3DDataViewer(), and ~vtkMPR3DDataViewer().

vtkColorTransferFunction* vtkMPR3DDataViewer::_ctfun [private]

Definition at line 48 of file vtkMPR3DDataViewer.h.

Referenced by Configure(), GetvtkColorTransferFunction(), vtkMPR3DDataViewer(), and ~vtkMPR3DDataViewer().

std::vector<double> vtkMPR3DDataViewer::_ctFunVectorPoint [private]

Definition at line 49 of file vtkMPR3DDataViewer.h.

Referenced by Configure(), and GetctFunVectorPoint().

std::vector<double> vtkMPR3DDataViewer::_ctFunVectorRed [private]

Definition at line 50 of file vtkMPR3DDataViewer.h.

Referenced by Configure(), and GetctFunVectorRed().

std::vector<double> vtkMPR3DDataViewer::_ctFunVectorGreen [private]

Definition at line 51 of file vtkMPR3DDataViewer.h.

Referenced by Configure(), and GetctFunVectorGreen().

std::vector<double> vtkMPR3DDataViewer::_ctFunVectorBlue [private]

Definition at line 52 of file vtkMPR3DDataViewer.h.

Referenced by Configure(), and GetctFunVectorBlue().

vtkImageMapToColors* vtkMPR3DDataViewer::_saggitalColors [private]

Definition at line 58 of file vtkMPR3DDataViewer.h.

Referenced by Configure(), vtkMPR3DDataViewer(), and ~vtkMPR3DDataViewer().

vtkImageActor* vtkMPR3DDataViewer::_saggital [private]

Definition at line 59 of file vtkMPR3DDataViewer.h.

Referenced by Configure(), GetvtkActor_saggital(), SetPositionX(), vtkMPR3DDataViewer(), and ~vtkMPR3DDataViewer().

vtkImageMapToColors* vtkMPR3DDataViewer::_axialColors [private]

Definition at line 60 of file vtkMPR3DDataViewer.h.

Referenced by Configure(), vtkMPR3DDataViewer(), and ~vtkMPR3DDataViewer().

vtkImageActor* vtkMPR3DDataViewer::_axial [private]

Definition at line 61 of file vtkMPR3DDataViewer.h.

Referenced by Configure(), GetvtkActor_axial(), SetPositionZ(), vtkMPR3DDataViewer(), and ~vtkMPR3DDataViewer().

vtkImageMapToColors* vtkMPR3DDataViewer::_coronalColors [private]

Definition at line 62 of file vtkMPR3DDataViewer.h.

Referenced by Configure(), vtkMPR3DDataViewer(), and ~vtkMPR3DDataViewer().

vtkImageActor* vtkMPR3DDataViewer::_coronal [private]

Definition at line 63 of file vtkMPR3DDataViewer.h.

Referenced by Configure(), GetvtkActor_coronal(), SetPositionY(), vtkMPR3DDataViewer(), and ~vtkMPR3DDataViewer().

vtkMPRBaseData* vtkMPR3DDataViewer::_vtkmprbasedata [private]

Definition at line 64 of file vtkMPR3DDataViewer.h.

Referenced by Configure(), GetVtkMPRBaseData(), Refresh(), SetPositionX(), SetPositionY(), SetPositionZ(), SetVtkMPRBaseData(), and vtkMPR3DDataViewer().

---

The documentation for this class was generated from the following files:

• C:/Creatis/creaMaracasVisu/lib/maracasVisuLib/src/interface/wxWindows/widgets/vtkMPR3DDataViewer.h
• C:/Creatis/creaMaracasVisu/lib/maracasVisuLib/src/interface/wxWindows/widgets/vtkMPR3DDataViewer.cxx

---
