HistogramWidget Class Reference

#include <HistogramWidget.h>

Collaboration diagram for HistogramWidget:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 HistogramWidget (wxWindow *parent, wxWindowID id, const wxPoint &pos, const wxSize &size, int flag, vtkImageData *imageData, int type)
 HistogramWidget (wxWindow *parent, wxWindowID id)
 ~HistogramWidget ()
void drawHistogram ()
void drawTransferenceFunction ()
void OnSize (wxSizeEvent &WXUNUSED(event))
int getSizeTransferenceFunction ()
int getSizeBarColor ()
void getTransferenceFunctionPoint (int index, int &x, int &y)
void getDataBarColorPoint (int index, int &x, int &red, int &green, int &blue)
int getHistogramPoint (int gValue)
float getMaxShowedPorcentage ()
float getMinShowedPorcentage ()
float getActualShowedPorcentage ()
bool addPointToTransferenceFunction (double x, double y)
bool addColorPoint (double x, int red, int green, int blue)
void updatePlotter ()
void erasePointsTransferenceFunction ()
void eraseColorPoints ()
void setTransferenceFunctionHasPoints (bool hasPoints)
void setTransferenceFunctionHasColor (bool hasColorPoints)
int getHistogramSize ()
void setType (int type)
void initializeHistogram (vtkImageData *img)
void GetValuesPointsFunction (std::vector< double > &greylevel, std::vector< double > &value)
void GetValuesColorPointsFunction (std::vector< double > &greylevel, std::vector< double > &red, std::vector< double > &green, std::vector< double > &blue)

Private Member Functions

wxPanel * getControls ()
 DECLARE_CLASS (HistogramWidget)

Private Attributes

pHistogram * histogram
pPlotter * plotter
int idTransferenceFunction
int histogramSize
int idHistogram
bool transferenceFunctionHasPoints
bool transferenceFunctionHasColor
int type

Detailed Description

Definition at line 31 of file HistogramWidget.h.

Constructor & Destructor Documentation

HistogramWidget::HistogramWidget ( wxWindow *  parent,
wxWindowID  id,
const wxPoint &  pos,
const wxSize &  size,
int  flag,
vtkImageData *  imageData,
int  type
)

Definition at line 45 of file HistogramWidget.cxx.

00045                                                                                                                                                            :
00046         wxPanel(parent,id,wxDefaultPosition,wxDefaultSize)
00047         {
00048                  SetBackgroundColour(wxColour(255,255,255));
00049                 //histogram
00050                 histogram= new pHistogram(imageData);
00051
00052
00053                 //plotter
00054                 plotter=new pPlotter(this, 400,350);
00055
00056                 //is a plotter of histograms
00057                 plotter->setType(2);
00058                 //setting the popMenu
00059                 plotter->setPopUpMenu(true,true,true,true,true,true,false,false,false,false,false,false,false);
00060                 histogramSize=0;
00061                 idTransferenceFunction=-1;
00062                 idHistogram=-1;
00063                 transferenceFunctionHasColor=true;
00064                 transferenceFunctionHasPoints=true;
00065                 this->type=type;
00066
00067                 this->SetAutoLayout(true);
00068                 this->Refresh();
00069
00070                 //drawing
00071                 drawHistogram();
00072                 drawTransferenceFunction();
00073
00074         }

HistogramWidget::HistogramWidget ( wxWindow *  parent,
wxWindowID  id
)

Definition at line 76 of file HistogramWidget.cxx.

References histogram, histogramSize, idHistogram, idTransferenceFunction, plotter, pPlotter::setPopUpMenu(), pPlotter::setType(), transferenceFunctionHasColor, transferenceFunctionHasPoints, and type.

00077                 : wxPanel(parent,id){
00078
00079
00080                         SetBackgroundColour(wxColour(255,255,255));
00081                         histogram = NULL;
00082
00083
00084                         //plotter
00085                         plotter=new pPlotter(this, 400,350);
00086
00087                         //is a plotter of histograms
00088                         plotter->setType(2);
00089                         //setting the popMenu
00090                         plotter->setPopUpMenu(true,true,true,true,true,true,false,false,false,false,false,false,false);
00091                         histogramSize=0;
00092                         idTransferenceFunction=-1;
00093                         idHistogram=-1;
00094                         transferenceFunctionHasColor=true;
00095                         transferenceFunctionHasPoints=true;
00096                         this->type=type;;
00097                         this->SetAutoLayout(true);
00098                         this->Refresh();
00099
00100
00101         }

Here is the call graph for this function:

HistogramWidget::~HistogramWidget (  )

Definition at line 114 of file HistogramWidget.cxx.

References histogram, and plotter.

00115         {
00116                 delete histogram;
00117                 delete plotter;
00118
00119         }

Member Function Documentation

bool HistogramWidget::addColorPoint ( double  x,
int  red,
int  green,
int  blue
)

Definition at line 328 of file HistogramWidget.cxx.

References pPlotter::addColorPoint(), and plotter.

Referenced by HistogramDialog::addColorPoint(), and HistogramDialog::OnLoadData().

00329         {
00330                 return plotter->addColorPoint(x,red,green,blue);
00331         }

Here is the call graph for this function:

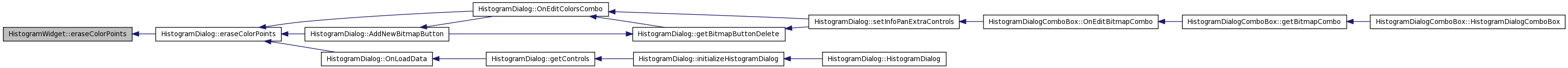

Here is the caller graph for this function:

bool HistogramWidget::addPointToTransferenceFunction ( double  x,
double  y
)

Definition at line 312 of file HistogramWidget.cxx.

References pGraphicalFunction::AddPoint(), pPlotter::getFunction(), idTransferenceFunction, and plotter.

Referenced by HistogramDialog::addPointToTransferenceFunction(), and HistogramDialog::OnLoadData().

00313         {
00314                 bool result=false;
00315                 pGraphicalFunction* tf=plotter->getFunction(idTransferenceFunction);
00316 //printf("EED %p HistogramWidget::addPointToTransferenceFunction tp%p x%f y%f %d\n",this, tf, x ,y, idTransferenceFunction);
00317                 if (tf!=NULL) { result=tf->AddPoint(x,y); }
00318
00319                 return result;
00320         }

Here is the call graph for this function:

Here is the caller graph for this function:

HistogramWidget::DECLARE_CLASS ( HistogramWidget   )  [private]
void HistogramWidget::drawHistogram (  )

Definition at line 123 of file HistogramWidget.cxx.

References pPlotter::addFunction(), pPlotter::addFunctionToMove(), pPlotter::getFunctionForVectors(), pHistogram::getHistogram(), pHistogram::getSize(), histogram, histogramSize, idHistogram, NUM_POINTS, plotter, pGraphicalFunction::setEditable(), pGraphicalFunction::setmType(), mpLayer::SetPen(), and pGraphicalFunction::setType().

Referenced by initializeHistogram().

00124         {
00125                 //int xValues[MAX],yValues[MAX],extent[6];
00126                 double* xValues;
00127                 double* yValues;
00128
00129                 vtkImageData* histogramImageData=histogram->getHistogram();
00130
00131                 //size
00132                 histogramSize=histogram->getSize();
00133
00134                 //plotting
00135                 xValues=(double*)malloc(NUM_POINTS*sizeof(double));
00136                 yValues=(double*)malloc(NUM_POINTS*sizeof(double));
00137
00138                 unsigned short* histogramPointer=(unsigned short*)histogramImageData->GetScalarPointer(0,0,0);
00139
00140                 for(int i=0; i< histogramSize; i++)
00141                 {
00142                         xValues[i]=i;
00143                         yValues[i]=log( (double) histogramPointer[i]);
00144                 }
00145
00146
00147                 pGraphicalFunction* histogramFunction=plotter->getFunctionForVectors(xValues,histogramSize,yValues,histogramSize);
00148
00149                 if (histogramFunction)
00150                 {
00151                         histogramFunction->setEditable(false);
00152                         //smooth function
00153                         histogramFunction->setType(2);
00154                         //it is an histogram
00155                         histogramFunction->setmType(2);
00156                         idHistogram=plotter->addFunction(histogramFunction);
00157                         //for setting range the vision
00158                         plotter->addFunctionToMove(histogramFunction);
00159                         wxPen mypen1(*wxBLUE, 1, wxSOLID );
00160                         mypen1.SetWidth(2);
00161                         histogramFunction->SetPen( mypen1 );
00162                 }
00163
00164                         free(xValues);
00165                         free(yValues);
00166
00167         }

Here is the call graph for this function:

Here is the caller graph for this function:

void HistogramWidget::drawTransferenceFunction (  )

Definition at line 172 of file HistogramWidget.cxx.

References pPlotter::addFunction(), pPlotter::addFunctionToMove(), pPlotter::getFunctionForVectors(), pHistogram::getMaximumLevelOfGrey(), histogram, idTransferenceFunction, plotter, pGraphicalFunction::setActual(), mpLayer::SetPen(), pGraphicalFunction::SetShowPoints(), pGraphicalFunction::setType(), and type.

Referenced by initializeHistogram().

00173         {
00174
00175                         double xValues[5],yValues[5];
00176                         //xValues
00177                         int maxValueGrey=histogram->getMaximumLevelOfGrey();
00178                         xValues[0]=0;
00179                         xValues[1]=maxValueGrey/16;
00180                         xValues[2]=maxValueGrey/8;
00181                         xValues[3]=maxValueGrey/16+(maxValueGrey-maxValueGrey/2)/2;
00182                         xValues[4]=maxValueGrey;
00183
00184                         //yValues
00185                         yValues[0]=0;
00186                         yValues[1]=25;
00187                         yValues[2]=100;
00188                         yValues[3]=25;
00189                         yValues[4]=0;
00190
00191                         pGraphicalFunction * tf = plotter ->getFunctionForVectors( xValues, 5, yValues, 5 );
00192                 printf("EED %p HistogramWidget::drawTransferenceFunction %p\n", this , tf);
00193                         // Including and drawing the created function in the plotter
00194                         if (tf)
00195                         {
00196                                 tf->setType(1);
00197                                 //is the actual Function
00198                                 tf->setActual(true);
00199                                 //show points
00200                                 tf->SetShowPoints(true);
00201                                 idTransferenceFunction=plotter->addFunction( tf );
00202                                 if(type==1)
00203                                         plotter->addFunctionToMove(tf);
00204                                 wxPen mypen(*wxBLACK,0.5, wxSOLID  );
00205                                 mypen.SetWidth(2);
00206                                 tf->SetPen( mypen );
00207                         }
00208         }

Here is the call graph for this function:

Here is the caller graph for this function:

void HistogramWidget::eraseColorPoints (  )

Definition at line 363 of file HistogramWidget.cxx.

References pPlotter::eraseColorPoints(), and plotter.

Referenced by HistogramDialog::eraseColorPoints().

00364         {
00365                 plotter->eraseColorPoints();
00366         }

Here is the call graph for this function:

Here is the caller graph for this function:

void HistogramWidget::erasePointsTransferenceFunction (  )

Definition at line 340 of file HistogramWidget.cxx.

References pGraphicalFunction::deletePointAt(), pPlotter::getFunction(), pGraphicalFunction::getSizePoints(), idTransferenceFunction, plotter, and transferenceFunctionHasPoints.

Referenced by HistogramDialog::erasePointsTransferenceFunction().

00341         {
00342                 if(transferenceFunctionHasPoints)
00343                 {
00344                         // we have to erase the points
00345                         pGraphicalFunction* tf=plotter->getFunction(idTransferenceFunction);
00346                         if (tf!=NULL){
00347                                 int numOfPoints=tf->getSizePoints();
00348                                 int i=numOfPoints-1;//-2;
00349                                 while(i>=0)
00350                                 {
00351                                         tf->deletePointAt(i);
00352                                         i--;
00353                                 } // while
00354                         } // if tf
00355                 } // if transferenceFunctionHasPoints
00356
00357         //we set for actual the histogram
00358                 //plotter->setActual()
00359         }

Here is the call graph for this function:

Here is the caller graph for this function:

float HistogramWidget::getActualShowedPorcentage (  )

Definition at line 297 of file HistogramWidget.cxx.

References pPlotter::getFunction(), pGraphicalFunction::getMaxX(), pPlotter::getMinShowedPorcentage(), pGraphicalFunction::getMinX(), idHistogram, min, and plotter.

Referenced by HistogramDialog::getActualShowedPorcentage().

00298         {
00299                 float  porcentageActualX=plotter->getMinShowedPorcentage();
00300                 pGraphicalFunction* histogramFunction=plotter->getFunction(idHistogram);
00301                 int min=histogramFunction->getMinX();
00302                 float x=porcentageActualX*(histogramFunction->getMaxX()-min);
00303                 return min+ x;
00304         }

Here is the call graph for this function:

Here is the caller graph for this function:

wxPanel* HistogramWidget::getControls (  )  [private]
void HistogramWidget::getDataBarColorPoint ( int  index,
int &  x,
int &  red,
int &  green,
int &  blue
)

Definition at line 266 of file HistogramWidget.cxx.

References pPlotter::getBarColorDataAt(), and plotter.

Referenced by HistogramDialog::getDataBarColorPoint(), and HistogramDialog::OnSaveData().

00267         {
00268                 double tmp=x;
00269                 plotter->getBarColorDataAt(index,tmp,red,green,blue);
00270                 x=(int)tmp;
00271         }

Here is the call graph for this function:

Here is the caller graph for this function:

int HistogramWidget::getHistogramPoint ( int  gValue  )

Definition at line 252 of file HistogramWidget.cxx.

References pHistogram::getHistogramPoint(), and histogram.

Referenced by HistogramDialog::getHistogramPoint().

00253         {
00254                 return histogram->getHistogramPoint(gValue);
00255         }

Here is the call graph for this function:

Here is the caller graph for this function:

int HistogramWidget::getHistogramSize (  )

Definition at line 388 of file HistogramWidget.cxx.

References histogramSize.

00389         {
00390                 return histogramSize;
00391         }

float HistogramWidget::getMaxShowedPorcentage (  )

Definition at line 275 of file HistogramWidget.cxx.

References pPlotter::getFunction(), pPlotter::getMaxShowedPorcentage(), pGraphicalFunction::getMaxX(), pGraphicalFunction::getMinX(), idHistogram, min, and plotter.

Referenced by HistogramDialog::getMaxShowedPorcentage().

00276         {
00277                 float  porcentageMaxX=plotter->getMaxShowedPorcentage();
00278                 pGraphicalFunction* histogramFunction=plotter->getFunction(idHistogram);
00279                 int min=histogramFunction->getMinX();
00280                 float x=porcentageMaxX*(histogramFunction->getMaxX()-min);
00281                 return min+ x;
00282         }

Here is the call graph for this function:

Here is the caller graph for this function:

float HistogramWidget::getMinShowedPorcentage (  )

Definition at line 286 of file HistogramWidget.cxx.

References pPlotter::getFunction(), pGraphicalFunction::getMaxX(), pPlotter::getMinShowedPorcentage(), pGraphicalFunction::getMinX(), idHistogram, min, and plotter.

Referenced by HistogramDialog::getMinShowedPorcentage().

00287         {
00288                 float  porcentageMinX=plotter->getMinShowedPorcentage();
00289                 pGraphicalFunction* histogramFunction=plotter->getFunction(idHistogram);
00290                 int min=histogramFunction->getMinX();
00291                 float x=porcentageMinX*(histogramFunction->getMaxX()-min);
00292                 return min+ x;
00293         }

Here is the call graph for this function:

Here is the caller graph for this function:

int HistogramWidget::getSizeBarColor (  )

Definition at line 259 of file HistogramWidget.cxx.

References pPlotter::getColorPointsSize(), and plotter.

Referenced by HistogramDialog::getSizeBarColor(), and HistogramDialog::OnSaveData().

00260         {
00261                 return  plotter->getColorPointsSize();
00262         }

Here is the call graph for this function:

Here is the caller graph for this function:

int HistogramWidget::getSizeTransferenceFunction (  )

Definition at line 228 of file HistogramWidget.cxx.

References pPlotter::getFunction(), pGraphicalFunction::getSizePoints(), idTransferenceFunction, and plotter.

Referenced by HistogramDialog::getSizeTransferenceFunction(), and HistogramDialog::OnSaveData().

00229         {
00230                 pGraphicalFunction* tf=plotter->getFunction(idTransferenceFunction);
00231                 return tf->getSizePoints();
00232
00233         }

Here is the call graph for this function:

Here is the caller graph for this function:

void HistogramWidget::getTransferenceFunctionPoint ( int  index,
int &  x,
int &  y
)

Definition at line 237 of file HistogramWidget.cxx.

References pPlotter::getFunction(), pGraphicalFunction::GetPointAt(), pFunctionPoint::getRealX(), pFunctionPoint::getRealY(), idTransferenceFunction, and plotter.

Referenced by HistogramDialog::getTransferenceFunctionPoint(), and HistogramDialog::OnSaveData().

00238         {
00239                 pGraphicalFunction* tf=plotter->getFunction(idTransferenceFunction);
00240                 if(tf)
00241                 {
00242                         wxNode* pnode=tf->GetPointAt(index);
00243                         pFunctionPoint* point=(pFunctionPoint*)pnode->GetData();
00244                         x=point->getRealX();
00245                         y=point->getRealY();
00246                 }
00247         }

Here is the call graph for this function:

Here is the caller graph for this function:

void HistogramWidget::GetValuesColorPointsFunction ( std::vector< double > &  greylevel,
std::vector< double > &  red,
std::vector< double > &  green,
std::vector< double > &  blue
)

Returns two vectors, the grey level of the point and its value, the red, green and blue value is between [0,1]

Definition at line 408 of file HistogramWidget.cxx.

References pPlotter::GetValuesColorPointsFunction(), and plotter.

Referenced by HistogramDialog::GetValuesColorPointsFunction().

00412         {
00413                 plotter->GetValuesColorPointsFunction(greylevel,red,green,blue);
00414         }

Here is the call graph for this function:

Here is the caller graph for this function:

void HistogramWidget::GetValuesPointsFunction ( std::vector< double > &  greylevel,
std::vector< double > &  value
)

Returns two vectors, the grey level of the point and its value, the value is between [0,1]

Definition at line 400 of file HistogramWidget.cxx.

References pPlotter::GetValuesPointsFunction(), histogramSize, and plotter.

Referenced by HistogramDialog::GetValuesPointsFunction().

00400                                                                                                           {
00401                 plotter->GetValuesPointsFunction(greylevel,value,histogramSize);
00402         }

Here is the call graph for this function:

Here is the caller graph for this function:

void HistogramWidget::initializeHistogram ( vtkImageData *  img  )

Initialize the histogram

Definition at line 105 of file HistogramWidget.cxx.

References drawHistogram(), drawTransferenceFunction(), and histogram.

Referenced by HistogramDialog::initializeHistogram().

00105                                                                   {
00106                 if(histogram ==NULL){
00107                         histogram= new pHistogram(img);
00108                 }
00109                 //draw
00110                 drawHistogram();
00111                 drawTransferenceFunction();
00112         }

Here is the call graph for this function:

Here is the caller graph for this function:

void HistogramWidget::OnSize ( wxSizeEvent &  WXUNUSEDevent  )

Definition at line 213 of file HistogramWidget.cxx.

References pPlotter::getFunction(), idTransferenceFunction, plotter, pGraphicalFunction::setScales(), and pGraphicalFunction::setScreens().

00214         {
00215                 int scrX,scrY;
00216                 GetClientSize(&scrX,&scrY);
00217                 plotter->SetSize(scrX,scrY);
00218                 pGraphicalFunction* actual=plotter->getFunction(idTransferenceFunction);
00219                 if(actual!=NULL){
00220                         actual->setScreens(scrX,scrY);
00221                         actual->setScales();
00222                 }
00223
00224         }

Here is the call graph for this function:

void HistogramWidget::setTransferenceFunctionHasColor ( bool  hasColorPoints  )

Definition at line 384 of file HistogramWidget.cxx.

References transferenceFunctionHasPoints.

Referenced by HistogramDialog::setTransferenceFunctionHasColor().

00385         {
00386                 transferenceFunctionHasPoints=hasColorPoints;
00387         }

Here is the caller graph for this function:

void HistogramWidget::setTransferenceFunctionHasPoints ( bool  hasPoints  )

Definition at line 379 of file HistogramWidget.cxx.

References transferenceFunctionHasPoints.

Referenced by HistogramDialog::setTransferenceFunctionHasPoints().

00380         {
00381                 transferenceFunctionHasPoints=hasPoints;
00382         }

Here is the caller graph for this function:

void HistogramWidget::setType ( int  type  )

Definition at line 392 of file HistogramWidget.cxx.

00393         {
00394                 this->type=type;
00395         }

void HistogramWidget::updatePlotter (  )

Definition at line 370 of file HistogramWidget.cxx.

References plotter, and pPlotter::update().

Referenced by HistogramDialog::OnLoadData(), and HistogramDialog::updatePlotter().

00371         {
00372                 plotter->update();
00373         }

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

pHistogram* HistogramWidget::histogram [private]

Definition at line 161 of file HistogramWidget.h.

Referenced by drawHistogram(), drawTransferenceFunction(), getHistogramPoint(), HistogramWidget(), initializeHistogram(), and ~HistogramWidget().

int HistogramWidget::histogramSize [private]

Definition at line 164 of file HistogramWidget.h.

Referenced by drawHistogram(), getHistogramSize(), GetValuesPointsFunction(), and HistogramWidget().

int HistogramWidget::idHistogram [private]

Definition at line 165 of file HistogramWidget.h.

Referenced by drawHistogram(), getActualShowedPorcentage(), getMaxShowedPorcentage(), getMinShowedPorcentage(), and HistogramWidget().

int HistogramWidget::idTransferenceFunction [private]

Definition at line 163 of file HistogramWidget.h.

Referenced by addPointToTransferenceFunction(), drawTransferenceFunction(), erasePointsTransferenceFunction(), getSizeTransferenceFunction(), getTransferenceFunctionPoint(), HistogramWidget(), and OnSize().

pPlotter* HistogramWidget::plotter [private]

Definition at line 162 of file HistogramWidget.h.

Referenced by addColorPoint(), addPointToTransferenceFunction(), drawHistogram(), drawTransferenceFunction(), eraseColorPoints(), erasePointsTransferenceFunction(), getActualShowedPorcentage(), getDataBarColorPoint(), getMaxShowedPorcentage(), getMinShowedPorcentage(), getSizeBarColor(), getSizeTransferenceFunction(), getTransferenceFunctionPoint(), GetValuesColorPointsFunction(), GetValuesPointsFunction(), HistogramWidget(), OnSize(), updatePlotter(), and ~HistogramWidget().

bool HistogramWidget::transferenceFunctionHasColor [private]

Definition at line 172 of file HistogramWidget.h.

Referenced by HistogramWidget().

bool HistogramWidget::transferenceFunctionHasPoints [private]

Definition at line 171 of file HistogramWidget.h.

Referenced by erasePointsTransferenceFunction(), HistogramWidget(), setTransferenceFunctionHasColor(), and setTransferenceFunctionHasPoints().

int HistogramWidget::type [private]

Definition at line 178 of file HistogramWidget.h.

Referenced by drawTransferenceFunction(), and HistogramWidget().

The documentation for this class was generated from the following files:
Generated on 18 Mar 2010 for creaMaracasVisu_lib by  doxygen 1.6.1
