marParameters Class Reference

Parameters class definition. More...

#include <marParameters.h>

Public Types
enum	VoxelTypes { VOX_TYPE_MINIMUM = 0x01, VOX_TYPE_NORMAL = 0x02 }
enum	AlgorithmTypes { ISOCONTOURS = 1, SNAKE = 2, DERICHE = 3 }
enum	QuantificationTypes { TYPE_AREA = 0x01, TYPE_PERIMETER = 0x02, TYPE_DIAMETER_FROM_AREA = 0x04, TYPE_DIAMETER_FROM_PERIMETER = 0x08, TYPE_MINIMUM_DIAMETER = 0x10, TYPE_MAXIMUM_DIAMETER = 0x20, TYPE_AVERAGE_DIAMETER = 0x40 }
enum	BoolParamIndexes { e_debug_isocontour, e_debug_diameters, e_debug_fill_area, e_invest_slice_order, e_bool_cont }
enum	DoubleParamIndexes { e_gravity_distance = 0, e_axis_discret_step, e_distance_to_maximum_intensity, e_cell_coeficient, e_flexion_coeficient, e_tension_coeficient, e_voxel_x_dimension, e_voxel_y_dimension, e_voxel_z_dimension, e_scale, e_threshold_isocontour, e_threshold_snake_isocontour, e_sigma, e_RescaleIntercept, e_RescaleSlope, e_double_cont }
enum	IntParamIndexes { e_roi_dimension = 0, e_step, e_step_coeficient, e_mass_power, e_algorithm_type, e_mask_size, e_number_of_points_for_snake, e_quantification_type, e_stenosis_type, e_voxel_type, e_int_cont }
enum	StringParamIndexes { e_installation_directory = 0, e_dicom_images_directory, e_string_cont }
Public Member Functions
	marParameters ()
	~marParameters ()
bool	getBoolParam (int i)
double	getDoubleParam (int i)
int	getIntParam (int i)
wxString &	getStringParam (int i)
void	setBoolParam (int i, bool p)
void	setDoubleParam (int i, double p)
void	setIntParam (int i, int p)
void	setStringParam (int i, const wxString &p)
double	getVoxelSize ()
double	getDimIma ()
int	getSizeIma ()
double	getImaRatio ()
float	getRescaleSlope ()
float	getRescaleIntercept ()
bool	getInvestSliceOrder ()
void	setROIStep (double width)
void	setRescaleSlope (float slope)
void	setRescaleIntercept (float intercept)
void	copyFrom (const marParameters &from)
void	reset ()
bool	save (std::ofstream &os)
bool	load (std::ifstream &is)
bool	save (wxString &nw)
bool	load (wxString &nr)
wxArrayString	getRelationalArray ()
void	setRelationalArray (wxArrayString &arr)
int	getContourThresh ()
double	getStandardDeviation ()
double	getRadius ()
int	getLumenPercentage ()
int	getCalcPercentage ()
void	setContourThresh (int thresh)
void	setStandardDeviation (double dev)
void	setRadius (double rad)
void	setLumenPercentage (int percentage)
void	setCalcPercentage (int percentage)
Private Attributes
bool	_boolValues [(int) e_bool_cont]
double	_doubleValues [(int) e_double_cont]
int	_intValues [(int) e_int_cont]
wxString	_stringValues [(int) e_string_cont]
int	_contourThresh
double	_standardDeviation
double	_radius
int	_lumenPercentage
int	_calcPercentage

Detailed Description

Parameters class definition.

/def marParameters

Definition at line 29 of file marParameters.h.

Member Enumeration Documentation

enum marParameters::AlgorithmTypes

Enumerator:

ISOCONTOURS
SNAKE
DERICHE

Definition at line 43 of file marParameters.h.

00044     {
00045             ISOCONTOURS = 1,
00046             SNAKE       = 2,
00047             DERICHE     = 3
00048
00049     };

enum marParameters::BoolParamIndexes

Enumerator:

e_debug_isocontour
e_debug_diameters
e_debug_fill_area
e_invest_slice_order
e_bool_cont

Definition at line 61 of file marParameters.h.

00062     {
00063 // PS ->            e_debug_window_visible = 0  ,
00064 // PS ->            e_debug_console_visible     ,
00065 // PS ->            e_calculate_mip_default     ,
00066 // PS ->            e_choose_all_slices_default ,
00067             e_debug_isocontour          ,
00068             e_debug_diameters           ,
00069             e_debug_fill_area           ,
00070             e_invest_slice_order        ,
00071 // PS ->            e_show_cell                 ,
00072 // PS ->            e_show_int_cell             ,
00073                 e_bool_cont
00074     };

enum marParameters::DoubleParamIndexes

Enumerator:

e_gravity_distance
e_axis_discret_step
e_distance_to_maximum_intensity
e_cell_coeficient
e_flexion_coeficient
e_tension_coeficient
e_voxel_x_dimension
e_voxel_y_dimension
e_voxel_z_dimension
e_scale
e_threshold_isocontour
e_threshold_snake_isocontour
e_sigma
e_RescaleIntercept
e_RescaleSlope
e_double_cont

Definition at line 75 of file marParameters.h.

00076     {
00077             e_gravity_distance = 0          ,
00078             e_axis_discret_step             ,
00079             e_distance_to_maximum_intensity ,
00080             e_cell_coeficient               ,
00081             e_flexion_coeficient            ,
00082             e_tension_coeficient            ,
00083             e_voxel_x_dimension             ,
00084             e_voxel_y_dimension             ,
00085             e_voxel_z_dimension             ,
00086             e_scale                         ,
00087 // PS ->            e_sampling                      ,
00088             e_threshold_isocontour          ,
00089             e_threshold_snake_isocontour    ,
00090             e_sigma                         ,
00091         e_RescaleIntercept              ,
00092         e_RescaleSlope                  ,
00093 // PS ->            e_gradient_coeficient           ,
00094 // PS ->            e_extern_coeficient             ,
00095 // PS ->            e_ballon_coeficient             ,
00096 // PS ->            e_back_color_3D_r               ,
00097 // PS ->            e_back_color_3D_g               ,
00098 // PS ->            e_back_color_3D_b               ,
00099 // PS ->            e_axis_color_r                  ,
00100 // PS ->            e_axis_color_g                  ,
00101 // PS ->            e_axis_color_b                  ,
00102             e_double_cont
00103     };

enum marParameters::IntParamIndexes

Enumerator:

e_roi_dimension
e_step
e_step_coeficient
e_mass_power
e_algorithm_type
e_mask_size
e_number_of_points_for_snake
e_quantification_type
e_stenosis_type
e_voxel_type
e_int_cont

Definition at line 104 of file marParameters.h.

00105     {
00106             e_roi_dimension = 0                     ,
00107             e_step                                  ,
00108             e_step_coeficient                       ,
00109             e_mass_power                            ,
00110             e_algorithm_type                        ,
00111             e_mask_size                             ,
00112             e_number_of_points_for_snake            ,
00113             e_quantification_type                   ,
00114             e_stenosis_type                         ,
00115 // PS ->            e_number_of_iterations_snake_isocontour ,
00116 // PS ->            e_number_of_iterations_snake_deriche    ,
00117             e_voxel_type                            ,
00118 // PS ->            e_coef_cell_max_int                     ,
00119             e_int_cont
00120     };

enum marParameters::QuantificationTypes

Enumerator:

TYPE_AREA
TYPE_PERIMETER
TYPE_DIAMETER_FROM_AREA
TYPE_DIAMETER_FROM_PERIMETER
TYPE_MINIMUM_DIAMETER
TYPE_MAXIMUM_DIAMETER
TYPE_AVERAGE_DIAMETER

Definition at line 50 of file marParameters.h.

00051     {
00052             TYPE_AREA                    = 0x01,
00053             TYPE_PERIMETER               = 0x02,
00054             TYPE_DIAMETER_FROM_AREA      = 0x04,
00055             TYPE_DIAMETER_FROM_PERIMETER = 0x08,
00056             TYPE_MINIMUM_DIAMETER        = 0x10,
00057             TYPE_MAXIMUM_DIAMETER        = 0x20,
00058             TYPE_AVERAGE_DIAMETER        = 0x40
00059
00060     };

enum marParameters::StringParamIndexes

Enumerator:

e_installation_directory
e_dicom_images_directory
e_string_cont

Definition at line 123 of file marParameters.h.

00124      {
00125             e_installation_directory = 0 ,
00126             e_dicom_images_directory    ,
00127             e_string_cont
00128      };

enum marParameters::VoxelTypes

/def Enumerations Some mnemonic enumerations for indexes or behaviour types.

Enumerator:

VOX_TYPE_MINIMUM
VOX_TYPE_NORMAL

Definition at line 37 of file marParameters.h.

00038     {
00039             VOX_TYPE_MINIMUM = 0x01,
00040             VOX_TYPE_NORMAL  = 0x02
00041
00042     };

Constructor & Destructor Documentation

marParameters::marParameters ( ) [inline]

Default constructor.

Definition at line 134 of file marParameters.h.

00134 { reset( );  };

marParameters::~marParameters ( ) [inline]

Default destructor.

Definition at line 138 of file marParameters.h.

00138 {}

Member Function Documentation

void marParameters::copyFrom ( const marParameters & from )

Copy.

Definition at line 162 of file marParameters.cpp.

References _boolValues, _doubleValues, _intValues, _stringValues, e_bool_cont, e_double_cont, e_int_cont, and e_string_cont.

Referenced by wxProcessingCTWidget::OnExtract().

00163 {
00164     int i;
00165
00166     memcpy( _boolValues, from._boolValues, e_bool_cont * sizeof( bool ) );
00167     memcpy( _intValues, from._intValues, e_int_cont * sizeof( int ) );
00168     memcpy( _doubleValues,
00169                 from._doubleValues,
00170                 e_double_cont * sizeof( double ) );
00171
00172      for( i = 0; i < e_string_cont; i++ )
00173                 _stringValues[ i ] = from._stringValues[ i ];
00174 }

Here is the caller graph for this function:

bool marParameters::getBoolParam ( int i ) [inline]

Default analyzers & modificators.

These methods use an index i, which should be one defined on correspondant type enum. For example, if you want to get the installation directory parameter you should write:

marParameters* myParams = new marParameters( ); std::string myDir = myParams-> getStringParam( marParameters::e_installation_directory );

Definition at line 151 of file marParameters.h.

Referenced by wxSurfaceSTLWidget::ShowMARACASData().

00151 { return( _boolValues[ i ] );   };

Here is the caller graph for this function:

int marParameters::getCalcPercentage ( )

Definition at line 505 of file marParameters.cpp.

References _calcPercentage.

00505                                       {
00506         return _calcPercentage;
00507 }

int marParameters::getContourThresh ( )

Definition at line 461 of file marParameters.cpp.

References _contourThresh.

00461                                     {
00462         return _contourThresh;
00463 }

double marParameters::getDimIma ( )

Definition at line 114 of file marParameters.cpp.

References _doubleValues, _intValues, e_roi_dimension, and e_scale.

Referenced by marAxis::create2DDiameterMax(), marAxis::create2DDiameterMin(), marAxisCT::create2DDiametersMax(), marAxisCT::create2DDiametersMin(), marAxis::create3DSlice(), marAxis::createContour(), marAxisCT::createContours(), getImaRatio(), and vtk3DQuantSurfaceWidget::Set3DSliceActor().

00115 {
00116         double scale = _doubleValues[ e_scale ];
00117         double roiDim = ( double )( _intValues[ e_roi_dimension ] );
00118     return( scale * roiDim );
00119 }

Here is the caller graph for this function:

double marParameters::getDoubleParam ( int i ) [inline]

Definition at line 152 of file marParameters.h.

Referenced by marAxis::create2Dcontour(), marAxis::doSpline(), marExperiment::extractVascularTree(), wxMaracasParametersDialog::Reset(), wxSTLWidget_02::wxSTLWidget_02(), and wxSTLWidget_03::wxSTLWidget_03().

00152 { return( _doubleValues[ i ] ); };

Here is the caller graph for this function:

double marParameters::getImaRatio ( )

Definition at line 129 of file marParameters.cpp.

References getDimIma(), and getSizeIma().

00130 {
00131     return( getDimIma( ) / ( double )( getSizeIma( ) ) );
00132 }

Here is the call graph for this function:

int marParameters::getIntParam ( int i ) [inline]

Definition at line 153 of file marParameters.h.

Referenced by marExperiment::extractVascularTree(), and wxMaracasParametersDialog::Reset().

00153 { return( _intValues[ i ] );    };

Here is the caller graph for this function:

bool marParameters::getInvestSliceOrder ( )

Definition at line 455 of file marParameters.cpp.

References _boolValues, and e_invest_slice_order.

Referenced by wxMaracasApp::SetVolumeData().

00455                                        {
00456   return _boolValues[ e_invest_slice_order ];
00457 }

Here is the caller graph for this function:

int marParameters::getLumenPercentage ( )

Definition at line 500 of file marParameters.cpp.

References _lumenPercentage.

00500                                            {
00501         return _lumenPercentage;
00502 }

double marParameters::getRadius ( )

Definition at line 476 of file marParameters.cpp.

References _radius.

00476                                 {
00477         return _radius;
00478 }

wxArrayString marParameters::getRelationalArray ( )

Definition at line 360 of file marParameters.cpp.

References _boolValues, _doubleValues, _intValues, _stringValues, BoolParamNames, DoubleParamNames, e_bool_cont, e_double_cont, e_int_cont, e_string_cont, IntParamNames, and StringParamNames.

Referenced by params_dll().

00361 {
00362     // Allocate memory for pairs of data plus one end NULL array
00363         //    wxStringList ret;
00364     wxArrayString ret;
00365     wxString str;
00366     int i, j;
00367
00368     for( i = 0, j = 0; i < e_bool_cont; i++, j += 2 ) {
00369
00370                 ret.Add( wxString( BoolParamNames[ i ], wxConvUTF8)  );
00371                 str.Printf( _T("%d"), ( _boolValues[ i ] )? 1: 0 );
00372                 ret.Add( str );
00373
00374     } // rof
00375     for( i = 0; i < e_double_cont; i++, j += 2 ) {
00376
00377                 ret.Add( wxString( DoubleParamNames[ i ], wxConvUTF8)  );
00378                 str.Printf( _T("%f"), _doubleValues[ i ] );
00379                 ret.Add( str );
00380
00381     } // rof
00382     for( i = 0; i < e_int_cont; i++, j += 2 ) {
00383
00384                 ret.Add( wxString( IntParamNames[ i ], wxConvUTF8) );
00385                 str.Printf( _T("%d"), _intValues[ i ] );
00386                 ret.Add( str );
00387
00388     } // rof
00389
00390      for( i = 0; i < e_string_cont; i++, j += 2 ) {
00391                 ret.Add( wxString( StringParamNames[ i ], wxConvUTF8)  );
00392                 ret.Add( wxString( _stringValues[ i ].c_str( ), wxConvUTF8 ) );
00393      } // rof
00394
00395
00396     return( ret );
00397
00398 }

Here is the caller graph for this function:

float marParameters::getRescaleIntercept ( )

Definition at line 150 of file marParameters.cpp.

References _doubleValues, and e_RescaleIntercept.

Referenced by marDynData::loadData(), wxMaracasImageBrowser02::OnBtSaveVOIData(), wxSTLWidget_02::wxSTLWidget_02(), and wxSTLWidget_03::wxSTLWidget_03().

00150                                         {
00151         return (float) _doubleValues[ e_RescaleIntercept ];
00152 }

Here is the caller graph for this function:

float marParameters::getRescaleSlope ( )

Definition at line 146 of file marParameters.cpp.

References _doubleValues, and e_RescaleSlope.

Referenced by marDynData::loadData(), wxMaracasImageBrowser02::OnBtSaveVOIData(), wxSTLWidget_02::wxSTLWidget_02(), and wxSTLWidget_03::wxSTLWidget_03().

00146                                     {
00147         return (float) _doubleValues[ e_RescaleSlope ];
00148 }

Here is the caller graph for this function:

int marParameters::getSizeIma ( )

Definition at line 122 of file marParameters.cpp.

Referenced by marAxis::create2Dcontour(), marAxis::create2DDiameterMax(), marAxis::create2DDiameterMin(), marAxisCT::create2DDiametersMax(), marAxisCT::create2DDiametersMin(), marAxis::create3DSlice(), marAxis::createContour(), marAxisCT::createContours(), marAxis::createSlice(), getImaRatio(), and vtk3DQuantSurfaceWidget::Set3DSliceActor().

00123 {
00124     //  TODO : There should be a formal way to calculate a good image size.
00125     return( 128 );
00126 }

Here is the caller graph for this function:

double marParameters::getStandardDeviation ( )

Definition at line 471 of file marParameters.cpp.

References _standardDeviation.

00471                                            {
00472         return _standardDeviation;
00473 }

wxString& marParameters::getStringParam ( int i ) [inline]

Definition at line 156 of file marParameters.h.

Referenced by wxSTLWidget_02::OnBtnCreateFileSTL(), wxSTLWidget_03::OnBtnCreateFileSTL(), wxPathologyWidget_01::OnBtnFileSTL(), wxSTLWidget_03::OnBtnSaveBinaryFile(), wxSTLWidget_02::OnBtnSTLFileLoad(), and wxSTLWidget_03::OnBtnSTLFileLoad().

00156 { return( _stringValues[ i ] );};

Here is the caller graph for this function:

double marParameters::getVoxelSize ( )

Special analizers & modifiers (in marKernel context, of course).

Definition at line 82 of file marParameters.cpp.

References _doubleValues, _intValues, e_voxel_type, e_voxel_x_dimension, e_voxel_y_dimension, e_voxel_z_dimension, and VOX_TYPE_MINIMUM.

Referenced by wxSurfaceWidget::AddAxisActors(), wxSTLWidget_02::CreateViewPanel(), wxSTLWidget_03::CreateViewPanel(), marExperiment::extractVascularTree(), marDynData::getActualVoxel(), GetActualVoxelSize_dll(), marDynData::loadData(), and wxSurfaceWidget::OnManualAxis().

00083 {
00084 /* OLD CODE:
00085
00086  double ret = 1.0;
00087
00088   if( _intValues[ e_voxel_type ] == VOX_TYPE_MINIMUM ) {
00089
00090    ret = _doubleValues[ e_voxel_x_dimension ];
00091    ret = GTM_MIN( _doubleValues[ e_voxel_y_dimension ], ret );
00092    ret = GTM_MIN( _doubleValues[ e_voxel_z_dimension ], ret );
00093
00094     } // fi
00095     return( ret );
00096         */
00097
00098
00099 //EEDx1
00100     double ret = 1.0;
00101     //Juan Carrillo 03/06/2005
00102         if( _intValues[ e_voxel_type ] == VOX_TYPE_MINIMUM ) {
00103
00104                 ret = _doubleValues[ e_voxel_x_dimension ];
00105                 ret = ( _doubleValues[ e_voxel_y_dimension ] < ret )?
00106                         _doubleValues[ e_voxel_y_dimension ]: ret;
00107                 ret = ( _doubleValues[ e_voxel_z_dimension ] < ret )?
00108                         _doubleValues[ e_voxel_z_dimension ]: ret;
00109     } // fi
00110     return( ret*1 );
00111 }

Here is the caller graph for this function:

bool marParameters::load ( wxString & nr )

Definition at line 329 of file marParameters.cpp.

References load().

00331 00332 00333 00334 00335 00336         { 00337 00338 00339 00340 00341 00342         } 00343 00344         { 00345 00346 00347 00348 00349         } 00350 00351         { 00352 00353 00354 00355 00356         } 00357 }

class="fragment">00330 { std::ifstream is( (const char*)nr.mb_str( ),std::ios::binary|std::ios::in); //EEDxx2.4 DEBuG // wxLogDebug("Laoding parameters from file " + nr); if( is==NULL ) wxString errorMsg; errorMsg= _T("Error : Cannot open file ")+nr+_T(" to load parameters"); //EEDxx2.4 DEBuG // wxLogDebug(errorMsg); return( false ); if (load( is )) is.close( ); //EEDxx2.4 DEBuG // wxLogDebug("Parameters loaded from file " + nr); return( true ); else is.close( ); //EEDxx2.4 DEBuG // wxLogDebug("Error : Cannot load parameters from file "+nr+": file may be corrupted"); return(false);

Here is the call graph for this function:

bool marParameters::load ( std::ifstream & is )

Definition at line 272 of file marParameters.cpp.

References _boolValues, _doubleValues, _intValues, _stringValues, e_bool_cont, e_double_cont, e_int_cont, and e_string_cont.

Referenced by load(), marInterfaceCT::loadExperiment(), marInterface::loadExperiment(), marInterfaceCT::loadParameters(), and marInterface::loadParameters().

00273 {
00274         int i, s;
00275         try
00276         {
00277                 is.read( ( char* )_boolValues, e_bool_cont * sizeof( bool ) );
00278                 is.read( ( char* )_intValues, e_int_cont * sizeof( int ) );
00279                 is.read( ( char* )_doubleValues, e_double_cont * sizeof( double ) );
00280                 for( i = 0; i < e_string_cont; i++ )
00281                 {
00282                         is.read( ( char* )&s, sizeof( int ) );
00283                         _stringValues[ i ].resize( s );
00284                         is.read( ( char* )_stringValues[ i ].c_str( ), s * sizeof( char ) );
00285                 } // rof
00286                 return( true );
00287         }
00288         catch (...)
00289         {
00290
00291                 return(false);
00292         }
00293
00294 }

Here is the caller graph for this function:

void marParameters::reset ( )

Persistence methods.

Definition at line 177 of file marParameters.cpp.

References _boolValues, _calcPercentage, _contourThresh, _doubleValues, _intValues, _lumenPercentage, _radius, _standardDeviation, _stringValues, e_algorithm_type, e_axis_discret_step, e_cell_coeficient, e_debug_diameters, e_debug_fill_area, e_debug_isocontour, e_dicom_images_directory, e_distance_to_maximum_intensity, e_flexion_coeficient, e_gravity_distance, e_installation_directory, e_invest_slice_order, e_mask_size, e_mass_power, e_number_of_points_for_snake, e_quantification_type, e_RescaleIntercept, e_RescaleSlope, e_roi_dimension, e_scale, e_sigma, e_stenosis_type, e_step, e_step_coeficient, e_tension_coeficient, e_threshold_isocontour, e_threshold_snake_isocontour, e_voxel_type, e_voxel_x_dimension, e_voxel_y_dimension, e_voxel_z_dimension, ISOCONTOURS, TYPE_AREA, and VOX_TYPE_NORMAL.

Referenced by marInterfaceCT::loadExperiment(), marInterface::loadExperiment(), marInterfaceCT::loadParameters(), and marInterface::loadParameters().

00178 {
00179         // PS ->     _boolValues[ e_debug_window_visible ]      = false;
00180         // PS ->     _boolValues[ e_debug_console_visible ]     = false;
00181         // PS ->     _boolValues[ e_calculate_mip_default ]     = false;
00182         // PS ->     _boolValues[ e_choose_all_slices_default ] = true;
00183     _boolValues[ e_debug_isocontour ]          = true;
00184     _boolValues[ e_debug_diameters ]           = true;
00185     _boolValues[ e_debug_fill_area ]           = false;
00186     _boolValues[ e_invest_slice_order ]            = false;
00187         // PS ->     _boolValues[ e_show_cell ]                 = true;
00188         // PS ->     _boolValues[ e_show_int_cell ]             = true;
00189
00190     _doubleValues[ e_gravity_distance ]              = 1.0;
00191     _doubleValues[ e_axis_discret_step ]             = 2.0;
00192     _doubleValues[ e_distance_to_maximum_intensity ] = 0.0;
00193     _doubleValues[ e_cell_coeficient ]               = 1.2;
00194     _doubleValues[ e_flexion_coeficient ]            = 0.1;
00195     _doubleValues[ e_tension_coeficient ]            = 0.3;
00196     _doubleValues[ e_voxel_x_dimension ]             = 1.0;
00197     _doubleValues[ e_voxel_y_dimension ]             = 1.0;
00198     _doubleValues[ e_voxel_z_dimension ]             = 1.0;
00199     _doubleValues[ e_scale ]                         = 4.0;
00200         // PS ->     _doubleValues[ e_sampling ]                      = 4.0;
00201     _doubleValues[ e_threshold_isocontour ]          = 40.0;
00202     _doubleValues[ e_threshold_snake_isocontour ]    = 40.0;
00203     _doubleValues[ e_sigma ]                         = 0.1;
00204     _doubleValues[ e_RescaleIntercept ]              = 0;
00205     _doubleValues[ e_RescaleSlope ]                  = 1;
00206         // PS ->     _doubleValues[ e_extern_coeficient ]             = 0.3;
00207         // PS ->     _doubleValues[ e_gradient_coeficient ]           = 0.3;
00208         // PS ->     _doubleValues[ e_ballon_coeficient ]             = 0.02;
00209         // PS ->     _doubleValues[ e_back_color_3D_r ]               = 0.0;
00210         // PS ->     _doubleValues[ e_back_color_3D_g ]               = 0.0;
00211         // PS ->     _doubleValues[ e_back_color_3D_b ]               = 0.0;
00212         // PS ->     _doubleValues[ e_axis_color_r ]                  = 1.0;
00213         // PS ->     _doubleValues[ e_axis_color_g ]                  = 0.0;
00214         // PS ->     _doubleValues[ e_axis_color_b ]                  = 0.0;
00215
00216
00217     _intValues[ e_roi_dimension ]                         = 10;
00218     _intValues[ e_step ]                                  = 3;
00219     _intValues[ e_step_coeficient ]                       = 2;
00220     _intValues[ e_mass_power ]                            = 2;
00221     _intValues[ e_algorithm_type ]                        = ISOCONTOURS;
00222     _intValues[ e_mask_size ]                             = 5;
00223     _intValues[ e_number_of_points_for_snake ]            = 20;
00224     _intValues[ e_quantification_type ]                   = TYPE_AREA;
00225     _intValues[ e_stenosis_type ]                         = TYPE_AREA;
00226         // PS ->     _intValues[ e_number_of_iterations_snake_isocontour ] = 5;
00227         // PS ->     _intValues[ e_number_of_iterations_snake_deriche ]    = 700;
00228
00229
00230     _intValues[ e_voxel_type ]                            = VOX_TYPE_NORMAL;
00231
00232
00233         // PS ->     _intValues[ e_coef_cell_max_int ]                     = 2;
00234
00235      _stringValues[ e_installation_directory ]  = _T("NO_DIRECTORY");
00236      _stringValues[ e_dicom_images_directory ] = _T("NO_DIRECTORY");
00237
00238          //MAZV CT compatibility
00239         _contourThresh          = 10;
00240         _lumenPercentage        = 86;
00241         _calcPercentage         = 90;
00242         _standardDeviation      = 3;
00243         _radius                 = 3;
00244         //end MAZV CT compatibility
00245
00246 }

Here is the caller graph for this function:

bool marParameters::save ( wxString & nw )

Definition at line 297 of file marParameters.cpp.

References save().

00298 {
00299     std::ofstream os( (const char*)nw.mb_str( ) ,std::ios::out |std::ios::binary );
00300
00301 //EEDxx2.4 DEBuG
00302 //      wxLogDebug("Saving parameters to file " + nw);
00303
00304     if( os==NULL )
00305         {
00306                 wxString errorMsg;
00307                 errorMsg= _T("Error : Cannot open file ")+nw+_T(" to save parameters");
00308 //EEDxx2.4 DEBuG
00309 //              wxLogDebug(errorMsg);
00310                 return( false );
00311         }
00312         if (save( os ))
00313         {
00314                 os.close( );
00315 //EEDxx2.4 DEBuG
00316 //              wxLogDebug("Parameters saved to file " + nw);
00317                 return( true );
00318         }
00319         else
00320         {
00321                 os.close( );
00322 //EEDxx2.4 DEBuG
00323 //              wxLogDebug("Error : Cannot save parameters to file "+nw);
00324                 return(false);
00325         }
00326 }

Here is the call graph for this function:

bool marParameters::save ( std::ofstream & os )

Definition at line 249 of file marParameters.cpp.

References _boolValues, _doubleValues, _intValues, _stringValues, e_bool_cont, e_double_cont, e_int_cont, and e_string_cont.

Referenced by save(), marInterfaceCT::saveExperiment(), marInterface::saveExperiment(), marInterfaceCT::saveParameters(), and marInterface::saveParameters().

00250 {
00251     int i, s;
00252         try
00253         {
00254                 os.write( ( const char* )_boolValues, e_bool_cont * sizeof( bool ) );
00255                 os.write( ( char* )_intValues, e_int_cont * sizeof( int ) );
00256                 os.write( ( const char* )_doubleValues, e_double_cont * sizeof( double ) );
00257                 for( i = 0; i < e_string_cont; i++ ) {
00258                         s = _stringValues[ i ].length( );
00259                         os.write( ( const char* )&s, sizeof( int ) );
00260                         os.write( ( const char* )_stringValues[ i ].c_str( ), s * sizeof( char ) );
00261                 } // rof
00262                 return( true );
00263         }
00264         catch (...)
00265         {
00266                 return(false);
00267         }
00268
00269 }

Here is the caller graph for this function:

void marParameters::setBoolParam	(	int	i,
		bool	p
	)			`[inline]`

Definition at line 158 of file marParameters.h.

Referenced by wxSurfaceSTLWidget::OnInvertSliceOrder().

00158 { _boolValues[ i ] = p;     };

Here is the caller graph for this function:

void marParameters::setCalcPercentage ( int percentage )

Definition at line 495 of file marParameters.cpp.

References _calcPercentage.

Referenced by marExperimentCT::updateCalcPercentage().

00495                                                     {
00496         _calcPercentage = percentage;
00497 }

Here is the caller graph for this function:

void marParameters::setContourThresh ( int thresh )

Definition at line 466 of file marParameters.cpp.

References _contourThresh.

Referenced by marExperimentCT::updateDiscontinuityThreshold().

00466                                                  {
00467         _contourThresh = thresh;
00468 }

Here is the caller graph for this function:

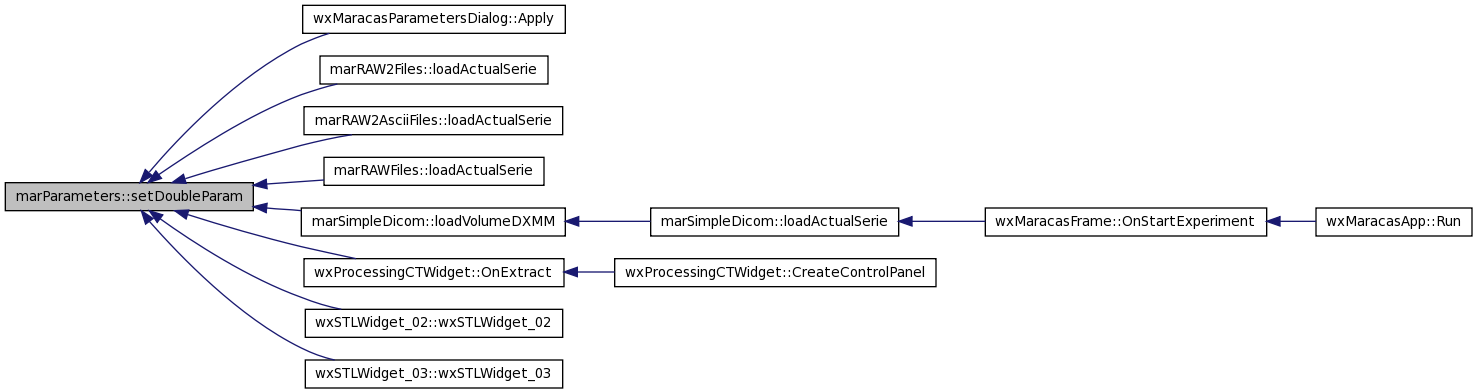

void marParameters::setDoubleParam	(	int	i,
		double	p
	)			`[inline]`

Definition at line 159 of file marParameters.h.

Referenced by wxMaracasParametersDialog::Apply(), marRAW2Files::loadActualSerie(), marRAW2AsciiFiles::loadActualSerie(), marRAWFiles::loadActualSerie(), marSimpleDicom::loadVolumeDXMM(), wxProcessingCTWidget::OnExtract(), wxSTLWidget_02::wxSTLWidget_02(), and wxSTLWidget_03::wxSTLWidget_03().

00159 { _doubleValues[ i ] = p;      };

Here is the caller graph for this function:

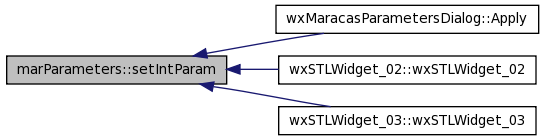

void marParameters::setIntParam	(	int	i,
		int	p
	)			`[inline]`

Definition at line 160 of file marParameters.h.

Referenced by wxMaracasParametersDialog::Apply(), wxSTLWidget_02::wxSTLWidget_02(), and wxSTLWidget_03::wxSTLWidget_03().

00160 { _intValues[ i ] = p;         };

Here is the caller graph for this function:

void marParameters::setLumenPercentage ( int percentage )

Definition at line 491 of file marParameters.cpp.

References _lumenPercentage.

Referenced by marExperimentCT::updateLumenPercentage().

00491                                                      {
00492         _lumenPercentage = percentage;
00493 }

Here is the caller graph for this function:

void marParameters::setRadius ( double rad )

Definition at line 486 of file marParameters.cpp.

References _radius.

00486                                           {
00487         _radius = rad;
00488 }

void marParameters::setRelationalArray ( wxArrayString & arr )

Definition at line 402 of file marParameters.cpp.

References _boolValues, _doubleValues, _intValues, _stringValues, BoolParamNames, DoubleParamNames, e_bool_cont, e_double_cont, e_int_cont, e_string_cont, IntParamNames, and StringParamNames.

Referenced by setParams_dll().

00403 {
00404
00405     int i = 0, j;
00406     bool cont;
00407
00408         //    while( arr[ i ] != NULL ) {
00409     while( !arr.IsEmpty() ) {
00410
00411                 cont = true;
00412                 for( j = 0; j < e_string_cont && cont; j++ ) {
00413                         if( strcmp( StringParamNames[ j ], (const char*)arr[ i ].mb_str() ) == 0 ) {
00414                                 _stringValues[ j ] = ( wxString )arr[ i + 1 ];
00415                                 cont = false;
00416                         } // fi
00417                 } // rof
00418                 for( j = 0; j < e_bool_cont && cont; j++ ) {
00419
00420                         if( strcmp( BoolParamNames[ j ], (const char*)arr[ i ].mb_str() ) == 0 ) {
00421
00422                                 _boolValues[ j ] = ( strcmp( (const char*)arr[ i + 1 ].mb_str(), "1" ) == 0 );
00423                                 cont = false;
00424
00425                         } // fi
00426
00427                 } // rof
00428                 for( j = 0; j < e_int_cont && cont; j++ ) {
00429
00430                         if( strcmp( IntParamNames[ j ], (const char*)arr[ i ].mb_str() ) == 0 ) {
00431
00432                                 _intValues[ j ] = atoi( (const char*)arr[ i + 1 ].mb_str() );
00433                                 cont = false;
00434
00435                         } // fi
00436
00437                 } // rof
00438                 for( j = 0; j < e_double_cont && cont; j++ ) {
00439
00440                         if( strcmp( DoubleParamNames[ j ], (const char*)arr[ i ].mb_str() ) == 0 ) {
00441
00442                                 ( ( wxString )arr[ i + 1 ] ).ToDouble( &_doubleValues[ j ] );
00443                                 cont = false;
00444
00445                         } // fi
00446
00447                 } // rof
00448                 i += 2;
00449
00450     } // fwhile
00451
00452 }

Here is the caller graph for this function:

void marParameters::setRescaleIntercept ( float intercept )

Definition at line 158 of file marParameters.cpp.

References _doubleValues, and e_RescaleIntercept.

Referenced by wxSTLWidget_02::wxSTLWidget_02(), and wxSTLWidget_03::wxSTLWidget_03().

00158                                                       {
00159         _doubleValues[ e_RescaleIntercept ]= intercept;
00160 }

Here is the caller graph for this function:

void marParameters::setRescaleSlope ( float slope )

Definition at line 154 of file marParameters.cpp.

References _doubleValues, and e_RescaleSlope.

Referenced by wxSTLWidget_02::wxSTLWidget_02(), and wxSTLWidget_03::wxSTLWidget_03().

00154                                               {
00155         _doubleValues[ e_RescaleSlope ]= slope;
00156 }

Here is the caller graph for this function:

void marParameters::setROIStep ( double width )

Definition at line 135 of file marParameters.cpp.

References _doubleValues, _intValues, e_cell_coeficient, e_roi_dimension, e_step, and e_step_coeficient.

Referenced by vtk3DSurfaceWidget::SetInitialPoint(), and SetROIStep_dll().

00136 {
00137     _intValues[ e_roi_dimension ] =
00138                 ( int )ceil( _doubleValues[ e_cell_coeficient ] * width );
00139     _intValues[ e_step ] =
00140                 ( int )floor( ( double )_intValues[ e_roi_dimension ] /
00141                       ( double )_intValues[ e_step_coeficient ] );
00142 }

Here is the caller graph for this function:

void marParameters::setStandardDeviation ( double dev )

Definition at line 481 of file marParameters.cpp.

References _standardDeviation.

00481                                                      {
00482         _standardDeviation = dev;
00483 }

void marParameters::setStringParam	(	int	i,
		const wxString &	p
	)			`[inline]`

Definition at line 163 of file marParameters.h.

Referenced by wxSTLWidget_02::OnBtnCreateFileSTL(), wxSTLWidget_03::OnBtnCreateFileSTL(), wxPathologyWidget_01::OnBtnFileSTL(), wxSTLWidget_02::OnBtnSTLFileLoad(), and wxSTLWidget_03::OnBtnSTLFileLoad().

00163 { _stringValues[ i ] = p;       };

Here is the caller graph for this function:

Member Data Documentation

bool marParameters::_boolValues[(int) e_bool_cont] [private]

Definition at line 213 of file marParameters.h.

Referenced by copyFrom(), getInvestSliceOrder(), getRelationalArray(), load(), reset(), save(), and setRelationalArray().

int marParameters::_calcPercentage [private]

Definition at line 225 of file marParameters.h.

Referenced by getCalcPercentage(), reset(), and setCalcPercentage().

int marParameters::_contourThresh [private]

Definition at line 221 of file marParameters.h.

Referenced by getContourThresh(), reset(), and setContourThresh().

double marParameters::_doubleValues[(int) e_double_cont] [private]

Definition at line 214 of file marParameters.h.

Referenced by copyFrom(), getDimIma(), getRelationalArray(), getRescaleIntercept(), getRescaleSlope(), getVoxelSize(), load(), reset(), save(), setRelationalArray(), setRescaleIntercept(), setRescaleSlope(), and setROIStep().

int marParameters::_intValues[(int) e_int_cont] [private]

Definition at line 215 of file marParameters.h.

Referenced by copyFrom(), getDimIma(), getRelationalArray(), getVoxelSize(), load(), reset(), save(), setRelationalArray(), and setROIStep().

int marParameters::_lumenPercentage [private]

Definition at line 224 of file marParameters.h.

Referenced by getLumenPercentage(), reset(), and setLumenPercentage().

double marParameters::_radius [private]

Definition at line 223 of file marParameters.h.

Referenced by getRadius(), reset(), and setRadius().

double marParameters::_standardDeviation [private]

Definition at line 222 of file marParameters.h.

Referenced by getStandardDeviation(), reset(), and setStandardDeviation().

wxString marParameters::_stringValues[(int) e_string_cont] [private]

Definition at line 218 of file marParameters.h.

Referenced by copyFrom(), getRelationalArray(), load(), reset(), save(), and setRelationalArray().

The documentation for this class was generated from the following files:

/home/davila/Creatis/creaMaracasVisu/lib/maracasVisuLib/src/kernel/marParameters.h
/home/davila/Creatis/creaMaracasVisu/lib/maracasVisuLib/src/kernel/marParameters.cpp

marParameters Class Reference

Public Types

Public Member Functions

Private Attributes

Detailed Description

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
