gdcm::DocEntrySet

gdcm::DocEntrySet Class Reference

DocEntrySet is an abstract base class for ElementSet and SQItem which are both containers for DocEntries. More...

#include <gdcmDocEntrySet.h>

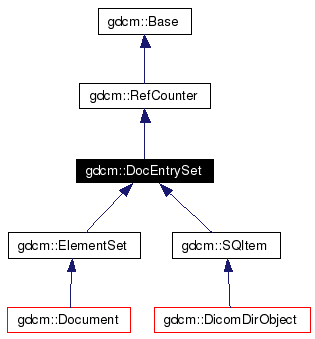

Inheritance diagram for gdcm::DocEntrySet:

Inheritance graph
[legend]

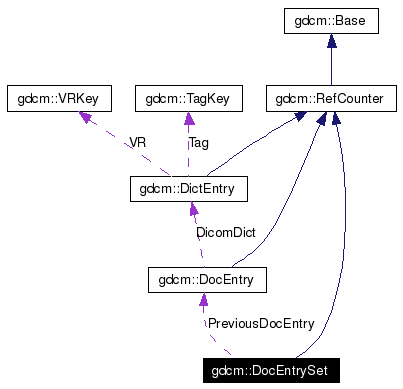

Collaboration diagram for gdcm::DocEntrySet:

Collaboration graph
[legend]
List of all members.

Public Member Functions

virtual void WriteContent (std::ofstream *fp, FileType filetype)=0
 write any type of entry to the entry set
virtual void ClearEntry ()=0
 Remove all Entry of the current set.
virtual bool AddEntry (DocEntry *entry)=0
 adds any type of entry to the current set
virtual bool RemoveEntry (DocEntry *entryToRemove)=0
 Removes any type of entry out of the entry set, and destroys it.
virtual DocEntry * GetFirstEntry ()=0
 Gets the first entry (of any type) of the current set.
virtual DocEntry * GetNextEntry ()=0
 Gets the next entry (of any type) of the current set.
virtual std::string GetEntryString (uint16_t group, uint16_t elem)
 Get the "std::string representable" value of the Dicom entry.
virtual void * GetEntryBinArea (uint16_t group, uint16_t elem)
 Gets (from Header) a 'non string' element value.
virtual int GetEntryLength (uint16_t group, uint16_t elem)
 Searches within the DocEntrySet for the value length of a given tag..
virtual DocEntry * GetDocEntry (uint16_t group, uint16_t elem)=0
 Gets any type of DocEntry, identified by its (group,elem).
DataEntry * GetDataEntry (uint16_t group, uint16_t elem)
 Same as Document::GetDocEntry except it returns a result only when the corresponding entry is of type DataEntry.
SeqEntry * GetSeqEntry (uint16_t group, uint16_t elem)
 Same as Document::GetDocEntry except it returns a result only when the corresponding entry is of type SeqEntry.
bool SetEntryString (std::string const &content, uint16_t group, uint16_t elem)
 Accesses an existing DocEntry (i.e. a Dicom Element) through it's (group, element) and modifies it's content with the given value.
bool SetEntryBinArea (uint8_t *content, int lgth, uint16_t group, uint16_t elem)
 Accesses an existing DocEntry (i.e. a Dicom Element) through it's (group, element) and modifies it's content with the given value.
bool SetEntryString (std::string const &content, DataEntry *entry)
 Accesses an existing DocEntry (i.e. a Dicom Element) and modifies it's content with the given value.
bool SetEntryBinArea (uint8_t *content, int lgth, DataEntry *entry)
 Accesses an existing DataEntry (i.e. a Dicom Element) and modifies it's content with the given value.
DataEntry * InsertEntryString (std::string const &value, uint16_t group, uint16_t elem, VRKey const &vr=GDCM_VRUNKNOWN)
 Modifies the value of a given Doc Entry (Dicom Element) when it exists. Create it with the given value when unexistant.
DataEntry * InsertEntryBinArea (uint8_t *binArea, int lgth, uint16_t group, uint16_t elem, VRKey const &vr=GDCM_VRUNKNOWN)
 Modifies the value of a given Header Entry (Dicom Element) when it exists. Create it with the given value when unexistant. A copy of the binArea is made to be kept in the Document.
SeqEntry * InsertSeqEntry (uint16_t group, uint16_t elem)
 Creates a new gdcm::SeqEntry and adds it to the current DocEntrySet. (remove any existing entry with same group,elem).
virtual bool IsEmpty ()=0
 Tells us if the set contains no entry.
virtual bool CheckIfEntryExist (uint16_t group, uint16_t elem)
 Checks if a given Dicom Element exists within the DocEntrySet.
DataEntry * NewDataEntry (uint16_t group, uint16_t elem, VRKey const &vr=GDCM_VRUNKNOWN)
 Build a new DataEntry from all the low level arguments. Check for existence of dictionary entry, and build a default one when absent.
SeqEntry * NewSeqEntry (uint16_t group, uint16_t elem)
 Build a new SeqEntry from all the low level arguments. Check for existence of dictionary entry, and build a default one when absent.
virtual void Copy (DocEntrySet *)
void Delete ()
 Delete the object.
void Register ()
 Register the object.
void Unregister ()
 Unregister the object.
const unsigned long & GetRefCount () const
 Get the reference counting.
virtual void Print (std::ostream &=std::cout, std::string const &="")
 Printer.
void SetPrintLevel (int level)
 Sets the print level for the Dicom Header Elements.
int GetPrintLevel ()
 Gets the print level for the Dicom Entries.

Protected Member Functions

 DocEntrySet ()
 Canonical Constructor.
virtual ~DocEntrySet ()
 Canonical Destructor.
DictEntry * GetDictEntry (uint16_t group, uint16_t elem)
 Searches [both] the public [and the shadow dictionary (when they exist)] for the presence of the DictEntry with given group and element. The public dictionary has precedence on the shadow one(s), if any.
DictEntry * GetDictEntry (uint16_t group, uint16_t elem, VRKey const &vr)
 Searches [both] the public [and the shadow dictionary (when they exist)] for the presence of the DictEntry with given group and element, and create a new virtual DictEntry if necessary.

Protected Attributes

DocEntry * PreviousDocEntry
 To be able to backtrack (Private Sequence, Implicit VR related pb).
int PrintLevel
 Amount of printed details for each Dicom Entries : 0 : stands for the least detail level.

Private Member Functions

 gdcmTypeMacro (DocEntrySet)

Detailed Description

DocEntrySet is an abstract base class for ElementSet and SQItem which are both containers for DocEntries.

Since the syntax for adding a new element to a map<> or a list<> differ, DocEntrySet is designed as an adapter to unify the interfaces of DocEntrySet and ElementSet.

As an illustration of this design, please refer to the implementation of AddEntry (or any pure virtual method) in both derived classes. This adapter unification of interfaces enables the parsing of a DICOM header containing (optionaly heavily nested) sequences to be written recursively [see Document::ParseDES which calls Document::ParseSQ, which in turn calls Document::ParseDES ].

Note:
Developpers should strongly resist to the temptation of adding members to this class since this class is designed as an adapter in the form of an abstract base class.

Definition at line 61 of file gdcmDocEntrySet.h.

Constructor & Destructor Documentation

gdcm::DocEntrySet::DocEntrySet (   )  [protected]


Canonical Constructor.

Definition at line 34 of file gdcmDocEntrySet.cxx.

References PreviousDocEntry.

00035 {
00036    PreviousDocEntry = 0;
00037 }

virtual gdcm::DocEntrySet::~DocEntrySet (   )  [inline, protected, virtual]


Canonical Destructor.

Definition at line 120 of file gdcmDocEntrySet.h.

00120 {}

Member Function Documentation

virtual bool gdcm::DocEntrySet::AddEntry (  DocEntry *  entry  )  [pure virtual]


adds any type of entry to the current set

Implemented in gdcm::ElementSet, and gdcm::SQItem.

Referenced by InsertEntryBinArea(), InsertEntryString(), InsertSeqEntry(), gdcm::DicomDir::MoveSQItem(), and gdcm::Document::ParseDES().

bool gdcm::DocEntrySet::CheckIfEntryExist (  uint16_t  group,
uint16_t  elem
)  [virtual]


Checks if a given Dicom Element exists within the DocEntrySet.

Parameters:
group Group number of the searched Dicom Element
elem Element number of the searched Dicom Element
Returns:
true is found

Definition at line 392 of file gdcmDocEntrySet.cxx.

References GetDocEntry().

00393 {
00394    return GetDocEntry(group,elem)!=NULL;
00395 }

virtual void gdcm::DocEntrySet::ClearEntry (   )  [pure virtual]


Remove all Entry of the current set.

Implemented in gdcm::ElementSet, and gdcm::SQItem.

virtual void gdcm::DocEntrySet::Copy (  DocEntrySet *   )  [inline, virtual]


Reimplemented in gdcm::DicomDir, gdcm::DicomDirPatient, gdcm::DicomDirSerie, gdcm::DicomDirStudy, gdcm::ElementSet, and gdcm::SQItem.

Definition at line 114 of file gdcmDocEntrySet.h.

Referenced by gdcm::SQItem::Copy(), and gdcm::ElementSet::Copy().

00114 {};

void gdcm::RefCounter::Delete (   )  [inline, inherited]


Delete the object.

Remarks:
The object is deleted only if its reference counting is to zero

Definition at line 39 of file gdcmRefCounter.h.

Referenced by gdcm::SerieHelper::AddFileName(), gdcm::Document::Backtrack(), gdcm::FileHelper::CheckMandatoryElements(), gdcm::FileHelper::CheckMandatoryEntry(), gdcm::FileHelper::CopyMandatoryEntry(), gdcm::DicomDir::CreateDicomDirChainedList(), gdcm::File::DoTheLoadingJob(), gdcm::Dict::DoTheLoadingJob(), gdcm::DicomDirObject::FillObject(), InsertEntryBinArea(), InsertEntryString(), InsertSeqEntry(), vtkGdcmReader::LoadFileInformation(), vtkGdcmReader::LoadImageInMemory(), main(), gdcm::DicomDir::NewMeta(), gdcm::DicomDirStudy::NewVisit(), gdcm::Document::ParseDES(), gdcm::Document::ParseSQ(), gdcm::Document::ReadNextDocEntry(), gdcm::DicomDir::SetElement(), gdcm::FileHelper::SetMandatoryEntry(), gdcm::FileHelper::SetWriteFileTypeToExplicitVR(), gdcm::FileHelper::SetWriteFileTypeToImplicitVR(), gdcm::FileHelper::SetWriteFileTypeToJPEG(), gdcm::FileHelper::SetWriteToLibido(), gdcm::FileHelper::SetWriteToNoLibido(), gdcm::FileHelper::SetWriteToRaw(), gdcm::FileHelper::SetWriteToRGB(), vtkGdcmWriter::WriteDcmFile(), gdcm::DicomDir::~DicomDir(), and gdcm::Global::~Global().

00039 { Unregister(); }

gdcm::DocEntrySet::gdcmTypeMacro (  DocEntrySet   )  [private]


DataEntry * gdcm::DocEntrySet::GetDataEntry (  uint16_t  group,
uint16_t  elem
)


Same as Document::GetDocEntry except it returns a result only when the corresponding entry is of type DataEntry.

Parameters:
group Group number of the searched Dicom Element
elem Element number of the searched Dicom Element
Returns:
When present, the corresponding DataEntry.

Definition at line 99 of file gdcmDocEntrySet.cxx.

References GetDocEntry().

Referenced by gdcm::FileHelper::CheckMandatoryElements(), gdcm::FileHelper::CheckMandatoryEntry(), gdcm::Document::DoTheLoadingDocumentJob(), gdcm::File::GetBitsAllocated(), gdcm::File::GetBitsStored(), GetEntryBinArea(), gdcm::File::GetHighBitPosition(), gdcm::File::GetPlanarConfiguration(), gdcm::File::GetRescaleIntercept(), gdcm::File::GetRescaleSlope(), gdcm::File::GetSamplesPerPixel(), gdcm::File::GetXOrigin(), gdcm::File::GetXSize(), gdcm::File::GetXSpacing(), gdcm::File::GetYOrigin(), gdcm::File::GetYSize(), gdcm::File::GetYSpacing(), gdcm::File::GetZOrigin(), gdcm::File::GetZSize(), gdcm::File::GetZSpacing(), gdcm::File::IsSignedPixelData(), gdcm::ElementSet::Print(), SetEntryBinArea(), SetEntryString(), gdcm::FileHelper::SetWriteToLibido(), gdcm::FileHelper::SetWriteToNoLibido(), userSuppliedLessThanFunction(), gdcm::FileHelper::Write(), gdcm::File::Write(), and gdcm::DicomDirMeta::WriteContent().

00100 {
00101    DocEntry *currentEntry = GetDocEntry(group, elem);
00102    if ( !currentEntry )
00103       return NULL;
00104
00105    return dynamic_cast<DataEntry*>(currentEntry);
00106 }

DictEntry * gdcm::DocEntrySet::GetDictEntry (  uint16_t  group,
uint16_t  elem,
VRKey const &  vr
)  [protected]


Searches [both] the public [and the shadow dictionary (when they exist)] for the presence of the DictEntry with given group and element, and create a new virtual DictEntry if necessary.

Parameters:
group group number of the searched DictEntry
elem element number of the searched DictEntry
vr V(alue) R(epresentation) to use, if necessary
Returns:
Corresponding DictEntry when it exists, NULL otherwise.
Remarks:
The returned DictEntry is registered

Definition at line 484 of file gdcmDocEntrySet.cxx.

References gdcm::GDCM_VRUNKNOWN, gdcmWarningMacro, GetDictEntry(), gdcm::DictEntry::GetVM(), gdcm::DictEntry::GetVR(), gdcm::DictEntry::New(), gdcm::RefCounter::Register(), and gdcm::RefCounter::Unregister().

00486 {
00487    DictEntry *dictEntry = GetDictEntry(group,elem);
00488    DictEntry *goodEntry = dictEntry;
00489    VRKey goodVR = vr;
00490    TagName vm;
00491    if (elem == 0x0000)
00492       goodVR="UL";
00493
00494    if ( goodEntry )
00495    {
00496       if ( goodVR != goodEntry->GetVR()
00497         && goodVR != GDCM_VRUNKNOWN )
00498       {
00499          gdcmWarningMacro("For (" << std::hex << group << "|"
00500             << elem << "), found VR : [" << vr << "]"
00501             << " expected: [" << goodEntry->GetVR() << "]" ) ;
00502         // avoid confusing further validator with "FIXME" VM
00503         // when possible
00504          vm = dictEntry->GetVM();
00505          goodEntry = NULL;
00506       }
00507       dictEntry->Unregister();
00508    }
00509    else
00510    {
00511       vm = "FIXME";
00512    }
00513    // Create a new virtual DictEntry if necessary
00514    if (!goodEntry)
00515    {
00516       if (dictEntry)
00517       {
00518
00519          goodEntry = DictEntry::New(group, elem, goodVR, vm,//"FIXME",
00520                                     dictEntry->GetName() );
00521       }
00522       else
00523       {
00524          goodEntry = DictEntry::New(group, elem, goodVR);
00525       }
00526    }
00527    else
00528    {
00529       goodEntry->Register();
00530    }
00531    return goodEntry;
00532 }

DictEntry * gdcm::DocEntrySet::GetDictEntry (  uint16_t  group,
uint16_t  elem
)  [protected]


Searches [both] the public [and the shadow dictionary (when they exist)] for the presence of the DictEntry with given group and element. The public dictionary has precedence on the shadow one(s), if any.

Parameters:
group Group number of the searched DictEntry
elem Element number of the searched DictEntry
Returns:
Corresponding DictEntry when it exists, NULL otherwise.
Remarks:
The returned DictEntry is registered when existing

Definition at line 457 of file gdcmDocEntrySet.cxx.

References gdcmWarningMacro, gdcm::DictSet::GetDefaultPubDict(), gdcm::Global::GetDicts(), gdcm::Dict::GetEntry(), and gdcm::RefCounter::Register().

Referenced by GetDictEntry(), NewDataEntry(), NewSeqEntry(), and gdcm::Document::ReadNextDocEntry().

00458 {
00459    DictEntry *found = 0;
00460    Dict *pubDict = Global::GetDicts()->GetDefaultPubDict();
00461    if (!pubDict)
00462    {
00463       gdcmWarningMacro( "We SHOULD have a default dictionary");
00464    }
00465    else
00466    {
00467       found = pubDict->GetEntry(group, elem);
00468       if( found )
00469          found->Register();
00470    }
00471    return found;
00472 }

virtual DocEntry* gdcm::DocEntrySet::GetDocEntry (  uint16_t  group,
uint16_t  elem
)  [pure virtual]


Gets any type of DocEntry, identified by its (group,elem).

Implemented in gdcm::ElementSet, and gdcm::SQItem.

Referenced by CheckIfEntryExist(), GetDataEntry(), GetEntryLength(), GetEntryString(), GetSeqEntry(), InsertEntryBinArea(), InsertEntryString(), and InsertSeqEntry().

void * gdcm::DocEntrySet::GetEntryBinArea (  uint16_t  group,
uint16_t  elem
)  [virtual]


Gets (from Header) a 'non string' element value.

Parameters:
group group number of the Entry
elem element number of the Entry
Returns:
Pointer to the 'non string' area

Definition at line 69 of file gdcmDocEntrySet.cxx.

References gdcm::DataEntry::GetBinArea(), and GetDataEntry().

Referenced by gdcm::PixelReadConvert::GrabInformationsFromFile().

00070 {
00071    DataEntry *entry = GetDataEntry(group, elem);
00072    if ( entry )
00073       return entry->GetBinArea();
00074    return 0;
00075 }

int gdcm::DocEntrySet::GetEntryLength (  uint16_t  group,
uint16_t  elem
)  [virtual]


Searches within the DocEntrySet for the value length of a given tag..

Parameters:
group Group number of the searched tag.
elem Element number of the searched tag.
Returns:
Corresponding element length; -1 if not found

Definition at line 84 of file gdcmDocEntrySet.cxx.

References GetDocEntry(), and gdcm::DocEntry::GetLength().

Referenced by gdcm::DicomDir::SetElement(), and gdcm::File::Write().

00085 {
00086    DocEntry *entry = GetDocEntry(group, elem);
00087    if ( entry )
00088       return entry->GetLength();
00089    return -1;
00090 }

std::string gdcm::DocEntrySet::GetEntryString (  uint16_t  group,
uint16_t  elem
)  [virtual]


Get the "std::string representable" value of the Dicom entry.

Parameters:
group Group number of the searched tag.
elem Element number of the searched tag.
Returns:
Corresponding element value when it exists, and the string GDCM_UNFOUND otherwise.

Definition at line 47 of file gdcmDocEntrySet.cxx.

References gdcm::GDCM_NOTLOADED, gdcm::GDCM_UNFOUND, gdcm::GDCM_UNREAD, GetDocEntry(), gdcm::DataEntry::GetString(), gdcm::DataEntry::IsNotLoaded(), gdcm::DataEntry::IsUnfound(), and gdcm::DataEntry::IsUnread().

Referenced by gdcm::SerieHelper::AddFileName(), gdcm::File::AnonymizeFile(), gdcm::FileHelper::CheckMandatoryElements(), gdcm::SerieHelper::CreateUniqueSeriesIdentifier(), gdcm::SerieHelper::CreateUserDefinedFileIdentifier(), gdcm::Document::DoTheLoadingDocumentJob(), gdcm::File::DoTheLoadingJob(), gdcm::File::GetImageNumber(), gdcm::File::GetImageOrientationPatient(), gdcm::File::GetLUTNbits(), gdcm::File::GetModality(), gdcm::File::GetNumberOfScalarComponents(), gdcm::File::GetNumberOfScalarComponentsRaw(), gdcm::File::GetPixelSize(), gdcm::File::GetPixelType(), gdcm::Document::GetTransferSyntaxName(), gdcm::PixelReadConvert::GrabInformationsFromFile(), gdcm::File::IsMonochrome(), gdcm::File::IsMonochrome1(), gdcm::File::IsPaletteColor(), gdcm::File::IsReadable(), gdcm::File::IsYBRFull(), gdcm::Document::operator<(), and gdcm::DicomDir::SetElement().

00048 {
00049    DataEntry *entry = dynamic_cast<DataEntry *>(GetDocEntry(group,elem));
00050    if ( entry )
00051    {
00052       if( entry->IsNotLoaded() )
00053          return GDCM_NOTLOADED;
00054       if( entry->IsUnfound() )
00055          return GDCM_UNFOUND;
00056       if( entry->IsUnread() )
00057          return GDCM_UNREAD;
00058       return entry->GetString();
00059    }
00060    return GDCM_UNFOUND;
00061 }

virtual DocEntry* gdcm::DocEntrySet::GetFirstEntry (   )  [pure virtual]


Gets the first entry (of any type) of the current set.

Implemented in gdcm::ElementSet, and gdcm::SQItem.

Referenced by gdcm::DicomDir::MoveSQItem().

virtual DocEntry* gdcm::DocEntrySet::GetNextEntry (   )  [pure virtual]


Gets the next entry (of any type) of the current set.

Implemented in gdcm::ElementSet, and gdcm::SQItem.

int gdcm::Base::GetPrintLevel (   )  [inline, inherited]


Gets the print level for the Dicom Entries.

Definition at line 50 of file gdcmBase.h.

00050 { return PrintLevel; }

const unsigned long& gdcm::RefCounter::GetRefCount (   )  const [inline, inherited]


Get the reference counting.

Returns:
Reference count

Definition at line 56 of file gdcmRefCounter.h.

00057    {
00058       return RefCount;
00059    }

SeqEntry * gdcm::DocEntrySet::GetSeqEntry (  uint16_t  group,
uint16_t  elem
)


Same as Document::GetDocEntry except it returns a result only when the corresponding entry is of type SeqEntry.

Parameters:
group Group number of the searched Dicom Element
elem Element number of the searched Dicom Element
Returns:
When present, the corresponding SeqEntry.

Definition at line 115 of file gdcmDocEntrySet.cxx.

References GetDocEntry().

Referenced by gdcm::Document::DoTheLoadingDocumentJob().

00116 {
00117    DocEntry *currentEntry = GetDocEntry(group, elem);
00118    if ( !currentEntry )
00119       return NULL;
00120
00121    return dynamic_cast<SeqEntry*>(currentEntry);
00122 }

DataEntry * gdcm::DocEntrySet::InsertEntryBinArea (  uint8_t *  binArea,
int  lgth,
uint16_t  group,
uint16_t  elem,
VRKey const &  vr = GDCM_VRUNKNOWN
)


Modifies the value of a given Header Entry (Dicom Element) when it exists. Create it with the given value when unexistant. A copy of the binArea is made to be kept in the Document.

Parameters:
binArea (binary) value to be set
lgth length of the Bin Area we want to set
group Group number of the Entry
elem Element number of the Entry
vr V(alue) R(epresentation) of the Entry -if private Entry-
Returns:
pointer to the modified/created Header Entry (NULL when creation failed).

Definition at line 270 of file gdcmDocEntrySet.cxx.

References AddEntry(), gdcm::RefCounter::Delete(), gdcmWarningMacro, GetDocEntry(), gdcm::DocEntry::GetVR(), NewDataEntry(), RemoveEntry(), and SetEntryBinArea().

Referenced by gdcm::FileHelper::InsertEntryBinArea().

00273 {
00274    DataEntry *dataEntry = 0;
00275    DocEntry *currentEntry = GetDocEntry( group, elem );
00276
00277    // Verify the currentEntry
00278    if (currentEntry)
00279    {
00280       dataEntry = dynamic_cast<DataEntry *>(currentEntry);
00281
00282       // Verify the VR
00283       if ( dataEntry )
00284          if ( dataEntry->GetVR()!=vr )
00285             dataEntry = NULL;
00286
00287       // if currentEntry doesn't correspond to the requested dataEntry
00288       if ( !dataEntry)
00289       {
00290          if ( !RemoveEntry(currentEntry) )
00291          {
00292             gdcmWarningMacro( "Removal of previous DocEntry failed.");
00293             return NULL;
00294          }
00295       }
00296    }
00297
00298    // Create a new dataEntry if necessary
00299    if ( !dataEntry)
00300    {
00301       dataEntry = NewDataEntry(group, elem, vr);
00302
00303       if ( !AddEntry(dataEntry) )
00304       {
00305          gdcmWarningMacro( "AddEntry failed although this is a creation.");
00306          dataEntry->Delete();
00307          return NULL;
00308       }
00309       dataEntry->Delete();
00310    }
00311
00312    // Set the dataEntry value
00313    uint8_t *tmpArea;
00314    if ( lgth>0 && binArea )
00315    {
00316       tmpArea = new uint8_t[lgth];
00317       memcpy(tmpArea,binArea,lgth);
00318    }
00319    else
00320    {
00321       tmpArea = 0;
00322    }
00323    if ( !SetEntryBinArea(tmpArea,lgth,dataEntry) )
00324    {
00325       if ( tmpArea )
00326       {
00327          delete[] tmpArea;
00328       }
00329    }
00330    return dataEntry;
00331 }

DataEntry * gdcm::DocEntrySet::InsertEntryString (  std::string const &  value,
uint16_t  group,
uint16_t  elem,
VRKey const &  vr = GDCM_VRUNKNOWN
)


Modifies the value of a given Doc Entry (Dicom Element) when it exists. Create it with the given value when unexistant.

Parameters:
value (string) Value to be set
group Group number of the Entry
elem Element number of the Entry
vr V(alue) R(epresentation) of the Entry -if private Entry-
Returns:
pointer to the modified/created Header Entry (NULL when creation failed).

Definition at line 212 of file gdcmDocEntrySet.cxx.

References AddEntry(), gdcm::RefCounter::Delete(), gdcmWarningMacro, GetDocEntry(), gdcm::DocEntry::GetVR(), NewDataEntry(), RemoveEntry(), and SetEntryString().

Referenced by gdcm::FileHelper::InsertEntryString(), gdcm::FileHelper::Write(), and gdcm::File::Write().

00215 {
00216    DataEntry *dataEntry = 0;
00217    DocEntry *currentEntry = GetDocEntry( group, elem );
00218
00219    if (currentEntry)
00220    {
00221       dataEntry = dynamic_cast<DataEntry *>(currentEntry);
00222
00223       // Verify the VR
00224       if ( dataEntry )
00225          if ( dataEntry->GetVR()!=vr )
00226             dataEntry = NULL;
00227
00228       // if currentEntry doesn't correspond to the requested dataEntry
00229       if ( !dataEntry)
00230       {
00231          if ( !RemoveEntry(currentEntry) )
00232          {
00233             gdcmWarningMacro( "Removal of previous DocEntry failed.");
00234             return NULL;
00235          }
00236       }
00237    }
00238
00239    // Create a new dataEntry if necessary
00240    if ( !dataEntry )
00241    {
00242       dataEntry = NewDataEntry( group, elem, vr );
00243
00244       if ( !AddEntry(dataEntry) )
00245       {
00246          gdcmWarningMacro("AddEntry failed although this is a creation.");
00247          dataEntry->Delete();
00248          return NULL;
00249       }
00250       dataEntry->Delete();
00251    }
00252
00253    // Set the dataEntry value
00254    SetEntryString(value, dataEntry); // The std::string value
00255    return dataEntry;
00256 }

SeqEntry * gdcm::DocEntrySet::InsertSeqEntry (  uint16_t  group,
uint16_t  elem
)


Creates a new gdcm::SeqEntry and adds it to the current DocEntrySet. (remove any existing entry with same group,elem).

Parameters:
group Group number of the Entry
elem Element number of the Entry
Returns:
pointer to the created SeqEntry (NULL when creation failed).

Definition at line 341 of file gdcmDocEntrySet.cxx.

References AddEntry(), gdcm::RefCounter::Delete(), gdcmWarningMacro, GetDocEntry(), NewSeqEntry(), and RemoveEntry().

Referenced by gdcm::FileHelper::InsertSeqEntry().

00342 {
00343    SeqEntry *seqEntry = 0;
00344    DocEntry *currentEntry = GetDocEntry( group, elem );
00345
00346    // Verify the currentEntry
00347    if ( currentEntry )
00348    {
00349       seqEntry = dynamic_cast<SeqEntry *>(currentEntry);
00350
00351       // Verify the VR
00352       if ( seqEntry )
00353          seqEntry = NULL;
00354
00355       // if currentEntry doesn't correspond to the requested seqEntry
00356       if ( !seqEntry )
00357       {
00358          if (!RemoveEntry(currentEntry))
00359          {
00360             gdcmWarningMacro( "Removal of previous DocEntry failed for ("
00361                <<std::hex << group << "|" << elem <<")" );
00362             return NULL;
00363          }
00364       }
00365    }
00366    // Create a new seqEntry if necessary
00367    if ( !seqEntry )
00368    {
00369       seqEntry = NewSeqEntry(group, elem);
00370
00371       if ( !AddEntry(seqEntry) )
00372       {
00373          gdcmWarningMacro( "AddEntry failed although this is a creation for ("
00374             <<std::hex << group << "|" << elem <<")" );
00375          seqEntry->Delete();
00376          return NULL;
00377       }
00378       seqEntry->Delete();
00379    }
00380    // Remark :
00381    // SequenceDelimitationItem will be added at the end of the SeqEntry,
00382    // at write time
00383    return seqEntry;
00384 }

virtual bool gdcm::DocEntrySet::IsEmpty (   )  [pure virtual]


Tells us if the set contains no entry.

Implemented in gdcm::ElementSet, and gdcm::SQItem.

DataEntry * gdcm::DocEntrySet::NewDataEntry (  uint16_t  group,
uint16_t  elem,
VRKey const &  vr = GDCM_VRUNKNOWN
)


Build a new DataEntry from all the low level arguments. Check for existence of dictionary entry, and build a default one when absent.

Parameters:
group Group number of the new Entry
elem Element number of the new Entry
vr V(alue) R(epresentation) of the new Entry
Remarks:
The user of this method must destroy the DataEntry when unused

Definition at line 406 of file gdcmDocEntrySet.cxx.

References gdcmWarningMacro, GetDictEntry(), gdcm::DataEntry::New(), and gdcm::RefCounter::Unregister().

Referenced by gdcm::FileHelper::CopyDataEntry(), InsertEntryBinArea(), InsertEntryString(), and gdcm::Document::ReadNextDocEntry().

00408 {
00409    DictEntry *dictEntry = GetDictEntry(group, elem, vr);
00410
00411    DataEntry *newEntry = DataEntry::New(dictEntry);
00412    dictEntry->Unregister(); // GetDictEntry register it
00413    if (!newEntry)
00414    {
00415       gdcmWarningMacro( "Failed to allocate DataEntry for ("
00416           <<std::hex << group << "|" << elem <<")" );
00417       return 0;
00418    }
00419    return newEntry;
00420 }

SeqEntry * gdcm::DocEntrySet::NewSeqEntry (  uint16_t  group,
uint16_t  elem
)


Build a new SeqEntry from all the low level arguments. Check for existence of dictionary entry, and build a default one when absent.

Parameters:
group Group number of the new Entry
elem Element number of the new Entry
Remarks:
The user of this method must destroy the SeqEntry when unused

Definition at line 430 of file gdcmDocEntrySet.cxx.

References gdcmWarningMacro, GetDictEntry(), gdcm::SeqEntry::New(), and gdcm::RefCounter::Unregister().

Referenced by gdcm::Document::Backtrack(), InsertSeqEntry(), and gdcm::Document::ReadNextDocEntry().

00431 {
00432    DictEntry *dictEntry = GetDictEntry(group, elem, "SQ");
00433
00434    SeqEntry *newEntry = SeqEntry::New( dictEntry );
00435    dictEntry->Unregister(); // GetDictEntry register it
00436    if (!newEntry)
00437    {
00438       gdcmWarningMacro( "Failed to allocate SeqEntry for ("
00439          <<std::hex << group << "|" << elem <<")" );
00440       return 0;
00441    }
00442    return newEntry;
00443 }

virtual void gdcm::Base::Print (  std::ostream &  = std::cout,
std::string const &  = ""
)  [inline, virtual, inherited]


Printer.

Reimplemented in gdcm::CommandManager, gdcm::DataEntry, gdcm::DicomDir, gdcm::DicomDirElement, gdcm::DicomDirImage, gdcm::DicomDirMeta, gdcm::DicomDirPatient, gdcm::DicomDirSerie, gdcm::DicomDirStudy, gdcm::DicomDirVisit, gdcm::DicomEntry, gdcm::Dict, gdcm::DictEntry, gdcm::DictGroupName, gdcm::DictSet, gdcm::DirList, gdcm::DocEntry, gdcm::ElementSet, gdcm::FileHelper, gdcm::JPEGFragment, gdcm::PixelReadConvert, gdcm::RLEFrame, gdcm::SeqEntry, gdcm::SerieHelper, gdcm::SQItem, gdcm::TS, and gdcm::VR.

Definition at line 42 of file gdcmBase.h.

00043                                                {};

void gdcm::RefCounter::Register (   )  [inline, inherited]


Register the object.

Remarks:
It increments the reference counting

Definition at line 44 of file gdcmRefCounter.h.

Referenced by gdcm::SQItem::AddEntry(), gdcm::ElementSet::AddEntry(), gdcm::Dict::AddEntry(), gdcm::SeqEntry::AddSQItem(), gdcm::SeqEntry::Copy(), gdcm::DicomDir::Copy(), gdcm::DocEntry::DocEntry(), gdcm::FileHelper::FileHelper(), GetDictEntry(), gdcm::CommandManager::InSetCommand(), gdcm::DocEntryArchive::Push(), gdcm::Dict::ReplaceEntry(), and gdcm::SeqEntry::SetDelimitationItem().

00044 { RefCount++; }

virtual bool gdcm::DocEntrySet::RemoveEntry (  DocEntry *  entryToRemove  )  [pure virtual]


Removes any type of entry out of the entry set, and destroys it.

Implemented in gdcm::ElementSet, and gdcm::SQItem.

Referenced by InsertEntryBinArea(), InsertEntryString(), InsertSeqEntry(), and gdcm::DicomDir::MoveSQItem().

bool gdcm::DocEntrySet::SetEntryBinArea (  uint8_t *  content,
int  lgth,
DataEntry *  entry
)


Accesses an existing DataEntry (i.e. a Dicom Element) and modifies it's content with the given value.

Parameters:
content new value (void* -> uint8_t*) to substitute with
entry Entry to be modified
lgth new value length

Definition at line 191 of file gdcmDocEntrySet.cxx.

References gdcm::DataEntry::SetBinArea(), and gdcm::DocEntry::SetLength().

00192 {
00193    if (entry)
00194    {
00195       entry->SetLength(lgth);
00196       entry->SetBinArea(content);
00197       return true;
00198    }
00199    return false;
00200 }

bool gdcm::DocEntrySet::SetEntryBinArea (  uint8_t *  content,
int  lgth,
uint16_t  group,
uint16_t  elem
)


Accesses an existing DocEntry (i.e. a Dicom Element) through it's (group, element) and modifies it's content with the given value.

Parameters:
content new value (void* -> uint8_t*) to substitute with
lgth new value length
group group number of the Dicom Element to modify
elem element number of the Dicom Element to modify

Definition at line 154 of file gdcmDocEntrySet.cxx.

References gdcmWarningMacro, and GetDataEntry().

Referenced by InsertEntryBinArea(), and gdcm::FileHelper::SetEntryBinArea().

00156 {
00157    DataEntry *entry = GetDataEntry(group, elem);
00158    if (!entry )
00159    {
00160       gdcmWarningMacro( "No corresponding DataEntry " << std::hex << group <<
00161                         "," << elem << " element (try promotion first).");
00162       return false;
00163    }
00164
00165    return SetEntryBinArea(content,lgth,entry);
00166 }

bool gdcm::DocEntrySet::SetEntryString (  std::string const &  content,
DataEntry *  entry
)


Accesses an existing DocEntry (i.e. a Dicom Element) and modifies it's content with the given value.

Parameters:
content new value (string) to substitute with
entry Entry to be modified

Definition at line 174 of file gdcmDocEntrySet.cxx.

References gdcm::DataEntry::SetString().

00175 {
00176    if (entry)
00177    {
00178       entry->SetString(content);
00179       return true;
00180    }
00181    return false;
00182 }

bool gdcm::DocEntrySet::SetEntryString (  std::string const &  content,
uint16_t  group,
uint16_t  elem
)


Accesses an existing DocEntry (i.e. a Dicom Element) through it's (group, element) and modifies it's content with the given value.

Parameters:
content new value (string) to substitute with
group group number of the Dicom Element to modify
elem element number of the Dicom Element to modify

Definition at line 132 of file gdcmDocEntrySet.cxx.

References gdcmWarningMacro, and GetDataEntry().

Referenced by gdcm::File::AnonymizeFile(), gdcm::Document::DoTheLoadingDocumentJob(), InsertEntryString(), and gdcm::FileHelper::SetEntryString().

00134 {
00135    DataEntry *entry = GetDataEntry(group, elem);
00136    if (!entry )
00137    {
00138       gdcmWarningMacro( "No corresponding DataEntry " << std::hex << group <<
00139                          "," << elem << " element (try promotion first).");
00140       return false;
00141    }
00142    return SetEntryString(content,entry);
00143 }

void gdcm::Base::SetPrintLevel (  int  level  )  [inline, inherited]


Sets the print level for the Dicom Header Elements.

Note:
0 for Light Print; 1 for 'medium' Print, 2 for Heavy Print

Definition at line 47 of file gdcmBase.h.

Referenced by gdcm::SQItem::Print(), gdcm::SeqEntry::Print(), gdcm::FileHelper::Print(), gdcm::ElementSet::Print(), and gdcm::DicomDir::Print().

00047 { PrintLevel = level; }

void gdcm::RefCounter::Unregister (   )  [inline, inherited]


Unregister the object.

Remarks:
It decrements the reference counting

Definition at line 48 of file gdcmRefCounter.h.

Referenced by gdcm::SeqEntry::ClearSQItem(), gdcm::DicomDir::Copy(), GetDictEntry(), gdcm::CommandManager::InSetCommand(), NewDataEntry(), NewSeqEntry(), gdcm::Document::ReadNextDocEntry(), gdcm::SQItem::RemoveEntry(), gdcm::ElementSet::RemoveEntry(), gdcm::SeqEntry::SetDelimitationItem(), gdcm::DocEntry::~DocEntry(), and gdcm::FileHelper::~FileHelper().

00049    {
00050       RefCount--;
00051       if(RefCount<=0)
00052          delete this;
00053    }

virtual void gdcm::DocEntrySet::WriteContent (  std::ofstream *  fp,
FileType  filetype
)  [pure virtual]


write any type of entry to the entry set

Implemented in gdcm::DicomDirMeta, gdcm::DicomDirPatient, gdcm::DicomDirSerie, gdcm::DicomDirStudy, gdcm::Document, gdcm::ElementSet, and gdcm::SQItem.

Member Data Documentation

DocEntry* gdcm::DocEntrySet::PreviousDocEntry [protected]


To be able to backtrack (Private Sequence, Implicit VR related pb).

Definition at line 127 of file gdcmDocEntrySet.h.

Referenced by gdcm::Document::Backtrack(), DocEntrySet(), and gdcm::Document::ParseDES().

int gdcm::Base::PrintLevel [protected, inherited]


Amount of printed details for each Dicom Entries : 0 : stands for the least detail level.

Definition at line 55 of file gdcmBase.h.

Referenced by gdcm::SQItem::Print(), gdcm::SeqEntry::Print(), gdcm::FileHelper::Print(), gdcm::ElementSet::Print(), gdcm::DocEntry::Print(), gdcm::DictEntry::Print(), gdcm::DicomDirStudy::Print(), gdcm::DicomDirSerie::Print(), gdcm::DicomDirPatient::Print(), gdcm::DicomDirMeta::Print(), gdcm::DicomDir::Print(), and gdcm::DataEntry::Print().

The documentation for this class was generated from the following files:
Generated on Fri Jan 20 10:14:35 2006 for gdcm by  doxygen 1.4.4
