bbtk::BlackBoxDescriptor Class Reference

(Abstract) Contains information on a BlackBox type (name, description, author, inputs, outputs) and is able to create an instance of it. More...

#include <bbtkBlackBoxDescriptor.h>

Inheritance diagram for bbtk::BlackBoxDescriptor:

Inheritance graph
[legend]
Collaboration diagram for bbtk::BlackBoxDescriptor:

Collaboration graph
[legend]

List of all members.

Public Types

enum  Kind {
  STANDARD = 0, ADAPTOR = 1, DEFAULT_ADAPTOR = 2, GUI = 3,
  DEFAULT_GUI = 4
}
 The kinds of black box. More...
typedef BlackBoxDescriptor Self
typedef boost::shared_ptr< Self > Pointer
typedef boost::weak_ptr< Self > WeakPointer
typedef BlackBoxInputDescriptor InputDescriptor
 The type of descriptor of inputs.
typedef BlackBoxOutputDescriptor OutputDescriptor
 The type of descriptor of outputs.
typedef std::map< std::string,
InputDescriptor * > 		InputDescriptorMapType
 The type of dictionnary of inputs = map of input descriptors pointers.
typedef std::map< std::string,
OutputDescriptor * > 		OutputDescriptorMapType
 The type of dictionnary of outputs= map of output descriptors pointers.

Public Member Functions

virtual BlackBoxPointer NewBlackBox (const std::string &boxname)=0
 Releases a descriptor.
const std::string & GetTypeName () const
 Returns the name of the **TYPE** of the black box.
std::string GetFullTypeName () const
 Returns the full name of the **TYPE** of the black box (+package name).
const std::string & GetDescription () const
 Returns the description of the BlackBox.
const std::string & GetAuthor () const
 Returns the author(s) of the BlackBox.
const std::string & GetCategory () const
 Returns the category(s) of the BlackBox.
PackagePointer GetPackage () const
 Returns the Package to which the box belongs (const pointer).
Kind GetKind () const
 Returns the kind of box.
virtual void GetHelp (bool full=true) const
 Prints help on the black box.
const InputDescriptorMapType & GetInputDescriptorMap () const
 Returns a const ref on the map of input descriptors.
const OutputDescriptorMapType & GetOutputDescriptorMap () const
 Returns a const ref on the map of output descriptors.
const InputDescriptor * GetInputDescriptor (const std::string &name) const
 Returns a const pointer on the descriptor of the input of name <name>.
const OutputDescriptor * GetOutputDescriptor (const std::string &name) const
 Returns a const pointer on the descriptor of the output of name <name>.
void SetTypeName (const std::string &name)
 Sets the name of the **TYPE** of BlackBox.
void AddToDescription (const std::string &, bool clear=false)
 Adds the string to the BlackBox description.
void AddToAuthor (const std::string &, bool clear=false)
 Adds the string to the BlackBox author list.
void AddToCategory (const std::string &, bool clear=false)
 Adds the string to the BlackBox category list.
void SetPackage (PackagePointer package)
 Sets the Package to which the box belongs.
void SetKind (Kind kind)
 Sets the kind of box.
virtual void InsertHtmlHelp (std::ofstream &s, int detail, int level, const std::string &output_dir="", bool relative_link=false)
virtual void Check (bool recursive=true) const
 Check.
virtual std::string GetObjectName () const
virtual std::string GetObjectInfo () const
virtual size_t GetObjectSize () const
virtual size_t GetObjectInternalSize () const
virtual size_t GetObjectRecursiveSize () const
long GetUseCount ()

Static Public Member Functions

static void InsertInObjectList (Pointer)
static void RemoveFromObjectList (WeakPointer)
static void InsertInPackageList (Pointer)
static void ReleasePackages ()
static void PrintObjectListInfo (const std::string &name)
static void PrintObjectInfo (const Pointer &o)
static long GetObjectsCount ()

Protected Member Functions

 BlackBoxDescriptor ()
 Default ctor.
 BlackBoxDescriptor (const BlackBoxDescriptor &)
 Default ctor.
virtual ~BlackBoxDescriptor ()
 Dtor.
void AddInputDescriptor (BlackBoxInputDescriptor *d)
 Adds an input descriptor.
void AddOutputDescriptor (BlackBoxOutputDescriptor *d)
 Adds an output descriptor.
void LockThis ()
void UnLockThis ()
template<class U>
boost::shared_ptr< U > GetThisPointer () const

Static Protected Member Functions

template<class U>
static boost::shared_ptr< U > MakePointer (U *s, bool lock=false)
template<class U, class D>
static boost::shared_ptr< U > MakePointer (U *s, const D &del, bool lock=false)

Protected Attributes

std::string mTypeName
 The name of the type of black box.
std::string mDescription
 The description of the black box.
std::string mAuthor
 The author of the black box.
std::string mCategory
 The category of the black box.
Kind mKind
 The kind of box (standard / adaptor).
PackagePointer mPackage
 The Package to which the box belongs.
InputDescriptorMapType mInput
 The inputs.
OutputDescriptorMapType mOutput
 The outputs.

Friends

struct Object::Deleter

Detailed Description

(Abstract) Contains information on a BlackBox type (name, description, author, inputs, outputs) and is able to create an instance of it.

Definition at line 59 of file bbtkBlackBoxDescriptor.h.

Member Typedef Documentation

typedef BlackBoxDescriptor bbtk::BlackBoxDescriptor::Self

Definition at line 61 of file bbtkBlackBoxDescriptor.h.

typedef boost::shared_ptr<Self> bbtk::BlackBoxDescriptor::Pointer

Reimplemented from bbtk::Object.

Definition at line 61 of file bbtkBlackBoxDescriptor.h.

typedef boost::weak_ptr<Self> bbtk::BlackBoxDescriptor::WeakPointer

Reimplemented from bbtk::Object.

Definition at line 61 of file bbtkBlackBoxDescriptor.h.

typedef BlackBoxInputDescriptor bbtk::BlackBoxDescriptor::InputDescriptor

The type of descriptor of inputs.

Definition at line 61 of file bbtkBlackBoxDescriptor.h.

typedef BlackBoxOutputDescriptor bbtk::BlackBoxDescriptor::OutputDescriptor

The type of descriptor of outputs.

Definition at line 66 of file bbtkBlackBoxDescriptor.h.

typedef std::map<std::string, InputDescriptor*> bbtk::BlackBoxDescriptor::InputDescriptorMapType

The type of dictionnary of inputs = map of input descriptors pointers.

Definition at line 68 of file bbtkBlackBoxDescriptor.h.

typedef std::map<std::string, OutputDescriptor*> bbtk::BlackBoxDescriptor::OutputDescriptorMapType

The type of dictionnary of outputs= map of output descriptors pointers.

Definition at line 70 of file bbtkBlackBoxDescriptor.h.

Member Enumeration Documentation

enum bbtk::BlackBoxDescriptor::Kind

The kinds of black box.

Enumerator:
STANDARD
ADAPTOR
DEFAULT_ADAPTOR
GUI
DEFAULT_GUI

Definition at line 72 of file bbtkBlackBoxDescriptor.h.

00073     {
00074       STANDARD=0,
00075       ADAPTOR=1,
00076       DEFAULT_ADAPTOR=2,
00077       GUI=3,
00078       DEFAULT_GUI=4
00079     }

Constructor & Destructor Documentation

bbtk::BlackBoxDescriptor::BlackBoxDescriptor (  )  [protected]

Default ctor.

Definition at line 52 of file bbtkBlackBoxDescriptor.cxx.

References bbtkDebugMessage.

00053     : mTypeName("Unknown"),
00054       mDescription(""),
00055       mAuthor(""),
00056       mCategory(""),
00057       mKind(STANDARD),
00058       mPackage()
00059   {
00060     bbtkDebugMessage("object",4,
00061                      "==> BlackBoxDescriptor::BlackBoxDescriptor()"<<std::endl);
00062    bbtkDebugMessage("object",4,
00063                      "<== BlackBoxDescriptor::BlackBoxDescriptor()"<<std::endl);
00064   }

bbtk::BlackBoxDescriptor::BlackBoxDescriptor ( const BlackBoxDescriptor &   )  [protected]

Default ctor.

Definition at line 69 of file bbtkBlackBoxDescriptor.cxx.

00070   {
00071   }

bbtk::BlackBoxDescriptor::~BlackBoxDescriptor (  )  [protected, virtual]

Dtor.

Definition at line 74 of file bbtkBlackBoxDescriptor.cxx.

References bbtkDebugMessage, bbtk::i, mInput, mOutput, and mTypeName.

00075   {
00076     bbtkDebugMessage("object",4,
00077                      "==> BlackBoxDescriptor::~BlackBoxDescriptor() ["
00078                      <<mTypeName<<"]"<<std::endl);
00079
00080     // deletes all I/O descriptors
00081     InputDescriptorMapType::iterator i;
00082     for (i=mInput.begin(); i!=mInput.end(); ++i) delete i->second;
00083     OutputDescriptorMapType::iterator o;
00084     for (o=mOutput.begin(); o!=mOutput.end(); ++o) delete o->second;
00085
00086     bbtkDebugMessage("object",4,
00087                      "<== BlackBoxDescriptor::~BlackBoxDescriptor() ["
00088                      <<mTypeName<<"]"<<std::endl);
00089   }

Member Function Documentation

virtual BlackBoxPointer bbtk::BlackBoxDescriptor::NewBlackBox ( const std::string &  boxname  )  [pure virtual]

Releases a descriptor.

Creates an instance with name boxname of the BlackBox of which this is the descriptor

const std::string& bbtk::BlackBoxDescriptor::GetTypeName (  )  const [inline]

Returns the name of the **TYPE** of the black box.

Definition at line 90 of file bbtkBlackBoxDescriptor.h.

Referenced by InsertHtmlHelp(), and bbtk::WxGUIPackageBrowser2::WxGUIBlackBoxListUserOnSelected().

00090 { return mTypeName; }

Here is the caller graph for this function:

std::string bbtk::BlackBoxDescriptor::GetFullTypeName (  )  const

Returns the full name of the **TYPE** of the black box (+package name).

Definition at line 299 of file bbtkBlackBoxDescriptor.cxx.

References GetPackage(), and mTypeName.

Referenced by AddToAuthor(), AddToCategory(), AddToDescription(), GetHelp(), GetInputDescriptor(), GetOutputDescriptor(), and InsertHtmlHelp().

00300   {
00301     if (GetPackage()!=0) return GetPackage()->GetName() + "::" + mTypeName;
00302     return "::" + mTypeName;
00303   }

Here is the call graph for this function:

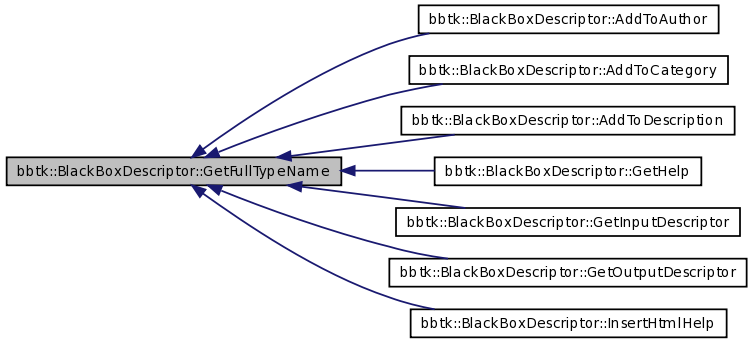

Here is the caller graph for this function:

const std::string& bbtk::BlackBoxDescriptor::GetDescription (  )  const [inline]

Returns the description of the BlackBox.

Definition at line 96 of file bbtkBlackBoxDescriptor.h.

Referenced by GetHelp(), InsertHtmlHelp(), and bbtk::WxGUIBlackBoxInfo::UpdateInfo().

00096 { return mDescription; }

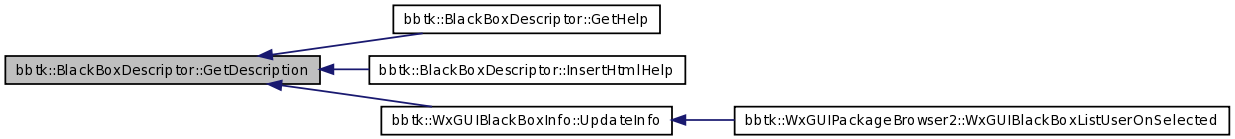

Here is the caller graph for this function:

const std::string& bbtk::BlackBoxDescriptor::GetAuthor (  )  const [inline]

Returns the author(s) of the BlackBox.

Definition at line 99 of file bbtkBlackBoxDescriptor.h.

Referenced by GetHelp(), InsertHtmlHelp(), and bbtk::WxGUIBlackBoxInfo::UpdateInfo().

00099 { return mAuthor; }

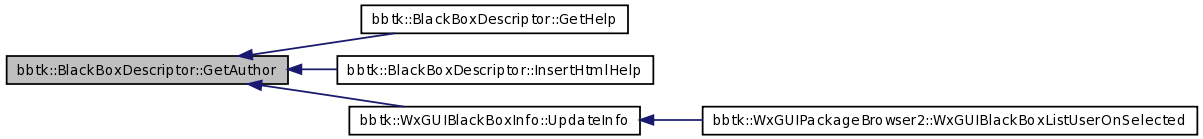

Here is the caller graph for this function:

const std::string& bbtk::BlackBoxDescriptor::GetCategory (  )  const [inline]

Returns the category(s) of the BlackBox.

Definition at line 102 of file bbtkBlackBoxDescriptor.h.

Referenced by GetHelp(), InsertHtmlHelp(), and bbtk::WxGUIBlackBoxInfo::UpdateInfo().

00102 { return mCategory; }

Here is the caller graph for this function:

PackagePointer bbtk::BlackBoxDescriptor::GetPackage (  )  const [inline]

Returns the Package to which the box belongs (const pointer).

Definition at line 105 of file bbtkBlackBoxDescriptor.h.

Referenced by GetFullTypeName(), InsertHtmlHelp(), and bbtk::WxGUIPackageBrowser2::WxGUIBlackBoxListUserOnSelected().

00105 { return mPackage; }

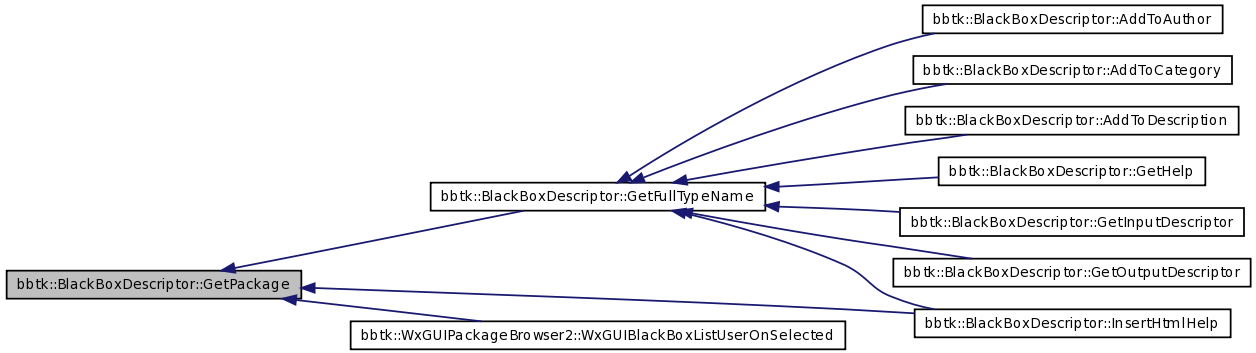

Here is the caller graph for this function:

Kind bbtk::BlackBoxDescriptor::GetKind (  )  const [inline]

Returns the kind of box.

Definition at line 108 of file bbtkBlackBoxDescriptor.h.

00108 { return mKind; }

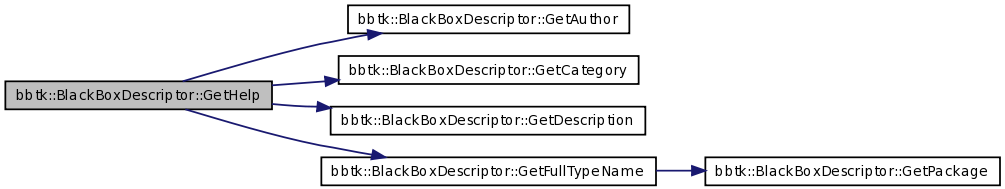

void bbtk::BlackBoxDescriptor::GetHelp ( bool  full = true  )  const [virtual]

Prints help on the black box.

Definition at line 216 of file bbtkBlackBoxDescriptor.cxx.

References bbtkDebugDecTab, bbtkDebugMessageInc, bbtkMessage, GetAuthor(), GetCategory(), GetDescription(), GetFullTypeName(), bbtk::i, mInput, and mOutput.

00217   {
00218     bbtkDebugMessageInc("Kernel",9,"BlackBoxDescriptor::GetHelp() ["<<GetFullTypeName()<<"]"<<std::endl);
00219
00220     bbtkMessage("Help",1,"Black Box <"<<GetFullTypeName()<<">"<<std::endl);
00221     bbtkMessage("Help",1," "              <<GetDescription()<<std::endl);
00222     bbtkMessage("Help",1," By : "         <<GetAuthor()     <<std::endl);
00223     bbtkMessage("Help",1," Categories : " <<GetCategory()    <<std::endl);
00224     if (mInput.size())
00225       bbtkMessage("Help",1," * Inputs : "<<std::endl);
00226     else
00227       bbtkMessage("Help",1," * No inputs"<<std::endl);
00228     InputDescriptorMapType::const_iterator i;
00229     unsigned int namelmax = 0;
00230     unsigned int typelmax = 0;
00231     unsigned int natlmax = 0;
00232     for ( i = mInput.begin();  i != mInput.end(); ++i )
00233     {
00234            if (i->second->GetName().size()>namelmax)
00235              namelmax = i->second->GetName().size();
00236            if (i->second->GetHumanTypeName().size()>typelmax)
00237              typelmax = i->second->GetHumanTypeName().size();
00238            if (i->second->GetNature().size()>natlmax)
00239              natlmax = i->second->GetNature().size();
00240     }
00241     OutputDescriptorMapType::const_iterator o;
00242     for ( o = mOutput.begin();  o != mOutput.end(); ++o )
00243     {
00244            if (o->second->GetName().size()>namelmax)
00245              namelmax = o->second->GetName().size();
00246            if (o->second->GetHumanTypeName().size()>typelmax)
00247              typelmax = o->second->GetHumanTypeName().size();
00248            if (o->second->GetNature().size()>natlmax)
00249              natlmax = o->second->GetNature().size();
00250     }
00251     //
00252     for ( i = mInput.begin();  i != mInput.end(); ++i )
00253     {
00254            std::string name(i->second->GetName());
00255            name += "'";
00256            name.append(1+namelmax-name.size(),' ');
00257            std::string type(i->second->GetHumanTypeName());
00258            type += ">";
00259            type.append(1+typelmax-type.size(),' ');
00260            std::string nature(i->second->GetNature());
00261            nature += "]";
00262            nature.append(1+natlmax-nature.size(),' ');
00263            bbtkMessage("Help",1,
00264                        "    '"<<name
00265                        <<" <"<<type
00266                        <<" ["<<nature
00267                        <<" : "<<i->second->GetDescription()<<std::endl);
00268     }
00269     if (mOutput.size())
00270       bbtkMessage("Help",1," * Outputs : "<<std::endl);
00271     else
00272       bbtkMessage("Help",1," * No outputs"<<std::endl);
00273     for ( o = mOutput.begin();  o != mOutput.end(); ++o )
00274     {
00275            std::string name(o->second->GetName());
00276            name += "'";
00277            name.append(1+namelmax-name.size(),' ');
00278            std::string type(o->second->GetHumanTypeName());
00279            type += ">";
00280            type.append(1+typelmax-type.size(),' ');
00281            std::string nature(o->second->GetNature());
00282            nature += "]";
00283            nature.append(1+natlmax-nature.size(),' ');
00284            bbtkMessage("Help",1,
00285                     "    '"<<name
00286                        <<" <"<<type
00287                        <<" ["<<nature
00288                        <<" : "<<o->second->GetDescription()<<std::endl);
00289       }
00290
00291      bbtkDebugDecTab("Kernel",9);
00292
00293
00294   }

Here is the call graph for this function:

const InputDescriptorMapType& bbtk::BlackBoxDescriptor::GetInputDescriptorMap (  )  const [inline]

Returns a const ref on the map of input descriptors.

Definition at line 114 of file bbtkBlackBoxDescriptor.h.

Referenced by InsertHtmlHelp(), and bbtk::WxGUIBlackBoxInfo::UpdateInfo().

00115       { return mInput; }

Here is the caller graph for this function:

const OutputDescriptorMapType& bbtk::BlackBoxDescriptor::GetOutputDescriptorMap (  )  const [inline]

Returns a const ref on the map of output descriptors.

Definition at line 118 of file bbtkBlackBoxDescriptor.h.

Referenced by InsertHtmlHelp(), and bbtk::WxGUIBlackBoxInfo::UpdateInfo().

00119       { return mOutput; }

Here is the caller graph for this function:

const BlackBoxDescriptor::InputDescriptor * bbtk::BlackBoxDescriptor::GetInputDescriptor ( const std::string &  name  )  const

Returns a const pointer on the descriptor of the input of name <name>.

Definition at line 181 of file bbtkBlackBoxDescriptor.cxx.

References bbtkDebugDecTab, bbtkDebugMessageInc, bbtkError, GetFullTypeName(), bbtk::i, and mInput.

00182   {
00183     bbtkDebugMessageInc("Kernel",9,"BlackBoxDescriptor::GetInputDescriptor('"
00184                         <<name<<"') ["<<GetFullTypeName()<<"]"<<std::endl);
00185
00186     InputDescriptorMapType::const_iterator i;
00187     i = mInput.find(name);
00188     if ( i == mInput.end() )
00189     {
00190             bbtkError("input '"<<name<<"' does not exist");
00191     }
00192     bbtkDebugDecTab("Kernel",9);
00193     return i->second;
00194   }

Here is the call graph for this function:

const BlackBoxDescriptor::OutputDescriptor * bbtk::BlackBoxDescriptor::GetOutputDescriptor ( const std::string &  name  )  const

Returns a const pointer on the descriptor of the output of name <name>.

Definition at line 199 of file bbtkBlackBoxDescriptor.cxx.

References bbtkDebugDecTab, bbtkDebugMessageInc, bbtkError, GetFullTypeName(), bbtk::i, and mOutput.

00200   {
00201     bbtkDebugMessageInc("Kernel",9,"BlackBoxDescriptor::GetOutputDescriptor('"
00202                         <<name<<"') ["<<GetFullTypeName()<<"]"<<std::endl);
00203
00204     OutputDescriptorMapType::const_iterator i;
00205     i = mOutput.find(name);
00206     if ( i == mOutput.end() )
00207     {
00208             bbtkError("output '"<<name<<"' does not exist");
00209     }
00210     bbtkDebugDecTab("Kernel",9);
00211     return i->second;
00212   }

Here is the call graph for this function:

void bbtk::BlackBoxDescriptor::SetTypeName ( const std::string &  name  )  [inline]

Sets the name of the **TYPE** of BlackBox.

Definition at line 128 of file bbtkBlackBoxDescriptor.h.

00128 { mTypeName=name; }

void bbtk::BlackBoxDescriptor::AddToDescription ( const std::string &  s,
bool  clear = false
)

Adds the string to the BlackBox description.

Definition at line 147 of file bbtkBlackBoxDescriptor.cxx.

References bbtkDebugMessage, GetFullTypeName(), and mDescription.

00148   {
00149     bbtkDebugMessage("Kernel",9,"BlackBoxDescriptor::AddToDescription(\""<<s<<
00150                      "\") ["<<GetFullTypeName()<<"]"<<std::endl);
00151     if (clear) mDescription = s;
00152     else mDescription += s;
00153    }

Here is the call graph for this function:

void bbtk::BlackBoxDescriptor::AddToAuthor ( const std::string &  s,
bool  clear = false
)

Adds the string to the BlackBox author list.

Definition at line 158 of file bbtkBlackBoxDescriptor.cxx.

References bbtkDebugMessage, GetFullTypeName(), and mAuthor.

00159   {
00160     bbtkDebugMessage("Kernel",9,"BlackBoxDescriptor::AddToAuthor(\""<<s<<"\") ["
00161                      <<GetFullTypeName()<<"]"<<std::endl);
00162     if (clear) mAuthor = s;
00163     else mAuthor += s;
00164   }

Here is the call graph for this function:

void bbtk::BlackBoxDescriptor::AddToCategory ( const std::string &  s,
bool  clear = false
)

Adds the string to the BlackBox category list.

Definition at line 169 of file bbtkBlackBoxDescriptor.cxx.

References bbtkDebugMessage, GetFullTypeName(), and mCategory.

00170   {
00171     bbtkDebugMessage("Kernel",9,"BlackBoxDescriptor::AddToCategory(\""<<s<<"\") ["
00172                      <<GetFullTypeName()<<"]"<<std::endl);
00173     if (clear) mCategory = s;
00174     else mCategory += s;
00175     mCategory += ";";
00176   }

Here is the call graph for this function:

void bbtk::BlackBoxDescriptor::SetPackage ( PackagePointer  package  )  [inline]

Sets the Package to which the box belongs.

Definition at line 140 of file bbtkBlackBoxDescriptor.h.

00140 { mPackage = package; }

void bbtk::BlackBoxDescriptor::SetKind ( Kind  kind  )  [inline]

Sets the kind of box.

Definition at line 143 of file bbtkBlackBoxDescriptor.h.

00143 { mKind = kind; }

void bbtk::BlackBoxDescriptor::InsertHtmlHelp ( std::ofstream &  s,
int  detail,
int  level,
const std::string &  output_dir = "",
bool  relative_link = false
) [virtual]

Writes html formatted help into the output file stream. detail and level are used for graphical representation of complex black boxes (see ComplexBlackBox::InsertHTMLGraph) output_dir is the directory in which to write auxilliary files (.dot/.png/.cmap)

Definition at line 307 of file bbtkBlackBoxDescriptor.cxx.

References bbtkDebugDecTab, bbtkDebugMessageInc, GetAuthor(), GetCategory(), GetDescription(), GetFullTypeName(), GetInputDescriptorMap(), GetOutputDescriptorMap(), GetPackage(), and GetTypeName().

00311   {
00312     bbtkDebugMessageInc("Kernel",9,"BlackBoxDescriptor::InsertHtmlHelp() ["<<GetFullTypeName()<<"]"<<std::endl);
00313
00314     //-------------
00315     // General info
00316     std::string name = GetTypeName();
00317     Utilities::html_format(name);
00318
00319     (s) << "<p><hr>\n";
00320     (s) << "<a name=\""<<name<<"\"></a>\n";
00321     (s) << //"Top:&nbsp;
00322       "<a rel=\"top\" accesskey=\"t\" href=\"#Top\">Top</a>\n";
00323     // (s) << "Previous:&nbsp;<a rel="previous" accesskey="p" href="#dir">(dir)</a>,
00324     // (s) << "Up:&nbsp;<a rel="up" accesskey="u" href="#dir">(dir)</a>
00325     (s) << "<h2 class=\"section\">"<<name<<"</h2>\n";
00326
00327
00328     std::string descr = GetDescription();
00329     //Utilities::html_format(descr);
00330     std::string author = GetAuthor();
00331     Utilities::html_format(author);
00332
00333     std::vector<std::string> categories;
00334     // Split the category string
00335     std::string delimiters = ";,";
00336     Utilities::SplitString(GetCategory(),
00337                            delimiters,categories);
00338
00339
00340     (s) << "<p><TABLE cellspacing=0  cellpadding=3>\n";
00341     (s) << "<TR><TD style='vertical-align: top;'><b> Description </b></TD><TD style='vertical-align: top;'> : </TD><TD style='vertical-align: top;'> "
00342       << descr << "</TD></TR>\n";
00343     (s) << "<TR><TD style='vertical-align: top;'><b> Author(s) </b></TD><TD style='vertical-align: top;'> : </TD><TD style='vertical-align: top;'>  "
00344       << author << "</TD></TR>\n";
00345     (s) << "<TR><TD style='vertical-align: top;'><b> Category(s) </b></TD><TD style='vertical-align: top;'> : </TD><TD style='vertical-align: top;'>  ";
00346     std::vector<std::string>::iterator ci;
00347     for (ci=categories.begin(); ci!=categories.end(); ++ci)
00348       {
00349         s << "<a href=\"../index-category.html#"<< *ci <<"\">" << *ci
00350           << "</a>&nbsp;\n";
00351       }
00352     s << "</TD></TR>\n";
00353
00354     (s) << "<TR><TD style='vertical-align: top;'><b> To use it </b></TD><TD style='vertical-align: top;'> : </TD><TD style='vertical-align: top;'>  include "
00355         << GetPackage()->GetName() << "</TD></TR>\n";
00356     (s) << "</TABLE>\n";
00357
00358     //-------------
00359     // Graph
00360     //i->second->InsertHTMLGraph( &s , detail,level,dir);
00361
00362     //-------------
00363     // Inputs
00364     std::string titlecol("#BBBBFF");
00365     std::string usercol("#FFFFFF");
00366     std::string ubbcol("#DDFFFF");
00367     std::string wxbbcol("#EEFFFF");
00368
00369
00370     //  (s) << "<h3 class=\"subsection\">Inputs</h3>\n";
00371     (s) << "<p><TABLE border=1 cellspacing=0 cellpadding=3>\n";
00372     (s) << "<TR><TD colspan=3 align=center bgcolor=\""<<titlecol
00373       <<"\">Inputs</TD></TR>\n";
00374
00375     std::vector<std::string> user_defined;
00376     std::vector<std::string> ubb_defined;
00377     std::vector<std::string> wxbb_defined;
00378
00379     const BlackBoxDescriptor::InputDescriptorMapType& imap =
00380       GetInputDescriptorMap();
00381     InputDescriptorMapType::const_iterator in;
00382     for ( in = imap.begin();  in != imap.end(); ++in )
00383     {
00384       // Skips system-defined inputs
00385       std::string col(usercol);
00386       int iotype = 0;
00387       if (in->second->GetCreatorTypeInfo() ==
00388           typeid(AtomicBlackBoxDescriptor))
00389         {
00390           col = ubbcol;
00391           iotype = 1;
00392         }
00393       else if (in->second->GetCreatorTypeInfo() ==
00394                typeid(WxBlackBoxDescriptor))
00395         {
00396           col = wxbbcol;
00397           iotype = 2;
00398         }
00399
00400       std::string name(in->second->GetName());
00401       Utilities::html_format(name);
00402
00403       std::string type("<");
00404       type += in->second->GetTypeName();
00405       type += ">";
00406       Utilities::html_format(type);
00407
00408       std::string descr(in->second->GetDescription());
00409       //Utilities::html_format(descr);
00410
00411       std::string out =
00412         "<TR><TD style='vertical-align: top;' bgcolor=\"" + col
00413         +"\"><B><PRE> "+name+" </PRE></B></TD>"
00414         + "<TD style='vertical-align: top;' bgcolor=\""+col
00415         +"\"><I><PRE> "+type+" </PRE></I></TD>"
00416         + "<TD style='vertical-align: top;' bgcolor=\""+col
00417         +"\">"+descr+"</TD></TR>\n";
00418
00419       if (iotype==0) user_defined.push_back(out);
00420       else if (iotype==1) ubb_defined.push_back(out);
00421       else if (iotype==2) wxbb_defined.push_back(out);
00422
00423     }
00424
00425     std::vector<std::string>::iterator hi;
00426     for (hi=user_defined.begin();hi!=user_defined.end();++hi) s << *hi;
00427     for (hi=wxbb_defined.begin();hi!=wxbb_defined.end();++hi) s << *hi;
00428     for (hi=ubb_defined.begin();hi!=ubb_defined.end();++hi) s << *hi;
00429
00430     user_defined.clear();
00431     ubb_defined.clear();
00432     wxbb_defined.clear();
00433
00434     //-------------
00435     // Outputs
00436     //  (s) << "<h3 class=\"subsection\">Outputs</h3>\n";
00437     //  (s) << "<TABLE border=1 cellspacing=0>\n";
00438     (s) << "<TR><TD colspan=3 align=center bgcolor=\""<<titlecol
00439       <<"\">Outputs</TD></TR>\n";
00440
00441     const BlackBoxDescriptor::OutputDescriptorMapType& omap =
00442       GetOutputDescriptorMap();
00443
00444     BlackBoxDescriptor::OutputDescriptorMapType::const_iterator o;
00445
00446     for ( o = omap.begin();  o != omap.end(); ++o )
00447       {
00448         std::string col(usercol);
00449         int iotype = 0;
00450         if (o->second->GetCreatorTypeInfo() ==
00451             typeid(AtomicBlackBoxDescriptor))
00452           {
00453             col = ubbcol;
00454             iotype = 1;
00455           }
00456         else if (o->second->GetCreatorTypeInfo() ==
00457                  typeid(WxBlackBoxDescriptor))
00458           {
00459             col = wxbbcol;
00460             iotype = 2;
00461           }
00462
00463         std::string name(o->second->GetName());
00464         Utilities::html_format(name);
00465
00466         std::string type("<");
00467         type += o->second->GetTypeName();
00468         type += ">";
00469         Utilities::html_format(type);
00470
00471         std::string descr(o->second->GetDescription());
00472         //Utilities::html_format(descr);
00473
00474         std::string out =
00475           "<TR><TD style='vertical-align: top;' bgcolor=\"" + col
00476           +"\"><B><PRE> "+name+" </PRE></B></TD>"
00477           + "<TD style='vertical-align: top;' bgcolor=\""+col
00478           +"\"><I><PRE> "+type+" </PRE></I></TD>"
00479           + "<TD style='vertical-align: top;' bgcolor=\""+col
00480           +"\">"+descr+"</TD></TR>\n";
00481
00482         if (iotype==0) user_defined.push_back(out);
00483         else if (iotype==1) ubb_defined.push_back(out);
00484         else if (iotype==2) wxbb_defined.push_back(out);
00485
00486       }
00487
00488     for (hi=user_defined.begin();hi!=user_defined.end();++hi) s << *hi;
00489     for (hi=wxbb_defined.begin();hi!=wxbb_defined.end();++hi) s << *hi;
00490     for (hi=ubb_defined.begin();hi!=ubb_defined.end();++hi) s << *hi;
00491
00492     (s) << "</TABLE>\n";
00493
00494     //------------
00495     // End
00496
00497     bbtkDebugDecTab("Kernel",9);
00498    }

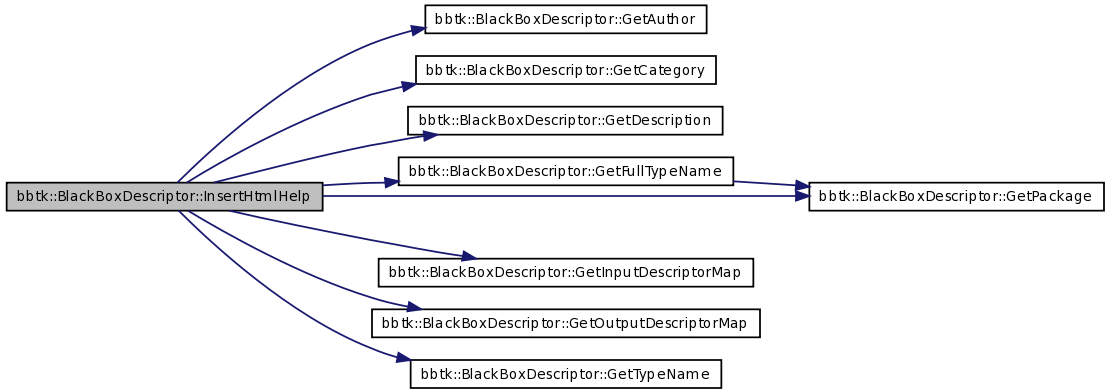

Here is the call graph for this function:

void bbtk::BlackBoxDescriptor::Check ( bool  recursive = true  )  const [virtual]

Check.

Definition at line 139 of file bbtkBlackBoxDescriptor.cxx.

00140   {
00141
00142   }

void bbtk::BlackBoxDescriptor::AddInputDescriptor ( BlackBoxInputDescriptor *  d  )  [inline, protected]

Adds an input descriptor.

Definition at line 163 of file bbtkBlackBoxDescriptor.h.

References bbtk::BlackBoxInputOutputDescriptor::GetName().

00164     { mInput[d->GetName()] = d; }

Here is the call graph for this function:

void bbtk::BlackBoxDescriptor::AddOutputDescriptor ( BlackBoxOutputDescriptor *  d  )  [inline, protected]

Adds an output descriptor.

Definition at line 166 of file bbtkBlackBoxDescriptor.h.

References bbtk::BlackBoxInputOutputDescriptor::GetName().

00167     { mOutput[d->GetName()] = d; }

Here is the call graph for this function:

std::string bbtk::Object::GetObjectName (  )  const [virtual, inherited]

Reimplemented in bbtk::Connection, bbtk::Executer, bbtk::Factory, bbtk::Interpreter, bbtk::Package, and bbtk::Transcriptor.

Definition at line 91 of file bbtkObject.cxx.

Referenced by bbtk::BlackBox::Deleter::Delete(), and bbtk::Object::Deleter::operator()().

00092   {
00093     return std::string("**Unknown object**");
00094   }

Here is the caller graph for this function:

std::string bbtk::Object::GetObjectInfo (  )  const [virtual, inherited]

Reimplemented in bbtk::Connection, bbtk::Executer, bbtk::Factory, bbtk::Interpreter, bbtk::Package, and bbtk::Transcriptor.

Definition at line 98 of file bbtkObject.cxx.

00099   {
00100     return std::string("");
00101   }

virtual size_t bbtk::Object::GetObjectSize (  )  const [inline, virtual, inherited]

Reimplemented in bbtk::Connection, bbtk::Executer, bbtk::Factory, bbtk::Interpreter, bbtk::Package, and bbtk::Transcriptor.

Definition at line 60 of file bbtkObject.h.

00060 { return sizeof(Object); }

virtual size_t bbtk::Object::GetObjectInternalSize (  )  const [inline, virtual, inherited]

Reimplemented in bbtk::Connection, bbtk::Executer, bbtk::Factory, bbtk::Interpreter, bbtk::Package, and bbtk::Transcriptor.

Definition at line 61 of file bbtkObject.h.

00061 { return sizeof(Object); }

virtual size_t bbtk::Object::GetObjectRecursiveSize (  )  const [inline, virtual, inherited]

Reimplemented in bbtk::Connection, bbtk::Executer, bbtk::Factory, bbtk::Interpreter, bbtk::Package, and bbtk::Transcriptor.

Definition at line 62 of file bbtkObject.h.

00062 { return sizeof(Object); }

long bbtk::Object::GetUseCount (  )  [inline, inherited]

Definition at line 63 of file bbtkObject.h.

00063 { return mThisPointer.use_count(); }

void bbtk::Object::InsertInObjectList ( Pointer  p  )  [static, inherited]

Definition at line 59 of file bbtkObject.cxx.

References bbtkDebugMessage, and bbtk::Object::mgObjectList.

00060   {
00061     bbtkDebugMessage("object",9,"##> Object::InsertInObjectList(\""
00062                      <<p->GetObjectName()<<"\" ["<<p<<"])"<<std::endl);
00063     boost::weak_ptr<Object> w(p);
00064     mgObjectList.insert(w);
00065   }

void bbtk::Object::RemoveFromObjectList ( WeakPointer  p  )  [static, inherited]

Definition at line 80 of file bbtkObject.cxx.

References bbtkDebugMessage, and bbtk::Object::mgObjectList.

00081   {
00082     bbtkDebugMessage("object",9,"##> Object::RemoveFromObjectList()"
00083                      <<std::endl);
00084     mgObjectList.erase(p);
00085
00086   }

void bbtk::Object::InsertInPackageList ( Pointer  p  )  [static, inherited]

Definition at line 69 of file bbtkObject.cxx.

References bbtkDebugMessage, and bbtk::Object::mgPackageList.

00070   {
00071     bbtkDebugMessage("object",9,"##> Object::InsertInPackageList(\""
00072                      <<p->GetObjectName()<<"\" ["<<p<<"])"<<std::endl);
00073     boost::weak_ptr<Object> w(p);
00074     mgPackageList.insert(w);
00075   }

void bbtk::Object::ReleasePackages (  )  [static, inherited]

Definition at line 213 of file bbtkObject.cxx.

References bbtkDebugMessage, bbtk::i, and bbtk::Object::mgPackageList.

00214   {
00215     bbtkDebugMessage("object",1,"##> Object::ReleasePackages()"<<std::endl);
00216     // Release package pointers
00217     ObjectListType::iterator i;
00218     for (i = mgPackageList.begin();
00219          i!= mgPackageList.end();
00220          ++i)
00221       {
00222         if (i->use_count() != 0)
00223           {
00224             bbtkDebugMessage("object",1,"##> Releasing package '"<<
00225                              i->lock()->GetThisPointer<Package>()->GetName()
00226                              <<"'"<<std::endl);
00227             //      Object::Pointer p(i->lock());
00228             Package::WeakPointer w(i->lock()->GetThisPointer<Package>());
00229             Package::Release(w);
00230             /*
00231             if (p->GetObjectName().find(name) != std::string::npos )
00232               {
00233                 std::cout << n << "/" << mgObjectList.size() << " ";
00234                 PrintObjectInfo(p);
00235                 m += p->GetObjectSize();
00236                 n++;
00237               }
00238             */
00239           }
00240       }
00241
00242   }

void bbtk::Object::PrintObjectListInfo ( const std::string &  name  )  [static, inherited]

Definition at line 105 of file bbtkObject.cxx.

References bbtk::i, bbtk::Object::mgObjectList, and bbtk::Object::PrintObjectInfo().

00106   {
00107
00108     std::cout
00109       << "=============== Living bbtk::Object pointers ========="<<std::endl;
00110
00111     long n = 0;
00112     long u = 0;
00113     size_t m = 0;
00114     ObjectListType::iterator i;
00115     for (i = mgObjectList.begin();
00116          i!=mgObjectList.end();
00117          ++i)
00118       {
00119         if (i->use_count() == 0)
00120           {
00121             u++;
00122           }
00123         else
00124           {
00125             Object::Pointer p(i->lock());
00126             if (p->GetObjectName().find(name) != std::string::npos )
00127               {
00128                 std::cout << n << "/" << mgObjectList.size() << " ";
00129                 PrintObjectInfo(p);
00130                 m += p->GetObjectSize();
00131                 n++;
00132               }
00133           }
00134       }
00135     std::cout
00136       << "------------------------------------------------------"<<std::endl;
00137
00138     std::cout << " Total : "<<n<<" objects - "<<m<<" b"<<std::endl;
00139     if (u==1)
00140       {
00141         std::cout<<"* Note : "<<u
00142                  <<" object in list has 0 ref count, "
00143                  <<"i.e. destroyed without removing itself from the living objects list ! (this is just an implementation error not a memory leak)"<<std::endl;
00144       }
00145     else if (u>1)
00146       {
00147         std::cout<<"* Note : "<<u
00148                  <<" objects in list have 0 ref count, "
00149                  <<"i.e. destroyed without removing themselves from the living objects list ! (this is just an implementation error not a memory leak)"<<std::endl;
00150       }
00151     std::cout
00152       << "============ EO Living bbtk::Object pointers ========="<<std::endl;
00153
00154   }

Here is the call graph for this function:

void bbtk::Object::PrintObjectInfo ( const Pointer &  o  )  [static, inherited]

Definition at line 180 of file bbtkObject.cxx.

Referenced by bbtk::Object::PrintObjectListInfo().

00181   {
00182     std::cout << "* [" << p << "] \t"
00183               << p.use_count()-1 << " r \t"
00184               << p->GetObjectRecursiveSize() << " ("
00185               << p->GetObjectSize() << ") b \t"
00186               << p->GetObjectName()
00187               << std::endl;
00188     std::cout << p->GetObjectInfo();
00189   }

Here is the caller graph for this function:

static long bbtk::Object::GetObjectsCount (  )  [inline, static, inherited]

Definition at line 75 of file bbtkObject.h.

00075 { return mgObjectList.size(); }

void bbtk::Object::LockThis (  )  [inline, protected, inherited]

Definition at line 88 of file bbtkObject.h.

00088 { mThisPointerLocked = mThisPointer.lock(); }

void bbtk::Object::UnLockThis (  )  [inline, protected, inherited]

Definition at line 89 of file bbtkObject.h.

00089 { mThisPointerLocked = Pointer(); }

template<class U>
boost::shared_ptr<U> bbtk::Object::GetThisPointer (  )  const [inline, protected, inherited]

Definition at line 92 of file bbtkObject.h.

00093     {
00094       return boost::dynamic_pointer_cast<U>(mThisPointer.lock());
00095     }

template<class U>
static boost::shared_ptr<U> bbtk::Object::MakePointer ( U *  s,
bool  lock = false
) [inline, static, protected, inherited]

Definition at line 97 of file bbtkObject.h.

Referenced by bbtk::Executer::Executer(), bbtk::Interpreter::Init(), bbtk::Transcriptor::New(), bbtk::Package::New(), bbtk::Interpreter::New(), bbtk::Factory::New(), and bbtk::Executer::New().

00098     {
00099       if (s->mThisPointer.lock())
00100         {
00101           boost::shared_ptr<U> p = s->GetThisPointer<U>();
00102           if (!lock) s->mThisPointerLocked.reset();
00103           return p;
00104         }
00105       boost::shared_ptr<U> p = boost::shared_ptr<U>(s,Object::Deleter());
00106       static_cast<Object::Deleter*>
00107         (p._internal_get_deleter(typeid(Object::Deleter)))
00108         ->mPointer = p;
00109       s->mThisPointer = p;
00110       Object::InsertInObjectList(p);
00111       if (lock) s->LockThis();
00112       return p;
00113     }

Here is the caller graph for this function:

template<class U, class D>
static boost::shared_ptr<U> bbtk::Object::MakePointer ( U *  s,
const D &  del,
bool  lock = false
) [inline, static, protected, inherited]

Definition at line 115 of file bbtkObject.h.

00118     {
00119       if (s->mThisPointer.lock())
00120         {
00121           boost::shared_ptr<U> p = s->GetThisPointer<U>();
00122           if (!lock) s->mThisPointerLocked.reset();
00123           return p;
00124         }
00125       boost::shared_ptr<U> p = boost::shared_ptr<U>(s,del);
00126       static_cast<D*>
00127         (p._internal_get_deleter(typeid(D)))
00128         ->mPointer = p;
00129       s->mThisPointer = p;
00130       Object::InsertInObjectList(p);
00131       if (lock) s->LockThis();
00132       return p;
00133     }

Friends And Related Function Documentation

friend struct Object::Deleter [friend]

Definition at line 61 of file bbtkBlackBoxDescriptor.h.

Member Data Documentation

std::string bbtk::BlackBoxDescriptor::mTypeName [protected]

The name of the type of black box.

Definition at line 171 of file bbtkBlackBoxDescriptor.h.

Referenced by GetFullTypeName(), and ~BlackBoxDescriptor().

std::string bbtk::BlackBoxDescriptor::mDescription [protected]

The description of the black box.

Definition at line 173 of file bbtkBlackBoxDescriptor.h.

Referenced by AddToDescription().

std::string bbtk::BlackBoxDescriptor::mAuthor [protected]

The author of the black box.

Definition at line 175 of file bbtkBlackBoxDescriptor.h.

Referenced by AddToAuthor().

std::string bbtk::BlackBoxDescriptor::mCategory [protected]

The category of the black box.

Definition at line 177 of file bbtkBlackBoxDescriptor.h.

Referenced by AddToCategory().

Kind bbtk::BlackBoxDescriptor::mKind [protected]

The kind of box (standard / adaptor).

Definition at line 179 of file bbtkBlackBoxDescriptor.h.

PackagePointer bbtk::BlackBoxDescriptor::mPackage [protected]

The Package to which the box belongs.

Definition at line 181 of file bbtkBlackBoxDescriptor.h.

InputDescriptorMapType bbtk::BlackBoxDescriptor::mInput [protected]

The inputs.

Definition at line 183 of file bbtkBlackBoxDescriptor.h.

Referenced by GetHelp(), GetInputDescriptor(), and ~BlackBoxDescriptor().

OutputDescriptorMapType bbtk::BlackBoxDescriptor::mOutput [protected]

The outputs.

Definition at line 185 of file bbtkBlackBoxDescriptor.h.

Referenced by GetHelp(), GetOutputDescriptor(), and ~BlackBoxDescriptor().

The documentation for this class was generated from the following files:
Generated on Wed Nov 12 11:38:36 2008 for BBTK by  doxygen 1.5.6
