bbtk::BlackBox Class Reference

Abstract black-box interface. More...

#include <bbtkBlackBox.h>

Inheritance diagram for bbtk::BlackBox:

Collaboration diagram for bbtk::BlackBox:

List of all members.

Public Types

enum BoxProcessModeValue { Pipeline, Always, Reactive }

typedef BlackBox Self

typedef boost::shared_ptr< Self > Pointer

typedef boost::weak_ptr< Self > WeakPointer

typedef std::map< std::string,
BlackBoxOutputConnector * > OutputConnectorMapType

The type of map of output connector pointers.

typedef std::map< std::string,
BlackBoxInputConnector * > InputConnectorMapType

The type of map of input connector pointers.

Public Member Functions

virtual BlackBoxDescriptor::Pointer bbGetDescriptor () const =0

Returns the pointer on the descriptor of the box.

virtual BlackBox::Pointer bbClone (const std::string &name)=0

Returns a pointer on a clone of the box with name <name>.

virtual void bbUserDelete ()

User overloadable destruction method of a black box.

const std::string & bbGetTypeName () const

Returns the Name of the Type of the BlackBox.

const std::string & bbGetName () const

Returns the name of the BlackBox (instance).

virtual std::string bbGetFullName () const

Returns the full name of the BlackBox (instance+type).

virtual std::string bbGetNameWithParent () const

Returns the name with the name of the parent prepended if any.

BlackBox::Pointer bbGetParent () const

Returns the parent of the BlackBox, i.e the BlackBox that contains it (0 if none).

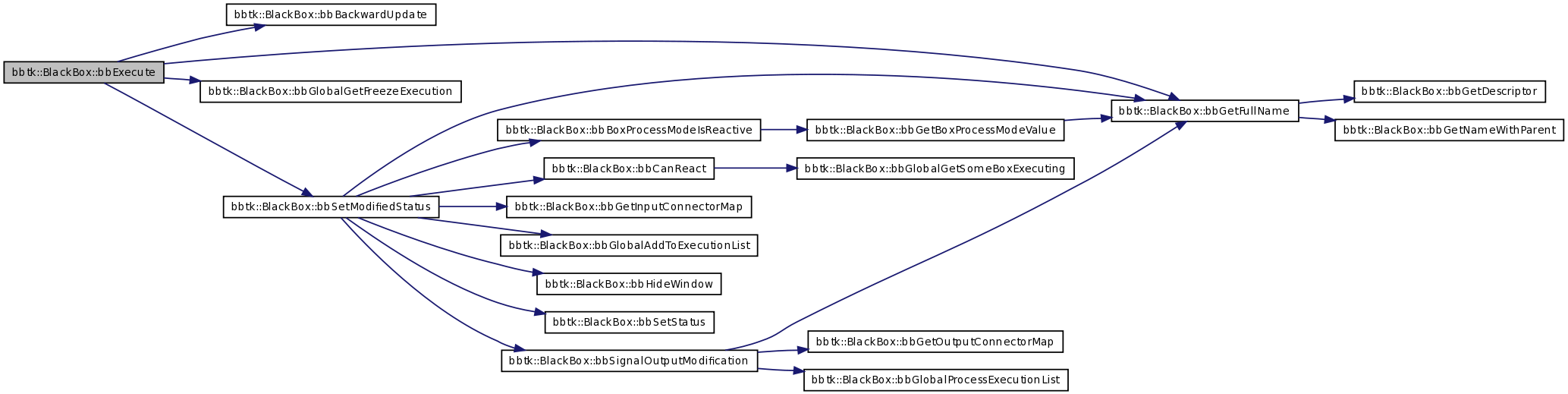

virtual void bbExecute (bool force=false)

Main processing method of the box.

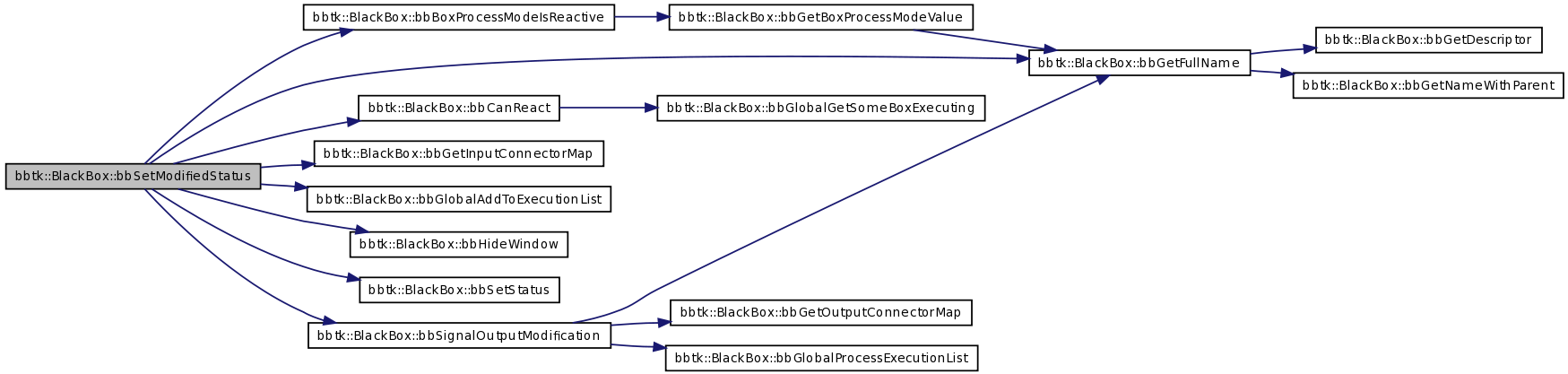

virtual void bbSetModifiedStatus (BlackBoxInputConnector *c=0)

Signals that the BlackBox has been modified.

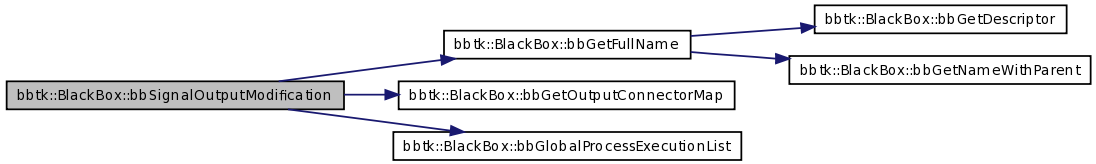

virtual void bbSignalOutputModification (bool reaction=true)

virtual void bbSignalOutputModification (const std::string &output_name, bool reaction=true)

virtual void bbSignalOutputModification (const std::vector< std::string > &output_name, bool reaction=true)

virtual const IOStatus & bbGetStatus () const

Gets the status of the box.

virtual bool bbHasInput (const std::string &label) const

Returns true iff the BlackBox has an input of name label.

virtual bool bbHasOutput (const std::string &label) const

Returns true iff the BlackBox has an output of name label.

virtual TypeInfo bbGetInputType (const std::string &label) const

Gets the input type of a given label.

virtual TypeInfo bbGetOutputType (const std::string &label) const

Gets the output type of a given label.

virtual Data bbGetInput (const std::string &name)=0

Gets the data of the input called <name>.

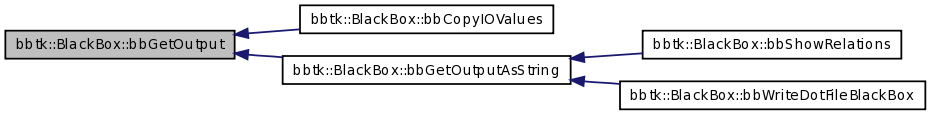

virtual Data bbGetOutput (const std::string &name)=0

Gets the data of the output called <name>.

virtual void bbSetInput (const std::string &name, Data data, bool setModified=true)=0

virtual void bbBruteForceSetInputPointer (const std::string &name, void *data, bool setModified=true)=0

virtual void bbSetOutput (const std::string &name, Data data)=0

Sets the data of the output called <name>.

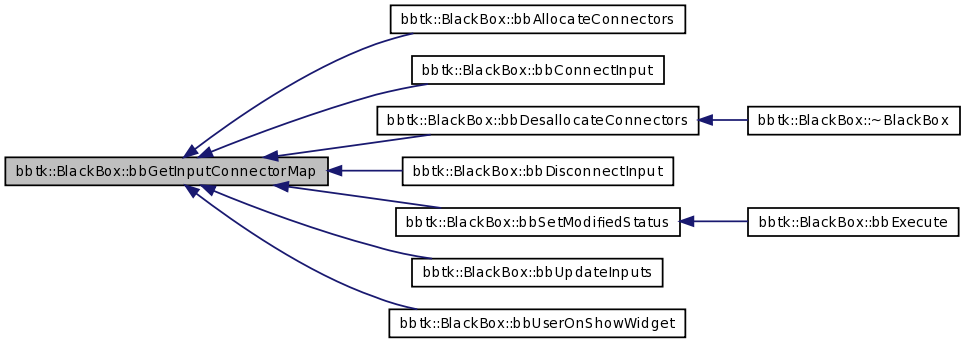

InputConnectorMapType & bbGetInputConnectorMap ()

Returns the input connectors map.

OutputConnectorMapType & bbGetOutputConnectorMap ()

Returns the output connectors map.

const InputConnectorMapType & bbGetInputConnectorMap () const

Returns the input connectors map (const).

const OutputConnectorMapType & bbGetOutputConnectorMap () const

Returns the output connectors map (const).

virtual void bbGetHelp (bool full=true) const

Prints the Help on the BlackBox type.

std::string bbGetInputBoxProcessMode ()

Returns the value of the input "BoxProcessMode".

void bbSetInputBoxProcessMode (std::string a)

Sets the value of the input "BoxProcessMode".

BoxProcessModeValue bbGetBoxProcessModeValue () const

Returns the "decoded" value of the input "BoxProcessMode".

virtual bool bbBoxProcessModeIsReactive () const

virtual bool bbBoxProcessModeIsAlways () const

Void bbGetInputBoxExecute ()

Returns the value of the input "Execute".

void bbSetInputBoxExecute (Void=0)

Sets the value of the input "Execute".

Void bbGetOutputBoxChange ()

Returns the value of the output "Change".

void bbSetOutputBoxChange (Void=0)

Sets the value of the output "Change" : signal a modification.

void bbInsertHTMLGraph (std::ofstream &s, int detail, int level, bool instanceOrtype, const std::string &output_dir, bool relative_link)

Does nothing here : overloaded in ComplexBlackBox.

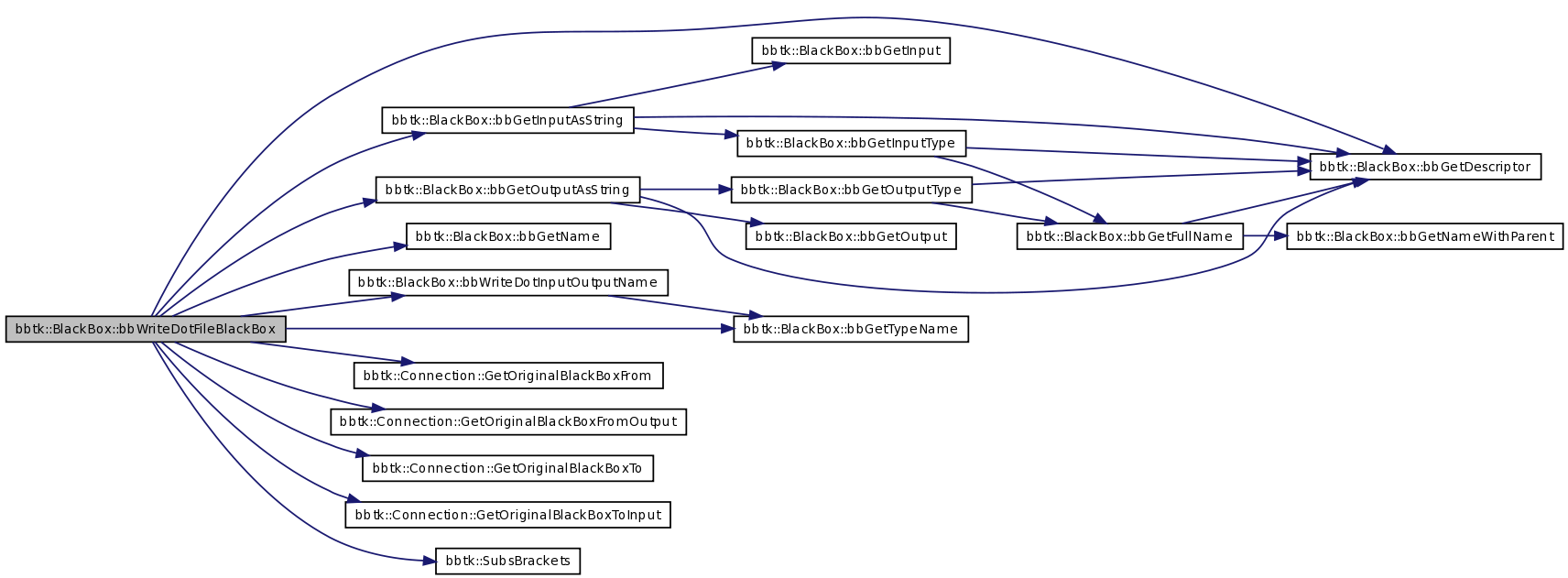

virtual void bbWriteDotFileBlackBox (FILE *ff, BlackBox::Pointer parentblackbox, int detail, int level, bool instanceOrtype, bool relative_link)

Write Graphviz-dot description in file.

virtual void bbWriteDotInputOutputName (FILE *ff, bool inputoutput, int detail, int level)

Auxiliary method for bbWriteDotFileBlackBox.

virtual void bbShowRelations (BlackBox::Pointer parentblackbox, int detail, int level)

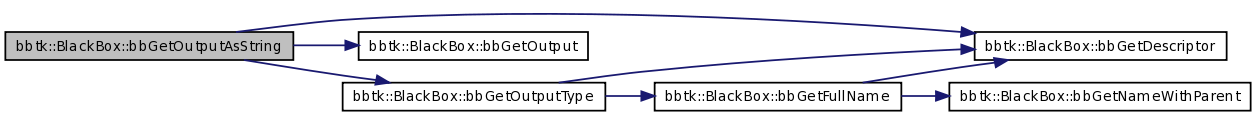

std::string bbGetOutputAsString (const std::string &output)

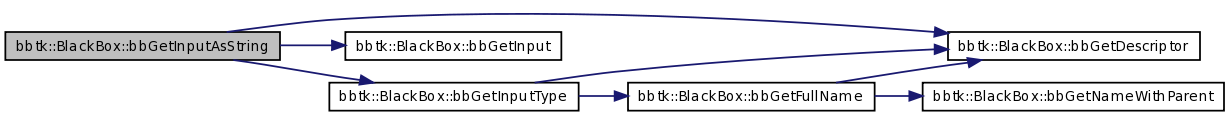

std::string bbGetInputAsString (const std::string &input)

virtual BlackBox::Pointer bbFindBlackBox (const std::string &blackboxname)

virtual void Check (bool recursive=true)

virtual void bbUserOnShow ()

void bbUserOnShowWidget (std::string nameInput)

virtual bool bbCanReact () const

virtual std::string GetObjectName () const

virtual std::string GetObjectInfo () const

virtual size_t GetObjectSize () const

virtual size_t GetObjectInternalSize () const

virtual size_t GetObjectRecursiveSize () const

long GetUseCount ()

Static Public Member Functions

static bool bbGlobalGetSomeBoxExecuting ()

static void bbGlobalSetSomeBoxExecuting (bool b)

static void bbGlobalSetFreezeExecution (bool b)

static bool bbGlobalGetFreezeExecution ()

static void InsertInObjectList (Pointer)

static void RemoveFromObjectList (WeakPointer)

static void InsertInPackageList (Pointer)

static void ReleasePackages ()

static void PrintObjectListInfo (const std::string &name)

static void PrintObjectInfo (const Pointer &o)

static long GetObjectsCount ()

Protected Member Functions

BlackBox ()

BlackBox (const BlackBox &)

virtual ~BlackBox ()

BlackBox (const std::string &name)

Constructor that take the BlackBox's name.

BlackBox (BlackBox &from, const std::string &name)

Constructor from an existing box (copy) with a new name.

void bbSetStatus (IOStatus t)

Sets the status of the box.

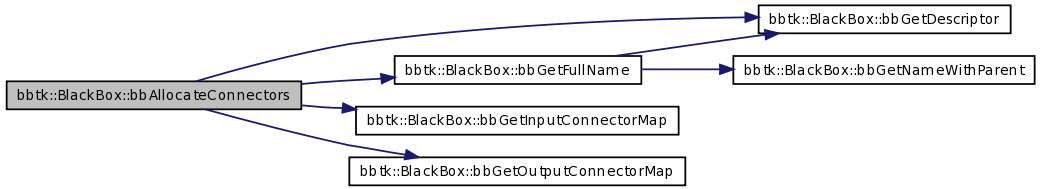

virtual void bbAllocateConnectors ()

Allocates the i/o connectors of the black box.

virtual void bbDesallocateConnectors ()

Desallocates the i/o connectors of the black box.

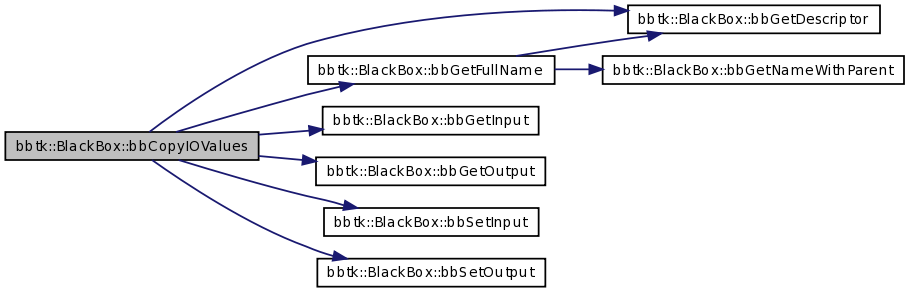

virtual void bbCopyIOValues (BlackBox &from)

Copies the values of the inputs/output from the BlackBox from.

virtual void bbDelete ()

void LockThis ()

void UnLockThis ()

template<class U>

boost::shared_ptr GetThisPointer () const

Pipeline processing methods

Methods which participate to (forward or backward) pipeline processing. Some are pure virtual and prepare particular update mechanism which are implemented by descendents (e.g. ForwardUpdate and UpdateChildren are made for WxContainerBlackBox particular update mechanism which must recurse a piece of the pipeline top-down). The main method is bbBackwardUpdate which is called by bbExecute and implemented in UserBlackBox and ComplexBlackBox.

virtual IOStatus bbBackwardUpdate (Connection::Pointer caller)=0

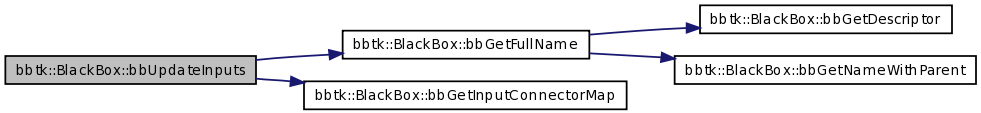

IOStatus bbUpdateInputs (bool excludeParent=false)

virtual void bbShowWindow (Connection::Pointer caller)

virtual void bbHideWindow ()

virtual void bbCloseWindow ()

Static Protected Member Functions

static void bbGlobalAddToExecutionList (BlackBox::Pointer b)

static void bbGlobalProcessExecutionList ()

template<class U>

static boost::shared_ptr MakeBlackBoxPointer (U *s, bool lock=false)

template<class U>

static boost::shared_ptr MakePointer (U *s, bool lock=false)

template<class U, class D>

static boost::shared_ptr MakePointer (U *s, const D &del, bool lock=false)

Private Member Functions

void bbSetParent (BlackBox::Pointer p)

Sets the parent of the BlackBox.

virtual void bbConnectInput (const std::string &name, Connection *c)

Connects the input <name> to the connection c.

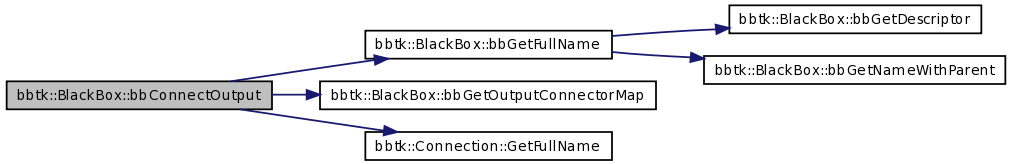

virtual void bbConnectOutput (const std::string &name, Connection *c)

Connects the output <name> to the connection c.

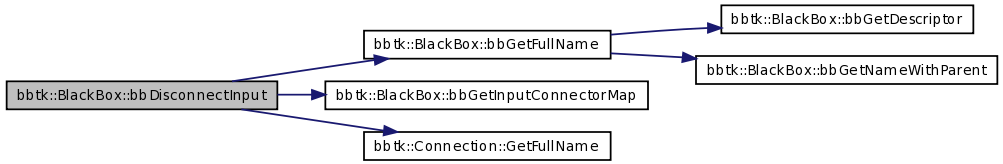

virtual void bbDisconnectInput (const std::string &name, Connection *c)

Disconnects the input <name> from the connection c.

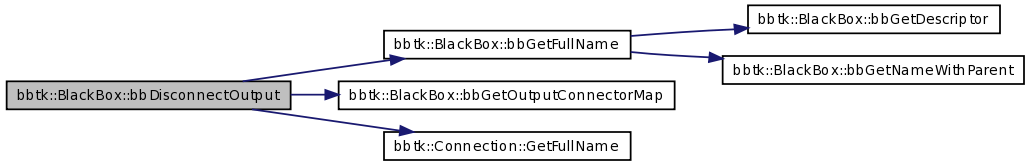

virtual void bbDisconnectOutput (const std::string &name, Connection *c)

Disconnects the output <name> from the connection c.

Private Attributes

IOStatus bbmStatus

The status of the box.

std::string bbmName

The name of the black-box.

std::string bbmPackageName

The name of the package to which it belongs.

std::string bbmBoxProcessMode

BlackBox::WeakPointer bbmParent

The parent of the black box in the ComplexBlackBox hierarchy.

OutputConnectorMapType mOutputConnectorMap

Map that contains the output connectors of the black box.

InputConnectorMapType mInputConnectorMap

Map that contains the input connectors of the black box.

Friends

struct Object::Deleter

class Connection

class ComplexBlackBox

Classes

struct Deleter

Detailed Description

Abstract black-box interface.

Definition at line 61 of file bbtkBlackBox.h.

Member Typedef Documentation

typedef BlackBox bbtk::BlackBox::Self

Definition at line 63 of file bbtkBlackBox.h.

typedef boost::shared_ptr<Self> bbtk::BlackBox::Pointer

Reimplemented from bbtk::Object.

Definition at line 63 of file bbtkBlackBox.h.

typedef boost::weak_ptr<Self> bbtk::BlackBox::WeakPointer

Reimplemented from bbtk::Object.

Definition at line 63 of file bbtkBlackBox.h.

typedef std::map<std::string, BlackBoxOutputConnector*> bbtk::BlackBox::OutputConnectorMapType

The type of map of output connector pointers.

Definition at line 63 of file bbtkBlackBox.h.

typedef std::map<std::string, BlackBoxInputConnector*> bbtk::BlackBox::InputConnectorMapType

The type of map of input connector pointers.

Definition at line 74 of file bbtkBlackBox.h.

Member Enumeration Documentation

enum bbtk::BlackBox::BoxProcessModeValue

Enumerator:

Pipeline
Always
Reactive

Definition at line 185 of file bbtkBlackBox.h.

00186       {
00187         Pipeline,
00188         Always,
00189         Reactive
00190       }

Constructor & Destructor Documentation

bbtk::BlackBox::BlackBox ( ) [protected]

bbtk::BlackBox::BlackBox ( const BlackBox & ) [protected]

Definition at line 119 of file bbtkBlackBox.cxx.

00120   {}

bbtk::BlackBox::~BlackBox ( ) [protected, virtual]

Definition at line 142 of file bbtkBlackBox.cxx.

References bbDesallocateConnectors(), bbmName, and bbtkDebugMessage.

00143   {
00144     bbtkDebugMessage("object",4,"==> BlackBox::~BlackBox() ["<<bbmName
00145                      <<"]"<<std::endl);
00146     this->bbDesallocateConnectors();
00147     bbtkDebugMessage("object",4,"<== BlackBox::~BlackBox() ["<<bbmName
00148                      <<"]"<<std::endl);
00149   }

Here is the call graph for this function:

bbtk::BlackBox::BlackBox ( const std::string & name ) [protected]

Constructor that take the BlackBox's name.

Definition at line 103 of file bbtkBlackBox.cxx.

References bbtkDebugMessage.

00104     :
00105     bbmStatus(MODIFIED),
00106     bbmName(name),
00107     bbmBoxProcessMode("Pipeline"),
00108     bbmParent()
00109
00110   {
00111     bbtkDebugMessage("object",4,"==> BlackBox::BlackBox(\""
00112                      <<name<<"\")"<<std::endl);
00113     bbtkDebugMessage("object",4,"<== BlackBox::BlackBox(\""
00114                      <<name<<"\")"<<std::endl);
00115   }

bbtk::BlackBox::BlackBox	(	BlackBox &	from,
		const std::string &	name
	)			`[protected]`

Constructor from an existing box (copy) with a new name.

Definition at line 123 of file bbtkBlackBox.cxx.

References bbGetFullName(), bbmBoxProcessMode, bbmName, bbmParent, bbmStatus, and bbtkDebugMessage.

00124     :
00125       bbmStatus(from.bbmStatus),
00126       bbmName(name),
00127       bbmBoxProcessMode(from.bbmBoxProcessMode),
00128       bbmParent()
00129
00130   {
00131     bbtkDebugMessage("object",4,"==> BlackBox::BlackBox("
00132                      <<from.bbGetFullName()<<",\""
00133                      <<name<<"\")"<<std::endl);
00134     bbtkDebugMessage("object",4,"<== BlackBox::BlackBox("
00135                      <<from.bbGetFullName()<<",\""
00136                      <<name<<"\")"<<std::endl);
00137   }
  //=========================================================================

Here is the call graph for this function:

Member Function Documentation

virtual BlackBoxDescriptor::Pointer bbtk::BlackBox::bbGetDescriptor ( ) const [pure virtual]

Returns the pointer on the descriptor of the box.

Referenced by bbAllocateConnectors(), bbCopyIOValues(), bbGetFullName(), bbGetHelp(), bbGetInputAsString(), bbGetInputType(), bbGetOutputAsString(), bbGetOutputType(), bbHasInput(), bbHasOutput(), bbShowRelations(), bbWriteDotFileBlackBox(), and bbtk::BlackBox::Deleter::Delete().

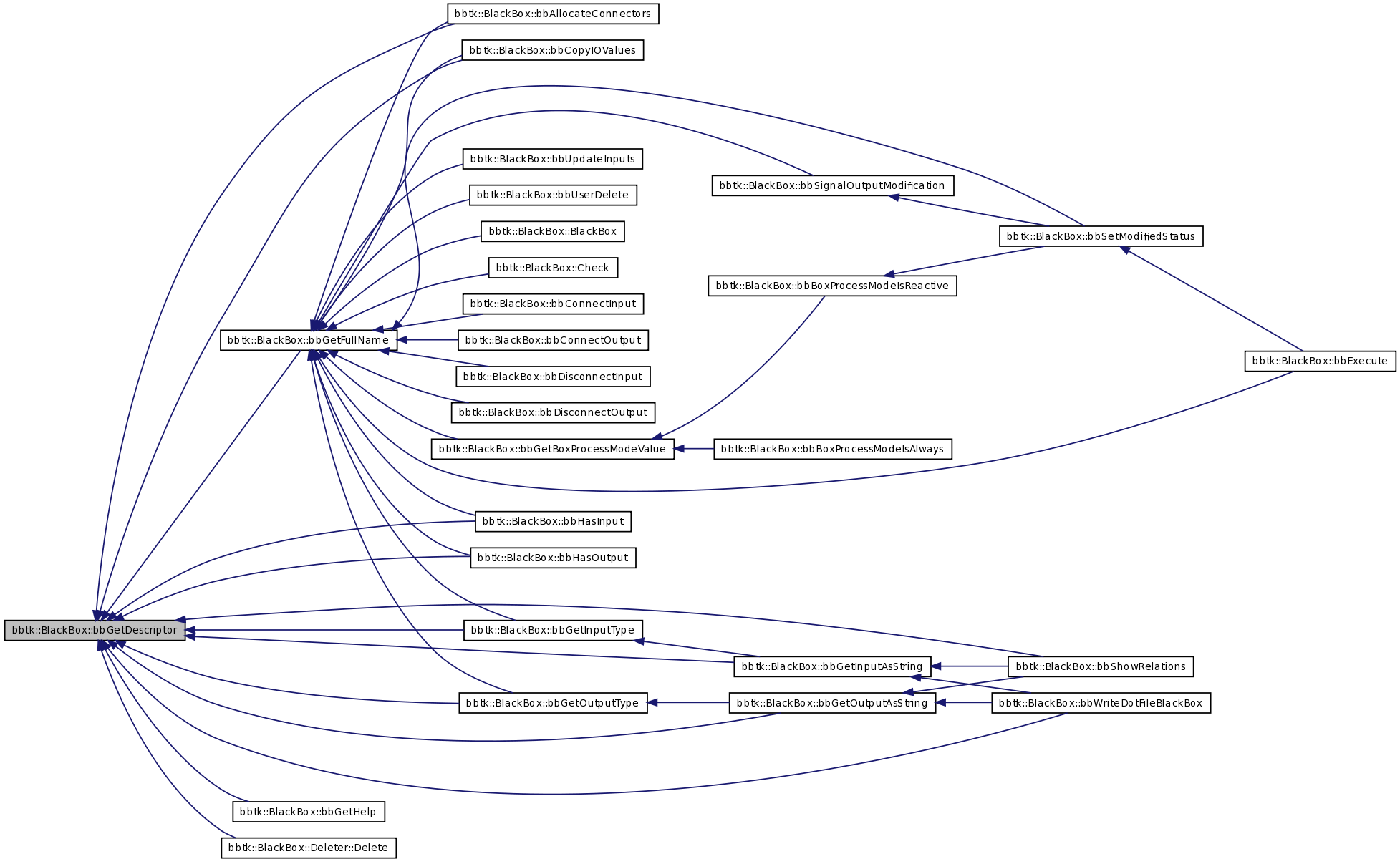

Here is the caller graph for this function:

virtual BlackBox::Pointer bbtk::BlackBox::bbClone ( const std::string & name ) [pure virtual]

Returns a pointer on a clone of the box with name <name>.

void bbtk::BlackBox::bbUserDelete ( ) [virtual]

User overloadable destruction method of a black box.

Definition at line 384 of file bbtkBlackBox.cxx.

References bbGetFullName(), and bbtkDebugMessage.

00385   {
00386     bbtkDebugMessage("process",5,
00387                      "=> BlackBox::bbUserDelete() ["
00388                      <<bbGetFullName()<<"]"
00389                      <<" : not overloaded; using standard deletion"
00390                      <<std::endl);
00391     delete this;
00392   }

Here is the call graph for this function:

const std::string& bbtk::BlackBox::bbGetTypeName ( ) const [inline]

Returns the Name of the Type of the BlackBox.

Definition at line 86 of file bbtkBlackBox.h.

Referenced by bbWriteDotFileBlackBox(), and bbWriteDotInputOutputName().

00087       { return bbGetDescriptor()->GetTypeName(); }

Here is the caller graph for this function:

const std::string& bbtk::BlackBox::bbGetName ( ) const [inline]

Returns the name of the BlackBox (instance).

Definition at line 91 of file bbtkBlackBox.h.

Referenced by bbShowRelations(), and bbWriteDotFileBlackBox().

00091 { return bbmName; }

Here is the caller graph for this function:

std::string bbtk::BlackBox::bbGetFullName ( ) const [virtual]

Returns the full name of the BlackBox (instance+type).

Definition at line 184 of file bbtkBlackBox.cxx.

References bbGetDescriptor(), and bbGetNameWithParent().

Referenced by bbAllocateConnectors(), bbConnectInput(), bbConnectOutput(), bbCopyIOValues(), bbDisconnectInput(), bbDisconnectOutput(), bbExecute(), bbGetBoxProcessModeValue(), bbGetInputType(), bbGetOutputType(), bbHasInput(), bbHasOutput(), bbSetModifiedStatus(), bbSignalOutputModification(), bbUpdateInputs(), bbUserDelete(), BlackBox(), and Check().

00185   {
00186     return this->bbGetNameWithParent()+"<"+this->bbGetDescriptor()->GetTypeName()+">";
00187   }

Here is the call graph for this function:

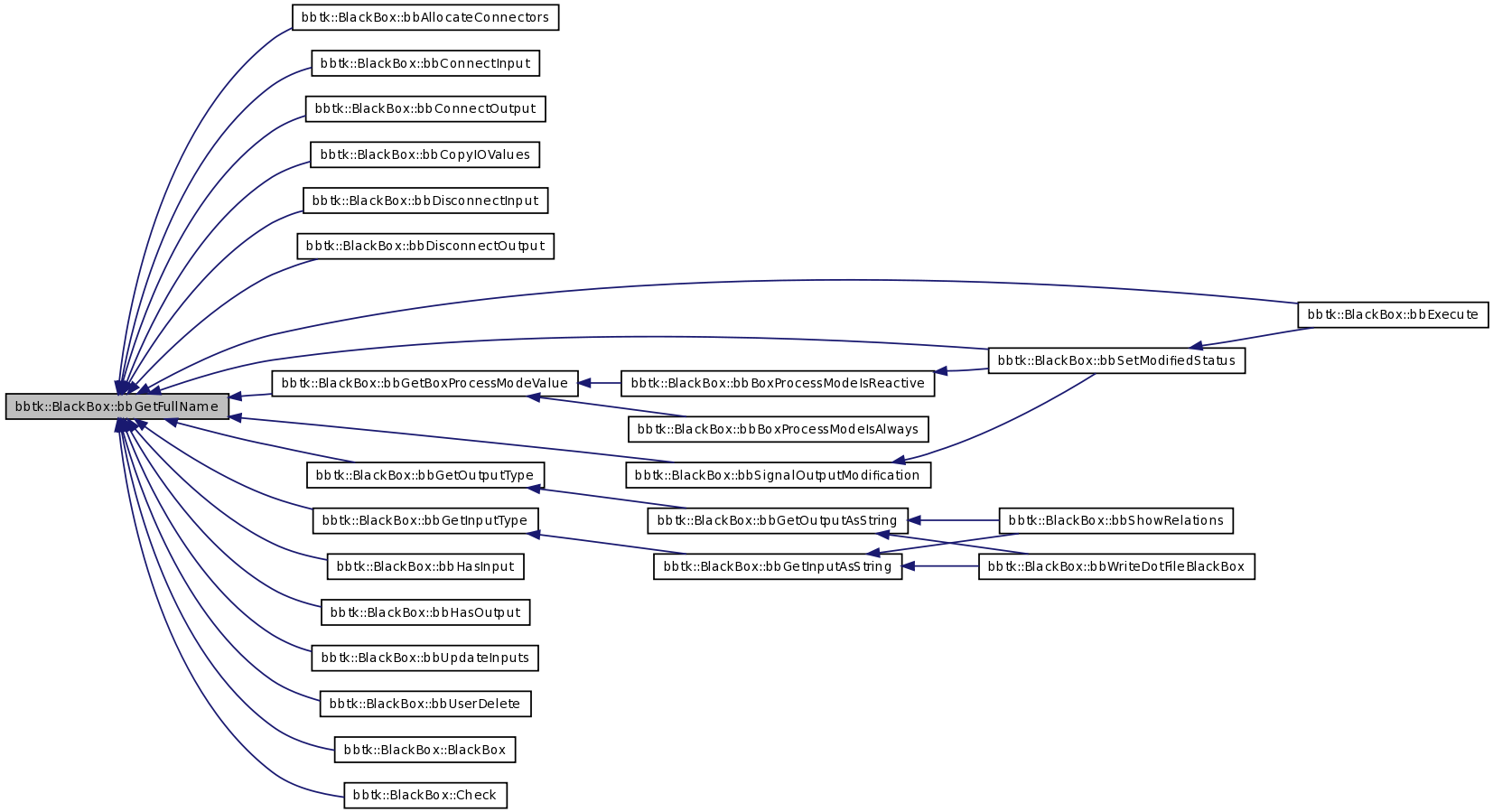

Here is the caller graph for this function:

std::string bbtk::BlackBox::bbGetNameWithParent ( ) const [virtual]

Returns the name with the name of the parent prepended if any.

Definition at line 194 of file bbtkBlackBox.cxx.

References bbmName, and bbmParent.

Referenced by bbGetFullName().

00195   {
00196     if (bbmParent.lock())
00197       {
00198         return bbmParent.lock()->bbGetNameWithParent() + ":" + bbmName;
00199       }
00200     else
00201       {
00202         return bbmName;
00203       }
00204   }

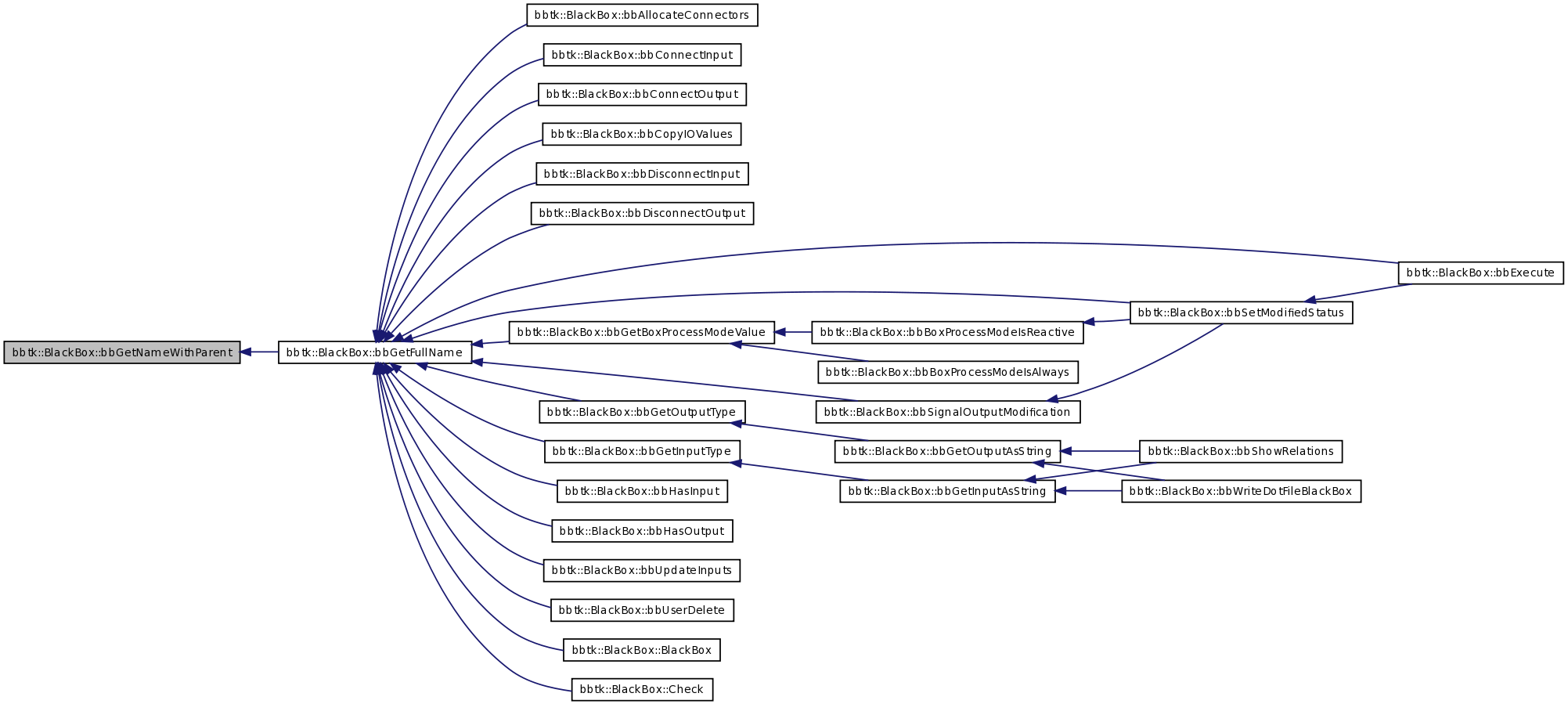

Here is the caller graph for this function:

BlackBox::Pointer bbtk::BlackBox::bbGetParent ( ) const [inline]

Returns the parent of the BlackBox, i.e the BlackBox that contains it (0 if none).

Definition at line 100 of file bbtkBlackBox.h.

00100 { return bbmParent.lock(); }

void bbtk::BlackBox::bbExecute ( bool force = false ) [virtual]

Main processing method of the box.

Definition at line 155 of file bbtkBlackBox.cxx.

References bbBackwardUpdate(), bbGetFullName(), bbGlobalGetFreezeExecution(), bbSetModifiedStatus(), BBTK_BUSY_CURSOR, bbtkDebugMessage, bbtkDebugMessageDec, and bbtkDebugMessageInc.

00156   {
00157     bbtkDebugMessageInc("process",2,
00158                         "=> BlackBox::bbExecute() ["
00159                         <<bbGetFullName()<<"]"<<std::endl);
00160
00161
00162     // If execution frozen : return
00163     if (bbGlobalGetFreezeExecution())
00164       {
00165         bbtkDebugMessage("process",2,
00166                          " -> FreezeExecution global flag is 'true' : abort execution"<<std::endl);
00167       }
00168
00169     BBTK_BUSY_CURSOR;
00170
00171     // If force is true then update is triggered even if the box is UPTODATE
00172     if (force) bbSetModifiedStatus();
00173
00174     // Calls the main recursive update method
00175     bbBackwardUpdate(Connection::Pointer());
00176
00177     bbtkDebugMessageDec("process",2,
00178                         "<= BlackBox::bbExecute() ["
00179                         <<bbGetFullName()<<"]"<<std::endl);
00180   }

Here is the call graph for this function:

void bbtk::BlackBox::bbSetModifiedStatus ( BlackBoxInputConnector * c = 0 ) [virtual]

Signals that the BlackBox has been modified.

Signals that the BlackBox has been modified through the input connector c and propagates it downward

Definition at line 433 of file bbtkBlackBox.cxx.

References bbBoxProcessModeIsReactive(), bbCanReact(), bbGetFullName(), bbGetInputConnectorMap(), bbGlobalAddToExecutionList(), bbHideWindow(), bbSetStatus(), bbSignalOutputModification(), bbtkDebugMessage, and bbtk::MODIFIED.

Referenced by bbExecute().

00434   {
00435     bbtkDebugMessage("modified",1,
00436                      "==> BlackBox::bbSetModifiedStatus("<<c<<") ["
00437                      <<bbGetFullName()<<"]"<<std::endl);
00438
00439     if ( (c==bbGetInputConnectorMap().find("WinHide")->second) )
00440       //         && (bbCanReact()))
00441       {
00442         bbtkDebugMessage("modified",2,
00443                          "-> Hide triggered by WinHide input change"
00444                          <<std::endl);
00445         this->bbHideWindow();
00446         this->bbSetStatus(MODIFIED);
00447         return;
00448       }
00449     if ( (c==bbGetInputConnectorMap().find("WinClose")->second) )
00450       //         && (bbCanReact()))
00451       {
00452         bbtkDebugMessage("modified",2,
00453                          "-> Close triggered by WinClose input change"
00454                          <<std::endl);
00455         this->bbHideWindow();
00456         this->bbSetStatus(MODIFIED);
00457         return;
00458       }
00459
00460     if ( ( bbBoxProcessModeIsReactive()  ||
00461            (c==bbGetInputConnectorMap().find("BoxExecute")->second))
00462          && (bbCanReact() ) )
00463       {
00464         bbtkDebugMessage("modified",2,
00465                          "-> Execution triggered by Reactive mode or BoxExecute input change"<<std::endl);
00466         this->bbSetStatus(MODIFIED);
00467         bbGlobalAddToExecutionList( GetThisPointer<BlackBox>() );
00468       }
00469     /*
00470     else if ( bbGetStatus() == MODIFIED ) //! this->bbIsUptodate())
00471       {
00472         bbtkDebugMessage("modified",2,"-> Already modified"<<std::endl);
00473         return;
00474       }
00475     */
00476     else
00477       {
00478         bbtkDebugMessage("modified",2,"-> Status set to modified"<<std::endl);
00479         this->bbSetStatus(MODIFIED);
00480       }
00481
00482     this->bbSignalOutputModification(false);
00483
00484     /*
00485   bbtkDebugMessageDec("process",5,
00486                         "<= BlackBox::bbSetModifiedStatus("<<c<<") ["
00487                         <<bbGetFullName()<<"]"<<std::endl);
00488     */
00489   }

Here is the call graph for this function:

Here is the caller graph for this function:

void bbtk::BlackBox::bbSignalOutputModification ( bool reaction = true ) [virtual]

Signals that the BlackBox outputs have been modified without marking the box as MODIFIED because its output state is ok. This method should be used by widgets in response to user interaction when **ALL** outputs have been modified (after the outputs has been updated !)

Definition at line 493 of file bbtkBlackBox.cxx.

References bbGetFullName(), bbGetOutputConnectorMap(), bbGlobalProcessExecutionList(), bbtkDebugMessageDec, bbtkDebugMessageInc, and bbtk::i.

Referenced by bbSetModifiedStatus().

00494   {
00495     bbtkDebugMessageInc("process",5,
00496                         "=> BlackBox::bbSignalOutputModification() ["
00497                         <<bbGetFullName()<<"]"<<std::endl);
00498
00499     OutputConnectorMapType::iterator change = bbGetOutputConnectorMap().end();
00500     OutputConnectorMapType::iterator i;
00501     for ( i  = bbGetOutputConnectorMap().begin();
00502           i != bbGetOutputConnectorMap().end(); ++i) {
00503       /*     if ( i->first == "BoxChange" )
00504         {
00505           change = i;
00506           continue;
00507         }
00508       */
00509       i->second->SetModifiedStatus();
00510     }
00511     //    if (change != bbGetOutputConnectorMap().end())
00512     // change->second->SetModifiedStatus();
00513
00514     if (reaction) bbGlobalProcessExecutionList();
00515
00516     bbtkDebugMessageDec("process",5,
00517                         "<= BlackBox::bbSignalOutputModification() ["
00518                         <<bbGetFullName()<<"]"<<std::endl);
00519
00520   }

Here is the call graph for this function:

Here is the caller graph for this function:

void bbtk::BlackBox::bbSignalOutputModification	(	const std::string &	output_name,
		bool	reaction = `true`
	)			`[virtual]`

Signals that the BlackBox output "output_name" have been modified without marking the box as MODIFIED because its output state is ok. This method should be used by widgets in response to user interaction only when **ONE** output has been modified (after the output has been updated !)

Definition at line 523 of file bbtkBlackBox.cxx.

References bbGetFullName(), bbGetOutputConnectorMap(), bbGlobalProcessExecutionList(), bbtkDebugMessageDec, bbtkDebugMessageInc, bbtkError, and bbtk::i.

00525   {
00526     bbtkDebugMessageInc("process",5,
00527                         "=> BlackBox::bbSignalOutputModification("
00528                         <<output<<") ["
00529                         <<bbGetFullName()<<"]"<<std::endl);
00530
00531     OutputConnectorMapType::iterator i = bbGetOutputConnectorMap().find(output);
00532     if ( i == bbGetOutputConnectorMap().end() )
00533         {
00534           bbtkError("BlackBox["<<bbGetFullName()<<"]::bbSignalOutputModification("<<output<<") : unknown output");
00535         }
00536     i->second->SetModifiedStatus();
00537     // Has to notify the output "BoxChange" also
00538     if (output != "BoxChange")
00539       {
00540         i = bbGetOutputConnectorMap().find("BoxChange");
00541         if ( i != bbGetOutputConnectorMap().end() )
00542           {
00543             i->second->SetModifiedStatus();
00544           }
00545       }
00546   if (reaction) bbGlobalProcessExecutionList();
00547
00548   bbtkDebugMessageDec("process",5,
00549                       "<= BlackBox::bbSignalOutputModification("
00550                       <<output<<") ["
00551                       <<bbGetFullName()<<"]"<<std::endl);
00552
00553   }

Here is the call graph for this function:

void bbtk::BlackBox::bbSignalOutputModification	(	const std::vector< std::string > &	output_name,
		bool	reaction = `true`
	)			`[virtual]`

Signals that the BlackBox vector of outputs "output_name" have been modified without marking the box as MODIFIED because its output state is ok. This method should be used by widgets in response to user interaction When more than one output has been changed but not all (after the outputs have been updated of course!)

Definition at line 556 of file bbtkBlackBox.cxx.

References bbGetFullName(), bbGetOutputConnectorMap(), bbGlobalProcessExecutionList(), bbtkDebugMessageDec, bbtkDebugMessageInc, bbtkError, and bbtk::i.

00558   {
00559     bbtkDebugMessageInc("process",5,
00560                         "=> BlackBox::bbSignalOutputModification(vector of outputs) ["
00561                         <<bbGetFullName()<<"]"<<std::endl);
00562     OutputConnectorMapType::iterator i;
00563     std::vector<std::string>::const_iterator o;
00564     for (o=output.begin();o!=output.end();++o)
00565       {
00566         // the output "BoxChange" must be signaled **AFTER** all others
00567         if (*o == "BoxChange") continue;
00568         // Look for the connector
00569         i = bbGetOutputConnectorMap().find(*o);
00570         if ( i == bbGetOutputConnectorMap().end() )
00571           {
00572             bbtkError("BlackBox["<<bbGetFullName()<<"]::bbSignalOutputModification("<<*o<<") : unknown output");
00573           }
00574         i->second->SetModifiedStatus();
00575       }
00576     // Has to notify the output "BoxChange" also
00577     i = bbGetOutputConnectorMap().find("BoxChange");
00578     if ( i != bbGetOutputConnectorMap().end() )
00579       {
00580         i->second->SetModifiedStatus();
00581       }
00582   if (reaction) bbGlobalProcessExecutionList();
00583
00584    bbtkDebugMessageDec("process",5,
00585                        "<= BlackBox::bbSignalOutputModification(vector of outputs) ["
00586                         <<bbGetFullName()<<"]"<<std::endl);
00587
00588   }

Here is the call graph for this function:

virtual const IOStatus& bbtk::BlackBox::bbGetStatus ( ) const [inline, virtual]

Gets the status of the box.

Definition at line 132 of file bbtkBlackBox.h.

00132 { return bbmStatus; }

bool bbtk::BlackBox::bbHasInput ( const std::string & label ) const [virtual]

Returns true iff the BlackBox has an input of name label.

Returns true if the UserBlackBox has an input of name name.

Definition at line 218 of file bbtkBlackBox.cxx.

References bbGetDescriptor(), bbGetFullName(), bbtkDebugDecTab, and bbtkDebugMessageInc.

00219   {
00220     bbtkDebugMessageInc("Kernel",8,
00221                         "BlackBox::bbHasInput(\""
00222                         <<name<<"\") ["<<bbGetFullName()<<"]"
00223                         <<std::endl);
00224     bool r = ( bbGetDescriptor()->GetInputDescriptorMap().find(name)
00225                != bbGetDescriptor()->GetInputDescriptorMap().end());
00226     bbtkDebugDecTab("Kernel",8);
00227     return r;
00228   }

Here is the call graph for this function:

bool bbtk::BlackBox::bbHasOutput ( const std::string & label ) const [virtual]

Returns true iff the BlackBox has an output of name label.

Returns true if the UserBlackBox has an output of name name.

Definition at line 234 of file bbtkBlackBox.cxx.

References bbGetDescriptor(), bbGetFullName(), bbtkDebugDecTab, and bbtkDebugMessageInc.

00235   {
00236     bbtkDebugMessageInc("Kernel",8,"BlackBox::bbHasOutput(\""
00237                         <<name<<"\") ["<<bbGetFullName()<<"]"<<std::endl);
00238     bool r = ( bbGetDescriptor()->GetOutputDescriptorMap().find(name)
00239                != bbGetDescriptor()->GetOutputDescriptorMap().end());
00240     bbtkDebugDecTab("Kernel",8);
00241     return r;
00242   }

Here is the call graph for this function:

TypeInfo bbtk::BlackBox::bbGetInputType ( const std::string & label ) const [virtual]

Gets the input type of a given label.

Gets the input type of a given name.

Definition at line 261 of file bbtkBlackBox.cxx.

References bbGetDescriptor(), bbGetFullName(), bbtkDebugDecTab, and bbtkDebugMessageInc.

Referenced by bbGetInputAsString().

00262   {
00263     bbtkDebugMessageInc("Kernel",8,
00264                         "BlackBox::bbGetInputType(\""
00265                         <<name<<"\") ["<<bbGetFullName()<<"]"<<std::endl);
00266     TypeInfo r = bbGetDescriptor()->GetInputDescriptor(name)->GetTypeInfo();
00267     bbtkDebugDecTab("Kernel",8);
00268     return r;
00269   }

Here is the call graph for this function:

Here is the caller graph for this function:

TypeInfo bbtk::BlackBox::bbGetOutputType ( const std::string & label ) const [virtual]

Gets the output type of a given label.

Gets the output type of a given name.

Definition at line 248 of file bbtkBlackBox.cxx.

References bbGetDescriptor(), bbGetFullName(), bbtkDebugDecTab, and bbtkDebugMessageInc.

Referenced by bbGetOutputAsString().

00249   {
00250     bbtkDebugMessageInc("Kernel",8,
00251                         "BlackBox::bbGetOutputType(\""
00252                         <<name<<"\") ["<<bbGetFullName()<<"]"<<std::endl);
00253     TypeInfo r = bbGetDescriptor()->GetOutputDescriptor(name)->GetTypeInfo();
00254     bbtkDebugDecTab("Kernel",8);
00255     return r;
00256   }

Here is the call graph for this function:

Here is the caller graph for this function:

virtual Data bbtk::BlackBox::bbGetInput ( const std::string & name ) [pure virtual]

Gets the data of the input called <name>.

Referenced by bbCopyIOValues(), and bbGetInputAsString().

Here is the caller graph for this function:

virtual Data bbtk::BlackBox::bbGetOutput ( const std::string & name ) [pure virtual]

Gets the data of the output called <name>.

Referenced by bbCopyIOValues(), and bbGetOutputAsString().

Here is the caller graph for this function:

virtual void bbtk::BlackBox::bbSetInput	(	const std::string &	name,
		Data	data,
		bool	setModified = `true`
	)			`[pure virtual]`

Sets the data of the input called <name>. If setModified is false then does not call bbSetModifiedStatus()

Referenced by bbCopyIOValues().

Here is the caller graph for this function:

virtual void bbtk::BlackBox::bbBruteForceSetInputPointer	(	const std::string &	name,
		void *	data,
		bool	setModified = `true`
	)			`[pure virtual]`

virtual void bbtk::BlackBox::bbSetOutput	(	const std::string &	name,
		Data	data
	)			`[pure virtual]`

Sets the data of the output called <name>.

Referenced by bbCopyIOValues().

Here is the caller graph for this function:

InputConnectorMapType& bbtk::BlackBox::bbGetInputConnectorMap ( ) [inline]

Returns the input connectors map.

Definition at line 162 of file bbtkBlackBox.h.

Referenced by bbAllocateConnectors(), bbConnectInput(), bbDesallocateConnectors(), bbDisconnectInput(), bbSetModifiedStatus(), bbUpdateInputs(), and bbUserOnShowWidget().

00163     { return mInputConnectorMap; }

Here is the caller graph for this function:

OutputConnectorMapType& bbtk::BlackBox::bbGetOutputConnectorMap ( ) [inline]

Returns the output connectors map.

Definition at line 165 of file bbtkBlackBox.h.

Referenced by bbAllocateConnectors(), bbConnectOutput(), bbDesallocateConnectors(), bbDisconnectOutput(), and bbSignalOutputModification().

00166     { return mOutputConnectorMap; }

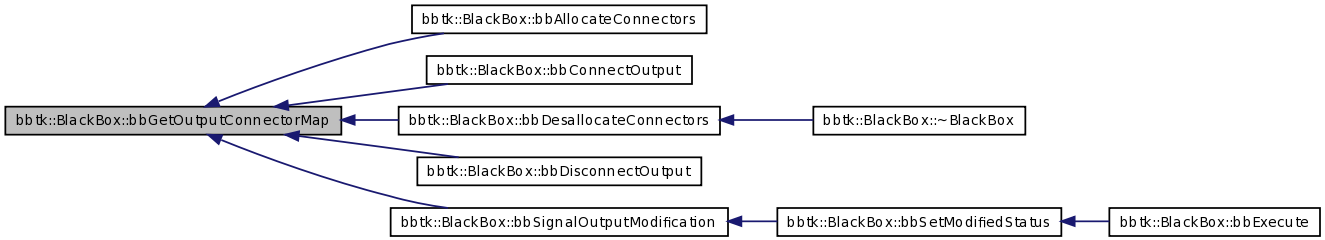

Here is the caller graph for this function:

const InputConnectorMapType& bbtk::BlackBox::bbGetInputConnectorMap ( ) const [inline]

Returns the input connectors map (const).

Definition at line 168 of file bbtkBlackBox.h.

00169     { return mInputConnectorMap; }

const OutputConnectorMapType& bbtk::BlackBox::bbGetOutputConnectorMap ( ) const [inline]

Returns the output connectors map (const).

Definition at line 171 of file bbtkBlackBox.h.

00172     { return mOutputConnectorMap; }

void bbtk::BlackBox::bbGetHelp ( bool full = true ) const [virtual]

Prints the Help on the BlackBox type.

Definition at line 209 of file bbtkBlackBox.cxx.

References bbGetDescriptor().

00210   {
00211     bbGetDescriptor()->GetHelp(full);
00212   }

Here is the call graph for this function:

std::string bbtk::BlackBox::bbGetInputBoxProcessMode ( ) [inline]

Returns the value of the input "BoxProcessMode".

Definition at line 182 of file bbtkBlackBox.h.

00182 { return bbmBoxProcessMode; }

void bbtk::BlackBox::bbSetInputBoxProcessMode ( std::string a ) [inline]

Sets the value of the input "BoxProcessMode".

Definition at line 184 of file bbtkBlackBox.h.

00184 { bbmBoxProcessMode = a; }

BlackBox::BoxProcessModeValue bbtk::BlackBox::bbGetBoxProcessModeValue ( ) const

Returns the "decoded" value of the input "BoxProcessMode".

Definition at line 397 of file bbtkBlackBox.cxx.

References Always, bbGetFullName(), bbmBoxProcessMode, bbtkError, Pipeline, and Reactive.

Referenced by bbBoxProcessModeIsAlways(), and bbBoxProcessModeIsReactive().

00398   {
00399     const std::string& p = bbmBoxProcessMode;
00400     if ( (p == "0") ||
00401          (p == "P") || (p == "p") ||
00402          (p == "Pipeline") || (p == "pipeline") ) return Pipeline;
00403     if ( (p == "1") ||
00404          (p == "A") || (p == "a") ||
00405          (p == "Always") || (p == "always") ) return Always;
00406     if ( (p == "2") ||
00407          (p == "R") || (p == "r") ||
00408          (p == "Reactive") || (p == "reactive") ) return Reactive;
00409     bbtkError(bbGetFullName()<<" : BoxProcessMode value '"<<p
00410               <<"' unknown. Possible values : "
00411               <<"'0'/'P'/'p'/'Pipeline'/'pipeline' | "
00412               <<"'1'/'A'/'a'/'Always'/'always' | "
00413               <<"'2'/'R'/'r'/'Reactive'/'reactive'"<<std::endl);
00414   }

Here is the call graph for this function:

Here is the caller graph for this function:

bool bbtk::BlackBox::bbBoxProcessModeIsReactive ( ) const [virtual]

Definition at line 418 of file bbtkBlackBox.cxx.

References bbGetBoxProcessModeValue(), and Reactive.

Referenced by bbSetModifiedStatus().

00419   {
00420     return (bbGetBoxProcessModeValue() == Reactive);
00421   }

Here is the call graph for this function:

Here is the caller graph for this function:

bool bbtk::BlackBox::bbBoxProcessModeIsAlways ( ) const [virtual]

Definition at line 425 of file bbtkBlackBox.cxx.

References Always, and bbGetBoxProcessModeValue().

00426   {
00427     return (bbGetBoxProcessModeValue() == Always);
00428   }

Here is the call graph for this function:

Void bbtk::BlackBox::bbGetInputBoxExecute ( ) [inline]

Returns the value of the input "Execute".

Definition at line 200 of file bbtkBlackBox.h.

00200 { return Void(); }

void bbtk::BlackBox::bbSetInputBoxExecute ( Void = 0 ) [inline]

Sets the value of the input "Execute".

Definition at line 202 of file bbtkBlackBox.h.

00202 {}

Void bbtk::BlackBox::bbGetOutputBoxChange ( ) [inline]

Returns the value of the output "Change".

Definition at line 205 of file bbtkBlackBox.h.

00205 { return Void(); }

void bbtk::BlackBox::bbSetOutputBoxChange ( Void = 0 ) [inline]

Sets the value of the output "Change" : signal a modification.

Definition at line 207 of file bbtkBlackBox.h.

00207 { bbSetModifiedStatus(); }

void bbtk::BlackBox::bbInsertHTMLGraph	(	std::ofstream &	s,
		int	detail,
		int	level,
		bool	instanceOrtype,
		const std::string &	output_dir,
		bool	relative_link
	)			`[inline]`

Does nothing here : overloaded in ComplexBlackBox.

Definition at line 215 of file bbtkBlackBox.h.

00221     {}

void bbtk::BlackBox::bbWriteDotFileBlackBox	(	FILE *	ff,
		BlackBox::Pointer	parentblackbox,
		int	detail,
		int	level,
		bool	instanceOrtype,
		bool	relative_link
	)			`[virtual]`

Write Graphviz-dot description in file.

Write Graphviz-dot description in file. Here dumps a single box description (i/o) but overloaded in ComplexBlackBox to dump the internal pipeline representation recursing into internal boxes descriptions if level>0. detail = 1 : draw inputs and outputs (do not draw otherwise) instanceOrtype = true : draw inputs and outputs VALUES (uses bbGetInputAsString / bbGetOutputAsString which use adaptors) If relative_link is true then creates relative hrefs

Definition at line 892 of file bbtkBlackBox.cxx.

References bbGetDescriptor(), bbGetInputAsString(), bbGetName(), bbGetOutputAsString(), bbGetTypeName(), bbWriteDotInputOutputName(), bbtk::Connection::GetOriginalBlackBoxFrom(), bbtk::Connection::GetOriginalBlackBoxFromOutput(), bbtk::Connection::GetOriginalBlackBoxTo(), bbtk::Connection::GetOriginalBlackBoxToInput(), bbtk::i, mInputConnectorMap, mOutputConnectorMap, and bbtk::SubsBrackets().

00898   {
00899     InputConnectorMapType::iterator i;
00900     // label
00901     std::string labelStr;
00902     std::string valueStr("");
00903
00904         if (detail==0) {
00905                 labelStr = bbGetName() ;
00906 //EED 18 Fev 2008
00907                 labelStr = labelStr + "\\n[" +this->bbGetDescriptor()->GetPackage()->GetName()+"::"+ bbGetTypeName() + "]";
00908         } else {
00909                 labelStr = bbGetName();
00910                 labelStr = labelStr + "   [" +this->bbGetDescriptor()->GetPackage()->GetName()+"::"+ bbGetTypeName() + "]  ";
00911     }
00912
00913     SubsBrackets(labelStr);
00914     if (detail==1)
00915       {
00916         labelStr = labelStr + " | {{ ";
00917         std::string tempStrTypeName;
00918         bool tmp;
00919         tmp=false;
00920         for ( i = mInputConnectorMap.begin(); i != mInputConnectorMap.end(); ++i )
00921           {
00922             if (tmp==true)
00923               {
00924                 labelStr=labelStr+" | ";
00925               }
00926             tmp=true;
00927             if (instanceOrtype==true)
00928               {
00929                 valueStr = this->bbGetInputAsString(i->first) + " = ";
00930               }
00931             const BlackBoxInputDescriptor* id = bbGetDescriptor()->GetInputDescriptor(i->first);
00932             tempStrTypeName=id->GetTypeName();
00933             SubsBrackets(tempStrTypeName);
00934             std::string Name(i->first);
00935             SubsBrackets(Name);
00936             labelStr=labelStr + "<"+i->first.c_str()+"> "  + valueStr +  Name.c_str() + "  [" + tempStrTypeName.c_str() + "]";
00937           }
00938         labelStr=labelStr+ " } | {";
00939         tmp = false;
00940         OutputConnectorMapType::iterator ii;
00941         for ( ii = mOutputConnectorMap.begin(); ii != mOutputConnectorMap.end(); ++ii )
00942         {
00943            if (tmp==true)
00944            {
00945                    labelStr=labelStr+" | ";
00946            }
00947            tmp = true;
00948            if (instanceOrtype==true)
00949            {
00950                    valueStr = this->bbGetOutputAsString(ii->first) + " = ";
00951            }
00952            const BlackBoxOutputDescriptor* id = bbGetDescriptor()->GetOutputDescriptor(ii->first);
00953            tempStrTypeName=id->GetTypeName();
00954            SubsBrackets(tempStrTypeName);
00955             std::string Name(ii->first);
00956             SubsBrackets(Name);
00957            labelStr=labelStr+"<"+ii->first.c_str()+"> " + valueStr + Name.c_str() + "  ["+tempStrTypeName+"]";
00958         }
00959         labelStr = labelStr+ "      } }" ;
00960 } // detail
00961
00962     fprintf(ff,"  " );
00963     bbWriteDotInputOutputName(ff,true,detail,level);
00964     std::string tmp ( bbGetTypeName() );
00965     SubsBrackets(tmp);
00966     std::string url;
00967     if (relative_link)
00968       url = this->bbGetDescriptor()->GetPackage()->GetDocRelativeURL() + "#" + tmp;
00969     else
00970       url = this->bbGetDescriptor()->GetPackage()->GetDocURL() + "#" + tmp;
00971
00972     fprintf( ff , " [shape=record, URL=\"%s\",label=\"%s\"]%s\n",url.c_str(),labelStr.c_str(),";" );
00973     //    std::cout  << labelStr << std::endl;
00974
00975     // Relation Input
00976     if (GetThisPointer<BlackBox>()!=parentblackbox){
00977       for ( i = mInputConnectorMap.begin(); i != mInputConnectorMap.end(); ++i )
00978         {
00979           if (i->second)
00980             {
00981               Connection* con = i->second->GetConnection();
00982               if (con!=NULL){
00983                 BlackBox::Pointer a=con->GetOriginalBlackBoxFrom();
00984                 BlackBox::Pointer b=con->GetOriginalBlackBoxTo();
00985                 fprintf(ff,"  ");
00986                 a->bbWriteDotInputOutputName(ff,false,detail,level);
00987                 if (detail==1)
00988                   {
00989                     fprintf(ff,":%s",con->GetOriginalBlackBoxFromOutput().c_str());
00990                   }
00991                 fprintf(ff,"->");
00992                 b->bbWriteDotInputOutputName(ff,true,detail,level);
00993                 if (detail==1)
00994                   {
00995                     fprintf(ff,":%s",con->GetOriginalBlackBoxToInput().c_str());
00996                   }
00997                 fprintf(ff,"%s\n",";");
00998               }  // if con
00999             } // if second
01000         } // for
01001     } // if parentblackbox
01002   }

Here is the call graph for this function:

void bbtk::BlackBox::bbWriteDotInputOutputName	(	FILE *	ff,
		bool	inputoutput,
		int	detail,
		int	level
	)			`[virtual]`

Auxiliary method for bbWriteDotFileBlackBox.

Virtual.

Definition at line 753 of file bbtkBlackBox.cxx.

References bbGetTypeName().

Referenced by bbWriteDotFileBlackBox().

00754   {
00755     fprintf(ff,"%s%p",bbGetTypeName().c_str(),this);
00756   }

Here is the call graph for this function:

Here is the caller graph for this function:

void bbtk::BlackBox::bbShowRelations	(	BlackBox::Pointer	parentblackbox,
		int	detail,
		int	level
	)			`[virtual]`

Definition at line 1009 of file bbtkBlackBox.cxx.

References bbGetDescriptor(), bbGetInputAsString(), bbGetName(), bbGetOutputAsString(), bbtkMessage, bbtk::Connection::GetOriginalBlackBoxFrom(), bbtk::Connection::GetOriginalBlackBoxFromOutput(), bbtk::i, mInputConnectorMap, and mOutputConnectorMap.

01012   {
01013
01014     if (this->bbGetDescriptor()->GetPackage())
01015       {
01016         bbtkMessage("Help",1,"Black Box '"<<bbGetName()<<"' <"<<
01017                     this->bbGetDescriptor()->GetPackage()->GetName()
01018                     <<"::"<<this->bbGetDescriptor()->GetTypeName()<<">"<<std::endl);
01019       }
01020     else
01021       {
01022         bbtkMessage("Help",1,"Black Box <::"<<this->bbGetDescriptor()->GetTypeName()<<">"<<std::endl);
01023       }
01024     //    bbtkMessage("Help",1," "<<GetDescription()<<std::endl);
01025     //    bbtkMessage("Help",1," By : "<<GetAuthor()<<std::endl);
01026
01027     std::vector<std::string> iname;
01028     std::vector<std::string> ivalue;
01029     std::vector<std::string> iconn;
01030
01031     InputConnectorMapType::iterator i;
01032     unsigned int namelmax = 0;
01033     unsigned int valuelmax = 0;
01034     //   unsigned int connlmax = 0;
01035     for ( i = mInputConnectorMap.begin(); i != mInputConnectorMap.end(); ++i )
01036       {
01037         iname.push_back(i->first);
01038         if (iname.back().size()>namelmax) namelmax = iname.back().size();
01039         ivalue.push_back(bbGetInputAsString(i->first));
01040         if (ivalue.back().size()>valuelmax) valuelmax = ivalue.back().size();
01041         std::string s("");
01042         Connection* con = i->second->GetConnection();
01043         if (con!=0){
01044           s = con->GetOriginalBlackBoxFrom()->bbGetName();
01045           s += ".";
01046           s += con->GetOriginalBlackBoxFromOutput();
01047         }  // if con
01048         iconn.push_back(s);
01049       }
01050     OutputConnectorMapType::iterator o;
01051     std::vector<std::string> oname;
01052     std::vector<std::string> ovalue;
01053     std::vector<std::vector<std::string> > oconn;
01054     for ( o = mOutputConnectorMap.begin(); o != mOutputConnectorMap.end(); ++o )
01055       {
01056         oname.push_back(o->first);
01057         if (oname.back().size()>namelmax) namelmax = oname.back().size();
01058         ovalue.push_back(bbGetOutputAsString(o->first));
01059         if (ovalue.back().size()>valuelmax) valuelmax = ovalue.back().size();
01060         std::vector<std::string> ss;
01061         const std::vector<Connection*>& con
01062           = o->second->GetConnectionVector();
01063         std::vector<Connection*>::const_iterator c;
01064         for (c=con.begin();c!=con.end();++c)
01065           {
01066             std::string s;
01067             s = (*c)->GetOriginalBlackBoxTo()->bbGetName();
01068             s += ".";
01069             s += (*c)->GetOriginalBlackBoxToInput();
01070             ss.push_back(s);
01071         }  // if con
01072         oconn.push_back(ss);
01073       }
01074
01075     if (iname.size())
01076       bbtkMessage("Help",1," * Inputs : "<<std::endl);
01077     else
01078       bbtkMessage("Help",1," * No inputs"<<std::endl);
01079
01080     std::vector<std::string>::iterator i1,i2,i3;
01081     for (i1=iname.begin(),i2=ivalue.begin(),i3=iconn.begin();
01082          i1!=iname.end(),i2!=ivalue.end(),i3!=iconn.end();
01083          ++i1,++i2,++i3)
01084       {
01085         std::string name(*i1);
01086         name += "'";
01087         name.append(1+namelmax-name.size(),' ');
01088         std::string value(*i2);
01089         value += "'";
01090         value.append(1+valuelmax-value.size(),' ');
01091         if (i3->size())
01092           bbtkMessage("Help",1,"    '"<<name<<" = '"<<value<<" <-- '"<<*i3<<"'"<<std::endl);
01093         else
01094           bbtkMessage("Help",1,"    '"<<name<<" = '"<<value<<std::endl);
01095       }
01096
01097     if (oname.size())
01098       bbtkMessage("Help",1," * Outputs : "<<std::endl);
01099     else
01100       bbtkMessage("Help",1," * No outputs"<<std::endl);
01101
01102     std::vector<std::vector<std::string> >::iterator i4;
01103
01104     for (i1=oname.begin(),i2=ovalue.begin(),i4=oconn.begin();
01105          i1!=oname.end(),i2!=ovalue.end(),i4!=oconn.end();
01106          ++i1,++i2,++i4)
01107       {
01108         std::string name(*i1);
01109         name += "'";
01110         name.append(1+namelmax-name.size(),' ');
01111         std::string value(*i2);
01112         value += "'";
01113         value.append(1+valuelmax-value.size(),' ');
01114         if (!(*i4).size())
01115           bbtkMessage("Help",1,"    '"<<name<<" = '"<<value<<std::endl);
01116         else
01117           {
01118             std::string pref = "    '"+name+" = '"+value;
01119             for (i3=i4->begin();i3!=i4->end();++i3)
01120               {
01121                 bbtkMessage("Help",1,pref<<" --> '"<<*i3<<"'"<<std::endl);
01122                 pref.replace(0,pref.size(),pref.size(),' ');
01123               }
01124           }
01125       }
01126
01127    }

Here is the call graph for this function:

std::string bbtk::BlackBox::bbGetOutputAsString ( const std::string & output )

Definition at line 761 of file bbtkBlackBox.cxx.

References bbGetDescriptor(), bbGetOutput(), and bbGetOutputType().

Referenced by bbShowRelations(), and bbWriteDotFileBlackBox().

00762   {
00763     std::string v;
00764     // Looks for the adaptor
00765     if (bbGetOutputType(output).name() != typeid(std::string).name() )
00766       {
00767         // Look for factory
00768         Package::Pointer p = bbGetDescriptor()->GetPackage();
00769         if ((p != 0) && ( ! p->GetFactorySet().empty() ) )
00770           {
00771             Factory::Pointer f = p->GetFactorySet().begin()->lock();
00772             BlackBox::Pointer a;
00773             try
00774               {
00775                 a = f->NewAdaptor(
00776                                   bbGetOutputType(output),
00777                                   typeid(std::string),
00778                                   "");
00779               } catch (bbtk::Exception e)
00780               {
00781               }
00782             if (a){
00783               //                        bbUpdate();
00784               a->bbSetInput("In",bbGetOutput(output));
00785               a->bbExecute();
00786               v = a->bbGetOutput("Out").unsafe_get<std::string>() ;
00787             } else {
00788               v="? (no adaptor found)";
00789             }
00790           }
00791         else
00792           {
00793             v="? (no factory found)";
00794           }
00795       }
00796     else
00797       {
00798         //         bbUpdate();
00799         v = bbGetOutput(output).unsafe_get<std::string>() ;
00800       }
00801     return v;
00802   }

Here is the call graph for this function:

Here is the caller graph for this function:

std::string bbtk::BlackBox::bbGetInputAsString ( const std::string & input )

Definition at line 806 of file bbtkBlackBox.cxx.

References bbGetDescriptor(), bbGetInput(), and bbGetInputType().

Referenced by bbShowRelations(), and bbWriteDotFileBlackBox().

00807   {
00808     std::string v;
00809     // Looks for the adaptor
00810     if (bbGetInputType(input) != typeid(std::string))
00811       {
00812         // Look for factory
00813         Package::Pointer p = bbGetDescriptor()->GetPackage();
00814         if ((p != 0) && ( ! p->GetFactorySet().empty() ) )
00815           {
00816             Factory::Pointer f = p->GetFactorySet().begin()->lock();
00817             BlackBox::Pointer a;
00818             try
00819               {
00820                 a = f->NewAdaptor(
00821                                bbGetInputType(input),
00822                                typeid(std::string),
00823                                "");
00824               }catch (bbtk::Exception e)
00825               {
00826               }
00827             if (a)
00828               {
00829                 //                      bbUpdate();
00830                 a->bbSetInput("In",bbGetInput(input));
00831                 a->bbExecute();
00832                 v = a->bbGetOutput("Out").unsafe_get<std::string>() ;
00833               }
00834             else
00835               {
00836                 v="? (no adaptor found)";
00837               }
00838           }
00839         else
00840           {
00841             v="? (no factory found)";
00842           }
00843       }
00844     else
00845       {
00846         v = bbGetInput(input).unsafe_get<std::string>() ;
00847       }
00848     return v;
00849   }

Here is the call graph for this function:

Here is the caller graph for this function:

virtual BlackBox::Pointer bbtk::BlackBox::bbFindBlackBox ( const std::string & blackboxname ) [inline, virtual]

Definition at line 248 of file bbtkBlackBox.h.

00249     { return BlackBox::Pointer();}

void bbtk::BlackBox::Check ( bool recursive = true ) [virtual]

Definition at line 1186 of file bbtkBlackBox.cxx.

References bbGetFullName(), and bbtkMessage.

01187   {
01188     bbtkMessage("debug",1,"*** Checking Black Box "<<(void*)this<<" ["<<bbGetFullName()
01189                 <<"] ... OK"<<std::endl);
01190   }

Here is the call graph for this function:

virtual void bbtk::BlackBox::bbUserOnShow ( ) [inline, virtual]

Definition at line 253 of file bbtkBlackBox.h.

00253 { }

void bbtk::BlackBox::bbUserOnShowWidget ( std::string nameInput )

Definition at line 1193 of file bbtkBlackBox.cxx.

References bbGetInputConnectorMap().

01194   {
01195           bbtk::BlackBoxInputConnector *cc;
01196           cc = this->bbGetInputConnectorMap().find( nameInput.c_str() )->second;
01197           if (cc->GetConnection()!=NULL)
01198           {
01199                   cc->GetConnection()->GetBlackBoxFrom()->bbUserOnShow();
01200           }
01201   }

Here is the call graph for this function:

void bbtk::BlackBox::bbSetStatus ( IOStatus t ) [inline, protected]

Sets the status of the box.

Definition at line 270 of file bbtkBlackBox.h.

Referenced by bbSetModifiedStatus().

00270 { bbmStatus = t; }

Here is the caller graph for this function:

void bbtk::BlackBox::bbSetParent ( BlackBox::Pointer p ) [inline, private]

Sets the parent of the BlackBox.

Definition at line 278 of file bbtkBlackBox.h.

00278 { bbmParent = p; }

void bbtk::BlackBox::bbConnectInput	(	const std::string &	name,
		Connection *	c
	)			`[private, virtual]`

Connects the input <name> to the connection c.

Definition at line 632 of file bbtkBlackBox.cxx.

References bbGetFullName(), bbGetInputConnectorMap(), bbtkDebugMessage, bbtkError, bbtk::Connection::GetFullName(), and bbtk::i.

00633   {
00634     bbtkDebugMessage("connection",2,
00635                         "==> BlackBox::bbConnectInput(\""
00636                         <<name<<"\","<<c->GetFullName()<<") ["
00637                         <<bbGetFullName()<<"]"
00638                         <<std::endl);
00639
00640
00641     InputConnectorMapType::iterator i = bbGetInputConnectorMap().find(name);
00642     if (i==bbGetInputConnectorMap().end())
00643       {
00644         bbtkError("no input called '"<<name<<"'");
00645       }
00646     i->second->SetConnection(c);
00647
00648     bbtkDebugMessage("connection",2,
00649                         "<== BlackBox::bbConnectInput(\""
00650                         <<name<<"\","<<c->GetFullName()<<") ["
00651                         <<bbGetFullName()<<"]"
00652                         <<std::endl);
00653     //  bbSetModifiedStatus();
00654
00655   }

Here is the call graph for this function:

void bbtk::BlackBox::bbConnectOutput	(	const std::string &	name,
		Connection *	c
	)			`[private, virtual]`

Connects the output <name> to the connection c.

Definition at line 661 of file bbtkBlackBox.cxx.

References bbGetFullName(), bbGetOutputConnectorMap(), bbtkDebugMessage, bbtkError, bbtk::Connection::GetFullName(), and bbtk::i.

00662   {
00663     bbtkDebugMessage("connection",2,
00664                      "==> BlackBox::bbConnectOutput(\""<<name<<"\","
00665                      <<c->GetFullName()<<") ["
00666                      <<bbGetFullName()<<"]"<<std::endl);
00667
00668     OutputConnectorMapType::iterator i = bbGetOutputConnectorMap().find(name);
00669     if (i==bbGetOutputConnectorMap().end())
00670       {
00671         bbtkError("no output called '"<<name<<"'");
00672       }
00673     i->second->SetConnection(c);
00674
00675     bbtkDebugMessage("connection",2,
00676                      "<== BlackBox::bbConnectOutput(\""<<name<<"\","
00677                      <<c->GetFullName()<<") ["
00678                      <<bbGetFullName()<<"]"<<std::endl);
00679
00680   }

Here is the call graph for this function:

void bbtk::BlackBox::bbDisconnectInput	(	const std::string &	name,
		Connection *	c
	)			`[private, virtual]`

Disconnects the input <name> from the connection c.

Definition at line 686 of file bbtkBlackBox.cxx.

References bbGetFullName(), bbGetInputConnectorMap(), bbtkDebugMessage, bbtkError, bbtk::Connection::GetFullName(), and bbtk::i.

00687   {
00688
00689     bbtkDebugMessage("connection",2,
00690                      "==> BlackBox::bbDisconnectInput(\""<<name
00691                      <<"\","<<c->GetFullName()<<") ["
00692                      <<bbGetFullName()<<"]"
00693                      <<std::endl);
00694
00695     if (!c)
00696       {
00697
00698         bbtkDebugMessage("connection",2,"c==0"<<std::endl);
00699         return;
00700       }
00701
00702     InputConnectorMapType::iterator i = bbGetInputConnectorMap().find(name);
00703     if (i==bbGetInputConnectorMap().end())
00704       {
00705         bbtkError("no input called '"<<name<<"'");
00706       }
00707     i->second->UnsetConnection(c);
00708
00709     bbtkDebugMessage("connection",2,
00710                      "<== BlackBox::bbDisconnectInput(\""<<name
00711                      <<"\","<<c->GetFullName()<<") ["
00712                      <<bbGetFullName()<<"]"
00713                      <<std::endl);
00714
00715   }

Here is the call graph for this function:

void bbtk::BlackBox::bbDisconnectOutput	(	const std::string &	name,
		Connection *	c
	)			`[private, virtual]`

Disconnects the output <name> from the connection c.

Definition at line 721 of file bbtkBlackBox.cxx.

References bbGetFullName(), bbGetOutputConnectorMap(), bbtkDebugMessage, bbtkError, bbtk::Connection::GetFullName(), and bbtk::i.

00722   {
00723     bbtkDebugMessage("connection",2,
00724                      "==> BlackBox::bbDisconnectOutput(\""<<name
00725                      <<"\","<<c->GetFullName()<<") ["
00726                      <<bbGetFullName()<<"]"
00727                      <<std::endl);
00728     if (!c)
00729       {
00730
00731         bbtkDebugMessage("connection",2,"c==0"<<std::endl);
00732         return;
00733       }
00734
00735     OutputConnectorMapType::iterator i = bbGetOutputConnectorMap().find(name);
00736     if (i==bbGetOutputConnectorMap().end())
00737       {
00738         bbtkError("no output called '"<<name<<"'");
00739       }
00740     i->second->UnsetConnection(c);
00741
00742     bbtkDebugMessage("connection",2,
00743                      "<== BlackBox::bbDisconnectOutput(\""<<name
00744                      <<"\","<<c->GetFullName()<<") ["
00745                      <<bbGetFullName()<<"]"
00746                      <<std::endl);
00747   }

Here is the call graph for this function:

virtual IOStatus bbtk::BlackBox::bbBackwardUpdate ( Connection::Pointer caller ) [protected, pure virtual]

Recursive pipeline processing in backward direction (recursion is in backward direction however execution always goes forward). Pure virtual; defined in UserBlackBox and ComplexBlackBox

Returns:: The final status of the box (UPTODATE or MODIFIED)

Parameters:

caller

: The connection which invoked the method; null if called by bbExecute

First checks that re-processing is needed (either Status==MODIFIED or InputProcessMode==Always) then :

updates its inputs by calling bbUpdateInputs (which recursively calls bbBackwardUpdate on upstream boxes)
calls bbCreateWidget
calls bbProcess which is the user callback which does the actual processing
calls bbUpdateChildren
calls bbShowWidget which shows the widget associated to the box (if any)

Referenced by bbExecute().

Here is the caller graph for this function:

IOStatus bbtk::BlackBox::bbUpdateInputs ( bool excludeParent = false ) [protected]

Recursive pipeline processing in forward direction along "Child"-"Parent" connections Pure virtual; defined in UserBlackBox and ComplexBlackBox

Parameters:

caller

: The connection which invoked the method

First checks that re-processing is needed (either Status==MODIFIED or InputProcessMode==Always) then :

calls bbCreateWidget
calls bbProcess which is the user callback which does the actual processing
calls bbUpdateChildren which recursively calls bbForwardUpdate on connections attached the "Child" output Updates the BlackBox inputs and returns the final status of the inputs (==UPTODATE iff all inputs are UPTODATE)

Updates the BlackBox inputs

Returns:: UPTODATE if all inputs are in UPTODATE status after update else MODIFIED

Definition at line 595 of file bbtkBlackBox.cxx.

References bbGetFullName(), bbGetInputConnectorMap(), bbtkDebugMessageDec, bbtkDebugMessageInc, bbtk::i, bbtk::MODIFIED, and bbtk::UPTODATE.

00596   {
00597     bbtkDebugMessageInc("process",4,
00598                         "=> BlackBox::bbUpdateInputs() ["
00599                         <<bbGetFullName()<<"]"
00600                         <<std::endl);
00601
00602     IOStatus s = UPTODATE;
00603
00604     InputConnectorMapType::iterator i;
00605     for ( i = bbGetInputConnectorMap().begin();
00606           i!= bbGetInputConnectorMap().end(); ++i)
00607       {
00608         if (excludeParent && (i->first=="WinParent")) continue;
00609         if (i->first=="WinHide") continue;
00610         // If input type is Void : no recurse
00611         //if (  bbGetDescriptor()->GetInputDescriptor(i->first)->GetTypeInfo()
00612         //      == typeid(Void) )
00613         //  continue;
00614
00615         IOStatus t = i->second->BackwardUpdate();
00616         if (t==MODIFIED) s = MODIFIED;
00617       }
00618
00619    bbtkDebugMessageDec("process",4,
00620                         "<= BlackBox::bbUpdateInputs() ["
00621                         <<bbGetFullName()<<"]"
00622                         <<std::endl);
00623
00624
00625     return s;
00626   }

Here is the call graph for this function:

virtual void bbtk::BlackBox::bbShowWindow ( Connection::Pointer caller ) [inline, protected, virtual]

Updates the pipeline in upstream-downstream direction along the "Child"-"Parent" connections only. Does nothing here. Overloaded in WxContainerBlackbox Specific methods for window creation during pipeline execution Creates the window associated to the box (called after bbUpdateInputs) Does nothing here. Overloaded in WxBlackBox. Shows the window associated to the box (called after bbProcess during bbExecute) Does nothing here but overloaded in WxBlackBox and WxContainerBlackBox

Definition at line 357 of file bbtkBlackBox.h.

00357 { }

virtual void bbtk::BlackBox::bbHideWindow ( ) [inline, protected, virtual]

Definition at line 359 of file bbtkBlackBox.h.

Referenced by bbSetModifiedStatus().

00359 {}

Here is the caller graph for this function:

virtual void bbtk::BlackBox::bbCloseWindow ( ) [inline, protected, virtual]

Definition at line 360 of file bbtkBlackBox.h.

00360 { }

bool bbtk::BlackBox::bbGlobalGetSomeBoxExecuting ( ) [static]

Definition at line 1157 of file bbtkBlackBox.cxx.

References bbtk::bbmgSomeBoxExecuting.

Referenced by bbCanReact().

01158         {
01159                 return bbmgSomeBoxExecuting;
01160         }

Here is the caller graph for this function:

void bbtk::BlackBox::bbGlobalSetSomeBoxExecuting ( bool b ) [static]

Definition at line 1162 of file bbtkBlackBox.cxx.

References bbtk::bbmgSomeBoxExecuting.

01163         {
01164                 bbmgSomeBoxExecuting = b;
01165         }

void bbtk::BlackBox::bbGlobalSetFreezeExecution ( bool b ) [static]

Definition at line 1167 of file bbtkBlackBox.cxx.

References bbtk::bbmgFreezeExecution.

01168         {
01169                 bbmgFreezeExecution = b;
01170         }

bool bbtk::BlackBox::bbGlobalGetFreezeExecution ( ) [static]

Definition at line 1172 of file bbtkBlackBox.cxx.

References bbtk::bbmgFreezeExecution.

Referenced by bbExecute().

01173         {
01174                 return bbmgFreezeExecution;
01175         }

Here is the caller graph for this function:

bool bbtk::BlackBox::bbCanReact ( ) const [virtual]

Returns true if the box can "react", which means execute in response to an input change

Definition at line 370 of file bbtkBlackBox.cxx.

References bbGlobalGetSomeBoxExecuting().

Referenced by bbSetModifiedStatus().

00371   {
00372     return ( bbGlobalGetSomeBoxExecuting()
00373 #ifdef _USE_WXWIDGETS_
00374              || Wx::IsSomeWindowAlive()
00375 #endif
00376              );
00377   }

Here is the call graph for this function:

Here is the caller graph for this function:

void bbtk::BlackBox::bbGlobalAddToExecutionList ( BlackBox::Pointer b ) [static, protected]

Definition at line 1177 of file bbtkBlackBox.cxx.

References bbtk::bbmgExecutionList.

Referenced by bbSetModifiedStatus().

01178         {
01179                 bbmgExecutionList.insert(b);
01180         }

Here is the caller graph for this function:

void bbtk::BlackBox::bbGlobalProcessExecutionList ( ) [static, protected]

Definition at line 1132 of file bbtkBlackBox.cxx.

References bbtk::bbmgExecutionList, bbtkDebugMessage, bbtkDebugMessageDec, bbtkDebugMessageInc, and bbtk::i.

Referenced by bbSignalOutputModification().

01133    {
01134      bbtkDebugMessageInc("process",3,
01135                          "=> BlackBox::bbGlobalProcessExecutionList()"
01136                          <<std::endl);
01137
01138      std::set<BlackBox::Pointer>::iterator i;
01139      for (i=bbmgExecutionList.begin();
01140           i!=bbmgExecutionList.end();
01141           ++i)
01142        {
01143          bbtkDebugMessage("process",4,
01144                           " -> Executing "<<(*i)->bbGetFullName()<<std::endl);
01145          (*i)->bbExecute(true);
01146        }
01147
01148      bbmgExecutionList.clear();
01149      bbtkDebugMessageDec("process",3,
01150                          "<= BlackBox::bbGlobalProcessExecutionList()"
01151                          <<std::endl);
01152
01153
01154    }

Here is the caller graph for this function:

void bbtk::BlackBox::bbAllocateConnectors ( ) [protected, virtual]

Allocates the i/o connectors of the black box.

Definition at line 275 of file bbtkBlackBox.cxx.

References bbGetDescriptor(), bbGetFullName(), bbGetInputConnectorMap(), bbGetOutputConnectorMap(), bbtkDebugDecTab, bbtkDebugMessage, bbtkDebugMessageInc, and bbtk::i.

00276   {
00277     bbtkDebugMessageInc("Kernel",8,
00278                         "BlackBox::bbAllocateConnectors() ["
00279                         <<bbGetFullName()<<"]"
00280                         <<std::endl);
00281     const BlackBoxDescriptor::InputDescriptorMapType& imap
00282       = bbGetDescriptor()->GetInputDescriptorMap();
00283     BlackBoxDescriptor::InputDescriptorMapType::const_iterator i;
00284     for ( i = imap.begin(); i != imap.end(); ++i )
00285       {
00286         bbtkDebugMessage("Kernel",8,"* Allocate \""<<i->first<<"\""<<std::endl);
00287         bbGetInputConnectorMap()[i->second->GetName()]
00288           = new BlackBoxInputConnector(GetThisPointer<BlackBox>());
00289       }
00290     const BlackBoxDescriptor::OutputDescriptorMapType& omap
00291       = bbGetDescriptor()->GetOutputDescriptorMap();
00292     BlackBoxDescriptor::OutputDescriptorMapType::const_iterator o;
00293     for ( o = omap.begin(); o != omap.end(); ++o )
00294       {
00295         bbtkDebugMessage("Kernel",8,"* Allocate \""<<o->first<<"\""<<std::endl);
00296         bbGetOutputConnectorMap()[o->second->GetName()]
00297           = new BlackBoxOutputConnector();
00298       }
00299     bbtkDebugDecTab("Kernel",8);
00300   }

Here is the call graph for this function:

void bbtk::BlackBox::bbDesallocateConnectors ( ) [protected, virtual]

Desallocates the i/o connectors of the black box.

Definition at line 306 of file bbtkBlackBox.cxx.

References bbGetInputConnectorMap(), bbGetOutputConnectorMap(), bbtkDebugDecTab, bbtkDebugMessage, bbtkDebugMessageInc, and bbtk::i.

Referenced by ~BlackBox().

00307   {
00308     bbtkDebugMessageInc("Kernel",8,
00309                         "BlackBox::bbDesallocateConnectors()"
00310                         <<std::endl);
00311
00312     InputConnectorMapType::const_iterator i;
00313     for ( i = bbGetInputConnectorMap().begin();
00314           i != bbGetInputConnectorMap().end(); ++i )
00315       {
00316         bbtkDebugMessage("Kernel",8,"* Delete \""<<i->first<<"\""<<std::endl);
00317         delete (i->second);
00318       }
00319     OutputConnectorMapType::const_iterator o;
00320     for ( o = bbGetOutputConnectorMap().begin();
00321           o != bbGetOutputConnectorMap().end(); ++o )
00322       {
00323         bbtkDebugMessage("Kernel",8,"* Delete \""<<o->first<<"\""<<std::endl);
00324         delete (o->second);
00325       }
00326
00327     bbtkDebugDecTab("Kernel",8);
00328
00329   }

Here is the call graph for this function:

Here is the caller graph for this function:

void bbtk::BlackBox::bbCopyIOValues ( BlackBox & from ) [protected, virtual]

Copies the values of the inputs/output from the BlackBox from.

Copies the input / output values from another box.

Definition at line 335 of file bbtkBlackBox.cxx.

References bbGetDescriptor(), bbGetFullName(), bbGetInput(), bbGetOutput(), bbSetInput(), bbSetOutput(), bbtkDebugDecTab, bbtkDebugMessageInc, and bbtk::i.

00336   {
00337     bbtkDebugMessageInc("Kernel",9,
00338                         "BlackBox::bbCopyIOValues("
00339                         <<from.bbGetFullName()<<") ["
00340                         <<bbGetFullName()<<"]"<<std::endl);
00341     // copies the input values
00342     const BlackBoxDescriptor::InputDescriptorMapType& imap
00343       = bbGetDescriptor()->GetInputDescriptorMap();
00344     BlackBoxDescriptor::InputDescriptorMapType::const_iterator i;
00345     for ( i = imap.begin(); i != imap.end(); ++i )
00346       {
00347         if (! i->second->GetCopyConstruct() ) continue;
00348         std::string input = i->second->GetName();
00349         this->bbSetInput(input, from.bbGetInput(input) );
00350       }
00351     // copies the output values
00352     const BlackBoxDescriptor::OutputDescriptorMapType& omap
00353       = bbGetDescriptor()->GetOutputDescriptorMap();
00354     BlackBoxDescriptor::OutputDescriptorMapType::const_iterator o;
00355     for ( o = omap.begin(); o != omap.end(); ++o )
00356       {
00357         if (! o->second->GetCopyConstruct() ) continue;
00358         std::string output = o->second->GetName();
00359         this->bbSetOutput(output, from.bbGetOutput(output) );
00360       }
00361
00362     bbtkDebugDecTab("Kernel",9);
00363
00364   }

Here is the call graph for this function:

template<class U>

static boost::shared_ptr<U> bbtk::BlackBox::MakeBlackBoxPointer	(	U *	s,
		bool	lock = `false`
	)			`[inline, static, protected]`

Definition at line 405 of file bbtkBlackBox.h.

00406     {
00407       return MakePointer(s,BlackBox::Deleter(),lock);
00408     }

virtual void bbtk::BlackBox::bbDelete ( ) [inline, protected, virtual]

Definition at line 410 of file bbtkBlackBox.h.

Referenced by bbtk::BlackBox::Deleter::Delete().

00410 { delete this; }

Here is the caller graph for this function:

std::string bbtk::Object::GetObjectName ( ) const [virtual, inherited]

Reimplemented in bbtk::Connection, bbtk::Executer, bbtk::Factory, bbtk::Interpreter, bbtk::Package, and bbtk::Transcriptor.

Definition at line 91 of file bbtkObject.cxx.

Referenced by bbtk::BlackBox::Deleter::Delete(), and bbtk::Object::Deleter::operator()().

00092   {
00093     return std::string("**Unknown object**");
00094   }

Here is the caller graph for this function:

std::string bbtk::Object::GetObjectInfo ( ) const [virtual, inherited]

Reimplemented in bbtk::Connection, bbtk::Executer, bbtk::Factory, bbtk::Interpreter, bbtk::Package, and bbtk::Transcriptor.

Definition at line 98 of file bbtkObject.cxx.

00099   {
00100     return std::string("");
00101   }

virtual size_t bbtk::Object::GetObjectSize ( ) const [inline, virtual, inherited]

Reimplemented in bbtk::Connection, bbtk::Executer, bbtk::Factory, bbtk::Interpreter, bbtk::Package, and bbtk::Transcriptor.

Definition at line 60 of file bbtkObject.h.

00060 { return sizeof(Object); }

virtual size_t bbtk::Object::GetObjectInternalSize ( ) const [inline, virtual, inherited]

Reimplemented in bbtk::Connection, bbtk::Executer, bbtk::Factory, bbtk::Interpreter, bbtk::Package, and bbtk::Transcriptor.

Definition at line 61 of file bbtkObject.h.

00061 { return sizeof(Object); }

virtual size_t bbtk::Object::GetObjectRecursiveSize ( ) const [inline, virtual, inherited]

Reimplemented in bbtk::Connection, bbtk::Executer, bbtk::Factory, bbtk::Interpreter, bbtk::Package, and bbtk::Transcriptor.

Definition at line 62 of file bbtkObject.h.

00062 { return sizeof(Object); }

long bbtk::Object::GetUseCount ( ) [inline, inherited]

Definition at line 63 of file bbtkObject.h.

00063 { return mThisPointer.use_count(); }

void bbtk::Object::InsertInObjectList ( Pointer p ) [static, inherited]

Definition at line 59 of file bbtkObject.cxx.

References bbtkDebugMessage, and bbtk::Object::mgObjectList.

00060   {
00061     bbtkDebugMessage("object",9,"##> Object::InsertInObjectList(\""
00062                      <<p->GetObjectName()<<"\" ["<<p<<"])"<<std::endl);
00063     boost::weak_ptr<Object> w(p);
00064     mgObjectList.insert(w);
00065   }

void bbtk::Object::RemoveFromObjectList ( WeakPointer p ) [static, inherited]

Definition at line 80 of file bbtkObject.cxx.

References bbtkDebugMessage, and bbtk::Object::mgObjectList.

00081   {
00082     bbtkDebugMessage("object",9,"##> Object::RemoveFromObjectList()"
00083                      <<std::endl);
00084     mgObjectList.erase(p);
00085
00086   }

void bbtk::Object::InsertInPackageList ( Pointer p ) [static, inherited]

Definition at line 69 of file bbtkObject.cxx.

References bbtkDebugMessage, and bbtk::Object::mgPackageList.

00070   {
00071     bbtkDebugMessage("object",9,"##> Object::InsertInPackageList(\""
00072                      <<p->GetObjectName()<<"\" ["<<p<<"])"<<std::endl);
00073     boost::weak_ptr<Object> w(p);
00074     mgPackageList.insert(w);
00075   }

void bbtk::Object::ReleasePackages ( ) [static, inherited]

Definition at line 213 of file bbtkObject.cxx.

References bbtkDebugMessage, bbtk::i, and bbtk::Object::mgPackageList.

00214   {
00215     bbtkDebugMessage("object",1,"##> Object::ReleasePackages()"<<std::endl);
00216     // Release package pointers
00217     ObjectListType::iterator i;
00218     for (i = mgPackageList.begin();
00219          i!= mgPackageList.end();
00220          ++i)
00221       {
00222         if (i->use_count() != 0)
00223           {
00224             bbtkDebugMessage("object",1,"##> Releasing package '"<<
00225                              i->lock()->GetThisPointer<Package>()->GetName()
00226                              <<"'"<<std::endl);
00227             //      Object::Pointer p(i->lock());
00228             Package::WeakPointer w(i->lock()->GetThisPointer<Package>());
00229             Package::Release(w);
00230             /*
00231             if (p->GetObjectName().find(name) != std::string::npos )
00232               {
00233                 std::cout << n << "/" << mgObjectList.size() << " ";
00234                 PrintObjectInfo(p);
00235                 m += p->GetObjectSize();
00236                 n++;
00237               }
00238             */
00239           }
00240       }
00241
00242   }

void bbtk::Object::PrintObjectListInfo ( const std::string & name ) [static, inherited]

Definition at line 105 of file bbtkObject.cxx.

References bbtk::i, bbtk::Object::mgObjectList, and bbtk::Object::PrintObjectInfo().

00106   {
00107
00108     std::cout
00109       << "=============== Living bbtk::Object pointers ========="<<std::endl;
00110
00111     long n = 0;
00112     long u = 0;
00113     size_t m = 0;
00114     ObjectListType::iterator i;
00115     for (i = mgObjectList.begin();
00116          i!=mgObjectList.end();
00117          ++i)
00118       {
00119         if (i->use_count() == 0)
00120           {
00121             u++;
00122           }
00123         else
00124           {
00125             Object::Pointer p(i->lock());
00126             if (p->GetObjectName().find(name) != std::string::npos )
00127               {
00128                 std::cout << n << "/" << mgObjectList.size() << " ";
00129                 PrintObjectInfo(p);
00130                 m += p->GetObjectSize();
00131                 n++;
00132               }
00133           }
00134       }
00135     std::cout
00136       << "------------------------------------------------------"<<std::endl;
00137
00138     std::cout << " Total : "<<n<<" objects - "<<m<<" b"<<std::endl;
00139     if (u==1)
00140       {
00141         std::cout<<"* Note : "<<u
00142                  <<" object in list has 0 ref count, "
00143                  <<"i.e. destroyed without removing itself from the living objects list ! (this is just an implementation error not a memory leak)"<<std::endl;
00144       }
00145     else if (u>1)
00146       {
00147         std::cout<<"* Note : "<<u
00148                  <<" objects in list have 0 ref count, "
00149                  <<"i.e. destroyed without removing themselves from the living objects list ! (this is just an implementation error not a memory leak)"<<std::endl;
00150       }
00151     std::cout
00152       << "============ EO Living bbtk::Object pointers ========="<<std::endl;
00153
00154   }

Here is the call graph for this function:

void bbtk::Object::PrintObjectInfo ( const Pointer & o ) [static, inherited]

Definition at line 180 of file bbtkObject.cxx.

Referenced by bbtk::Object::PrintObjectListInfo().

00181   {
00182     std::cout << "* [" << p << "] \t"
00183               << p.use_count()-1 << " r \t"
00184               << p->GetObjectRecursiveSize() << " ("
00185               << p->GetObjectSize() << ") b \t"
00186               << p->GetObjectName()
00187               << std::endl;
00188     std::cout << p->GetObjectInfo();
00189   }

Here is the caller graph for this function:

static long bbtk::Object::GetObjectsCount ( ) [inline, static, inherited]

Definition at line 75 of file bbtkObject.h.

00075 { return mgObjectList.size(); }

void bbtk::Object::LockThis ( ) [inline, protected, inherited]

Definition at line 88 of file bbtkObject.h.

00088 { mThisPointerLocked = mThisPointer.lock(); }

void bbtk::Object::UnLockThis ( ) [inline, protected, inherited]

Definition at line 89 of file bbtkObject.h.

00089 { mThisPointerLocked = Pointer(); }

template<class U>

boost::shared_ptr bbtk::Object::GetThisPointer ( ) const [inline, protected, inherited]

Definition at line 92 of file bbtkObject.h.

00093     {
00094       return boost::dynamic_pointer_cast<U>(mThisPointer.lock());
00095     }

template<class U>

static boost::shared_ptr<U> bbtk::Object::MakePointer	(	U *	s,
		bool	lock = `false`
	)			`[inline, static, protected, inherited]`

Definition at line 97 of file bbtkObject.h.

Referenced by bbtk::Executer::Executer(), bbtk::Interpreter::Init(), bbtk::Transcriptor::New(), bbtk::Package::New(), bbtk::Interpreter::New(), bbtk::Factory::New(), and bbtk::Executer::New().

00098     {
00099       if (s->mThisPointer.lock())
00100         {
00101           boost::shared_ptr<U> p = s->GetThisPointer<U>();
00102           if (!lock) s->mThisPointerLocked.reset();
00103           return p;
00104         }
00105       boost::shared_ptr<U> p = boost::shared_ptr<U>(s,Object::Deleter());
00106       static_cast<Object::Deleter*>
00107         (p._internal_get_deleter(typeid(Object::Deleter)))
00108         ->mPointer = p;
00109       s->mThisPointer = p;
00110       Object::InsertInObjectList(p);
00111       if (lock) s->LockThis();
00112       return p;
00113     }

Here is the caller graph for this function:

template<class U, class D>

static boost::shared_ptr<U> bbtk::Object::MakePointer	(	U *	s,
		const D &	del,
		bool	lock = `false`
	)			`[inline, static, protected, inherited]`

Definition at line 115 of file bbtkObject.h.

00118     {
00119       if (s->mThisPointer.lock())
00120         {
00121           boost::shared_ptr<U> p = s->GetThisPointer<U>();
00122           if (!lock) s->mThisPointerLocked.reset();
00123           return p;
00124         }
00125       boost::shared_ptr<U> p = boost::shared_ptr<U>(s,del);
00126       static_cast<D*>
00127         (p._internal_get_deleter(typeid(D)))
00128         ->mPointer = p;
00129       s->mThisPointer = p;
00130       Object::InsertInObjectList(p);
00131       if (lock) s->LockThis();
00132       return p;
00133     }

Friends And Related Function Documentation

friend struct Object::Deleter [friend]

Definition at line 63 of file bbtkBlackBox.h.

friend class Connection [friend]

Definition at line 274 of file bbtkBlackBox.h.

friend class ComplexBlackBox [friend]

Definition at line 275 of file bbtkBlackBox.h.

Member Data Documentation

IOStatus bbtk::BlackBox::bbmStatus [private]

The status of the box.

Definition at line 417 of file bbtkBlackBox.h.

Referenced by BlackBox().

std::string bbtk::BlackBox::bbmName [private]

The name of the black-box.

Definition at line 419 of file bbtkBlackBox.h.

Referenced by bbGetNameWithParent(), BlackBox(), and ~BlackBox().

std::string bbtk::BlackBox::bbmPackageName [private]

The name of the package to which it belongs.

Definition at line 421 of file bbtkBlackBox.h.

std::string bbtk::BlackBox::bbmBoxProcessMode [private]

0 : "Pipeline" mode : bbBackwardUpdate() only calls Process if Status == MODIFIED (normal pipeline processing) 1 : "Always" mode : bbUpdate() always calls Process 2 : "Reactive" mode : bbSetModifiedStatus() calls bbUpdate()

Definition at line 426 of file bbtkBlackBox.h.

Referenced by bbGetBoxProcessModeValue(), and BlackBox().

BlackBox::WeakPointer bbtk::BlackBox::bbmParent [private]

The parent of the black box in the ComplexBlackBox hierarchy.

Definition at line 429 of file bbtkBlackBox.h.

Referenced by bbGetNameWithParent(), and BlackBox().

OutputConnectorMapType bbtk::BlackBox::mOutputConnectorMap [private]

Map that contains the output connectors of the black box.

Definition at line 436 of file bbtkBlackBox.h.

Referenced by bbShowRelations(), and bbWriteDotFileBlackBox().

InputConnectorMapType bbtk::BlackBox::mInputConnectorMap [private]

Map that contains the input connectors of the black box.

Definition at line 438 of file bbtkBlackBox.h.

Referenced by bbShowRelations(), and bbWriteDotFileBlackBox().

The documentation for this class was generated from the following files:

/home/guigues/bbtk-build-tmp/bbtk/kernel/src/bbtkBlackBox.h
/home/guigues/bbtk-build-tmp/bbtk/kernel/src/bbtkBlackBox.cxx


Public Types
enum	BoxProcessModeValue { Pipeline, Always, Reactive }
typedef BlackBox	Self
typedef boost::shared_ptr< Self >	Pointer
typedef boost::weak_ptr< Self >	WeakPointer
typedef std::map< std::string, BlackBoxOutputConnector * >	OutputConnectorMapType
	The type of map of output connector pointers.
typedef std::map< std::string, BlackBoxInputConnector * >	InputConnectorMapType
	The type of map of input connector pointers.
Public Member Functions
virtual BlackBoxDescriptor::Pointer	bbGetDescriptor () const =0
	Returns the pointer on the descriptor of the box.
virtual BlackBox::Pointer	bbClone (const std::string &name)=0
	Returns a pointer on a clone of the box with name <name>.
virtual void	bbUserDelete ()
	User overloadable destruction method of a black box.
const std::string &	bbGetTypeName () const
	Returns the Name of the Type of the BlackBox.
const std::string &	bbGetName () const
	Returns the name of the BlackBox (instance).
virtual std::string	bbGetFullName () const
	Returns the full name of the BlackBox (instance+type).
virtual std::string	bbGetNameWithParent () const
	Returns the name with the name of the parent prepended if any.
BlackBox::Pointer	bbGetParent () const
	Returns the parent of the BlackBox, i.e the BlackBox that contains it (0 if none).
virtual void	bbExecute (bool force=false)
	Main processing method of the box.
virtual void	bbSetModifiedStatus (BlackBoxInputConnector *c=0)
	Signals that the BlackBox has been modified.
virtual void	bbSignalOutputModification (bool reaction=true)
virtual void	bbSignalOutputModification (const std::string &output_name, bool reaction=true)
virtual void	bbSignalOutputModification (const std::vector< std::string > &output_name, bool reaction=true)
virtual const IOStatus &	bbGetStatus () const
	Gets the status of the box.
virtual bool	bbHasInput (const std::string &label) const
	Returns true iff the BlackBox has an input of name label.
virtual bool	bbHasOutput (const std::string &label) const
	Returns true iff the BlackBox has an output of name label.
virtual TypeInfo	bbGetInputType (const std::string &label) const
	Gets the input type of a given label.
virtual TypeInfo	bbGetOutputType (const std::string &label) const
	Gets the output type of a given label.
virtual Data	bbGetInput (const std::string &name)=0
	Gets the data of the input called <name>.
virtual Data	bbGetOutput (const std::string &name)=0
	Gets the data of the output called <name>.
virtual void	bbSetInput (const std::string &name, Data data, bool setModified=true)=0
virtual void	bbBruteForceSetInputPointer (const std::string &name, void *data, bool setModified=true)=0
virtual void	bbSetOutput (const std::string &name, Data data)=0
	Sets the data of the output called <name>.
InputConnectorMapType &	bbGetInputConnectorMap ()
	Returns the input connectors map.
OutputConnectorMapType &	bbGetOutputConnectorMap ()
	Returns the output connectors map.
const InputConnectorMapType &	bbGetInputConnectorMap () const
	Returns the input connectors map (const).
const OutputConnectorMapType &	bbGetOutputConnectorMap () const
	Returns the output connectors map (const).
virtual void	bbGetHelp (bool full=true) const
	Prints the Help on the BlackBox type.
std::string	bbGetInputBoxProcessMode ()
	Returns the value of the input "BoxProcessMode".
void	bbSetInputBoxProcessMode (std::string a)
	Sets the value of the input "BoxProcessMode".
BoxProcessModeValue	bbGetBoxProcessModeValue () const
	Returns the "decoded" value of the input "BoxProcessMode".
virtual bool	bbBoxProcessModeIsReactive () const
virtual bool	bbBoxProcessModeIsAlways () const
Void	bbGetInputBoxExecute ()
	Returns the value of the input "Execute".
void	bbSetInputBoxExecute (Void=0)
	Sets the value of the input "Execute".
Void	bbGetOutputBoxChange ()
	Returns the value of the output "Change".
void	bbSetOutputBoxChange (Void=0)
	Sets the value of the output "Change" : signal a modification.
void	bbInsertHTMLGraph (std::ofstream &s, int detail, int level, bool instanceOrtype, const std::string &output_dir, bool relative_link)
	Does nothing here : overloaded in ComplexBlackBox.
virtual void	bbWriteDotFileBlackBox (FILE *ff, BlackBox::Pointer parentblackbox, int detail, int level, bool instanceOrtype, bool relative_link)
	Write Graphviz-dot description in file.
virtual void	bbWriteDotInputOutputName (FILE *ff, bool inputoutput, int detail, int level)
	Auxiliary method for bbWriteDotFileBlackBox.
virtual void	bbShowRelations (BlackBox::Pointer parentblackbox, int detail, int level)
std::string	bbGetOutputAsString (const std::string &output)
std::string	bbGetInputAsString (const std::string &input)
virtual BlackBox::Pointer	bbFindBlackBox (const std::string &blackboxname)
virtual void	Check (bool recursive=true)
virtual void	bbUserOnShow ()
void	bbUserOnShowWidget (std::string nameInput)
virtual bool	bbCanReact () const
virtual std::string	GetObjectName () const
virtual std::string	GetObjectInfo () const
virtual size_t	GetObjectSize () const
virtual size_t	GetObjectInternalSize () const
virtual size_t	GetObjectRecursiveSize () const
long	GetUseCount ()
Static Public Member Functions
static bool	bbGlobalGetSomeBoxExecuting ()
static void	bbGlobalSetSomeBoxExecuting (bool b)
static void	bbGlobalSetFreezeExecution (bool b)
static bool	bbGlobalGetFreezeExecution ()
static void	InsertInObjectList (Pointer)
static void	RemoveFromObjectList (WeakPointer)
static void	InsertInPackageList (Pointer)
static void	ReleasePackages ()
static void	PrintObjectListInfo (const std::string &name)
static void	PrintObjectInfo (const Pointer &o)
static long	GetObjectsCount ()
Protected Member Functions
	BlackBox ()
	BlackBox (const BlackBox &)
virtual	~BlackBox ()
	BlackBox (const std::string &name)
	Constructor that take the BlackBox's name.
	BlackBox (BlackBox &from, const std::string &name)
	Constructor from an existing box (copy) with a new name.
void	bbSetStatus (IOStatus t)
	Sets the status of the box.
virtual void	bbAllocateConnectors ()
	Allocates the i/o connectors of the black box.
virtual void	bbDesallocateConnectors ()
	Desallocates the i/o connectors of the black box.
virtual void	bbCopyIOValues (BlackBox &from)
	Copies the values of the inputs/output from the BlackBox from.
virtual void	bbDelete ()
void	LockThis ()
void	UnLockThis ()
template<class U>
boost::shared_ptr< U >	GetThisPointer () const
Pipeline processing methods
Methods which participate to (forward or backward) pipeline processing. Some are pure virtual and prepare particular update mechanism which are implemented by descendents (e.g. ForwardUpdate and UpdateChildren are made for WxContainerBlackBox particular update mechanism which must recurse a piece of the pipeline top-down). The main method is bbBackwardUpdate which is called by bbExecute and implemented in UserBlackBox and ComplexBlackBox.
virtual IOStatus	bbBackwardUpdate (Connection::Pointer caller)=0
IOStatus	bbUpdateInputs (bool excludeParent=false)
virtual void	bbShowWindow (Connection::Pointer caller)
virtual void	bbHideWindow ()
virtual void	bbCloseWindow ()
Static Protected Member Functions
static void	bbGlobalAddToExecutionList (BlackBox::Pointer b)
static void	bbGlobalProcessExecutionList ()
template<class U>
static boost::shared_ptr< U >	MakeBlackBoxPointer (U *s, bool lock=false)
template<class U>
static boost::shared_ptr< U >	MakePointer (U *s, bool lock=false)
template<class U, class D>
static boost::shared_ptr< U >	MakePointer (U *s, const D &del, bool lock=false)
Private Member Functions
void	bbSetParent (BlackBox::Pointer p)
	Sets the parent of the BlackBox.
virtual void	bbConnectInput (const std::string &name, Connection *c)
	Connects the input <name> to the connection c.
virtual void	bbConnectOutput (const std::string &name, Connection *c)
	Connects the output <name> to the connection c.
virtual void	bbDisconnectInput (const std::string &name, Connection *c)
	Disconnects the input <name> from the connection c.
virtual void	bbDisconnectOutput (const std::string &name, Connection *c)
	Disconnects the output <name> from the connection c.
Private Attributes
IOStatus	bbmStatus
	The status of the box.
std::string	bbmName
	The name of the black-box.
std::string	bbmPackageName
	The name of the package to which it belongs.
std::string	bbmBoxProcessMode
BlackBox::WeakPointer	bbmParent
	The parent of the black box in the ComplexBlackBox hierarchy.
OutputConnectorMapType	mOutputConnectorMap
	Map that contains the output connectors of the black box.
InputConnectorMapType	mInputConnectorMap
	Map that contains the input connectors of the black box.
Friends
struct	Object::Deleter
class	Connection
class	ComplexBlackBox
Classes
struct	Deleter
