#include <creaImageIOWxAttributeSelectionPanel.h>

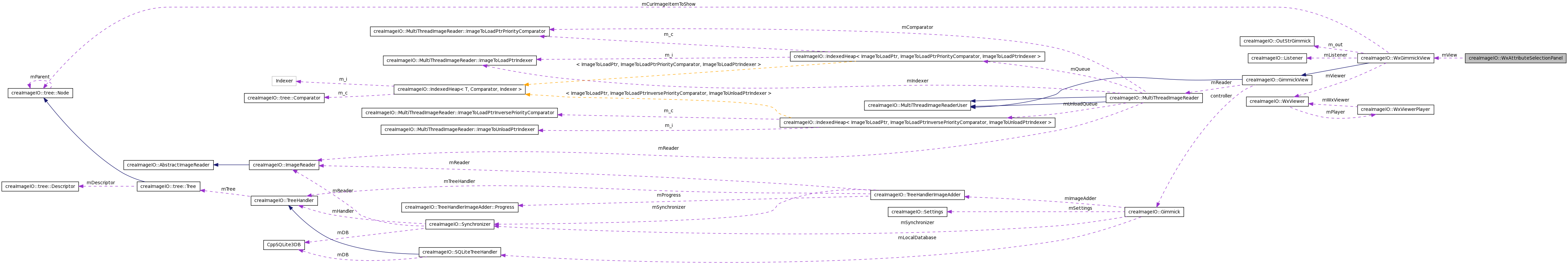

Collaboration diagram for creaImageIO::WxAttributeSelectionPanel:

Public Member Functions
	WxAttributeSelectionPanel ()
	WxAttributeSelectionPanel (wxWindow parent, wxDialog dial, WxGimmickView *view, std::vector< std::string > sAtts, std::vector< std::string > nsAtts, int numLev)
	~WxAttributeSelectionPanel ()
	Destructor.
void	OnSaveConfig (wxCommandEvent &event)
	Saves the configuration.
void	OnAdd (wxCommandEvent &event)
	Changes items from shown to notShown.
void	OnRemove (wxCommandEvent &event)
	Changes items from notShown to shown.
void	OnComboChange (wxCommandEvent &event)
Private Member Functions
void	LoadCtrls ()
	Loads the information on the vectors onto the lists.
Private Attributes
std::vector< std::string >	shownA
std::vector< std::string >	notShownA
wxComboBox *	levels
wxListCtrl *	shownAtts
wxListCtrl *	notShownAtts
wxDialog *	dialog
WxGimmickView *	mView

Detailed Description

Definition at line 17 of file creaImageIOWxAttributeSelectionPanel.h.

Constructor & Destructor Documentation

creaImageIO::WxAttributeSelectionPanel::WxAttributeSelectionPanel ( )

creaImageIO::WxAttributeSelectionPanel::WxAttributeSelectionPanel	(	wxWindow *	parent,
		wxDialog *	dial,
		WxGimmickView *	view,
		std::vector< std::string >	sAtts,
		std::vector< std::string >	nsAtts,
		int	numLev
	)

Definition at line 12 of file creaImageIOWxAttributeSelectionPanel.cpp.

References GimmickDebugMessage, creaImageIO::ID_COMBO, levels, LoadCtrls(), notShownAtts, OnAdd(), OnRemove(), OnSaveConfig(), and shownAtts.

 :   wxPanel( parent,
                  -1, wxDefaultPosition,
                  wxDefaultSize,
                  wxRESIZE_BORDER |
              wxSYSTEM_MENU  |
                  wxCLOSE_BOX |
                  wxMAXIMIZE_BOX |
                  wxMINIMIZE_BOX |
                  wxCAPTION
               ),
                   dialog(dial),
                   shownA(sAtts),
                   notShownA(nsAtts),
                   mView(view)
  {
    GimmickDebugMessage(1,"WxCustomizeConfigPanel::WxCustomizeConfigPanel"
                        <<std::endl);
        wxStaticText * aa=new wxStaticText(this,-1,_T(" Currently shown attributes for level: "), wxPoint(5,10));
        wxArrayString as;
        std::stringstream out;
        for(int i=1;i<=numLev;i++)
        {
                out<<i;
                as.Add(crea::std2wx(out.str()));
                out.str("");
        }
        levels=new wxComboBox(this, ID_COMBO,_T("1"),wxPoint(190, 5),wxDefaultSize,as);
        wxStaticText * na=new wxStaticText(this,-1,_T(" Currently hidden attributes: "), wxPoint(255,10));

    shownAtts=new wxListCtrl(this, wxID_ANY, wxPoint(5,30), wxSize(160,90), wxLC_REPORT | wxLC_NO_HEADER );

        shownAtts->InsertColumn(0,
                                   crea::std2wx(""),
                                   wxLIST_FORMAT_LEFT);
        shownAtts->SetColumnWidth(0,155);
        shownAtts->Show();

        wxButton *add = new wxButton(this,wxID_ANY,_T(">>"), wxPoint(170,50) );
        Connect( add->GetId(), wxEVT_COMMAND_BUTTON_CLICKED , (wxObjectEventFunction) &WxAttributeSelectionPanel::OnAdd );

        wxButton *remove = new wxButton(this,wxID_ANY,_T("<<"), wxPoint(170,70) );
        Connect( remove->GetId(), wxEVT_COMMAND_BUTTON_CLICKED , (wxObjectEventFunction) &WxAttributeSelectionPanel::OnRemove );

        notShownAtts=new wxListCtrl(this, wxID_ANY, wxPoint(255,30), wxSize(160,90), wxLC_REPORT | wxLC_NO_HEADER );

        notShownAtts->InsertColumn(0,
                                   crea::std2wx(""),
                                   wxLIST_FORMAT_LEFT);
        notShownAtts->SetColumnWidth(0,155);
        notShownAtts->Show();
        LoadCtrls();

        wxButton *save = new wxButton(this,wxID_ANY,_T("Save Changes"), wxPoint(5,130) );
        Connect( save->GetId(), wxEVT_COMMAND_BUTTON_CLICKED , (wxObjectEventFunction) &WxAttributeSelectionPanel::OnSaveConfig );

    Layout();
  }

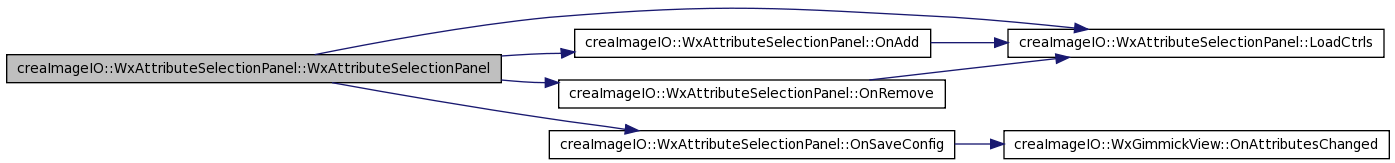

Here is the call graph for this function:

creaImageIO::WxAttributeSelectionPanel::~WxAttributeSelectionPanel ( )

Destructor.

Definition at line 77 of file creaImageIOWxAttributeSelectionPanel.cpp.

References GimmickDebugMessage.

  {
    GimmickDebugMessage(1,"WxAttributeSelectionPanel::~WxAttributeSelectionPanel"
                        <<std::endl);
  }

Member Function Documentation

void creaImageIO::WxAttributeSelectionPanel::LoadCtrls ( ) [private]

Loads the information on the vectors onto the lists.

Definition at line 150 of file creaImageIOWxAttributeSelectionPanel.cpp.

References notShownA, notShownAtts, shownA, and shownAtts.

Referenced by OnAdd(), OnComboChange(), OnRemove(), and WxAttributeSelectionPanel().

  {

          wxListItem item;
            item.SetMask(wxLIST_MASK_STATE |
                         wxLIST_MASK_TEXT |
                         //                      wxLIST_MASK_IMAGE |
                         wxLIST_MASK_DATA |
                         //                      wxLIST_MASK_WIDTH |
                         wxLIST_MASK_FORMAT
                         );
        std::vector<std::string>::iterator it;
        shownAtts->DeleteAllItems();
        notShownAtts->DeleteAllItems();
        for(it=shownA.begin();it!=shownA.end();++it)
        {
                item.SetText(crea::std2wx(*it));
                shownAtts->InsertItem(item);
        }


        for(it=notShownA.begin();it!=notShownA.end();++it)
        {
                item.SetText(crea::std2wx(*it));
                notShownAtts->InsertItem(item);
        }

  }

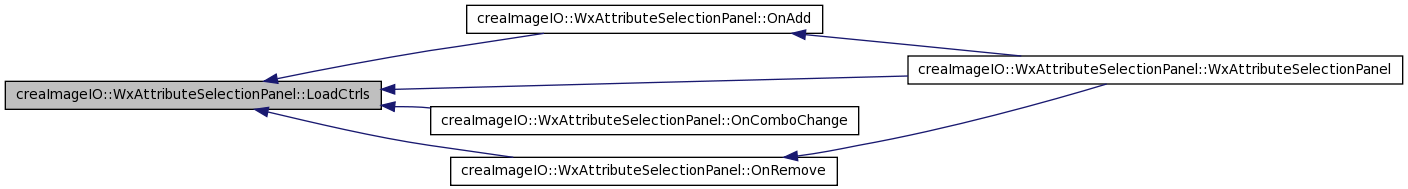

Here is the caller graph for this function:

void creaImageIO::WxAttributeSelectionPanel::OnAdd ( wxCommandEvent & event )

Changes items from shown to notShown.

Definition at line 91 of file creaImageIOWxAttributeSelectionPanel.cpp.

References LoadCtrls(), notShownA, shownA, and shownAtts.

Referenced by WxAttributeSelectionPanel().

  {
        long item = -1;
        for ( ;; )
        {
                item = shownAtts->GetNextItem(item,
                        wxLIST_NEXT_ALL,
                        wxLIST_STATE_SELECTED);
                if ( item == -1 )
                        break;

                        std::string change = crea::wx2std(shownAtts->GetItemText(item));
                        std::vector<std::string>::iterator it;
                        bool found=false;
                        for(it=shownA.begin();it!=shownA.end()&&!found;++it)
                        {
                                if((*it).compare(change)==0)
                                {
                                        found=true;
                                }
                        }
                        shownA.erase(it-1);
                        notShownA.push_back(change);
        }
        LoadCtrls();

  }

Here is the call graph for this function:

Here is the caller graph for this function:

void creaImageIO::WxAttributeSelectionPanel::OnComboChange ( wxCommandEvent & event )

Definition at line 178 of file creaImageIOWxAttributeSelectionPanel.cpp.

References creaImageIO::WxGimmickView::GetVisibleAttributes(), levels, LoadCtrls(), mView, notShownA, and shownA.

  {
      int n=levels->GetSelection()+1;
          mView->GetVisibleAttributes(shownA,notShownA,n);
          LoadCtrls();
  }

Here is the call graph for this function:

void creaImageIO::WxAttributeSelectionPanel::OnRemove ( wxCommandEvent & event )

Changes items from notShown to shown.

Definition at line 119 of file creaImageIOWxAttributeSelectionPanel.cpp.

References LoadCtrls(), notShownA, notShownAtts, and shownA.

Referenced by WxAttributeSelectionPanel().

  {

        long item = -1;
        for ( ;; )
        {
                item = notShownAtts->GetNextItem(item,
                        wxLIST_NEXT_ALL,
                        wxLIST_STATE_SELECTED);
                if ( item == -1 )
                        break;

                        std::string change = crea::wx2std(notShownAtts->GetItemText(item));
                        std::vector<std::string>::iterator it;
                        bool found=false;
                        for(it=notShownA.begin();it!=notShownA.end()&&!found;++it)
                        {
                                if((*it).compare(change)==0)
                                {
                                        found=true;
                                }
                        }
                        notShownA.erase(it-1);
                        shownA.push_back(change);

        }
        LoadCtrls();

  }

Here is the call graph for this function:

Here is the caller graph for this function:

void creaImageIO::WxAttributeSelectionPanel::OnSaveConfig ( wxCommandEvent & event )

Saves the configuration.

Definition at line 83 of file creaImageIOWxAttributeSelectionPanel.cpp.

References dialog, levels, mView, notShownA, and creaImageIO::WxGimmickView::OnAttributesChanged().

Referenced by WxAttributeSelectionPanel().

  {
          int n=levels->GetSelection();
          if(n<0){n=0;}
          mView->OnAttributesChanged(notShownA,n);
          dialog->Destroy();
  }

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

wxDialog* creaImageIO::WxAttributeSelectionPanel::dialog [private]

Definition at line 46 of file creaImageIOWxAttributeSelectionPanel.h.

Referenced by OnSaveConfig().

wxComboBox* creaImageIO::WxAttributeSelectionPanel::levels [private]

Definition at line 43 of file creaImageIOWxAttributeSelectionPanel.h.

Referenced by OnComboChange(), OnSaveConfig(), and WxAttributeSelectionPanel().

WxGimmickView* creaImageIO::WxAttributeSelectionPanel::mView [private]

Definition at line 47 of file creaImageIOWxAttributeSelectionPanel.h.

Referenced by OnComboChange(), and OnSaveConfig().

std::vector<std::string> creaImageIO::WxAttributeSelectionPanel::notShownA [private]

Definition at line 42 of file creaImageIOWxAttributeSelectionPanel.h.

Referenced by LoadCtrls(), OnAdd(), OnComboChange(), OnRemove(), and OnSaveConfig().

wxListCtrl* creaImageIO::WxAttributeSelectionPanel::notShownAtts [private]

Definition at line 45 of file creaImageIOWxAttributeSelectionPanel.h.

Referenced by LoadCtrls(), OnRemove(), and WxAttributeSelectionPanel().

std::vector<std::string> creaImageIO::WxAttributeSelectionPanel::shownA [private]

Definition at line 41 of file creaImageIOWxAttributeSelectionPanel.h.

Referenced by LoadCtrls(), OnAdd(), OnComboChange(), and OnRemove().

wxListCtrl* creaImageIO::WxAttributeSelectionPanel::shownAtts [private]

Definition at line 44 of file creaImageIOWxAttributeSelectionPanel.h.

Referenced by LoadCtrls(), OnAdd(), and WxAttributeSelectionPanel().

The documentation for this class was generated from the following files:

/home/davila/Creatis/All7/creatools_source/creaImageIO/src/creaImageIOWxAttributeSelectionPanel.h
/home/davila/Creatis/All7/creatools_source/creaImageIO/src/creaImageIOWxAttributeSelectionPanel.cpp
