creaImageIO::WxGimmickView Class Reference [View]

Concrete derivative of GimmickView which implements a wxWidgets-based view. More...

#include <creaImageIOWxGimmickView.h>

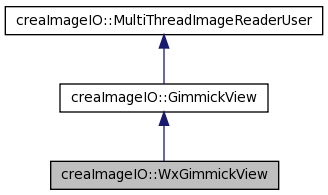

Inheritance diagram for creaImageIO::WxGimmickView:

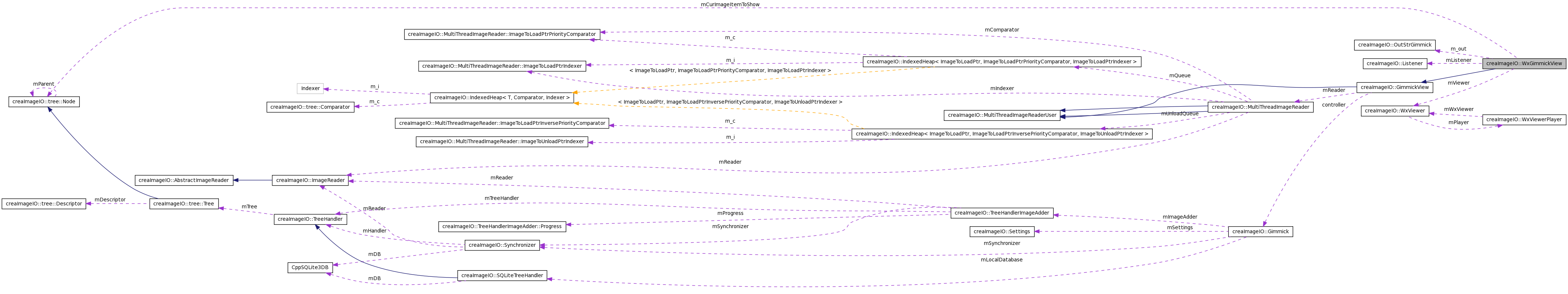

Collaboration diagram for creaImageIO::WxGimmickView:

List of all members.

Public Types
typedef int	EventType
typedef std::map< std::string, TreeView * >	TreeViewMapType
typedef boost::signal< void(bool)>	ValidationSignalType
typedef ValidationSignalType::slot_function_type	ValidationCallbackType
typedef std::vector < DicomDatabase * >	DicomDatabaseListType
	Type of list of DicomDatabase.
Public Member Functions
	WxGimmickView (boost::shared_ptr< Gimmick >, wxWindow *parent, const wxWindowID id, const wxPoint &pos, const wxSize &size, int min_dim=2, int max_dim=3, int number_of_threads=0)
	Ctor.
virtual	~WxGimmickView ()
	Virtual destructor.

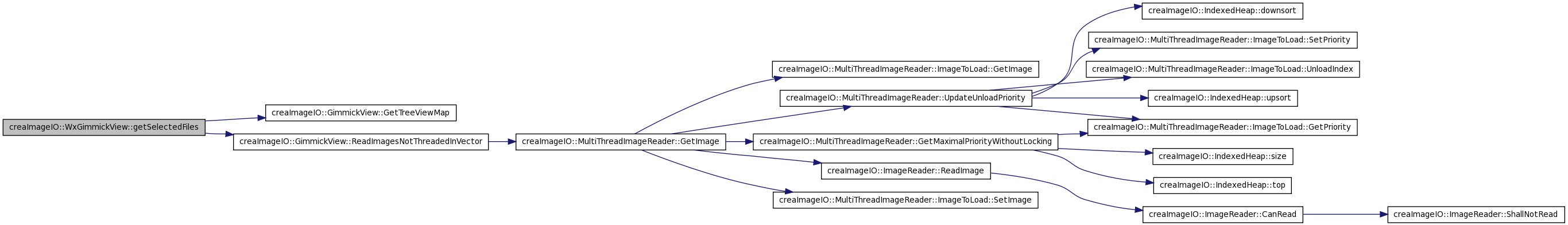

void	GetSelectedFiles (std::vector< std::string > &s)
void	getSelectedFiles (std::vector< OutStrGimmick > &outG, std::vector< std::string > out_infos, bool mult=false, const std::string out_model="")
	Returns the selected files in output structure.
void	GetSelectedImages (std::vector< vtkImageData * > &s, int dim)
void	GetSelectedImagesInVector (std::vector< vtkImageData * > &s, int dim)
	Adds the selected Images to the given vector.
void	GetImages (int dim, const std::vector< std::string > &files, std::vector< vtkImageData * > &s)
void	OnSelectionChange (const std::vector< tree::Node * > &s, bool isSelection, int selection, bool mProcess)
	Callback called when a selection from a TreeView has changed.
void	StopPlayer ()
	Stops the player.
void	AddIgnoreFile (tree::Node *toRemove)
	Adds a file to ignore.
void	ClearSelection ()
	Resets the default image.
void	CopyFiles (const std::vector< std::string > &filenames)
	Copies selected files.
void	AddDir (std::string dirName)
	Add selected files to the Database.
void	ReadImageThreaded (const std::vector< tree::Node * > &sel)
	Sends a request to read the currently selected node and the ones that surround it.
void	OnSaveSettingsCallback (const std::string &copyPath, const std::string &dbPath, const std::string &syncEvent, const std::string &syncFreq)
	Saves the settings to the file.
void	OnListenerCallback (const std::string &drive, bool addFiles, bool removeFiles)
	Changes listener state.

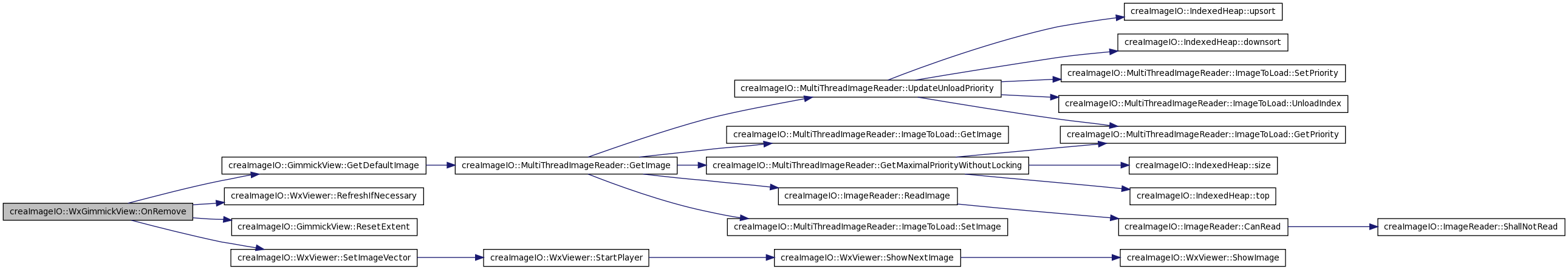

void	OnDriveMount (bool mount)
	Acts upon a drive mount.
void	StartListeningThread ()
	Starts the listening thread on the CD/DVD drive.
void	StopListeningThread ()
	Stops the listening thread on the CD/DVD drive.
void	OnFieldsEdited (tree::Node *node, const std::string &name, const std::string &key, const std::string &val)
	Called upon when a field has been edited.
void	GetVisibleAttributes (std::vector< std::string > &shown, std::vector< std::string > &nShown, int level)
	Called upon to return the visible attributes of the current tab.
void	OnAttributesChanged (const std::vector< std::string > &nShown, int level)
	Called when there has been a change in the visible attributes of a tree view.

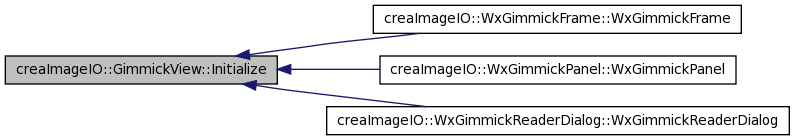

virtual void	Initialize ()

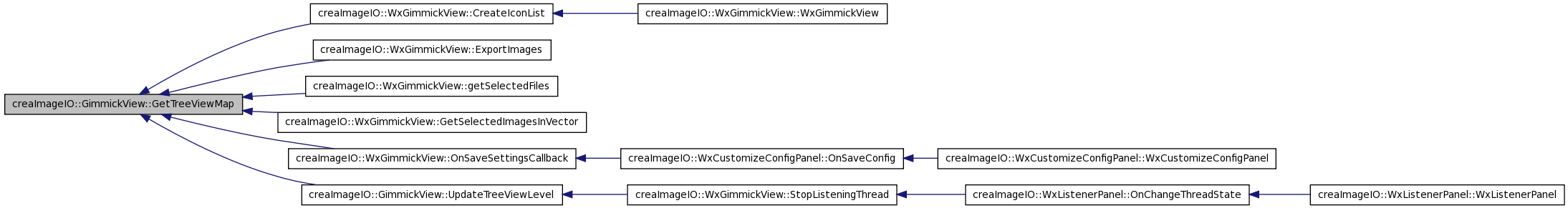

TreeViewMapType &	GetTreeViewMap ()
	Returns the TreeViewMap (ref).
const TreeViewMapType &	GetTreeViewMap () const
	Returns the TreeViewMap (const ref).
virtual void	Finalize ()
	Finalize.

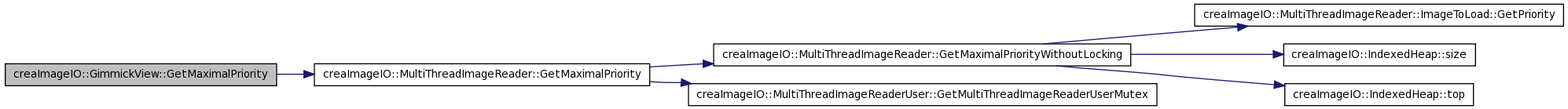

int	GetMaximalPriority ()
	Returns the maximal priority.
virtual void	GetSelectedImages (std::vector< vtkImageData * > &)
	Returns the vector of images corresponding to selection.
virtual void	GetImages (int dim, std::vector< std::string > files, std::vector< vtkImageData * > &s)
virtual void	Anonymize (std::vector< std::string > i_filenames, int type)
	Anonymize or de-anonymize data.
virtual void	SaveAs (const std::vector< std::string > &filenames)
	Copies selected files.
bool	NoValidateSelected ()
	No selected image.
bool	ValidateSelected (tree::Node *sel, int min_dim, int max_dim)
	Validates the dimension compliance of the images with the maximum and minimum given, and between their sizes.

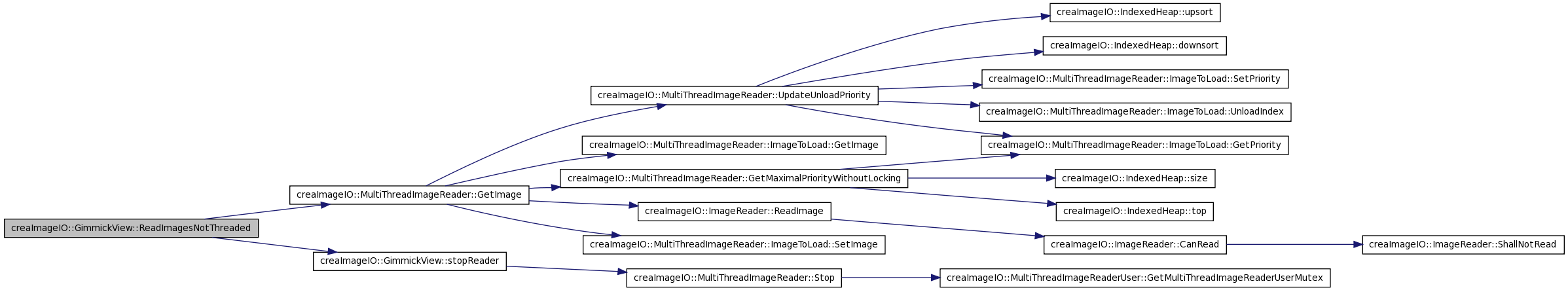

void	ReadImagesNotThreaded (std::vector< vtkImageData * > &s, std::vector< std::string > files, int dim)
	Reads the vector of images, builds it in the dimension required and returns them in the supplied vector.

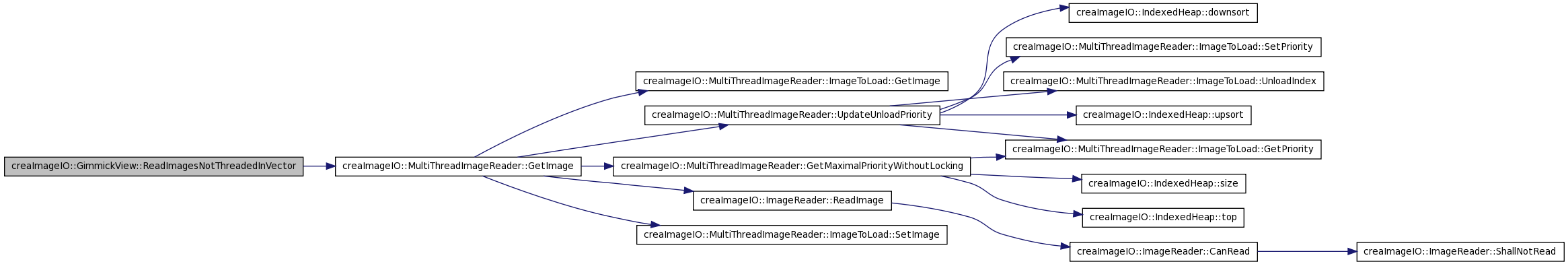

void	ReadImagesNotThreadedInVector (std::vector< vtkImageData * > &s, std::vector< std::string > files, int dim)
	Reads the vector of images, builds it in the dimension required and returns them in the supplied vector.

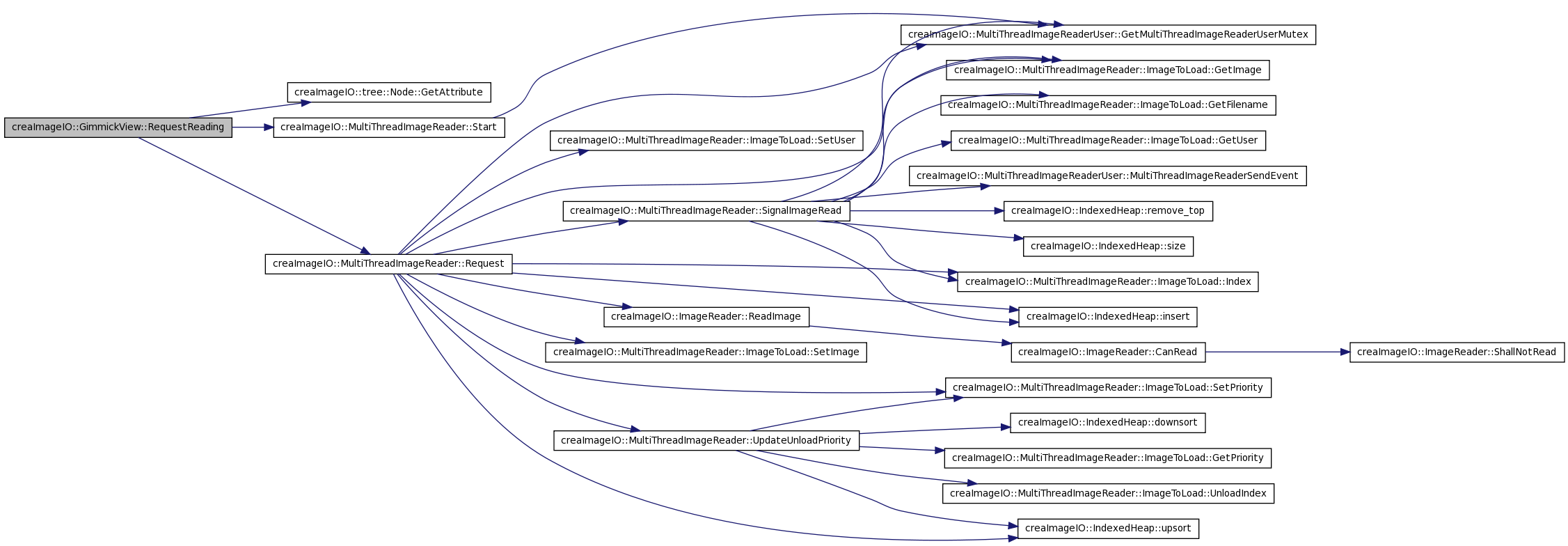

void	RequestReading (tree::Node *n, int prio, int selection_index, boost::shared_ptr< ImagePointerHolder > p)
	current selection (-1 if not in selection)
std::string	GetMessage ()
	Obtains the message of the state.
void	SetMessage (std::string mess)
	Obtains the message of the state.
void	ResetExtent ()
	Resets the data of the extent and begins a new selection.
void	CreateTreeViews ()
	Create the tree views.
void	CreateSingleTreeView (std::string &i_name)
	Create a tree view with a given name.
virtual void	UpdateTreeViewLevel (const std::string &, int l)

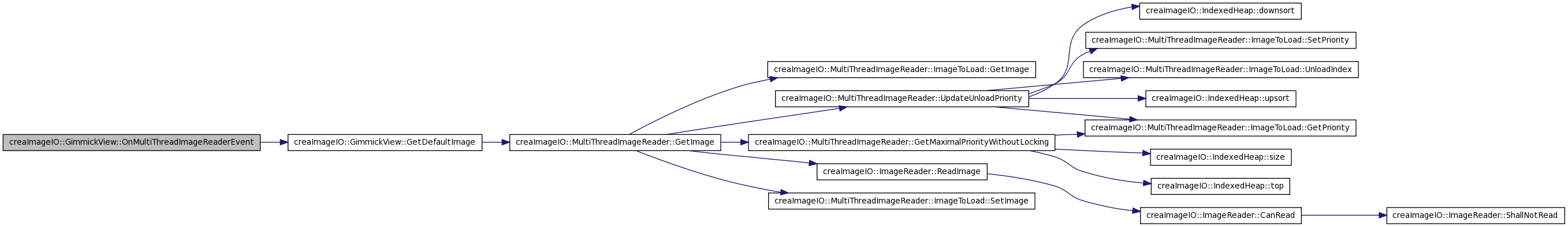

void	OnMultiThreadImageReaderEvent (const std::string &filename, MultiThreadImageReaderUser::EventType t, vtkImageData *image)

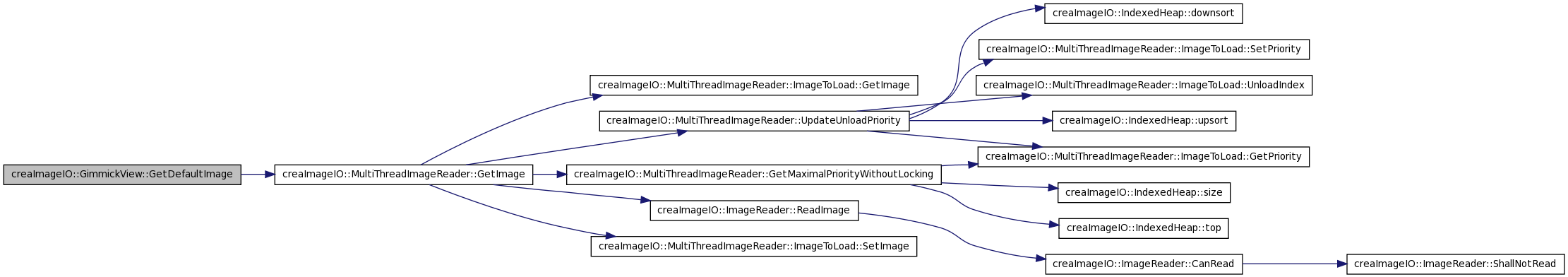

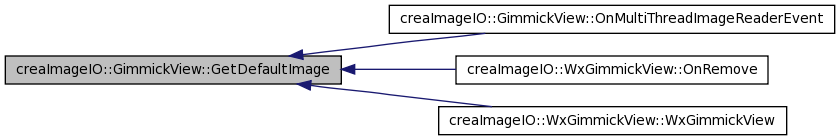

vtkImageData *	GetDefaultImage ()
void	ConnectValidationObserver (ValidationCallbackType callback)

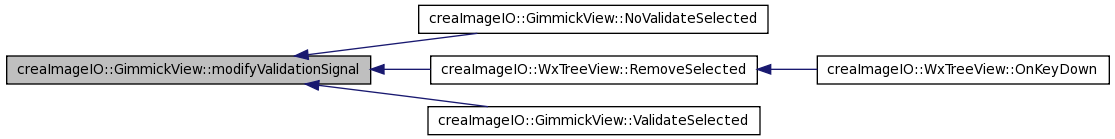

void	modifyValidationSignal (bool ivalid)

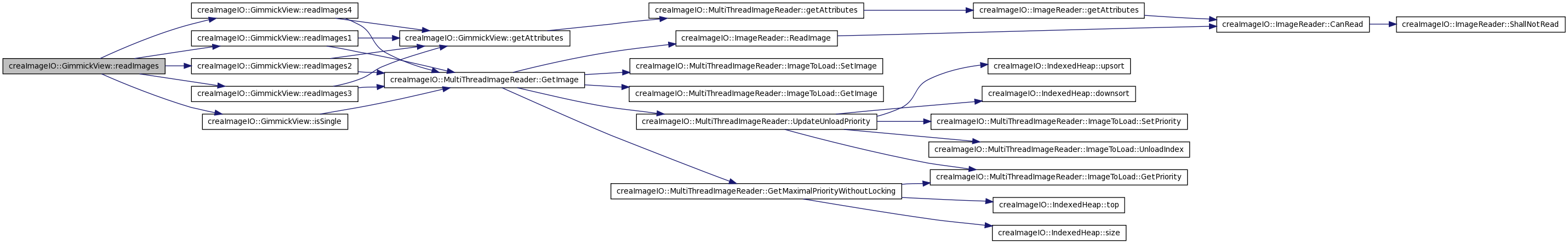

void	readImages (std::vector< OutStrGimmick > &o_output, std::vector< std::string > im, OutputAttr i_attr, int i_dim, double i_zspc)

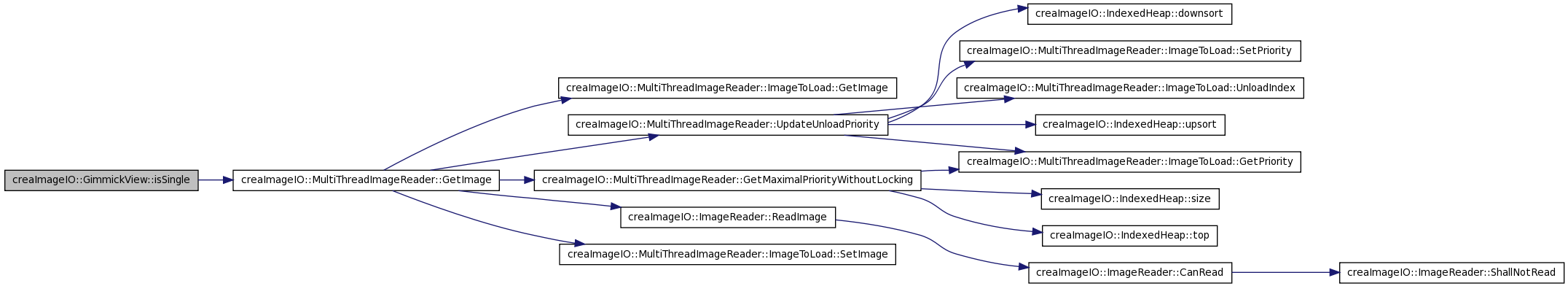

bool	isSingle (const std::string i_file)
void	stopReader ()
virtual int	GetSelectionSize ()
	Returns the size of the current selection.
virtual bool	IsSelectionValid ()
	Returns true if there is a valid selection.
virtual void	GetSelectedDicomNodes (std::vector< DicomNode * > &)
	Returns the vector of DicomNode corresponding to selection.
virtual DicomNode *	GetDicomNodeOfItem (const TreeItemId &i)
	Returns the DicomNode corresponding to the tree item.
virtual DicomDatabaseListType &	GetDicomDatabaseList ()
	Returns the list of DicomDatabase open.
virtual const DicomDatabaseListType &	GetDicomDatabaseList () const
	Returns the list of DicomDatabase open (const).
virtual void	LoadOrCreateFavoritesDatabase ()
	Loads or creates a favorites database.
void	MultiThreadImageReaderEventLock ()
void	MultiThreadImageReaderEventLock ()
void	MultiThreadImageReaderEventUnlock ()
void	MultiThreadImageReaderEventUnlock ()
wxMutex &	GetMultiThreadImageReaderUserMutex ()
QMutex *	GetMultiThreadImageReaderUserMutex ()
Public Attributes
OutStrGimmick	m_out
Protected Member Functions
void	CreateToolBar ()
	Creates the tool bar.
void	CreateTreeView (TreeHandler *)
	Create the tree view for TreeHandler provided.
virtual void	OpenOrNewDatabase (bool open)
	Opens an existing database, or else, creates a local database.
virtual void	ShowHelp ()
	Shows the help.
virtual void	RebuildView ()
virtual void	UpdateDicomDatabaseView (DicomDatabase *)
virtual void	UpdateDicomNodeView (DicomNode *n, const TreeItemId &parent)
Private Member Functions
void	CreateIconList ()
void	OnAddFiles (wxCommandEvent &event)
	Callback for adding files.
void	OnAddDir (wxCommandEvent &event)
	Callback for adding dir.
void	OnRemove (wxCommandEvent &event)
	Callback for removing files.
void	OnSynchronize (wxCommandEvent &event)
	Callback for synchronization.
void	OnSettings (wxCommandEvent &event)
	Callback for settings edition.
void	OnTools (wxCommandEvent &event)
	Callback for settings edition.
void	OnImportExport (wxCommandEvent &event)
	Callback for Import/Export images.
void	ImportImages ()
void	ExportImages ()
void	CreateSettingsDialog (wxNotebook *nb, wxDialog *dial)
	Creates the settings dialog (the pages inside and the information).
void	DisplayAddSummary ()
	Display a message box with the last addition statistics.
bool	isNeedRecursive (std::string i_name)
	Test a directory to know if contains sub-directory to analyze.
int	NumberFilesToAdd (const std::string &dirpath, bool recursive)
	Determines number of files potentially to add to database.
void	OnAddProgress (Gimmick::AddProgress &)
	AddProgress Gimmick callback.
void	UpdateWindowUI (long flags=wxUPDATE_UI_NONE)
void	OnAddDB (wxCommandEvent &event)
	callback to add a database
void	OnCreateDB (wxCommandEvent &event)
	Create a DB from an Attributes Descriptor files.
std::string	ExtractName (const std::string &i_name)
void	CreateEditFieldsDialog (tree::Node *node, std::vector< std::string > names, std::vector< std::string > keys)
	Edits the fields of a given node.

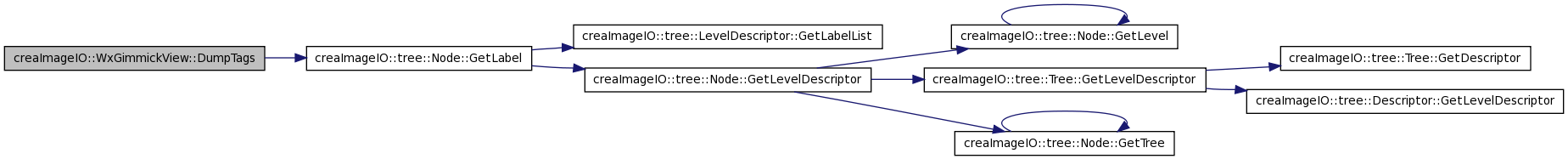

void	DumpTags (const std::string i_filename)
	Display all Dicom Tags.
void	ExportToStorage (const std::vector< std::string > i_filenames)
	Export from Storage to Storage.
void	killProgress ()
Private Attributes
wxBoxSizer *	mbottom_sizer
wxBoxSizer *	msizer
bool	mConstructed
wxToolBar *	mToolBar
	The ToolBar and the tools.
wxToolBarToolBase *	mToolAddFile
wxToolBarToolBase *	mToolAddDir
wxToolBarToolBase *	mToolRemove
wxToolBarToolBase *	mToolAddDatabase
wxToolBarToolBase *	mToolHelp
wxToolBarToolBase *	mToolSynchronize
wxToolBarToolBase *	mToolSettings
wxToolBarToolBase *	mToolTools
wxSplitterWindow *	mSplitter
wxPanel *	mBottomPanel
wxStaticText *	mText
wxNotebook *	mNotebook
wxImageList *	mIcon
	The list of icons.
boost::shared_ptr< Gimmick >	mGimmick
	Controller which manages the interaction with the model.
Listener *	mListener
time_t	mstart
wxProgressDialog *	mProgressDialog
	Progress dialog.
int	mSelectionMaxDimension
	The selection's maximum dimension.
int	mSelectionMinDimension
	The selection's minimum dimension.
WxViewer *	mViewer
	Image previewer.
tree::Node *	mCurImageItemToShow
	Currently Displayed Node.
std::vector< boost::shared_ptr < ImagePointerHolder > >	pointers
wxString	mCurrentDirectory
Friends
class	ThreadedImageReader
class	MultiThreadImageReader

---

Detailed Description

Concrete derivative of GimmickView which implements a wxWidgets-based view.

Definition at line 31 of file creaImageIOWxGimmickView.h.

---

Member Typedef Documentation

typedef std::vector<DicomDatabase*> creaImageIO::GimmickView::DicomDatabaseListType [inherited]

Type of list of DicomDatabase.

Definition at line 37 of file OldcreaImageIOGimmickView.h.

typedef int creaImageIO::WxGimmickView::EventType

Reimplemented from creaImageIO::MultiThreadImageReaderUser.

Definition at line 35 of file creaImageIOWxGimmickView.h.

typedef std::map<std::string, TreeView*> creaImageIO::GimmickView::TreeViewMapType [inherited]

Type of map from View name to TreeView* (This map is equivalent for Views of the TreeHandlerMap of Gimmick)

Definition at line 68 of file creaImageIOGimmickView.h.

typedef ValidationSignalType::slot_function_type creaImageIO::GimmickView::ValidationCallbackType [inherited]

Definition at line 179 of file creaImageIOGimmickView.h.

typedef boost::signal<void (bool)> creaImageIO::GimmickView::ValidationSignalType [inherited]

Definition at line 178 of file creaImageIOGimmickView.h.

---

Constructor & Destructor Documentation

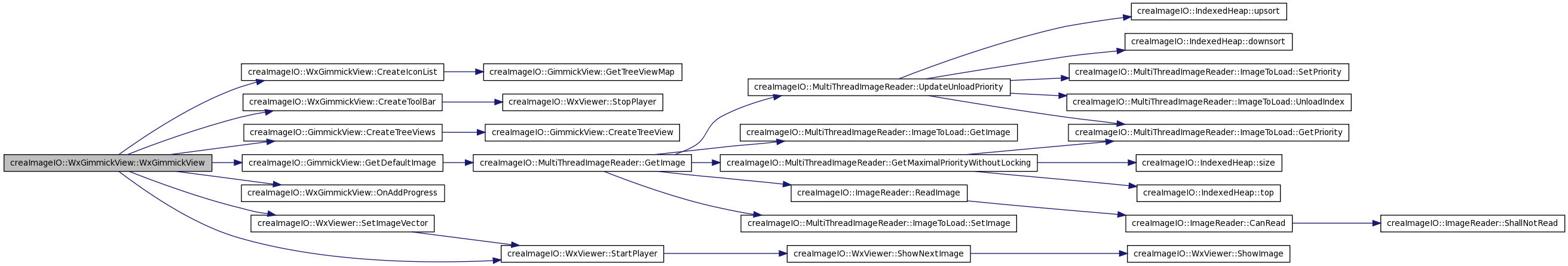

creaImageIO::WxGimmickView::WxGimmickView	(	boost::shared_ptr< Gimmick >	gimmick,
		wxWindow *	parent,
		const wxWindowID	id,
		const wxPoint &	pos,
		const wxSize &	size,
		int	min_dim = 2,
		int	max_dim = 3,
		int	number_of_threads = 0
	)

Ctor.

Definition at line 82 of file creaImageIOWxGimmickView.cpp.

References CreateIconList(), CreateToolBar(), creaImageIO::GimmickView::CreateTreeViews(), creaImageIO::GimmickView::GetDefaultImage(), GimmickDebugMessage, mbottom_sizer, mBottomPanel, mCurrentDirectory, mGimmick, mNotebook, mSelectionMaxDimension, mSelectionMinDimension, msizer, mSplitter, mText, mToolBar, mViewer, OnAddProgress(), pointers, creaImageIO::WxViewer::SetImageVector(), and creaImageIO::WxViewer::StartPlayer().

                          { Icon_Database,
                            Icon_Patient,
                            Icon_Study,
                            Icon_Series,
                            Icon_Image };
  */
  //================================================================


  //======================================================================
  // CTor
        WxGimmickView::WxGimmickView(boost::shared_ptr<Gimmick> gimmick,
                               wxWindow *parent,
                               const wxWindowID id,
                               const wxPoint& pos,
                               const wxSize& size,
                               int min_dim,
                               int max_dim,
                               int number_of_threads)
    : wxPanel(parent,id,pos,size),
      GimmickView(gimmick, number_of_threads),
      mProgressDialog(0),
      mConstructed(false)
  {
    GimmickDebugMessage(1,"WxGimmickView::WxGimmickView"
                        <<std::endl);
    // Sets the current directory to the home dir
    mCurrentDirectory =  std2wx(gimmick->GetHomeDirectory());


     // Connect the AddProgress callback
    gimmick->ConnectAddProgressObserver
     ( boost::bind( &WxGimmickView::OnAddProgress , this, _1 ) );

    // Create the list of icons (mIcon)
    CreateIconList();

    // Global sizer
    msizer = new wxBoxSizer(wxVERTICAL);

    // Create the tool bar
    CreateToolBar();
    msizer->Add( mToolBar, 0, wxGROW, 0);

    // Split part below toolbar into notebook for views and panel
    // for preview, messages...
    mSplitter = new wxSplitterWindow( this , -1);

    // Notebook
    mNotebook = new wxNotebook(mSplitter,
                               -1, wxDefaultPosition, wxDefaultSize, 0);

    //Gimmick
    mGimmick=gimmick;

    mSelectionMaxDimension = max_dim;
    mSelectionMinDimension = min_dim;

    // Create the views
    CreateTreeViews();

    // Bottom panel
    mBottomPanel = new wxPanel(mSplitter,-1);

    mbottom_sizer = new wxBoxSizer(wxVERTICAL); //HORIZONTAL);


    // Previewer
    mViewer = new WxViewer(mBottomPanel, wxID_ANY, wxT("Gimmick! Viewer"),wxDefaultPosition, wxDefaultSize );
        //pointers.push_back(new ImagePointerHolder(GetDefaultImage())
        pointers.push_back(boost::shared_ptr<creaImageIO::ImagePointerHolder>(new ImagePointerHolder(GetDefaultImage())));

        mViewer->SetImageVector(pointers);
        mViewer->StartPlayer();


    mbottom_sizer->Add(mViewer,1,wxGROW,1);
    //    mViewer->Show();

    mText = new wxStaticText(mBottomPanel, wxID_ANY, wxT("Welcome to Gimmick!"));
    mbottom_sizer->Add(mText,0,wxGROW,0);



    mBottomPanel->SetSizer(mbottom_sizer);

    // Splitting
    int hsize = size.GetHeight();

    int top_minsize = 450;
    int bottom_minsize = 50;

    mSplitter->SetMinimumPaneSize( bottom_minsize );
    mSplitter->SplitHorizontally( mNotebook, mBottomPanel,

Here is the call graph for this function:

creaImageIO::WxGimmickView::~WxGimmickView

(

)

[virtual]

Virtual destructor.

Destructor.

Definition at line 185 of file creaImageIOWxGimmickView.cpp.

---

Member Function Documentation

void creaImageIO::WxGimmickView::AddDir

(

std::string

dirName

)

Add selected files to the Database.

Definition at line 816 of file creaImageIOWxGimmickView.cpp.

References mGimmick, and mNotebook.

Referenced by creaImageIO::WxGimmickPanel::AddImagesToDB().

  {
     mGimmick->RemoveFile(crea::wx2std(mNotebook->GetPageText(mNotebook->GetSelection())),toRemove);
   //  GetTreeViewMap()[crea::wx2std(mNotebook->GetPageText(mNotebook->GetSelection()))]->UpdateLevel(1);
  }

  //=================================================
  void WxGimmickView::CopyFiles(const std::vector<std::string>& filenames)
  {
     mGimmick->CopyFiles(filenames, crea::wx2std(mNotebook->GetPageText(mNotebook->GetSelection())));
     wxMessageBox(std2wx("The selected files have been copied"),_T("Copy files"),wxOK,this);
  }

   //=================================================

Here is the caller graph for this function:

void creaImageIO::WxGimmickView::AddIgnoreFile

(

tree::Node *

toRemove

)

[virtual]

Adds a file to ignore.

Reimplemented from creaImageIO::GimmickView.

Definition at line 802 of file creaImageIOWxGimmickView.cpp.

  {
        //TODO Select current tree handler

virtual void creaImageIO::GimmickView::Anonymize	(	std::vector< std::string >	i_filenames,
		int	type
	)			[inline, virtual, inherited]

Anonymize or de-anonymize data.

Definition at line 115 of file creaImageIOGimmickView.h.

References GimmickError.

          { GimmickError("INTERNAL ERROR : Anonymize not implemented"); }

void creaImageIO::WxGimmickView::ClearSelection

(

)

[virtual]

Resets the default image.

Reimplemented from creaImageIO::GimmickView.

Definition at line 775 of file creaImageIOWxGimmickView.cpp.

References mViewer, and creaImageIO::WxViewer::RefreshIfNecessary().

     {
        mViewer->RefreshIfNecessary();
     }
  }
#else
  void WxGimmickView::UpdateWindowUI(long flags)
  {
          if(mViewer)
     {

Here is the call graph for this function:

void creaImageIO::GimmickView::ConnectValidationObserver

(

ValidationCallbackType

callback

)

[inherited]

Adds the function f to the list of functions to call when the addition progresses. f is of type ProgressCallbackType which is: void (*ProgressCallbackType)(Progress&) To pass a member function 'f' of an instance 'c' of a class 'C' as callback you have to 'bind' it, i.e. call: ConnectValidationObserver ( boost::bind( &C::f , c, _1 ) );

Definition at line 827 of file creaImageIOGimmickView.cpp.

References creaImageIO::GimmickView::mValidationSignal.

Referenced by creaImageIO::WxGimmickPanel::WxGimmickPanel(), and creaImageIO::WxGimmickReaderDialog::WxGimmickReaderDialog().

  {
    mValidationSignal.connect(callback);
  }

Here is the caller graph for this function:

void creaImageIO::WxGimmickView::CopyFiles

(

const std::vector< std::string > &

filenames

)

[virtual]

Copies selected files.

Reimplemented from creaImageIO::GimmickView.

Definition at line 809 of file creaImageIOWxGimmickView.cpp.

void creaImageIO::WxGimmickView::CreateEditFieldsDialog	(	tree::Node *	node,
		std::vector< std::string >	names,
		std::vector< std::string >	keys
	)			[private, virtual]

Edits the fields of a given node.

Reimplemented from creaImageIO::GimmickView.

Definition at line 1130 of file creaImageIOWxGimmickView.cpp.

References mListener.

  {
          mListener->Resume();
  }

   //========================================================================

void creaImageIO::WxGimmickView::CreateIconList

(

)

[private]

Definition at line 417 of file creaImageIOWxGimmickView.cpp.

References creaImageIO::GimmickView::GetTreeViewMap(), and mNotebook.

Referenced by WxGimmickView().

  {
        GetTreeViewMap()[crea::wx2std(mNotebook->GetPageText(mNotebook->GetSelection()))]->GetSelectedAsString(s);
  }
  //======================================================================

  //======================================================================
  void WxGimmickView::GetImages(int dim,
                                const std::vector<std::string>& files,
                                std::vector<vtkImageData*>& s)
  {
        ReadImagesNotThreaded(s,files,dim);
  }
  //======================================================================


  //=================================================
  void WxGimmickView::CreateIconList()
  {
    // Size of the icons;
    int size = 16;

    wxIcon icons[20];
    // should correspond to Icon_xxx enum
    icons[Icon_accept]          = wxIcon(accept_xpm);
    icons[Icon_add]             = wxIcon(add_xpm);
    icons[Icon_folder_down]     = wxIcon(folder_down_xpm);
    icons[Icon_page_down]       = wxIcon(page_down_xpm);
    icons[Icon_remove]          = wxIcon(remove_xpm);
    icons[Icon_database_add]    = wxIcon(database_add_xpm);
    icons[Icon_help]            = wxIcon(help_xpm);
    icons[Icon_synchronize]     = wxIcon(synchronize_xpm);
    icons[Icon_create_database] = wxIcon(create_database_xpm);
    icons[Icon_settings]        = wxIcon(settings_xpm);
    icons[Icon_tools]           = wxIcon(tools_xpm);

    //   unsigned int NbIcons = 8;
    // Make an image list containing small icons

Here is the call graph for this function:

Here is the caller graph for this function:

void creaImageIO::WxGimmickView::CreateSettingsDialog	(	wxNotebook *	nb,
		wxDialog *	dial
	)			[private]

Creates the settings dialog (the pages inside and the information).

Definition at line 999 of file creaImageIOWxGimmickView.cpp.

Referenced by OnImportExport().

                        {
                                wxMessageBox(_T("One or both of the directory fields are empty"),_T("Empty Fields"),wxOK,this);
                        }
        }
        delete gimmickTools;
#endif
        }
        mViewer->StartPlayer();
  }

  //=================================================

  void WxGimmickView::CreateSettingsDialog(wxNotebook* nb, wxDialog* dial)
  {
          //First page: Customization of configurations
          //Copy Path string
          std::string cp;
          mGimmick->GetSetting(SETTINGS_COPY_PATH,cp);
          //Database Path String
          std::string dp;
          mGimmick->GetSetting(SETTINGS_DBPATH,dp);
          //Syncronization Event String
          std::string se;
          mGimmick->GetSetting(SETTINGS_SYNC_EVENT,se);
          //Syncronization Frequency String
          std::string sf;
          mGimmick->GetSetting(SETTINGS_SYNC_FREQ,sf);

          WxCustomizeConfigPanel * customConfig=new WxCustomizeConfigPanel(nb,dial,this,cp,dp,se,sf);

          nb->AddPage( customConfig, crea::std2wx("Customize Configuration") );

          //Second page: Creation of Databases
          /*wxPanel* databaseCreation=new wxPanel(nb);
          nb->AddPage( databaseCreation, crea::std2wx("Create Database") );*/

Here is the caller graph for this function:

void creaImageIO::GimmickView::CreateSingleTreeView

(

std::string &

i_name

)

[inherited]

Create a tree view with a given name.

Definition at line 130 of file creaImageIOGimmickView.cpp.

References creaImageIO::GimmickView::CreateTreeView(), and creaImageIO::GimmickView::mGimmick.

  {
        this->CreateTreeView(mGimmick->GetTreeHandlerMap()[i_name]);

  }

Here is the call graph for this function:

void creaImageIO::WxGimmickView::CreateToolBar

(

)

[protected]

Creates the tool bar.

Definition at line 199 of file creaImageIOWxGimmickView.cpp.

References GimmickDebugMessage, mIcon, mViewer, and creaImageIO::WxViewer::StopPlayer().

Referenced by WxGimmickView().

  {
        // stop the viewer before application exit.
    mViewer->StopPlayer();
    GimmickDebugMessage(1,"WxGimmickView::~WxGimmickView"
                        <<std::endl);
        delete mIcon;
        delete mViewer;
    //if(mListener->IsAlive())   {        mListener->Delete();    }
  }
  //======================================================================

  //======================================================================
  void WxGimmickView::CreateToolBar()
  {
    long style = wxTB_HORIZONTAL | wxNO_BORDER | wxTB_TEXT;
    mToolBar = new wxToolBar(this,-1,wxDefaultPosition,wxDefaultSize,
                             style);

    mToolAddFile = mToolBar->AddTool( TOOL_ADDFILES_ID,
                                      _T("Add file(s)"),
                                      mIcon->GetBitmap(Icon_page_down),
                                      _T("Add one or more file to database")
                                      );
    mToolAddDir = mToolBar->AddTool( TOOL_ADDDIR_ID,
                                      _T("Add folder"),
                                      mIcon->GetBitmap(Icon_folder_down),
                                      _T("Add the content of a folder to database")
                                      );
    mToolAddDatabase = mToolBar->AddTool( TOOL_ADDDATABASE_ID,
                                      _T("Open database"),
                                      mIcon->GetBitmap(Icon_database_add),
                                      _T("Open a local or distant database")
                                      );
    mToolRemove = mToolBar->AddTool( TOOL_REMOVE_ID,
                                      _T("Remove"),
                                      mIcon->GetBitmap(Icon_remove),
                                      _T("Remove selected items")
                                      );
    mToolSynchronize = mToolBar->AddTool( TOOL_SYNCHRONIZE_ID,
                                      _T("Synchronize"),
                                      mIcon->GetBitmap(Icon_synchronize),
                                      _T("Synchronizes the database with disk")
                                      );
    mToolHelp = mToolBar->AddTool( TOOL_HELP_ID,
                                      _T("Help"),
                                      mIcon->GetBitmap(Icon_help),
                                      _T("Open help window")
                                      );
    mToolSettings = mToolBar->AddTool( TOOL_SETTINGS_ID,
                                      _T("System settings"),
                                      mIcon->GetBitmap(Icon_settings),
                                      _T("Allows the modification of various system settings")
                                      );
    mToolTools = mToolBar->AddTool( TOOL_TOOLS_ID,
                                      _T("Tools"),
                                      mIcon->GetBitmap(Icon_tools),
                                      _T("Applies tools to images")
                                      );

Here is the call graph for this function:

Here is the caller graph for this function:

void creaImageIO::WxGimmickView::CreateTreeView

(

TreeHandler *

h

)

[protected, virtual]

Create the tree view for TreeHandler provided.

Create the tree view for TreeHandler provided (overloaded from GimmickView)

Reimplemented from creaImageIO::GimmickView.

Definition at line 266 of file creaImageIOWxGimmickView.cpp.

void creaImageIO::GimmickView::CreateTreeViews

(

)

[inherited]

Create the tree views.

Definition at line 117 of file creaImageIOGimmickView.cpp.

References creaImageIO::GimmickView::CreateTreeView(), GimmickMessage, and creaImageIO::GimmickView::mGimmick.

Referenced by WxGimmickView().

  {
    GimmickMessage(2,"Creating the tree views"<<std::endl);
    Gimmick::TreeHandlerMapType::const_iterator i;
    for (i = mGimmick->GetTreeHandlerMap().begin();
         i!= mGimmick->GetTreeHandlerMap().end();
         ++i)
      {
        this->CreateTreeView(i->second);
      }
  }

Here is the call graph for this function:

Here is the caller graph for this function:

void creaImageIO::WxGimmickView::DisplayAddSummary

(

)

[private]

Display a message box with the last addition statistics.

Definition at line 1219 of file creaImageIOWxGimmickView.cpp.

        {
                if (!mProgressDialog->Pulse(s))
                  {

void creaImageIO::WxGimmickView::DumpTags

(

const std::string

i_filename

)

[private, virtual]

Display all Dicom Tags.

Reimplemented from creaImageIO::GimmickView.

Definition at line 1144 of file creaImageIOWxGimmickView.cpp.

References creaImageIO::tree::Node::GetLabel().

  {
    wxDialog* dial= new wxDialog (this,-1,crea::std2wx("Edit Fields for node "+node->GetLabel()),wxDefaultPosition, wxSize(350,155));

Here is the call graph for this function:

void creaImageIO::WxGimmickView::ExportImages

(

)

[private]

Definition at line 898 of file creaImageIOWxGimmickView.cpp.

References creaImageIO::GimmickView::GetTreeViewMap(), and mNotebook.

  {
        wxBusyCursor busy;
        // Test if one image is selected => export
        // if not =>import
    if (GetTreeViewMap()[crea::wx2std(mNotebook->GetPageText(mNotebook->GetSelection()))])

Here is the call graph for this function:

void creaImageIO::WxGimmickView::ExportToStorage

(

const std::vector< std::string >

i_filenames

)

[private, virtual]

Export from Storage to Storage.

Reimplemented from creaImageIO::GimmickView.

Definition at line 1151 of file creaImageIOWxGimmickView.cpp.

  {
    WxDumpPanel* pan= new WxDumpPanel (this,i_filename);
    pan->ShowModal();
  }

  //========================================================================
  void WxGimmickView::ExportToStorage(const std::vector<std::string> i_filenames)
  {
        std::vector<std::string> storages;
        Gimmick::TreeHandlerMapType::iterator it = mGimmick->GetTreeHandlerMap().begin();
        for(;it != mGimmick->GetTreeHandlerMap().end(); it++)
        {
                storages.push_back(it->first);
        }

    WxExportDlg* exp= new WxExportDlg(this,storages);
        if ( exp->ShowModal() ==ID_EXPORT_OK)
        {
                std::string storage = exp->GetStorage();
                mProgressDialog =
            new wxProgressDialog(_T("Adding file(s)"),
                               _T(""),

std::string creaImageIO::WxGimmickView::ExtractName

(

const std::string &

i_name

)

[private]

void creaImageIO::GimmickView::Finalize

(

)

[virtual, inherited]

Finalize.

Definition at line 109 of file creaImageIOGimmickView.cpp.

  {
  }

vtkImageData* creaImageIO::GimmickView::GetDefaultImage

(

)

[inline, inherited]

Definition at line 175 of file creaImageIOGimmickView.h.

References creaImageIO::MultiThreadImageReader::GetImage(), and creaImageIO::GimmickView::mReader.

Referenced by creaImageIO::GimmickView::OnMultiThreadImageReaderEvent(), OnRemove(), and WxGimmickView().

{ return mReader.GetImage(""); }

Here is the call graph for this function:

Here is the caller graph for this function:

virtual DicomDatabaseListType& creaImageIO::GimmickView::GetDicomDatabaseList

(

)

[inline, virtual, inherited]

Returns the list of DicomDatabase open.

Definition at line 39 of file OldcreaImageIOGimmickView.h.

    { return null; }

virtual const DicomDatabaseListType& creaImageIO::GimmickView::GetDicomDatabaseList

(

)

const [inline, virtual, inherited]

Returns the list of DicomDatabase open (const).

Definition at line 42 of file OldcreaImageIOGimmickView.h.

    { return null; }

virtual DicomNode* creaImageIO::GimmickView::GetDicomNodeOfItem

(

const TreeItemId &

i

)

[virtual, inherited]

Returns the DicomNode corresponding to the tree item.

void creaImageIO::WxGimmickView::GetImages	(	int	dim,
		const std::vector< std::string > &	files,
		std::vector< vtkImageData * > &	s
	)

Returns the images indicated by the filenames in the vector so that they comply with the given parameter(dim)

Definition at line 407 of file creaImageIOWxGimmickView.cpp.

virtual void creaImageIO::GimmickView::GetImages	(	int	dim,
		std::vector< std::string >	files,
		std::vector< vtkImageData * > &	s
	)			[inline, virtual, inherited]

Definition at line 93 of file creaImageIOGimmickView.h.

References GimmickError.

      { GimmickError("INTERNAL ERROR : GetImages not implemented"); }

int creaImageIO::GimmickView::GetMaximalPriority

(

)

[inline, inherited]

Returns the maximal priority.

Definition at line 80 of file creaImageIOGimmickView.h.

References creaImageIO::MultiThreadImageReader::GetMaximalPriority(), and creaImageIO::GimmickView::mReader.

{return mReader.GetMaximalPriority();}

Here is the call graph for this function:

std::string creaImageIO::GimmickView::GetMessage

(

)

[inline, inherited]

Obtains the message of the state.

Definition at line 148 of file creaImageIOGimmickView.h.

References creaImageIO::GimmickView::mMess.

{return mMess;}

QMutex* creaImageIO::MultiThreadImageReaderUser::GetMultiThreadImageReaderUserMutex

(

)

[inline, inherited]

Definition at line 57 of file creaImageIOQMultiThreadImageReader.h.

    { return &mMultiThreadImageReaderUserMutex; }

wxMutex& creaImageIO::MultiThreadImageReaderUser::GetMultiThreadImageReaderUserMutex

(

)

[inline, inherited]

Definition at line 57 of file creaImageIOMultiThreadImageReader.h.

Referenced by creaImageIO::MultiThreadImageReader::GetMaximalPriority(), creaImageIO::MultiThreadImageReader::Request(), creaImageIO::MultiThreadImageReader::SignalImageRead(), creaImageIO::MultiThreadImageReader::Start(), and creaImageIO::MultiThreadImageReader::Stop().

    { return mMultiThreadImageReaderUserMutex; }

Here is the caller graph for this function:

virtual void creaImageIO::GimmickView::GetSelectedDicomNodes

(

std::vector< DicomNode * > &

)

[inline, virtual, inherited]

Returns the vector of DicomNode corresponding to selection.

Definition at line 31 of file OldcreaImageIOGimmickView.h.

{ return; }

void creaImageIO::WxGimmickView::GetSelectedFiles

(

std::vector< std::string > &

s

)

[virtual]

Returns the selected files (overloaded from GimmickView)

Reimplemented from creaImageIO::GimmickView.

Definition at line 400 of file creaImageIOWxGimmickView.cpp.

void creaImageIO::WxGimmickView::getSelectedFiles	(	std::vector< OutStrGimmick > &	outG,
		std::vector< std::string >	i_attr,
		bool	mult = false,
		const std::string	out_model = ""
	)

Returns the selected files in output structure.

By default if out_infos is empty, we dont' provide informations, we return only vtkImageData if out_infos has only one entry "all" we provide all database informations

Definition at line 310 of file creaImageIOWxGimmickView.cpp.

References creaImageIO::GimmickView::GetTreeViewMap(), mNotebook, and creaImageIO::GimmickView::ReadImagesNotThreadedInVector().

  {
        std::vector<std::string> files;
        std::string db_name = crea::wx2std(mNotebook->GetPageText(mNotebook->GetSelection()));
        GetTreeViewMap()[crea::wx2std(mNotebook->GetPageText(mNotebook->GetSelection()))]->GetSelectedAsString(files);

        ReadImagesNotThreadedInVector(s, files, dim);
  }


  void WxGimmickView::getSelectedFiles(std::vector<OutStrGimmick> &outG, std::vector< std::string> i_attr,
                                       bool mult, const std::string out_model)
  {
        // First we select the files
        std::vector<std::string> files;
        std::string db_name = crea::wx2std(mNotebook->GetPageText(mNotebook->GetSelection()));
        GetTreeViewMap()[crea::wx2std(mNotebook->GetPageText(mNotebook->GetSelection()))]->GetSelectedAsString(files);

        std::string asking;
        std::string dim;
        bool bsingle = isSingle(files.front());
        int i_dim_out;
        mGimmick->GetSetting(SETTINGS_OUTPUT_ASK, asking);
        mGimmick->GetSetting(SETTINGS_OUTPUT_DIM, dim);

        if (asking == "true")
        {
                // display the output dialog box
                // get dim
                int idim;
                sscanf(dim.c_str(),"%d",&idim);
                WxOutputDlg *dlg = new WxOutputDlg(this,files, idim -1, bsingle);
                if (dlg->ShowModal() == wxID_OK)
                {
                        dim = dlg->getDim();
                        mGimmick->UpdateSetting(SETTINGS_OUTPUT_ASK, dlg->getAsking());
                        mGimmick->UpdateSetting(SETTINGS_OUTPUT_DIM, dim);
                }
                else
                {
                        return;
                }
        }
        else
        {
        }
        sscanf(dim.c_str(),"%d",&i_dim_out);


        // Next we create the structure for dicom output infos
        OutputAttr Oattr;
        Oattr.db = crea::wx2std(mNotebook->GetPageText(mNotebook->GetSelection()));
        if(i_attr.empty())
        {
                // We don't send informations!
        }
        else if( i_attr.size() == 1 && i_attr.front() == "ALL")
        {
                // we send all database
                Oattr.inside.push_back("ALL");
        }
        else if( (i_attr.size() == 1 && i_attr.front() != "ALL")
                || (i_attr.size() >1) )
        {
                mGimmick->fillVectInfos(i_attr, Oattr);
        }
        else
        {
                // nothing
        }

        // Next we create model and sort files
        std::vector<std::string> sort_files(files);
        double zspacing = 1;

Here is the call graph for this function:

void creaImageIO::WxGimmickView::GetSelectedImages	(	std::vector< vtkImageData * > &	s,
		int	dim
	)			[virtual]

Returns the selected Images so that they comply with the given parameter(4D) (overloaded from GimmickView)

Reimplemented from creaImageIO::GimmickView.

Definition at line 284 of file creaImageIOWxGimmickView.cpp.

             : TEST THAT A VIEW WITH SAME NAME IS NOT
    // ALREADY IN THE MAP
    GetTreeViewMap()[name] = view;

virtual void creaImageIO::GimmickView::GetSelectedImages

(

std::vector< vtkImageData * > &

)

[inline, virtual, inherited]

Returns the vector of images corresponding to selection.

Definition at line 29 of file OldcreaImageIOGimmickView.h.

{ return; }

void creaImageIO::WxGimmickView::GetSelectedImagesInVector	(	std::vector< vtkImageData * > &	s,
		int	dim
	)			[virtual]

Adds the selected Images to the given vector.

Reimplemented from creaImageIO::GimmickView.

Definition at line 298 of file creaImageIOWxGimmickView.cpp.

References creaImageIO::GimmickView::GetTreeViewMap(), and mNotebook.

  {
        std::vector<std::string> files;
        GetTreeViewMap()[crea::wx2std(mNotebook->GetPageText(mNotebook->GetSelection()))]->GetSelectedAsString(files);
        //ReadImagesNotThreaded(s, files, dim);

Here is the call graph for this function:

virtual int creaImageIO::GimmickView::GetSelectionSize

(

)

[inline, virtual, inherited]

Returns the size of the current selection.

Definition at line 23 of file OldcreaImageIOGimmickView.h.

{ return 0; }

TreeViewMapType& creaImageIO::GimmickView::GetTreeViewMap

(

)

[inline, inherited]

Returns the TreeViewMap (ref).

Definition at line 71 of file creaImageIOGimmickView.h.

References creaImageIO::GimmickView::mTreeViewMap.

Referenced by CreateIconList(), ExportImages(), getSelectedFiles(), GetSelectedImagesInVector(), OnSaveSettingsCallback(), and creaImageIO::GimmickView::UpdateTreeViewLevel().

{ return mTreeViewMap; }

Here is the caller graph for this function:

const TreeViewMapType& creaImageIO::GimmickView::GetTreeViewMap

(

)

const [inline, inherited]

Returns the TreeViewMap (const ref).

Definition at line 73 of file creaImageIOGimmickView.h.

References creaImageIO::GimmickView::mTreeViewMap.

      { return mTreeViewMap; }

void creaImageIO::WxGimmickView::GetVisibleAttributes	(	std::vector< std::string > &	shown,
		std::vector< std::string > &	nShown,
		int	level
	)

Called upon to return the visible attributes of the current tab.

Definition at line 1041 of file creaImageIOWxGimmickView.cpp.

Referenced by creaImageIO::WxAttributeSelectionPanel::OnComboChange().

                      : CD/DVD Watch
          WxListenerPanel* cdWatch=new WxListenerPanel(nb,dial, this,true);//, mListener->IsPaused());
          nb->AddPage( cdWatch, crea::std2wx("CD/DVD") );

Here is the caller graph for this function:

void creaImageIO::WxGimmickView::ImportImages

(

)

[private]

Definition at line 906 of file creaImageIOWxGimmickView.cpp.

        {
                ImportImages();
        }
  }

  void WxGimmickView::ExportImages()

void creaImageIO::GimmickView::Initialize

(

)

[virtual, inherited]

Initializes the view : Creates the TreeViews for all the TreeHandler of the Controller

Definition at line 101 of file creaImageIOGimmickView.cpp.

References creaImageIO::GimmickView::mReaderStarted.

Referenced by creaImageIO::WxGimmickFrame::WxGimmickFrame(), creaImageIO::WxGimmickPanel::WxGimmickPanel(), and creaImageIO::WxGimmickReaderDialog::WxGimmickReaderDialog().

  {
        mReaderStarted=false;
  }

Here is the caller graph for this function:

bool creaImageIO::WxGimmickView::isNeedRecursive

(

std::string

i_name

)

[private]

Test a directory to know if contains sub-directory to analyze.

Definition at line 590 of file creaImageIOWxGimmickView.cpp.

References NumberFilesToAdd().

                {
                        if (recursive)
                        {
                                nb += NumberFilesToAdd(itr->string(), recursive);
                        }
                }
                else
                {
                        nb++;
                }
          }
        return nb;
  }

Here is the call graph for this function:

virtual bool creaImageIO::GimmickView::IsSelectionValid

(

)

[inline, virtual, inherited]

Returns true if there is a valid selection.

Definition at line 25 of file OldcreaImageIOGimmickView.h.

{ return false; }

bool creaImageIO::GimmickView::isSingle

(

const std::string

i_file

)

[inherited]

Definition at line 419 of file creaImageIOGimmickView.cpp.

References creaImageIO::MultiThreadImageReader::GetImage(), and creaImageIO::GimmickView::mReader.

Referenced by creaImageIO::GimmickView::readImages().

        {
                bool bres = true;
                vtkImageData* first = mReader.GetImage( i_file);
                int dim[3];
                first->GetDimensions(dim);
                if (dim[2] > 1)
                {
                        bres = false;
                }
                else
                {
                }
                return bres;
        }

Here is the call graph for this function:

Here is the caller graph for this function:

void creaImageIO::WxGimmickView::killProgress

(

)

[private]

Definition at line 1299 of file creaImageIOWxGimmickView.cpp.

virtual void creaImageIO::GimmickView::LoadOrCreateFavoritesDatabase

(

)

[inline, virtual, inherited]

Loads or creates a favorites database.

Definition at line 74 of file OldcreaImageIOGimmickView.h.

{ return; }

void creaImageIO::GimmickView::modifyValidationSignal

(

bool

ivalid

)

[inherited]

Definition at line 293 of file creaImageIOGimmickView.cpp.

References creaImageIO::GimmickView::mValidationSignal.

Referenced by creaImageIO::GimmickView::NoValidateSelected(), creaImageIO::WxTreeView::RemoveSelected(), and creaImageIO::GimmickView::ValidateSelected().

  {

          mValidationSignal(ivalid);
  }

Here is the caller graph for this function:

void creaImageIO::MultiThreadImageReaderUser::MultiThreadImageReaderEventLock

(

)

[inline, inherited]

Definition at line 53 of file creaImageIOMultiThreadImageReader.h.

Referenced by creaImageIO::ThreadedImageReader::Entry().

    { mMultiThreadImageReaderUserMutex.Lock(); }

Here is the caller graph for this function:

void creaImageIO::MultiThreadImageReaderUser::MultiThreadImageReaderEventLock

(

)

[inline, inherited]

Definition at line 53 of file creaImageIOQMultiThreadImageReader.h.

    { mMultiThreadImageReaderUserMutex.lock(); }

void creaImageIO::MultiThreadImageReaderUser::MultiThreadImageReaderEventUnlock

(

)

[inline, inherited]

Definition at line 55 of file creaImageIOQMultiThreadImageReader.h.

    { mMultiThreadImageReaderUserMutex.unlock(); }

void creaImageIO::MultiThreadImageReaderUser::MultiThreadImageReaderEventUnlock

(

)

[inline, inherited]

Definition at line 55 of file creaImageIOMultiThreadImageReader.h.

Referenced by creaImageIO::ThreadedImageReader::Entry().

    { mMultiThreadImageReaderUserMutex.Unlock(); }

Here is the caller graph for this function:

bool creaImageIO::GimmickView::NoValidateSelected

(

)

[inherited]

No selected image.

Definition at line 195 of file creaImageIOGimmickView.cpp.

References GimmickDebugMessage, creaImageIO::GimmickView::modifyValidationSignal(), creaImageIO::GimmickView::SetMessage(), and creaImageIO::GimmickView::valid.

  {
        GimmickDebugMessage(2,"Validating selected"<<std::endl);
        std::string mMessage;
        mMessage="Cannot have 0 images selected!";
        valid=false;
        modifyValidationSignal(valid);
        SetMessage(mMessage);
        return valid;
  }

Here is the call graph for this function:

int creaImageIO::WxGimmickView::NumberFilesToAdd	(	const std::string &	dirpath,
		bool	recursive
	)			[private]

Determines number of files potentially to add to database.

Definition at line 565 of file creaImageIOWxGimmickView.cpp.

Referenced by isNeedRecursive().

  {
           int nb = 0;
           if ( !boost::filesystem::exists( dirpath ) ) return nb;
           boost::filesystem::directory_iterator end_itr; // default construction yields past-the-end
           for ( boost::filesystem::directory_iterator itr( dirpath );  itr != end_itr;  ++itr )

Here is the caller graph for this function:

void creaImageIO::WxGimmickView::OnAddDB

(

wxCommandEvent &

event

)

[private]

callback to add a database

Definition at line 1233 of file creaImageIOWxGimmickView.cpp.

References mGimmick, and mstart.

  {
      std::stringstream mess(mGimmick->getSummary());
    time_t end;
        time(&end);
        mess << "time to scan :" << difftime(end,mstart) << "sec";
    wxMessageBox(std2wx(mess.str()),_T("Addition result"),wxOK,this);
  }

  // Add a DB to application                    //
  // @param event : WxEvent                     //
  // @return : -                                //
  void WxGimmickView::OnAddDB(wxCommandEvent& event)
  {
          //Select DB
          long style = wxDD_DEFAULT_STYLE | wxDD_DIR_MUST_EXIST;
          std::string wc("*.sqlite3*");
          wxFileDialog* FD = new wxFileDialog( 0,
                                         _T("Select file"),
                                         _T(""),
                                         _T(""),
                                         crea::std2wx(wc),
                                         style,
                                         wxDefaultPosition);

    if (FD->ShowModal()==wxID_OK)
        {
                wxBusyCursor busy;
                wxArrayString files;

void creaImageIO::WxGimmickView::OnAddDir

(

wxCommandEvent &

event

)

[private]

Callback for adding dir.

Definition at line 511 of file creaImageIOWxGimmickView.cpp.

                 : select the current tree handler
        mGimmick->AddFiles(crea::wx2std(mNotebook->GetPageText(mNotebook->GetSelection())),filenames);

        mProgressDialog->Pulse(_T("Updating view..."));

        UpdateTreeViewLevel(crea::wx2std(mNotebook->GetPageText(mNotebook->GetSelection())),1);
        killProgress();
        DisplayAddSummary();

      }
        mViewer->StartPlayer();
  }
  //=================================================

  //=================================================
  void WxGimmickView::OnAddDir(wxCommandEvent& event)
  {
    mViewer->StopPlayer();
        std::string name = crea::wx2std(mNotebook->GetCurrentPage()->GetName());
    long style = wxDD_DEFAULT_STYLE | wxDD_DIR_MUST_EXIST;
    wxDirDialog* FD =
         new wxDirDialog( 0,
                       _T("Select directory"),
                       mCurrentDirectory,
                       style);

    if (FD->ShowModal()==wxID_OK)
    {
                        time(&mstart);
        std::string dirname = wx2std (FD->GetPath());
        bool recurse =  isNeedRecursive(dirname);
        if (recurse)
        {
             recurse = wxMessageBox(_T("Recurse into sub-directories ?"), _T("Scan directory"), wxYES_NO,this ) == wxYES ? true : false;
        }

                wxBusyCursor busy;
                wxString title(_T("Adding directory"));
                if (recurse)
                title = _T("Adding directory (recursive)");
                mProgressDialog =
                new wxProgressDialog(_T("Adding directory"),
                                        _T(""),
                                        NumberFilesToAdd(dirname,recurse),

//EED                                   this,
                                        NULL,

                                        wxPD_ELAPSED_TIME |

void creaImageIO::WxGimmickView::OnAddFiles

(

wxCommandEvent &

event

)

[private]

Callback for adding files.

Definition at line 458 of file creaImageIOWxGimmickView.cpp.

References mIcon.

      {
        if ( size == sizeOrig )
          {
            mIcon->Add(icons[i]);
          }
        else
          {
            mIcon->Add(wxBitmap(wxBitmap(icons[i]).ConvertToImage().Rescale(size, size)));
          }
      }
  }
  //=================================================


  //=================================================
  void WxGimmickView::OnAddFiles(wxCommandEvent& event)
  {
    mViewer->StopPlayer();
    long style = wxOPEN | wxFILE_MUST_EXIST | wxFD_MULTIPLE;
    std::string wc("*");
    wxFileDialog* FD = new wxFileDialog( 0,
                                         _T("Select file"),
                                         _T(""),
                                         _T(""),
                                         crea::std2wx(wc),
                                         style,
                                         wxDefaultPosition);

    if (FD->ShowModal()==wxID_OK)
      {
        wxBusyCursor busy;

        wxArrayString files;
        FD->GetPaths(files);
        unsigned int i;
        std::vector<std::string> filenames;
        for (i=0;i<files.GetCount();++i)
        {
          filenames.push_back(wx2std(files[i]));
          GimmickMessage(2,"Adding File "<<files[i]<<"."<<std::endl);
        }

        mProgressDialog =
          new wxProgressDialog(_T("Adding file(s)"),
                               _T(""),
                               1000,
//                             this,
                               NULL,
                               wxPD_ELAPSED_TIME |

void creaImageIO::WxGimmickView::OnAddProgress

(

Gimmick::AddProgress &

p

)

[private]

AddProgress Gimmick callback.

Definition at line 1195 of file creaImageIOWxGimmickView.cpp.

Referenced by WxGimmickView().

  {
     mGimmick->EditField(node, crea::wx2std(mNotebook->GetPageText(mNotebook->GetSelection())), name, key, val);
     UpdateTreeViewLevel(crea::wx2std(mNotebook->GetPageText(mNotebook->GetSelection())),1);
  }

  //=================================================
  void WxGimmickView::OnAddProgress( Gimmick::AddProgress& p)
  {
    char mess[200];
    sprintf(mess,"%i dirs : %i files :\n            %i handled - %i added",
           p.GetNumberScannedDirs(),

Here is the caller graph for this function:

void creaImageIO::WxGimmickView::OnAttributesChanged	(	const std::vector< std::string > &	nShown,
		int	level
	)

Called when there has been a change in the visible attributes of a tree view.

Definition at line 1048 of file creaImageIOWxGimmickView.cpp.

Referenced by creaImageIO::WxAttributeSelectionPanel::OnSaveConfig().

Here is the caller graph for this function:

void creaImageIO::WxGimmickView::OnCreateDB

(

wxCommandEvent &

event

)

[private]

Create a DB from an Attributes Descriptor files.

Definition at line 1271 of file creaImageIOWxGimmickView.cpp.

                  : WxEvent                                     //
  // @return : -                                                //
  void WxGimmickView::OnCreateDB(wxCommandEvent& event)
  {
        //  PACSConnection("");
        WxDescriptorPanel * DescriptorPan = new WxDescriptorPanel(this, mGimmick->GetHomeDirectory());
        DescriptorPan->Layout();
        if ( DescriptorPan->ShowModal() == ID_DSCP_APPLY)
        {
                wxBusyCursor busy;
                std::string file(DescriptorPan->GetDescriptor());
                if (!file.empty())
                {

void creaImageIO::WxGimmickView::OnDriveMount

(

bool

mount

)

Acts upon a drive mount.

Definition at line 1076 of file creaImageIOWxGimmickView.cpp.

  {
         mListener->SetMonitoredDrive(drive);
         mListener->SetAddFilesState(addFiles);
         mListener->SetRemoveFilesState(removeFiles);
  }

  //========================================================================

  void WxGimmickView::OnDriveMount(bool mount)
  {
          GimmickMessage(1, "Gimmick::OnDriveMount"<<std::endl);
          std::string drive;
          mListener->GetMonitoredDrive(drive);

          if(mount)
          {
                mViewer->StopPlayer();
                wxBusyCursor busy;
                wxString title(_T("Adding drive"));
                mProgressDialog =
                new wxProgressDialog(_T("Adding drive"),
                                        _T(""),
                                        1000,

//EED                                   this,
                                        NULL,

                                        wxPD_ELAPSED_TIME |
                                        //                             wxPD_ESTIMATED_TIME |
                                        //                             wxPD_REMAINING_TIME |

void creaImageIO::WxGimmickView::OnFieldsEdited	(	tree::Node *	node,
		const std::string &	name,
		const std::string &	key,
		const std::string &	val
	)

Called upon when a field has been edited.

Definition at line 1187 of file creaImageIOWxGimmickView.cpp.

Referenced by creaImageIO::WxEditFieldsPanel::OnEdit().

Here is the caller graph for this function:

void creaImageIO::WxGimmickView::OnImportExport

(

wxCommandEvent &

event

)

[private]

Callback for Import/Export images.

Definition at line 883 of file creaImageIOWxGimmickView.cpp.

References CreateSettingsDialog().

  {
    wxDialog* dial= new wxDialog (this,-1,_T("System Settings"),wxDefaultPosition, wxSize(450,220));
    wxBoxSizer  *siz = new wxBoxSizer(wxVERTICAL);
    // Notebook
    wxNotebook* nb= new wxNotebook(dial, -1, wxDefaultPosition, wxDefaultSize, 0);

    siz->Add( nb,1,wxGROW  ,0);
    CreateSettingsDialog(nb,dial);
    dial->SetSizer(siz);
    dial->ShowModal();
  }

Here is the call graph for this function:

void creaImageIO::WxGimmickView::OnListenerCallback	(	const std::string &	drive,
		bool	addFiles,
		bool	removeFiles
	)

Changes listener state.

Definition at line 1067 of file creaImageIOWxGimmickView.cpp.

Referenced by creaImageIO::WxListenerPanel::OnChangeListenState().

Here is the caller graph for this function:

void creaImageIO::GimmickView::OnMultiThreadImageReaderEvent	(	const std::string &	filename,
		MultiThreadImageReaderUser::EventType	type,
		vtkImageData *	image
	)			[virtual, inherited]

The virtual method to overload by MultiThreadImageReader users It is called when an image has been loaded or unloaded Provides : The image file name which was requested The type of event If type==ImageLoaded the image pointer, else NULL pointer

Reimplemented from creaImageIO::MultiThreadImageReaderUser.

Definition at line 755 of file creaImageIOGimmickView.cpp.

References creaImageIO::MultiThreadImageReaderUser::Error, creaImageIO::GimmickView::GetDefaultImage(), GimmickDebugMessage, GimmickMessage, creaImageIO::GimmickView::ImageEventType::image, creaImageIO::MultiThreadImageReaderUser::ImageLoaded, creaImageIO::MultiThreadImageReaderUser::ImageUnloaded, creaImageIO::GimmickView::mImageEventMap, and creaImageIO::GimmickView::ImageEventType::pointerHolder.

  {
    GimmickDebugMessage(7,
                        "MultiThreadImageReader event : "<<e<<std::endl);
        if (e==ImageLoaded)
        {
                if (filename.size()==0)
                {
                  //What to do in this case?
                  /*
                        GimmickDebugMessage(5,
                                        "Pushing unknown image in queue"
                                        <<std::endl);
                        mImageEventQueue.push_back(ImageEventType(image));*/
                        return;
                }
                ImageEventTypeMap::iterator i;
//JCP 22-06-2009, test mImageEventMap.size() > 0
                if(mImageEventMap.size()>0){
                        i = mImageEventMap.find(filename);
                        if (i!=mImageEventMap.end())
                        {
                                GimmickDebugMessage(5,
                                                "Putting image of file '"<<filename<<"' on pointer"
                                                <<std::endl);
                                ImageEventType ie(i->second);
                                ie.image = image;
                                ie.pointerHolder->Set(ie.image);
                                //mImageEventMap.erase(i);
                        }
                }
        }
        else if (e==Error)
        {
                std::string mess="ERROR: MultiThreadImageReader: Cannot read image in file ";
                mess+=filename;
                mess+="\n";
                GimmickMessage(1,mess);
                ImageEventTypeMap::iterator i;
                i = mImageEventMap.find(filename);
                if (i!=mImageEventMap.end())
                {
                ImageEventType ie(i->second);
                ie.image = image;
                ie.pointerHolder->Set(GetDefaultImage());
                //mImageEventMap.erase(i);
                }
        }

        else if (e==ImageUnloaded)
        {
                std::string mess="Unloaded image in file ";
                mess+=filename;
                mess+="\n";
                GimmickMessage(1,mess);
                                ImageEventTypeMap::iterator i;
                i = mImageEventMap.find(filename);
                if (i!=mImageEventMap.end())
                {
                ImageEventType ie(i->second);
                ie.image = image;
                ie.pointerHolder->Set(GetDefaultImage());
                //mImageEventMap.erase(i);
                }
        }
  }

Here is the call graph for this function:

void creaImageIO::WxGimmickView::OnRemove

(

wxCommandEvent &

event

)

[private]

Callback for removing files.

Definition at line 788 of file creaImageIOWxGimmickView.cpp.

References creaImageIO::GimmickView::GetDefaultImage(), mViewer, pointers, creaImageIO::WxViewer::RefreshIfNecessary(), creaImageIO::GimmickView::ResetExtent(), and creaImageIO::WxViewer::SetImageVector().

   {
        pointers.clear();
        pointers.push_back(boost::shared_ptr<creaImageIO::ImagePointerHolder>(new ImagePointerHolder(GetDefaultImage())));
        //pointers.push_back(new ImagePointerHolder(GetDefaultImage()));
        mViewer->SetImageVector(pointers);
        mViewer->RefreshIfNecessary();

Here is the call graph for this function:

void creaImageIO::WxGimmickView::OnSaveSettingsCallback	(	const std::string &	copyPath,
		const std::string &	dbPath,
		const std::string &	syncEvent,
		const std::string &	syncFreq
	)

Saves the settings to the file.

Definition at line 1055 of file creaImageIOWxGimmickView.cpp.

References creaImageIO::GimmickView::GetTreeViewMap(), and mNotebook.

Referenced by creaImageIO::WxCustomizeConfigPanel::OnSaveConfig().

  {
          GetTreeViewMap()[crea::wx2std(mNotebook->GetPageText(mNotebook->GetSelection()))]->GetAttributes(shown,nShown,level);
  }

  //===================================================================
  void WxGimmickView::OnAttributesChanged(const std::vector<std::string>& nShown, int level)

Here is the call graph for this function:

Here is the caller graph for this function:

void creaImageIO::WxGimmickView::OnSelectionChange	(	const std::vector< tree::Node * > &	s,
		bool	isSelection,
		int	selection,
		bool	mProcess
	)			[virtual]

Callback called when a selection from a TreeView has changed.

Reimplemented from creaImageIO::GimmickView.

Definition at line 606 of file creaImageIOWxGimmickView.cpp.

  {
      boost::filesystem::directory_iterator iter(i_name), end_iter;
          bool bfindir = false;
                  for(; iter != end_iter; ++iter)
                  {
                          if(boost::filesystem::is_directory(*iter))
                          {
                                  return true;
                          }
                  }
                  return false;
  }
  //=================================================

  //=================================================
  void WxGimmickView::OnSelectionChange(const std::vector<tree::Node*>& sel, bool isSelection, int selection, bool needProcess)
  {
    GimmickDebugMessage(5,
                        "WxGimmickView::OnSelectionChange"
                        <<std::endl);
    wxBusyCursor busy;
        bool valid=true;

        if(sel.size()==0)
        {
                valid= ValidateSelected(NULL,
                                mSelectionMinDimension,
                                mSelectionMaxDimension );
        }
        else if(needProcess)
        {
                ResetExtent();
                std::vector<tree::Node*>::const_iterator i;
                for(i=sel.begin();i!=sel.end()&&valid;++i)
                {
                        valid= ValidateSelected((*i),
                                mSelectionMinDimension,
                                mSelectionMaxDimension );
                }
        }
        else if(isSelection)
        {
                valid= ValidateSelected(sel.front(),
                                mSelectionMinDimension,
                                mSelectionMaxDimension );
        }
        else
        {
                ResetExtent();
                std::vector<tree::Node*>::const_iterator i;
                for(i=sel.begin();i!=sel.end()&&valid;++i)
                {

void creaImageIO::WxGimmickView::OnSettings

(

wxCommandEvent &

event

)

[private]

Callback for settings edition.

Definition at line 869 of file creaImageIOWxGimmickView.cpp.

                            {repair=true;}
        if(sel==1 || sel==3){checkAttributes=true;}
        std::string mess=mGimmick->Synchronize(crea::wx2std(mNotebook->GetPageText(mNotebook->GetSelection())),repair, checkAttributes);
        wxMessageBox(std2wx(mess),_T("Synchronization result"),wxOK,this);
        if(sel==2 || sel==3){
                GetTreeViewMap()[crea::wx2std(mNotebook->GetPageText(mNotebook->GetSelection()))]->UpdateLevel(1);
        }

    }

void creaImageIO::WxGimmickView::OnSynchronize

(

wxCommandEvent &

event

)

[private]

Callback for synchronization.

Definition at line 834 of file creaImageIOWxGimmickView.cpp.

  {
    wxBusyCursor busy;
    const wxString choices[] = { _T("Check database for files deletion and addition and give a report."),
                                _T("Check database for files deletion, addition and attributes change. Then give a report."),
                                _T("Repair database (remove deleted files and add new files)."),
                                _T("Repair database (remove deleted files, add new files and reset changed attributes).") } ;

    wxSingleChoiceDialog dialog(this,
                                _T("Select one of the following synchronization actions:\n")
                                _T("Please note that, due to the heavy amount of operations required, this action might take a while."),
                                _T("Synchronization Settings"),
                                WXSIZEOF(choices), choices);

    //dialog.SetSelection(0);

void creaImageIO::WxGimmickView::OnTools

(

wxCommandEvent &

event

)

[private]

Callback for settings edition.

Definition at line 918 of file creaImageIOWxGimmickView.cpp.

  {
                //Find the *.zip
                //dezip
                // Contain a descriptor.text
                // create a new database, and add to database
                // if not, add to current database
                //
  }

  //=================================================
  //AndresDonadio
  void WxGimmickView::OnTools(wxCommandEvent& event)
  {
        mViewer->StopPlayer();

        wxDialog* dial = new wxDialog (this,-1,_T("Tools"),wxDefaultPosition, wxSize(550,350));

        wxSizer* buttonsSizer = dial->CreateSeparatedButtonSizer(wxOK|wxCANCEL);
        wxNotebook* nb= new wxNotebook(dial, -1, wxDefaultPosition, wxDefaultSize, 0);
        wxBoxSizer *dialSizer = new wxBoxSizer(wxVERTICAL);
        dialSizer->Add(nb,1,wxGROW,0);
        dialSizer->Add(buttonsSizer,0,wxGROW);

#if defined(BUILD_BRUKER)
        //First page: Bruker Image Reader
        WxGimmickTools * gimmickTools = new WxGimmickTools(nb, mCurrentDirectory);
        nb->AddPage( gimmickTools, _T("Bruker Image Reader") );
#endif

        dial->SetSizer(dialSizer, true);
        dial->Layout();
        dial->ShowModal();

        if (dial->GetReturnCode() == wxID_OK)
        {
#if defined(BUILD_BRUKER)
                if (nb->GetSelection()==0)//Selection: Bruker Image Reader
                {
                        std::string inputDir  = crea::wx2std(gimmickTools->getInputDir());
                        std::string outputDir = crea::wx2std(gimmickTools->getOutputDir());

                        bool addToDB = gimmickTools->getAddToDBCheckBoxValue();

                        if (inputDir.compare("")!=0 && outputDir.compare("")!=0)
                        {
                                if ( wxMessageBox(_T("Depending on the amount of Data the process can take several minutes. Do you want to continue?"),
                                                  _T("Please confirm"), wxICON_QUESTION | wxYES_NO) == wxYES )
                                {
                                        Bruker2Dicom b2d;
                                        b2d.SetInputDirectory(inputDir);
                                        b2d.SetOutputDirectory(outputDir);
                                        b2d.SetConvertModeToDicom();
                                        b2d.verbose=false;
                                        b2d.Execute();
                                        if (addToDB)
                                        {
        std::cout <<"after addToDB" << std::endl;
                                                mProgressDialog = new wxProgressDialog(_T("Adding directory"),_T(""),1000,

//EED                                                                                   this,
                                                                                        NULL,

                                                                                        wxPD_ELAPSED_TIME |wxPD_CAN_ABORT );
        std::cout <<"after new wxProgressDialog" << std::endl;
                                                mCurrentDirectory = gimmickTools->getOutputDir();
        std::cout <<"after gimmickTools->getOutputDir[" <<mCurrentDirectory << std::endl;
                                                mGimmick->AddDir(crea::wx2std(mNotebook->GetPageText(mNotebook->GetSelection())),outputDir,true);
        std::cout <<"after mGimmick->AddDir" << std::endl;
                                                mProgressDialog->Pulse(_T("Updating view..."));
        std::cout <<"after mProgressDialog->Pulse" << std::endl;
                                                UpdateTreeViewLevel(crea::wx2std(mNotebook->GetPageText(mNotebook->GetSelection())),1);
        std::cout <<"after UpdateTreeViewLevel" << std::endl;
                                                killProgress();

virtual void creaImageIO::GimmickView::OpenOrNewDatabase

(

bool

open

)

[inline, protected, virtual, inherited]

Opens an existing database, or else, creates a local database.

Definition at line 47 of file OldcreaImageIOGimmickView.h.

{ return; }

void creaImageIO::GimmickView::readImages	(	std::vector< OutStrGimmick > &	o_output,
		std::vector< std::string >	im,
		OutputAttr	i_attr,
		int	i_dim,
		double	i_zspc
	)			[inherited]

Definition at line 622 of file creaImageIOGimmickView.cpp.

References creaImageIO::GimmickView::isSingle(), creaImageIO::GimmickView::readImages1(), creaImageIO::GimmickView::readImages2(), creaImageIO::GimmickView::readImages3(), and creaImageIO::GimmickView::readImages4().

        {
                int size = im.size();
                if ( size == 0)
                {
                        return;
                }
                else if (size == 1)
                {
                        // Simplest case
                        // Only one image : give it
                        // But take in count multiframe possibility
                        if ( isSingle(im.front()) || i_dim != 1)
                        {
                                 readImages1(o_output,im, i_attr);
                        }
                        else
                        {
                                readImages2(o_output,im, i_attr,i_zspc);
                        }

                }
                else
                {
                        // multiple or single frame
                        if ( isSingle(im.front()) )
                        {
                                //we deal with 2D images
                                if(i_dim == 1)
                                {
                                        // 2D to 3D
                                        readImages3(o_output,im, i_attr,i_zspc);
                                }
                                else
                                {
                                        readImages1(o_output,im, i_attr);
                                }
                        }
                        else
                        {
                                // we deal with multiple frames n x (2D x T)
                                // Differents outputs are avaialable
                                if(i_dim == 1)
                                {
                                        // put all in one output
                                        readImages3(o_output,im, i_attr,i_zspc);

                                }
                                else if( i_dim == 2)
                                {
                                        // put in a vector of n x T (2D)
                                        readImages2(o_output,im, i_attr,i_zspc);
                                }
                                else if( i_dim == 3)
                                {
                                        // put in a vector of n (2D x T)
                                        // No transformations.
                                        readImages1(o_output,im, i_attr);
                                }
                                else
                                {
                                        // put in a vector of T (2D x n)
                                        readImages4(o_output,im, i_attr);
                                }
                        }
                }
        }

Here is the call graph for this function:

void creaImageIO::GimmickView::ReadImagesNotThreaded	(	std::vector< vtkImageData * > &	s,
		std::vector< std::string >	files,
		int	dim
	)			[inherited]

Reads the vector of images, builds it in the dimension required and returns them in the supplied vector.

Reads Images (Non Threaded).

Definition at line 306 of file creaImageIOGimmickView.cpp.

References creaImageIO::MultiThreadImageReader::GetImage(), creaImageIO::GimmickView::mReader, and creaImageIO::GimmickView::stopReader().

{
        stopReader();
/* remember!

#define GIMMICK_NO_IMAGE_SELECTION 0
#define GIMMICK_2D_IMAGE_SELECTION 2
#define GIMMICK_3D_IMAGE_SELECTION 3
#define GIMMICK_4D_IMAGE_SELECTION 4

#define NATIVE 0
#define _2D    2
#define _3D    3

*/
        // Create the output data
        if (im.size()==1)
        {
                vtkImageData * out=vtkImageData::New();
                out->ShallowCopy(mReader.GetImage(im.front()));
                s.push_back(out);
        }
    else if (im.size()>1) // Test inutile ? JPR
        {
                vtkImageData* first = mReader.GetImage( im.front());
                if (dimension == 2)
                {
                 // n3D
                    std::vector<std::string>::iterator it;
                        for (it=im.begin(); it!=im.end(); ++it)
                        {
                                vtkImageData* out = vtkImageData::New();
                                out->ShallowCopy(mReader.GetImage(*it));
                                s.push_back(out);
                        }
                }
                else
                {
                        // n*2D to 3D
                        vtkImageData* out = vtkImageData::New();
//                      out->CopyStructure(first);
                        out->SetScalarType(first->GetScalarType());
                        out->SetNumberOfScalarComponents(first->GetNumberOfScalarComponents());
                        int ext[6];
                        //first->GetExtent(ext);  // JPR
                        first->GetWholeExtent(ext);  // renvoie egalement 0,0 en Z // JPR

                        if(ext[5] == 0)
                        {
                                ext[5] = im.size()-1;
                        }
                        else
                        {
                                ext[5] = ext[5] * im.size()-1; // to deal with multiframes - JPR
                        }
                        out->SetExtent(ext);

                        // LG : TODO : Z Spacing  ?

                        int dim[3];
                        first->GetDimensions(dim);

                        out->SetDimensions(dim[0], dim[1], im.size() );
                        out->AllocateScalars();
                        out->Update();

                        unsigned long imsize = dim[0] * dim[1];
                        imsize = imsize * dim[2] ;  // deal with multiframes // JPR


//EED 03-11-2009
                        // differents formats char , short, etc...
                        // differents components 1..3  ex. jpg ->RGB 3
                        imsize = imsize * first->GetScalarSize() * first->GetNumberOfScalarComponents();


                        // Order the file name vector

                        double spc[3];
                        first->GetSpacing(spc);

                        // OrderTheFileNameVector is not here anymore.
                        // Try orderFilesWithZSpacing from OutputModel FCY
                        // spc[2]=OrderTheFileNameVector(im);
                        spc[2] =1;

                        out->SetSpacing(spc);

                        int slice = 0;
                        std::vector<std::string>::iterator it;

                        for (it=im.begin(); it!=im.end(); ++it)
                        {
                                vtkImageData* cur = mReader.GetImage( (*it) );
                                memcpy(out->GetScalarPointer(0,0,slice), cur->GetScalarPointer(0,0,0), imsize);
                                slice++;
                        }
                        s.push_back(out);

                }  // dimension == 3

        }  // size >1

}

Here is the call graph for this function:

void creaImageIO::GimmickView::ReadImagesNotThreadedInVector	(	std::vector< vtkImageData * > &	s,
		std::vector< std::string >	files,
		int	dim
	)			[inherited]

Reads the vector of images, builds it in the dimension required and returns them in the supplied vector.

Definition at line 693 of file creaImageIOGimmickView.cpp.

References creaImageIO::MultiThreadImageReader::GetImage(), GimmickDebugMessage, and creaImageIO::GimmickView::mReader.

Referenced by getSelectedFiles().

{
        // Create the output data
        if (im.size()==1)
        {
                // Only one image : give it
                vtkImageData* out = vtkImageData::New();
                GimmickDebugMessage(3, "State Check: Full Filename: "
                                                <<im.front()
                                                <<std::endl);
                out->ShallowCopy(mReader.GetImage(im.front()));
                s.push_back( out );
        }
        else if (im.size()>1) // Test inutile ? JPR
        {
                vtkImageData* first = mReader.GetImage( im.front());
                if (dimension == 2)
                {
                 // n3D
                  std::vector<std::string>::iterator it;
                        for (it=im.begin(); it!=im.end(); ++it)
                        {
                                vtkImageData* out = vtkImageData::New();
                                out->ShallowCopy(mReader.GetImage(*it));
                                s.push_back(out);
                        }
                }
                else
                {
                        // n2D to 3D // NO!
                        // n *2D + T in a vector :

                        std::vector<std::string>::iterator it;
                        for (it=im.begin(); it!=im.end(); ++it)
                        {
                                vtkImageData* out = mReader.GetImage( (*it));
                                s.push_back(out);
                        }
                }
        }
}

Here is the call graph for this function:

Here is the caller graph for this function:

void creaImageIO::WxGimmickView::ReadImageThreaded

(

const std::vector< tree::Node * > &

sel

)

Sends a request to read the currently selected node and the ones that surround it.

Reads Images (Threaded).

Definition at line 664 of file creaImageIOWxGimmickView.cpp.

      {
        ReadImageThreaded(sel);
      }
    else
      {
                  ClearSelection();
      }*/
        ReadImageThreaded(sel);
   }

  //==================================================

  //==================================================
  void WxGimmickView::ReadImageThreaded(const std::vector<tree::Node*>& sel)
  {
   GimmickDebugMessage(5,
                       "ReadImageThreaded"
                       <<std::endl);
   int maxprio = GetMaximalPriority();
   int prio = maxprio + 2000;

   if(sel.size()>0)
   {
   //First load the selected images
   mCurImageItemToShow = sel.front();
   pointers.clear();
   int index = 0;
   std::vector<tree::Node*>::const_iterator selected;
   for(selected=sel.begin();selected!=sel.end();++selected)
     {
       GimmickDebugMessage(5,
                           "Requesting image from selected "
                           <<(*selected)->GetAttribute("FullFileName")
                           <<std::endl);
           //ImagePointerHolder* ph=new ImagePointerHolder(GetDefaultImage());
           boost::shared_ptr<ImagePointerHolder> ph(new ImagePointerHolder(GetDefaultImage()));
           pointers.push_back(ph);
       RequestReading(*selected,prio,index,ph);
       //       AddEntryToMap(*selected);
       prio--;
       index++;
     }
        mViewer->SetImageVector(pointers);
        //Going up
        prio = maxprio + 20;
        std::vector<tree::Node*> up;
        GetTreeViewMap()[crea::wx2std(mNotebook->GetPageText(mNotebook->GetSelection()))]->GetNodes(up,true);
        std::vector<tree::Node*>::iterator iterUp;
        for(iterUp=up.begin();iterUp!=up.end();++iterUp)
        {
                GimmickDebugMessage(5,
                                "Requesting image from neighbors up "
                                <<(*iterUp)->GetAttribute("FullFileName")
                                <<std::endl);
//              ImagePointerHolder* ph=new ImagePointerHolder(GetDefaultImage());
                boost::shared_ptr<ImagePointerHolder> ph(new ImagePointerHolder(GetDefaultImage()));
                RequestReading(*iterUp,prio,-1,ph);
                //              AddEntryToMap(*iterUp);
                prio--;
                if (prio == maxprio) break;
        }

        //Going down
        prio = maxprio + 19;
        std::vector<tree::Node*> down;
        GetTreeViewMap()[crea::wx2std(mNotebook->GetPageText(mNotebook->GetSelection()))]->GetNodes(down,false);
        std::vector<tree::Node*>::iterator iterDown;
        for(iterDown=down.begin();iterDown!=down.end();++iterDown)
        {
                GimmickDebugMessage(5,
                                "Requesting image from neighbors down "
                                <<(*iterDown)->GetAttribute("FullFileName")
                                <<std::endl);
                //ImagePointerHolder* ph=new ImagePointerHolder(GetDefaultImage());

virtual void creaImageIO::GimmickView::RebuildView

(

)

[inline, protected, virtual, inherited]

Completely rebuilds the view with current DicomDatabaseList

Definition at line 97 of file OldcreaImageIOGimmickView.h.

{ return; }

void creaImageIO::GimmickView::RequestReading	(	tree::Node *	n,
		int	prio,
		int	selection_index,
		boost::shared_ptr< ImagePointerHolder >	p
	)			[inherited]

current selection (-1 if not in selection)

Requests the reading of an image.

Requests the reading of an image with priority and index in the

Definition at line 738 of file creaImageIOGimmickView.cpp.

References creaImageIO::tree::Node::GetAttribute(), creaImageIO::GimmickView::mImageEventMap, creaImageIO::GimmickView::mReader, creaImageIO::GimmickView::mReaderStarted, creaImageIO::GimmickView::ImageEventType::pointerHolder, creaImageIO::MultiThreadImageReader::Request(), and creaImageIO::MultiThreadImageReader::Start().

  {
          if(!mReaderStarted)
          {
                mReader.Start();
                mReaderStarted=true;
          }
    ImageEventType t(n,selection_index);
        t.pointerHolder = p;
    mImageEventMap[n->GetAttribute("FullFileName")] = t;
    mReader.Request(this,n->GetAttribute("FullFileName"),prio);
  }

Here is the call graph for this function:

void creaImageIO::GimmickView::ResetExtent

(

)

[inherited]

Resets the data of the extent and begins a new selection.

Clears the status and begins a new selection process.

Definition at line 156 of file creaImageIOGimmickView.cpp.

References creaImageIO::GimmickView::mImageExtent, and creaImageIO::GimmickView::valid.

Referenced by OnRemove().

  {
          if(mImageExtent!=0)
          {
                  mImageExtent.reset();
          }
          valid=true;
  }

Here is the caller graph for this function:

virtual void creaImageIO::GimmickView::SaveAs

(

const std::vector< std::string > &

filenames

)

[inline, virtual, inherited]

Copies selected files.

Definition at line 127 of file creaImageIOGimmickView.h.

References GimmickError.

          { GimmickError("INTERNAL ERROR : SaveAs not implemented"); }

void creaImageIO::GimmickView::SetMessage

(

std::string

mess

)

[inline, inherited]

Obtains the message of the state.

Definition at line 151 of file creaImageIOGimmickView.h.

References creaImageIO::GimmickView::mMess.

Referenced by creaImageIO::GimmickView::NoValidateSelected(), and creaImageIO::GimmickView::ValidateSelected().

{mMess=mess;}

Here is the caller graph for this function:

virtual void creaImageIO::GimmickView::ShowHelp

(

)

[protected, virtual, inherited]

Shows the help.

void creaImageIO::WxGimmickView::StartListeningThread

(

)

Starts the listening thread on the CD/DVD drive.

Definition at line 1117 of file creaImageIOWxGimmickView.cpp.

Referenced by creaImageIO::WxListenerPanel::OnChangeThreadState().

          {

Here is the caller graph for this function:

void creaImageIO::WxGimmickView::StopListeningThread

(

)

Stops the listening thread on the CD/DVD drive.

Definition at line 1124 of file creaImageIOWxGimmickView.cpp.

References mGimmick, mNotebook, and creaImageIO::GimmickView::UpdateTreeViewLevel().

Referenced by creaImageIO::WxListenerPanel::OnChangeThreadState().

          {
                  mGimmick->DeleteDrive(drive);
                  UpdateTreeViewLevel(crea::wx2std(mNotebook->GetPageText(mNotebook->GetSelection())),1);

Here is the call graph for this function:

Here is the caller graph for this function:

void creaImageIO::WxGimmickView::StopPlayer

(

)

[inline]

Stops the player.

Definition at line 73 of file creaImageIOWxGimmickView.h.

References mViewer, and creaImageIO::WxViewer::StopPlayer().

{mViewer->StopPlayer();}

Here is the call graph for this function:

void creaImageIO::GimmickView::stopReader

(

)

[inherited]

Definition at line 299 of file creaImageIOGimmickView.cpp.

References creaImageIO::GimmickView::mReader, and creaImageIO::MultiThreadImageReader::Stop().

Referenced by creaImageIO::GimmickView::ReadImagesNotThreaded().

  {
          mReader.Stop();
  }

Here is the call graph for this function:

Here is the caller graph for this function:

virtual void creaImageIO::GimmickView::UpdateDicomDatabaseView

(

DicomDatabase *

)

[inline, protected, virtual, inherited]

Recursively updates the part of the view corresponding to the DicomDatabase passed i.e. creates items for the DicomNode which do not have deletes obsolete items (whose DicomNode has been deleted)

Definition at line 102 of file OldcreaImageIOGimmickView.h.

{ return; }

virtual void creaImageIO::GimmickView::UpdateDicomNodeView	(	DicomNode *	n,
		const TreeItemId &	parent
	)			[inline, protected, virtual, inherited]

Recursively updates the part of the view corresponding to the DicomNode provided. parent is its parent in the tree (where to insert / remove it)

Definition at line 106 of file OldcreaImageIOGimmickView.h.

{ return; }

void creaImageIO::GimmickView::UpdateTreeViewLevel	(	const std::string &	t,
		int	l
	)			[virtual, inherited]

Updates the TreeView of given name from level l to bottom (calls the virtual method TreeView::UpdateLevel(l))

Updates the TreeView of given name from level l to bottom (calls the virtual method TreeView::Update())

Definition at line 142 of file creaImageIOGimmickView.cpp.

References creaImageIO::GimmickView::GetTreeViewMap(), and GimmickError.

Referenced by StopListeningThread().

  {
    TreeViewMapType::iterator i;
    i = GetTreeViewMap().find(t);
    if ( i == GetTreeViewMap().end() )
      {
        GimmickError("INTERNAL ERROR : GimmickView::UpdateTreeView : '"
                     <<t<<"' is not in TreeViewMap");
      }
    i->second->UpdateLevel(l);
  }

Here is the call graph for this function:

Here is the caller graph for this function:

void creaImageIO::WxGimmickView::UpdateWindowUI

(

long

flags = wxUPDATE_UI_NONE

)

[private]

Definition at line 764 of file creaImageIOWxGimmickView.cpp.

References mConstructed, and mViewer.

   {
     if (!mConstructed) return;
     static bool first_time = true;
     if (false)
     {
       first_time = false;

bool creaImageIO::GimmickView::ValidateSelected	(	tree::Node *	sel,
		int	min_dim,
		int	max_dim
	)			[inherited]

Validates the dimension compliance of the images with the maximum and minimum given, and between their sizes.

Validates the dimension compliance of the images with the maximum and minimum given, and between their sizes

Definition at line 209 of file creaImageIOGimmickView.cpp.

References GimmickDebugMessage, creaImageIO::GimmickView::mImageExtent, creaImageIO::GimmickView::modifyValidationSignal(), creaImageIO::GimmickView::SetMessage(), and creaImageIO::GimmickView::valid.

  {
        GimmickDebugMessage(2,"Validating selected"<<std::endl);
        std::string mMessage;

        if(sel==0)
        {
                mMessage="Cannot have 0 images selected!";
                valid=false;
        }
        else
        {
                        boost::shared_ptr<ImageExtent> ie=boost::shared_ptr<ImageExtent>(new ImageExtent((*sel).GetAttribute("D0028_0010"),
                                                                        (*sel).GetAttribute("D0028_0011"),
                                                                        (*sel).GetAttribute("D0028_0012"),
                                                                        ""));

        if(mImageExtent==0)
        {
                mImageExtent=ie;
                if((mImageExtent->Get(min_dim-1)<2)||(mImageExtent->Get(max_dim)>1))
                {
                        valid=false;
                }
                else
                {
                        std::stringstream out;
                        out << mImageExtent->GetDimension() << "D image " << mImageExtent->Get(0) << "x"<< mImageExtent->Get(1) << "x"<< mImageExtent->Get(2) <<" selected";
                        mMessage = out.str();
                        mImageExtent->SetDimension(2);
                        valid=true;
                }
        }
        else
        {
                if(mImageExtent->IsCompatible(*ie))
                {
                        if(mImageExtent->GetDimension()==max_dim && mImageExtent->Get(max_dim)>2)
                        {
                                std::stringstream out;
                                out<<"Cannot add this image to selection : would result in a "<<mImageExtent->GetDimension()+1<<"D image!";
                                mMessage=out.str();
                                valid=false;
                        }
                        else if(max_dim<3)
                        {
                                std::stringstream out;
                                out<<"Selecting "<<mImageExtent->GetDimension()<<"D images is not allowed !";
                                mMessage=out.str();
                                valid=false;
                        }
                        else if(min_dim==3 && (ie->Get(2)+mImageExtent->Get(2))<2)
                        {
                                std::stringstream out;
                                out << "Cannot build the selection as it would result in a ";
                                out << mImageExtent->GetDimension();
                                out << "D image, and the minimum is ";
                                out << min_dim;
                                out << "D!";
                                mMessage=out.str();
                                valid=false;
                        }
                        else
                        {
                                mImageExtent->Add(*ie);
                                std::stringstream out;
                                out << mImageExtent->GetDimension() << "D image " << mImageExtent->Get(0) << "x"<< mImageExtent->Get(1) << "x"<< mImageExtent->Get(2) <<" selected";
                                mMessage = out.str();
                        }
                }
                else
                {
                        mMessage="The selected images are not compatible.";
                        valid=false;
                }
          }
        }

        modifyValidationSignal(valid);
        SetMessage(mMessage);
        return valid;
  }

Here is the call graph for this function:

---

Friends And Related Function Documentation

MultiThreadImageReader [friend, inherited]

Definition at line 29 of file creaImageIOMultiThreadImageReader.h.

ThreadedImageReader [friend, inherited]

Reimplemented in creaImageIO::MultiThreadImageReader.

Definition at line 28 of file creaImageIOMultiThreadImageReader.h.

---

Member Data Documentation

OutStrGimmick creaImageIO::WxGimmickView::m_out

Definition at line 36 of file creaImageIOWxGimmickView.h.

wxBoxSizer* creaImageIO::WxGimmickView::mbottom_sizer [private]

Definition at line 125 of file creaImageIOWxGimmickView.h.

Referenced by WxGimmickView().

wxPanel* creaImageIO::WxGimmickView::mBottomPanel [private]

Definition at line 143 of file creaImageIOWxGimmickView.h.

Referenced by WxGimmickView().

bool creaImageIO::WxGimmickView::mConstructed [private]

Is set to true at the end of constructor (in order to lock callbacks from threaded objects or event before everything is ok)

Definition at line 130 of file creaImageIOWxGimmickView.h.

Referenced by UpdateWindowUI().

tree::Node* creaImageIO::WxGimmickView::mCurImageItemToShow [private]

Currently Displayed Node.

Definition at line 234 of file creaImageIOWxGimmickView.h.

wxString creaImageIO::WxGimmickView::mCurrentDirectory [private]

Definition at line 242 of file creaImageIOWxGimmickView.h.

Referenced by WxGimmickView().

boost::shared_ptr<Gimmick> creaImageIO::WxGimmickView::mGimmick [private]

Controller which manages the interaction with the model.

Reimplemented from creaImageIO::GimmickView.

Definition at line 151 of file creaImageIOWxGimmickView.h.

Referenced by AddDir(), OnAddDB(), StopListeningThread(), and WxGimmickView().

wxImageList* creaImageIO::WxGimmickView::mIcon [private]

The list of icons.

Definition at line 148 of file creaImageIOWxGimmickView.h.

Referenced by CreateToolBar(), and OnAddFiles().

Listener* creaImageIO::WxGimmickView::mListener [private]

Definition at line 153 of file creaImageIOWxGimmickView.h.

Referenced by CreateEditFieldsDialog().

wxNotebook* creaImageIO::WxGimmickView::mNotebook [private]

Definition at line 145 of file creaImageIOWxGimmickView.h.

Referenced by AddDir(), CreateIconList(), ExportImages(), getSelectedFiles(), GetSelectedImagesInVector(), OnSaveSettingsCallback(), StopListeningThread(), and WxGimmickView().

wxProgressDialog* creaImageIO::WxGimmickView::mProgressDialog [private]

Progress dialog.

Definition at line 222 of file creaImageIOWxGimmickView.h.

int creaImageIO::WxGimmickView::mSelectionMaxDimension [private]

The selection's maximum dimension.

Definition at line 225 of file creaImageIOWxGimmickView.h.

Referenced by WxGimmickView().

int creaImageIO::WxGimmickView::mSelectionMinDimension [private]

The selection's minimum dimension.

Definition at line 228 of file creaImageIOWxGimmickView.h.

Referenced by WxGimmickView().

wxBoxSizer* creaImageIO::WxGimmickView::msizer [private]

Definition at line 126 of file creaImageIOWxGimmickView.h.

Referenced by WxGimmickView().

wxSplitterWindow* creaImageIO::WxGimmickView::mSplitter [private]

Definition at line 142 of file creaImageIOWxGimmickView.h.

Referenced by WxGimmickView().

time_t creaImageIO::WxGimmickView::mstart [private]

Definition at line 187 of file creaImageIOWxGimmickView.h.

Referenced by OnAddDB().

wxStaticText* creaImageIO::WxGimmickView::mText [private]

Definition at line 144 of file creaImageIOWxGimmickView.h.

Referenced by WxGimmickView().

wxToolBarToolBase* creaImageIO::WxGimmickView::mToolAddDatabase [private]

Definition at line 136 of file creaImageIOWxGimmickView.h.

wxToolBarToolBase* creaImageIO::WxGimmickView::mToolAddDir [private]

Definition at line 134 of file creaImageIOWxGimmickView.h.

wxToolBarToolBase* creaImageIO::WxGimmickView::mToolAddFile [private]

Definition at line 133 of file creaImageIOWxGimmickView.h.

wxToolBar* creaImageIO::WxGimmickView::mToolBar [private]

The ToolBar and the tools.

Definition at line 132 of file creaImageIOWxGimmickView.h.

Referenced by WxGimmickView().

wxToolBarToolBase* creaImageIO::WxGimmickView::mToolHelp [private]

Definition at line 137 of file creaImageIOWxGimmickView.h.

wxToolBarToolBase* creaImageIO::WxGimmickView::mToolRemove [private]

Definition at line 135 of file creaImageIOWxGimmickView.h.

wxToolBarToolBase* creaImageIO::WxGimmickView::mToolSettings [private]

Definition at line 139 of file creaImageIOWxGimmickView.h.

wxToolBarToolBase* creaImageIO::WxGimmickView::mToolSynchronize [private]

Definition at line 138 of file creaImageIOWxGimmickView.h.

wxToolBarToolBase* creaImageIO::WxGimmickView::mToolTools [private]

Definition at line 140 of file creaImageIOWxGimmickView.h.

WxViewer* creaImageIO::WxGimmickView::mViewer [private]

Image previewer.

Reimplemented from creaImageIO::GimmickView.

Definition at line 231 of file creaImageIOWxGimmickView.h.

Referenced by ClearSelection(), CreateToolBar(), OnRemove(), StopPlayer(), UpdateWindowUI(), and WxGimmickView().

std::vector< boost::shared_ptr<ImagePointerHolder> > creaImageIO::WxGimmickView::pointers [private]

Definition at line 237 of file creaImageIOWxGimmickView.h.

Referenced by OnRemove(), and WxGimmickView().

---

The documentation for this class was generated from the following files:

• /home/davila/Creatis/All7/creatools_source/creaImageIO/src/creaImageIOWxGimmickView.h
• /home/davila/Creatis/All7/creatools_source/creaImageIO/src/creaImageIOWxGimmickView.cpp
