Public Types | Public Member Functions | Private Attributes

creaImageIO::WxGimmickPanel Class Reference
[Top level graphical user interfaces]

#include <creaImageIOWxGimmickPanel.h>

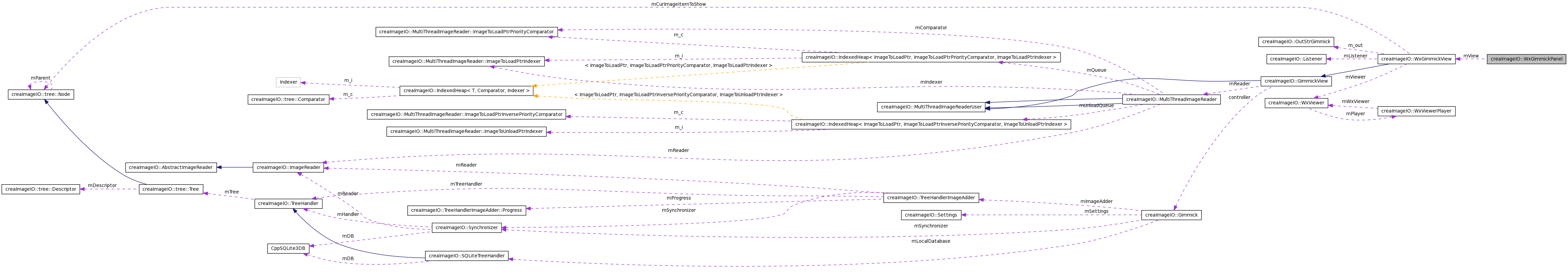

Collaboration diagram for creaImageIO::WxGimmickPanel:
Collaboration graph
[legend]

List of all members.

Public Types

typedef boost::signal< void(bool)> SendImageSignalType
typedef
SendImageSignalType::slot_function_type 		SendImageCallbackType

Public Member Functions

 WxGimmickPanel ()
 WxGimmickPanel (wxWindow *parent, const wxWindowID id, const wxPoint &pos, const wxSize &size, const std::string i_namedescp, const std::string i_namedb="Local Database", int threads=0)
 ~WxGimmickPanel ()
 Destructor.
void ConnectSendImageObserver (SendImageCallbackType callback)
void GetSelectedImages (std::vector< vtkImageData * > &s, int dim)
void getSelected (std::vector< OutStrGimmick > &outG, std::vector< std::string > i_attr, bool mult, const std::string outmodel)
void OnSelectedImage (bool t)
 Callback method on a selection.
void AddImagesToDB (std::string dir)

Private Attributes

boost::shared_ptr< Gimmick > mGimmick
WxGimmickView * mView
SendImageSignalType mSendImageSignal
 The sendImage signal.

Detailed Description

Definition at line 20 of file creaImageIOWxGimmickPanel.h.

Member Typedef Documentation

typedef SendImageSignalType::slot_function_type creaImageIO::WxGimmickPanel::SendImageCallbackType

Definition at line 36 of file creaImageIOWxGimmickPanel.h.

typedef boost::signal<void (bool)> creaImageIO::WxGimmickPanel::SendImageSignalType

Definition at line 35 of file creaImageIOWxGimmickPanel.h.

Constructor & Destructor Documentation

creaImageIO::WxGimmickPanel::WxGimmickPanel (  )
creaImageIO::WxGimmickPanel::WxGimmickPanel ( wxWindow *  parent,
const wxWindowID  id,
const wxPoint &  pos,
const wxSize &  size,
const std::string  i_namedescp,
const std::string  i_namedb = "Local Database",
int  threads = 0
)

Definition at line 10 of file creaImageIOWxGimmickPanel.cpp.

References creaImageIO::GimmickView::ConnectValidationObserver(), GimmickDebugMessage, creaImageIO::GimmickView::Initialize(), mGimmick, mView, and OnSelectedImage().

 :   wxPanel( parent,
              id,
              pos,
              size,
              wxRESIZE_BORDER |
              wxSYSTEM_MENU   |
              wxCLOSE_BOX     |
              wxMAXIMIZE_BOX  |
              wxMINIMIZE_BOX  |
              wxCAPTION
              ),
     //mGimmick(0),
     mView(0)
  {
    GimmickDebugMessage(1,"WxGimmickPanel::WxGimmickPanel"
                        <<std::endl);
    wxBoxSizer *topsizer = new wxBoxSizer(wxVERTICAL);

    try {
            mGimmick = boost::shared_ptr<Gimmick>(new Gimmick());
            mGimmick->Initialize(i_namedescp,i_namedb);
            int min_dim = GIMMICK_2D_IMAGE_SELECTION;
            int max_dim = GIMMICK_3D_IMAGE_SELECTION;
            mView = new WxGimmickView(mGimmick,
                                this,
                                -1,
                                wxDefaultPosition,
                                size,
                                min_dim,
                                max_dim,
                                threads);
            mView->Initialize();
          // Connect the AddProgress callback
            mView->ConnectValidationObserver ( boost::bind( &WxGimmickPanel::OnSelectedImage , this, _1 ) );
    }
    catch (crea::Exception e)
    {
      e.Print();
      return;
    }

    topsizer->Add( mView,1,wxGROW,0);

    SetSizer( topsizer );
    Layout();
  }

Here is the call graph for this function:

creaImageIO::WxGimmickPanel::~WxGimmickPanel (  )

Destructor.

Definition at line 65 of file creaImageIOWxGimmickPanel.cpp.

References GimmickDebugMessage, mGimmick, and mView.

  {
    GimmickDebugMessage(1,"WxGimmickPanel::~WxGimmickPanel"
                        <<std::endl);
    if (mView)
      {
        delete mView;
      }
    if (mGimmick)
      {
        mGimmick->Finalize();
      }
  }

Member Function Documentation

void creaImageIO::WxGimmickPanel::AddImagesToDB ( std::string  dir  )

Definition at line 89 of file creaImageIOWxGimmickPanel.cpp.

References creaImageIO::WxGimmickView::AddDir(), and mView.

  {
      mView->AddDir(dir);
  }

Here is the call graph for this function:

void creaImageIO::WxGimmickPanel::ConnectSendImageObserver ( SendImageCallbackType  callback  )

Adds the function f to the list of functions to call when the addition progresses. f is of type ProgressCallbackType which is: void (*ProgressCallbackType)(Progress&) To pass a member function 'f' of an instance 'c' of a class 'C' as callback you have to 'bind' it, i.e. call: ConnectSendImageObserver ( boost::bind( &C::f , c, _1 ) );

Definition at line 103 of file creaImageIOWxGimmickPanel.cpp.

References mSendImageSignal.

  {
      mSendImageSignal.connect(callback);
  }

void creaImageIO::WxGimmickPanel::getSelected ( std::vector< OutStrGimmick > &  outG,
std::vector< std::string >  i_attr,
bool  mult,
const std::string  outmodel
) [inline]

Definition at line 71 of file creaImageIOWxGimmickPanel.h.

        {
                mView->getSelectedFiles(outG, i_attr, mult, outmodel);
        }

void creaImageIO::WxGimmickPanel::GetSelectedImages ( std::vector< vtkImageData * > &  s,
int  dim
) [inline]

Definition at line 54 of file creaImageIOWxGimmickPanel.h.

    {
        mView->GetSelectedImages(s, dim);
    }

void creaImageIO::WxGimmickPanel::OnSelectedImage ( bool  t  )

Callback method on a selection.

Definition at line 84 of file creaImageIOWxGimmickPanel.cpp.

References mSendImageSignal.

Referenced by WxGimmickPanel().

  {
      mSendImageSignal(t);
  }

Here is the caller graph for this function:

Member Data Documentation

boost::shared_ptr<Gimmick> creaImageIO::WxGimmickPanel::mGimmick [private]

Definition at line 83 of file creaImageIOWxGimmickPanel.h.

Referenced by WxGimmickPanel(), and ~WxGimmickPanel().

SendImageSignalType creaImageIO::WxGimmickPanel::mSendImageSignal [private]

The sendImage signal.

Definition at line 87 of file creaImageIOWxGimmickPanel.h.

Referenced by ConnectSendImageObserver(), and OnSelectedImage().

WxGimmickView* creaImageIO::WxGimmickPanel::mView [private]

Definition at line 84 of file creaImageIOWxGimmickPanel.h.

Referenced by AddImagesToDB(), WxGimmickPanel(), and ~WxGimmickPanel().

The documentation for this class was generated from the following files:
