mpFX Class Reference

#include <mathplot.h>

Inheritance diagram for mpFX:

Inheritance graph
[legend]
Collaboration diagram for mpFX:

Collaboration graph
[legend]

List of all members.

Public Member Functions

 mpFX (wxString name=wxEmptyString, int flags=0x00)
virtual double GetY (double x)=0
virtual void Plot (wxDC &dc, mpWindow &w)
virtual bool HasBBox ()
virtual double GetMinX ()
virtual double GetMaxX ()
virtual double GetMinY ()
virtual double GetMaxY ()
wxString GetName () const
const wxFont & GetFont () const
const wxPen & GetPen () const
void SetName (wxString name)
void SetFont (wxFont &font)
void SetPen (wxPen &pen)
int GetYTranslated (double sizey, double y)

Protected Attributes

int m_flags
 Holds label alignment.
wxFont m_font
 Layer's font.
wxPen m_pen
 Layer's pen.
wxString m_name
 Layer's name.

Detailed Description

Abstract base class providing plot and labeling functionality for functions F:X->Y. Override mpFX::GetY to implement a function. Optionally implement a constructor and pass a name (label) and a label alignment to the constructor mpFX::mpFX. If the layer name is empty, no label will be plotted.

Definition at line 251 of file mathplot.h.

Constructor & Destructor Documentation

mpFX::mpFX ( wxString  name = wxEmptyString,
int  flags = 0x00
)

Parameters:
name Label
flags Label alignment, pass one of mpALIGN_RIGHT, mpALIGN_CENTER, mpALIGN_LEFT.

Definition at line 72 of file mathplot.cxx.

00073 {
00074         SetName(name);
00075         m_flags = flags;
00076 }

Member Function Documentation

virtual double mpFX::GetY ( double  x  )  [pure virtual]

Get function value for argument. Override this function in your implementation.

Parameters:
x Argument
Returns:
Function value

Referenced by Plot().

Here is the caller graph for this function:

void mpFX::Plot ( wxDC &  dc,
mpWindow &  w
) [virtual]

Layer plot handler. This implementation will plot the function in the visible area and put a label according to the aligment specified.

Implements mpLayer.

Definition at line 78 of file mathplot.cxx.

References mpWindow::GetPosX(), mpWindow::GetPosY(), mpWindow::GetScaleX(), mpWindow::GetScaleY(), mpWindow::GetScrX(), GetY(), m_flags, mpLayer::m_font, mpLayer::m_name, mpLayer::m_pen, mpALIGN_CENTER, mpALIGN_RIGHT, and mpALIGNMASK.

00079 {
00080         dc.SetPen( m_pen);
00081
00082         if (m_pen.GetWidth() <= 1)
00083         {
00084                 for (wxCoord i = -(w.GetScrX()>>1); i < (w.GetScrX()>>1); ++i)
00085                 {
00086                         dc.DrawPoint(i, (wxCoord) ((w.GetPosY() - GetY( (double)i / w.GetScaleX() + w.GetPosX()) ) * w.GetScaleY()));
00087                 }
00088         }
00089         else
00090         {
00091                 for (wxCoord i = -(w.GetScrX()>>1); i < (w.GetScrX()>>1); ++i)
00092                 {
00093                         wxCoord c = (wxCoord) ((w.GetPosY() - GetY( (double)i / w.GetScaleX() + w.GetPosX()) ) * w.GetScaleY());
00094                         dc.DrawLine( i, c, i, c);
00095                 }
00096         }
00097
00098         if (!m_name.IsEmpty())
00099         {
00100                 dc.SetFont(m_font);
00101
00102                 wxCoord tx, ty;
00103                 dc.GetTextExtent(m_name, &tx, &ty);
00104
00105                 if ((m_flags & mpALIGNMASK) == mpALIGN_RIGHT)
00106                         tx = (w.GetScrX()>>1) - tx - 8;
00107                 else if ((m_flags & mpALIGNMASK) == mpALIGN_CENTER)
00108                         tx = -tx/2;
00109                 else
00110                         tx = -(w.GetScrX()>>1) + 8;
00111
00112                 dc.DrawText( m_name, tx, (wxCoord) ((w.GetPosY() - GetY( (double)tx / w.GetScaleX() + w.GetPosX())) * w.GetScaleY()) );
00113         }
00114 }

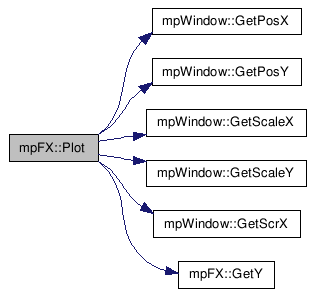

Here is the call graph for this function:

virtual bool mpLayer::HasBBox (  )  [inline, virtual, inherited]

Check whether this layer has a bounding box. The default implementation returns TRUE. Overide and return FALSE if your mpLayer implementation should be ignored by the calculation of the global bounding box for all layers in a mpWindow.

Return values:
TRUE Has bounding box
FALSE Has not bounding box

Reimplemented in mpScaleX, mpScaleY, pPlotterScaleX, and pPlotterScaleY.

Definition at line 110 of file mathplot.h.

Referenced by mpWindow::UpdateBBox().

00110 { return TRUE; }

Here is the caller graph for this function:

virtual double mpLayer::GetMinX (  )  [inline, virtual, inherited]

Get inclusive left border of bounding box.

Returns:
Value

Definition at line 115 of file mathplot.h.

Referenced by mpWindow::UpdateBBox().

00115 { return -1.0; }

Here is the caller graph for this function:

virtual double mpLayer::GetMaxX (  )  [inline, virtual, inherited]

Get inclusive right border of bounding box.

Returns:
Value

Definition at line 120 of file mathplot.h.

Referenced by mpWindow::UpdateBBox().

00120 { return  1.0; }

Here is the caller graph for this function:

virtual double mpLayer::GetMinY (  )  [inline, virtual, inherited]

Get inclusive bottom border of bounding box.

Returns:
Value

Definition at line 125 of file mathplot.h.

Referenced by mpWindow::UpdateBBox().

00125 { return -1.0; }

Here is the caller graph for this function:

virtual double mpLayer::GetMaxY (  )  [inline, virtual, inherited]

Get inclusive top border of bounding box.

Returns:
Value

Definition at line 130 of file mathplot.h.

Referenced by mpWindow::UpdateBBox().

00130 { return  1.0; }

Here is the caller graph for this function:

wxString mpLayer::GetName (  )  const [inline, inherited]

Get layer name.

Returns:
Name

Definition at line 170 of file mathplot.h.

00170 { return m_name; }

const wxFont& mpLayer::GetFont (  )  const [inline, inherited]

Get font set for this layer.

Returns:
Font

Definition at line 175 of file mathplot.h.

00175 { return m_font; }

const wxPen& mpLayer::GetPen (  )  const [inline, inherited]

Get pen set for this layer.

Returns:
Pen

Definition at line 180 of file mathplot.h.

00180 { return m_pen;  }

void mpLayer::SetName ( wxString  name  )  [inline, inherited]

Set layer name

Parameters:
name Name, will be copied to internal class member

Definition at line 185 of file mathplot.h.

Referenced by mpFXY::mpFXY(), mpFY::mpFY(), mpScaleX::mpScaleX(), and mpScaleY::mpScaleY().

00185 { m_name = name; }

Here is the caller graph for this function:

void mpLayer::SetFont ( wxFont &  font  )  [inline, inherited]

Set layer font

Parameters:
font Font, will be copied to internal class member

Definition at line 190 of file mathplot.h.

Referenced by mpScaleX::mpScaleX(), and mpScaleY::mpScaleY().

00190 { m_font = font; }

Here is the caller graph for this function:

void mpLayer::SetPen ( wxPen &  pen  )  [inline, inherited]

Set layer pen

Parameters:
pen Pen, will be copied to internal class member

Definition at line 195 of file mathplot.h.

Referenced by HistogramWidget::drawHistogram(), Histogram::drawHistogram(), HistogramWidget::drawTransferenceFunction(), mpScaleX::mpScaleX(), mpScaleY::mpScaleY(), pPlotterWindow::onChangeColor(), pPlotterWindow::onLoad(), and pPlotterWindow::onStartDrawing().

00195 { m_pen  = pen;  }

Here is the caller graph for this function:

int mpLayer::GetYTranslated ( double  sizey,
double  y
) [inline, inherited]

Get the translation of the Y coordinate acoording to the new orientation of the axis du to the problem identified in MACOS with the funtion 'SetAxisOrientation'

Definition at line 201 of file mathplot.h.

Referenced by pPlotterLayer::draw(), pPlotterLayer::drawFunction(), pPlotterLayer::drawPoints(), pPlotterLayer::drawSplineCurve(), pPlotterScaleY::Plot(), pPlotterScaleX::Plot(), pPlotterLayer::Plot(), and mpScaleY::Plot().

00201                                                   {
00202                 return -y+sizey;
00203         }

Here is the caller graph for this function:

Member Data Documentation

int mpFX::m_flags [protected]

Holds label alignment.

Definition at line 273 of file mathplot.h.

Referenced by mpFY::mpFY(), and Plot().

wxFont mpLayer::m_font [protected, inherited]

Layer's font.

Definition at line 206 of file mathplot.h.

Referenced by pPlotterScaleY::Plot(), pPlotterScaleX::Plot(), mpScaleY::Plot(), mpScaleX::Plot(), mpFXY::Plot(), mpFY::Plot(), and Plot().

wxPen mpLayer::m_pen [protected, inherited]

Layer's pen.

Definition at line 207 of file mathplot.h.

Referenced by pPlotterScaleY::Plot(), pPlotterScaleX::Plot(), pPlotterLayer::Plot(), mpScaleY::Plot(), mpScaleX::Plot(), mpFXY::Plot(), mpFY::Plot(), and Plot().

wxString mpLayer::m_name [protected, inherited]

Layer's name.

Definition at line 208 of file mathplot.h.

Referenced by mpScaleY::Plot(), mpScaleX::Plot(), mpFXY::Plot(), mpFY::Plot(), and Plot().

The documentation for this class was generated from the following files:
