wxSTLWidget_03 Class Reference

#include <Copie de wxSTLWidget_03.h>

Collaboration diagram for wxSTLWidget_03:

Public Member Functions
	wxSTLWidget_03 (wxWindow parentmar, marInterface mar)
	~wxSTLWidget_03 ()
void	ConfigureVTK ()
void	Refresh ()
void	OnOpacity_Vol (wxScrollEvent &event)
void	OnMinSpin (wxScrollEvent &event)
void	OnMaxSpin (wxScrollEvent &event)
void	OnRangeSpin (wxScrollEvent &event)
void	OnStartChanged_range (wxCommandEvent &event)
void	OnEndChanged_range (wxCommandEvent &event)
void	OnBarMoved_range (wxCommandEvent &event)
void	OnBtnExtraction (wxCommandEvent &event)
void	OnBtnSaveBinaryFile (wxCommandEvent &event)
void	Reset_vtk_STLFile ()
void	OnBtnSTLFileLoad (wxCommandEvent &event)
void	OnBtnSTLFileErase (wxCommandEvent &event)
void	OnOpacitySTLFile (wxScrollEvent &event)
void	generateSTLSurfaces ()
void	OnBtnCreateFileSTL (wxCommandEvent &event)
void	OnChangeSTLGaussLevel (wxScrollEvent &event)
void	OnChangeSTLMarchingCubesLevel (wxScrollEvent &event)
void	OnOpacitySTLExternal (wxScrollEvent &event)
void	OnOpacitySTLInternal (wxScrollEvent &event)
void	OnJoinRegions (wxCommandEvent &event)
	wxSTLWidget_03 (wxWindow *parentmar)
	~wxSTLWidget_03 ()
void	ConfigureVTK ()
void	Refresh ()
void	OnOpacity_Vol (wxScrollEvent &event)
void	OnMinSpin (wxScrollEvent &event)
void	OnMaxSpin (wxScrollEvent &event)
void	OnRangeSpin (wxScrollEvent &event)
void	OnStartChanged_range (wxCommandEvent &event)
void	OnEndChanged_range (wxCommandEvent &event)
void	OnBarMoved_range (wxCommandEvent &event)
void	OnBtnExtraction (wxCommandEvent &event)
void	OnBtnSaveBinaryFile (wxCommandEvent &event)
void	Reset_vtk_STLFile ()
void	OnBtnSTLFileLoad (wxCommandEvent &event)
void	OnBtnSTLFileErase (wxCommandEvent &event)
void	OnOpacitySTLFile (wxScrollEvent &event)
void	generateSTLSurfaces ()
void	OnBtnCreateFileSTL (wxCommandEvent &event)
void	OnChangeSTLGaussLevel (wxScrollEvent &event)
void	OnChangeSTLMarchingCubesLevel (wxScrollEvent &event)
void	OnOpacitySTLExternal (wxScrollEvent &event)
void	OnOpacitySTLInternal (wxScrollEvent &event)
void	OnJoinRegions (wxCommandEvent &event)
void	setImage (vtkImageData *img)
Private Member Functions
wxPanel *	CreateControlPanel (wxWindow *parent)
wxPanel *	CreateViewPanel (wxWindow *parent)
void	ResetTree2_JF ()
void	ExtractSurface (int x, int y, int z)
wxWindow *	CreateSelectAPointPanel (wxWindow *parent)
wxWindow *	CreateSegmentationPanel (wxWindow *parent)
wxWindow *	CreateSmoothingPanel (wxWindow *parent)
wxWindow *	CreateReadSTLFilePanel (wxWindow *parent)
void	ConfigureProcessing (marImageData *marimagedata, int x, int y, int z)
void	ConfigureSTL ()
wxPanel *	CreateControlPanel (wxWindow *parent)
wxPanel *	CreateViewPanel (wxWindow *parent)
void	ResetTree2_JF ()
void	ExtractSurface (int x, int y, int z)
wxWindow *	CreateSelectAPointPanel (wxWindow *parent)
wxWindow *	CreateSegmentationPanel (wxWindow *parent)
wxWindow *	CreateSmoothingPanel (wxWindow *parent)
wxWindow *	CreateReadSTLFilePanel (wxWindow *parent)
void	ConfigureProcessing (vtkImageData *img, int x, int y, int z)
void	ConfigureSTL ()
Private Attributes
vtkImageData *	_imagedata
double	_range [2]
vtkImageCast *	cast2
vtkImageCast *	cast3
vtkImageCast *	cast4
vtkImageThreshold *	_thresh
vtkImageThreshold *	_thresh2
vtkImageSeedConnectivity *	_connect
vtkImageSeedConnectivity *	_connect2
vtkPolyDataMapper *	_2_mapfinal
vtkActor *	_2_stripfinal
vtkPolyDataMapper *	_2_isoMapperMC6
vtkActor *	_2_isoActorMC6
vtkMarchingCubes *	_2_isoMC6
double	_sensibility_JF
int	_maxSize
int	_minSize
vtkPolyDataMapper *	_loadSTLMapper
vtkActor *	_loadActorSTL
wxSlider *	_opacity_Vol
wxSlider *	_sl_minSize
wxSlider *	_sl_maxSize
wxSlider *	_sl_minSizeSpin
wxSlider *	_sl_maxSizeSpin
wxSlider *	_sl_RangeSizeSpin
mBarRange *	sl_barrange_segmentation
int	lastResizeRef_Value
int	minRangeValue
int	maxRangeValue
wxVtk3DBaseView *	_imageviewer3D
marInterface *	_mar
wxMaracasMPR *	_wxMaracasMPR
double	_stlDeltaGaussLevel
double	_stlMarchingCubesLevel
vtkPolyData *	stlInterna
vtkPolyData *	stlExterna
wxSlider *	stlSliderDeltaGauss
wxSlider *	stlSliderMarchingCubes
vtkPolyDataMapper *	dsm1
vtkActor *	actorInternal
wxSlider *	stlSliderOpacityInternal
vtkPolyDataMapper *	dsm2
vtkActor *	actorExternal
wxSlider *	stlSliderOpacityExternal
vtkSTLExtractor *	stlExtractor
wxSlider *	_sl_opacity_STL_file
vtkImageData *	arteryImageData
vtkJoiner *	joiner
vtkMarchingCubes *	joinMarchingCubes
vtkPolyDataMapper *	joinMapper
vtkActor *	joinActor
vtkImageCast *	_cast

Detailed Description

Definition at line 40 of file Copie de wxSTLWidget_03.h.

Constructor & Destructor Documentation

wxSTLWidget_03::wxSTLWidget_03	(	wxWindow *	parentmar,
		marInterface *	mar
	)

Definition at line 65 of file Copie de wxSTLWidget_03.cxx.

References _2_isoActorMC6, _2_isoMapperMC6, _2_isoMC6, _2_mapfinal, _2_stripfinal, marInterface::_dicom, marInterface::_experiment, _loadActorSTL, _loadSTLMapper, _mar, _maxSize, _minSize, marInterface::_parameters, _stlDeltaGaussLevel, _stlMarchingCubesLevel, _wxMaracasMPR, arteryImageData, CreateControlPanel(), CreateViewPanel(), marParameters::e_voxel_type, marParameters::e_voxel_x_dimension, marParameters::e_voxel_y_dimension, marParameters::e_voxel_z_dimension, marParameters::getDoubleParam(), marParameters::getRescaleIntercept(), marParameters::getRescaleSlope(), marExperiment::getVOI(), marInterface::initExperiment(), joinActor, joinMapper, joinMarchingCubes, marInterface::SetDicom(), marParameters::setDoubleParam(), marParameters::setIntParam(), marParameters::setRescaleIntercept(), marParameters::setRescaleSlope(), marExperiment::setVOI(), stlExterna, stlInterna, and marParameters::VOX_TYPE_MINIMUM.

00067 { 00068 00069 00070 00071 00072 00073 00074 00075 00076 00077 00078 00079 00080 00081 00082 00083 00084 00085 00086 00087 00088 00089 00090 00091 00092 00093 00094 00095 00096 00097 00098 00099 00100 00101 00102 00103 00104 00105 00106 00107 00108 00109 00110 00111 00112 00113 00114 00115 00116 00117 00118 00119 00120 00121 00122 00123 00124 00125 00126 00127 00128 00129 }

class="fragment">00066 : wxPanel( parent, -1) _wxMaracasMPR = NULL; _maxSize = 2000; _minSize = 300; _stlMarchingCubesLevel = 128; _stlDeltaGaussLevel = 100; _mar=new marInterface(); _mar->_parameters->setRescaleSlope( mar->_parameters->getRescaleSlope() ); _mar->_parameters->setRescaleIntercept( mar->_parameters->getRescaleIntercept() ); _mar->_parameters->setIntParam( marParameters::e_voxel_type, marParameters::VOX_TYPE_MINIMUM ); _mar->_parameters->setDoubleParam( marParameters::e_voxel_x_dimension, mar->_parameters->getDoubleParam(marParameters::e_voxel_x_dimension) ); _mar->_parameters->setDoubleParam( marParameters::e_voxel_y_dimension, mar->_parameters->getDoubleParam(marParameters::e_voxel_y_dimension) ); _mar->_parameters->setDoubleParam( marParameters::e_voxel_z_dimension, mar->_parameters->getDoubleParam(marParameters::e_voxel_z_dimension) ); int voi[6]; mar->_experiment->getVOI( voi ); _mar->_experiment->setVOI( voi ); _mar->SetDicom(mar->_dicom); _mar->initExperiment( ); wxBoxSizer *sizer = new wxBoxSizer(wxVERTICAL ); wxSplitterWindow *pnlSplitter = new wxSplitterWindow( this , -1); wxPanel *viewPanel = CreateViewPanel(pnlSplitter); printf("EED wxSTLWidget_03::wxSTLWidget_03 01\n"); wxPanel *controlPanel = CreateControlPanel(pnlSplitter); printf("EED wxSTLWidget_03::wxSTLWidget_03 02\n"); sizer -> Add( pnlSplitter ,1,wxGROW ,0); pnlSplitter -> SetMinimumPaneSize( 150 ); pnlSplitter -> SplitVertically( viewPanel, controlPanel, 600 ); // pnlSplitter -> SplitVertically( new wxPanel(pnlSplitter,-1), new wxPanel(pnlSplitter,-1) , 600 ); // pnlSplitter -> SplitVertically( viewPanel, new wxPanel(pnlSplitter,-1) , 600 ); this -> SetSizer(sizer); // Result 2: Volume + Axis // _2_prgov = NULL; _2_mapfinal = NULL; _2_stripfinal = NULL; _2_isoMapperMC6 = NULL; _2_isoActorMC6 = NULL; _2_isoMC6 = NULL; //DHC STL SURFACES stlInterna = NULL; stlExterna = NULL; _loadSTLMapper = NULL; _loadActorSTL = NULL; //JOIN REGIONS arteryImageData = NULL; joinMarchingCubes = NULL; joinMapper = NULL; joinActor = NULL; printf("EED wxSTLWidget_03::wxSTLWidget_03 03\n");

Here is the call graph for this function:

wxSTLWidget_03::~wxSTLWidget_03 ( )

Definition at line 131 of file Copie de wxSTLWidget_03.cxx.

References Reset_vtk_STLFile(), and ResetTree2_JF().

00131                                {
00132         ResetTree2_JF();
00133         Reset_vtk_STLFile();
00134 }

Here is the call graph for this function:

wxSTLWidget_03::wxSTLWidget_03 ( wxWindow * parentmar )

Definition at line 65 of file wxSTLWidget_03.cxx.

References _2_isoActorMC6, _2_isoMapperMC6, _2_isoMC6, _2_mapfinal, _2_stripfinal, _cast, _connect, _connect2, _imagedata, _imageviewer3D, _loadActorSTL, _loadSTLMapper, _maxSize, _minSize, _sl_opacity_STL_file, _stlDeltaGaussLevel, _stlMarchingCubesLevel, _thresh, _thresh2, _wxMaracasMPR, actorExternal, actorInternal, arteryImageData, cast2, cast3, cast4, CreateControlPanel(), CreateViewPanel(), dsm1, dsm2, joinActor, joiner, joinMapper, joinMarchingCubes, sl_barrange_segmentation, stlExterna, stlExtractor, stlInterna, stlSliderDeltaGauss, stlSliderMarchingCubes, stlSliderOpacityExternal, and stlSliderOpacityInternal.

00066 : wxPanel( parent, -1)
00067 {
00068         _imagedata=NULL;
00069         cast2=NULL;
00070         cast3=NULL;
00071         cast4=NULL; // binary segmentation result
00072         _thresh=NULL;
00073         _thresh2=NULL;
00074         _cast=NULL;
00075         _connect=NULL;
00076         _connect2=NULL;
00077         _2_mapfinal=NULL;
00078         _2_stripfinal=NULL;
00079         _2_isoMapperMC6=NULL;
00080         _2_isoActorMC6=NULL;
00081         _2_isoMC6=NULL;
00082         _loadSTLMapper=NULL;
00083         _loadActorSTL=NULL;
00084         sl_barrange_segmentation=NULL;
00085         _imageviewer3D=NULL;
00086         _wxMaracasMPR=NULL;
00087         stlInterna=NULL;
00088         stlExterna=NULL;
00089         stlSliderDeltaGauss=NULL;
00090         stlSliderMarchingCubes=NULL;
00091         dsm1=NULL;
00092     actorInternal=NULL;
00093         stlSliderOpacityInternal=NULL;
00094         dsm2=NULL;
00095     actorExternal=NULL;
00096         stlSliderOpacityExternal=NULL;
00097         stlExtractor=NULL;
00098         _sl_opacity_STL_file=NULL;
00099         arteryImageData=NULL;
00100         joiner=NULL;
00101         joinMarchingCubes=NULL;
00102     joinMapper=NULL;
00103         joinActor=NULL;
00104         _maxSize                = 2000;
00105         _minSize                = 300;
00106
00107         _stlMarchingCubesLevel  = 128;
00108         _stlDeltaGaussLevel             = 100;
00109
00110         /*_mar=new marInterface();
00111         _mar->_parameters->setRescaleSlope( mar->_parameters->getRescaleSlope() );
00112         _mar->_parameters->setRescaleIntercept( mar->_parameters->getRescaleIntercept() );
00113         _mar->_parameters->setIntParam( marParameters::e_voxel_type, marParameters::VOX_TYPE_MINIMUM );
00114         _mar->_parameters->setDoubleParam( marParameters::e_voxel_x_dimension, mar->_parameters->getDoubleParam(marParameters::e_voxel_x_dimension) );
00115         _mar->_parameters->setDoubleParam( marParameters::e_voxel_y_dimension, mar->_parameters->getDoubleParam(marParameters::e_voxel_y_dimension) );
00116         _mar->_parameters->setDoubleParam( marParameters::e_voxel_z_dimension, mar->_parameters->getDoubleParam(marParameters::e_voxel_z_dimension) );
00117         int voi[6];
00118         mar->_experiment->getVOI( voi );
00119         _mar->_experiment->setVOI( voi );
00120         _mar->SetDicom(mar->_dicom);
00121         _mar->initExperiment( );*/
00122
00123
00124         wxBoxSizer              *sizer          = new wxBoxSizer(wxVERTICAL  );
00125         wxSplitterWindow        *pnlSplitter    = new wxSplitterWindow( this , -1);
00126         wxPanel                 *viewPanel      = CreateViewPanel(pnlSplitter);
00127         wxPanel                 *controlPanel   = CreateControlPanel(pnlSplitter);
00128
00129         sizer           -> Add( pnlSplitter ,1,wxGROW  ,0);
00130         pnlSplitter     -> SetMinimumPaneSize( 150 );
00131         pnlSplitter     -> SplitVertically( viewPanel, controlPanel, 600 );
00132
00133 //      pnlSplitter     -> SplitVertically( new wxPanel(pnlSplitter,-1), new wxPanel(pnlSplitter,-1) , 600 );
00134 //      pnlSplitter     -> SplitVertically( viewPanel, new wxPanel(pnlSplitter,-1) , 600 );
00135
00136         this            -> SetSizer(sizer);
00137
00138
00139
00140 }

Here is the call graph for this function:

wxSTLWidget_03::~wxSTLWidget_03 ( )

Member Function Documentation

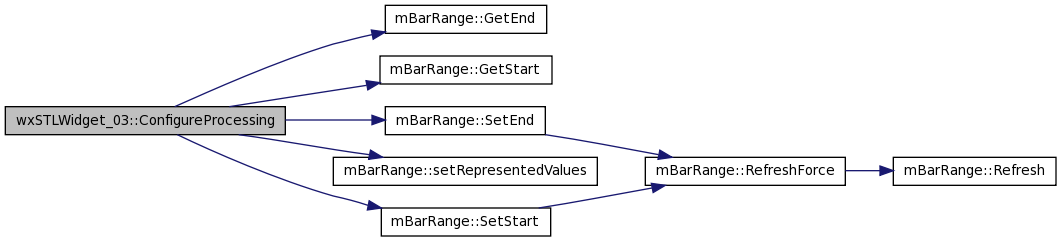

void wxSTLWidget_03::ConfigureProcessing	(	vtkImageData *	img,
		int	x,
		int	y,
		int	z
	)			`[private]`

Definition at line 469 of file wxSTLWidget_03.cxx.

References _cast, _connect, _connect2, _imagedata, _range, _thresh, _thresh2, cast2, cast3, cast4, mBarRange::GetEnd(), mBarRange::GetStart(), lastResizeRef_Value, maxRangeValue, minRangeValue, mBarRange::SetEnd(), mBarRange::setRepresentedValues(), mBarRange::SetStart(), and sl_barrange_segmentation.

00470 {
00471     wxBusyCursor wait;
00472
00473         _imagedata=img;
00474
00475
00476         double puntoactualprov[3];
00477         puntoactualprov[0] = x;
00478         puntoactualprov[1] = y;
00479         puntoactualprov[2] = z;
00480
00481         double espprin[3];
00482         int extprin[6];
00483
00484         _imagedata->GetSpacing(espprin);
00485         _imagedata->GetExtent(extprin);
00486
00487
00488 // MAZV 27 sep 2006
00489 //      puntoactualprov[0]=puntoactualprov[0]*espprin[0];
00490 //      puntoactualprov[1]=puntoactualprov[1]*espprin[1];
00491 //      puntoactualprov[2]=puntoactualprov[2]*espprin[2];
00492
00493     _imagedata->GetScalarRange( _range );
00494
00495         // Update Controls
00496         //SIL//
00497         /*_sl_minSize->SetRange( (int)(_range[0]), (int)( _range[1]) );
00498         _sl_minSize->SetValue( (int)(_range[1]/4) );
00499
00500         _sl_maxSize->SetRange( (int)(_range[0]) , (int)(_range[1]));
00501         _sl_maxSize->SetValue( (int)(_range[1]/2) );*/
00502
00503         //SIL//
00504         minRangeValue = _range[0];
00505         maxRangeValue = _range[1];
00506
00507         sl_barrange_segmentation ->setRepresentedValues(minRangeValue, maxRangeValue);
00508         sl_barrange_segmentation ->SetStart((int)(maxRangeValue/4));
00509         sl_barrange_segmentation ->SetEnd((int)(maxRangeValue/2));
00510         sl_barrange_segmentation -> RefreshForce();
00511         lastResizeRef_Value = ( maxRangeValue - minRangeValue)/2;
00512
00513 // MAZV 27 sep 2006
00514 //      _highthreshold->SetRange(_range[0], _range[1]);
00515 //      _highthreshold->SetValue( _range[1] );
00516
00517 //      _zslice->SetRange(extprin[4], extprin[5]);
00518 //      _zslice->SetValue(extprin[5]/2);
00519
00520         if(_thresh==NULL){
00521                 _thresh = vtkImageThreshold::New();
00522                 //_thresh->ReleaseDataFlagOff();
00523                 _thresh->SetInValue(255);
00524                 _thresh->SetOutputScalarTypeToUnsignedShort();
00525                 _thresh->SetOutValue(0);
00526                 //_thresh->ThresholdBetween(_sl_minSize->GetValue(), _range[1]);
00527                 //SIL//
00528                 _cast = vtkImageCast::New();
00529                 _cast->SetInput(_thresh->GetOutput());
00530                 _cast->SetOutputScalarTypeToUnsignedChar();
00531
00532                 _connect = vtkImageSeedConnectivity::New();
00533                 _connect->SetInput(_cast->GetOutput());
00534                 _connect->SetInputConnectValue(255);
00535                 _connect->SetOutputConnectedValue(255);
00536                 _connect->SetOutputUnconnectedValue(0);
00537
00538                 cast3 = vtkImageCast::New();
00539                 cast3->SetInput(_connect->GetOutput());
00540                 cast3->SetOutputScalarTypeToUnsignedShort();
00541
00542                 _thresh2 = vtkImageThreshold::New();
00543                 //_thresh2->ReleaseDataFlagOff();
00544                 _thresh2->SetInValue(255);
00545                 _thresh2->SetOutputScalarTypeToUnsignedShort();
00546                 _thresh2->SetOutValue(0);
00547                 //SIL//_thresh2->ThresholdBetween(_sl_minSize->GetValue(), _sl_maxSize->GetValue());
00548
00549                 cast2 = vtkImageCast::New();
00550                 cast2->SetInput(_thresh2->GetOutput());
00551                 cast2->SetOutputScalarTypeToUnsignedChar();
00552                 _connect2 = vtkImageSeedConnectivity::New();
00553                 _connect2->SetInput(cast2->GetOutput());
00554                 _connect2->SetInputConnectValue(255);
00555                 _connect2->SetOutputConnectedValue(255);
00556                 _connect2->SetOutputUnconnectedValue(0);
00557
00558                 cast4 = vtkImageCast::New();
00559                 cast4->SetInput(_connect2->GetOutput());
00560                 cast4->SetOutputScalarTypeToUnsignedShort();
00561         }
00562         _thresh->RemoveAllInputs();
00563         _thresh->SetInput(_imagedata);
00564         _thresh->ThresholdBetween(sl_barrange_segmentation->GetStart(), sl_barrange_segmentation->GetEnd());
00565         _thresh->Update();
00566
00567         _cast->Update();
00568
00569
00570         _connect->RemoveAllSeeds();
00571         _connect->AddSeed((int)(puntoactualprov[0]), (int)(puntoactualprov[1]), (int)(puntoactualprov[2]));
00572         //_connect->Update();
00573         //cast3->Update();
00574 //SIL//
00575         _thresh2->RemoveAllInputs();
00576         _thresh2->SetInput(_imagedata);
00577         _thresh2->ThresholdBetween(sl_barrange_segmentation->GetStart(), sl_barrange_segmentation->GetEnd());
00578         _thresh2->Update();
00579         cast2->Update();
00580         _connect2->RemoveAllSeeds();
00581         _connect2->AddSeed( (int)(puntoactualprov[0]), (int)(puntoactualprov[1]), (int)(puntoactualprov[2]));
00582         //_connect2->Update();
00583         //cast4->Update();
00584 }

Here is the call graph for this function:

void wxSTLWidget_03::ConfigureProcessing	(	marImageData *	marimagedata,
		int	x,
		int	y,
		int	z
	)			`[private]`

Definition at line 427 of file Copie de wxSTLWidget_03.cxx.

References _connect, _connect2, _imagedata, _range, _thresh, _thresh2, cast2, cast3, cast4, mBarRange::GetEnd(), marImageData::GetImageData(), mBarRange::GetStart(), lastResizeRef_Value, maxRangeValue, minRangeValue, mBarRange::SetEnd(), mBarRange::setRepresentedValues(), mBarRange::SetStart(), and sl_barrange_segmentation.

Referenced by ConfigureVTK(), and setImage().

00428 {
00429     wxBusyCursor wait;
00430
00431         _imagedata=marimagedata->GetImageData(); // image t=0
00432         _imagedata->UpdateInformation();
00433         _imagedata->SetUpdateExtent(_imagedata->GetWholeExtent());
00434         _imagedata->Update();
00435
00436
00437         double puntoactualprov[3];
00438         puntoactualprov[0] = x;
00439         puntoactualprov[1] = y;
00440         puntoactualprov[2] = z;
00441
00442         double espprin[3];
00443         int extprin[6];
00444
00445         _imagedata->GetSpacing(espprin);
00446         _imagedata->GetExtent(extprin);
00447
00448
00449 // MAZV 27 sep 2006
00450 //      puntoactualprov[0]=puntoactualprov[0]*espprin[0];
00451 //      puntoactualprov[1]=puntoactualprov[1]*espprin[1];
00452 //      puntoactualprov[2]=puntoactualprov[2]*espprin[2];
00453
00454     _imagedata->GetScalarRange( _range );
00455
00456         // Update Controls
00457         //SIL//
00458         /*_sl_minSize->SetRange( (int)(_range[0]), (int)( _range[1]) );
00459         _sl_minSize->SetValue( (int)(_range[1]/4) );
00460
00461         _sl_maxSize->SetRange( (int)(_range[0]) , (int)(_range[1]));
00462         _sl_maxSize->SetValue( (int)(_range[1]/2) );*/
00463
00464         //SIL//
00465         minRangeValue = _range[0];
00466         maxRangeValue = _range[1];
00467
00468         sl_barrange_segmentation ->setRepresentedValues(minRangeValue, maxRangeValue);
00469         sl_barrange_segmentation ->SetStart((int)(maxRangeValue/4));
00470         sl_barrange_segmentation ->SetEnd((int)(maxRangeValue/2));
00471         sl_barrange_segmentation -> RefreshForce();
00472         lastResizeRef_Value = ( maxRangeValue - minRangeValue)/2;
00473
00474 // MAZV 27 sep 2006
00475 //      _highthreshold->SetRange(_range[0], _range[1]);
00476 //      _highthreshold->SetValue( _range[1] );
00477
00478 //      _zslice->SetRange(extprin[4], extprin[5]);
00479 //      _zslice->SetValue(extprin[5]/2);
00480
00481         _thresh = vtkImageThreshold::New();
00482         _thresh->SetInput(_imagedata);
00483         //_thresh->ReleaseDataFlagOff();
00484         _thresh->SetInValue(255);
00485         _thresh->SetOutputScalarTypeToUnsignedShort();
00486         _thresh->SetOutValue(0);
00487         //_thresh->ThresholdBetween(_sl_minSize->GetValue(), _range[1]);
00488         //SIL//
00489         _thresh->ThresholdBetween(sl_barrange_segmentation->GetStart(), sl_barrange_segmentation->GetEnd());
00490
00491         vtkImageCast *cast = vtkImageCast::New();
00492         cast->SetInput(_thresh->GetOutput());
00493         cast->SetOutputScalarTypeToUnsignedChar();
00494         cast->Update();
00495
00496
00497         _connect = vtkImageSeedConnectivity::New();
00498         _connect->SetInput(cast->GetOutput());
00499         _connect->SetInputConnectValue(255);
00500         _connect->SetOutputConnectedValue(255);
00501         _connect->SetOutputUnconnectedValue(0);
00502         _connect->AddSeed((int)(puntoactualprov[0]), (int)(puntoactualprov[1]), (int)(puntoactualprov[2]));
00503 //      _connect->Update();
00504
00505         cast3 = vtkImageCast::New();
00506         cast3->SetInput(_connect->GetOutput());
00507         cast3->SetOutputScalarTypeToUnsignedShort();
00508         cast3->Update();
00509 //SIL//
00510
00511         _thresh2 = vtkImageThreshold::New();
00512         _thresh2->SetInput(_imagedata);
00513         //_thresh2->ReleaseDataFlagOff();
00514         _thresh2->SetInValue(255);
00515         _thresh2->SetOutputScalarTypeToUnsignedShort();
00516         _thresh2->SetOutValue(0);
00517         //SIL//_thresh2->ThresholdBetween(_sl_minSize->GetValue(), _sl_maxSize->GetValue());
00518         _thresh2->ThresholdBetween(sl_barrange_segmentation->GetStart(), sl_barrange_segmentation->GetEnd());
00519
00520         cast2 = vtkImageCast::New();
00521         cast2->SetInput(_thresh2->GetOutput());
00522         cast2->SetOutputScalarTypeToUnsignedChar();
00523         cast2->Update();
00524
00525         _connect2 = vtkImageSeedConnectivity::New();
00526         _connect2->SetInput(cast2->GetOutput());
00527         _connect2->SetInputConnectValue(255);
00528         _connect2->SetOutputConnectedValue(255);
00529         _connect2->SetOutputUnconnectedValue(0);
00530         _connect2->AddSeed( (int)(puntoactualprov[0]), (int)(puntoactualprov[1]), (int)(puntoactualprov[2]));
00531         _connect2->Update();
00532
00533         cast4 = vtkImageCast::New();
00534         cast4->SetInput(_connect2->GetOutput());
00535         cast4->SetOutputScalarTypeToUnsignedShort();
00536         cast4->Update();
00537 }

Here is the call graph for this function:

Here is the caller graph for this function:

void wxSTLWidget_03::ConfigureSTL ( ) [private]

Definition at line 882 of file Copie de wxSTLWidget_03.cxx.

References _wxMaracasMPR, actorExternal, actorInternal, dsm1, dsm2, wxVtk3DBaseView::GetRenderer(), wxVtkMPR3DView::GetWxvtk3Dbaseview(), wxMaracasMPR::GetWxvtkmpr3Dview_BB(), stlExterna, stlExtractor, and stlInterna.

Referenced by ConfigureVTK(), and setImage().

00883 {
00884         stlExterna = vtkPolyData::New();
00885         stlInterna = vtkPolyData::New();
00886
00887         dsm1 = vtkPolyDataMapper ::New();
00888     dsm1->SetInput (stlInterna);
00889     dsm1->ScalarVisibilityOff();
00890
00891     actorInternal = vtkActor::New();
00892     actorInternal->SetMapper (dsm1);
00893     actorInternal->GetProperty()->SetColor (0,1,0);
00894
00895     dsm2 = vtkPolyDataMapper ::New();
00896     dsm2->SetInput (stlExterna);
00897     dsm2->ScalarVisibilityOff();
00898
00899     actorExternal= vtkActor::New();
00900     actorExternal->SetMapper (dsm2);
00901     actorExternal->GetProperty()->SetRepresentationToWireframe();
00902
00903 //    vtkRenderer *ren = _maracasSurfaceWidget->GetVtk3DSurfaceWidget()->GetRenderer();
00904         vtkRenderer *ren = _wxMaracasMPR->GetWxvtkmpr3Dview_BB()->GetWxvtk3Dbaseview()->GetRenderer();
00905     ren->AddActor(actorInternal);
00906     ren->AddActor(actorExternal);
00907
00908         stlExtractor = new vtkSTLExtractor();
00909 }

Here is the call graph for this function:

Here is the caller graph for this function:

void wxSTLWidget_03::ConfigureVTK ( )

Definition at line 543 of file Copie de wxSTLWidget_03.cxx.

References marInterface::_experiment, _mar, ConfigureProcessing(), ConfigureSTL(), marExperiment::getDynData(), and marDynData::GetMarImageData().

00544 {
00545         wxBusyCursor wait;
00546 //      vtkImageData    *imagedata              = _mar->_experiment->getDynData( )->getVolume( )->castVtk();
00547         marImageData    *marimagedata           = _mar->_experiment->getDynData( )->GetMarImageData();
00548
00549         //CONFIGURACION ADICIONAL
00550         this->ConfigureSTL();
00551         this->ConfigureProcessing(marimagedata,0,0,0);
00552
00553 }

Here is the call graph for this function:

wxPanel* wxSTLWidget_03::CreateControlPanel ( wxWindow * parent ) [private]

wxPanel * wxSTLWidget_03::CreateControlPanel ( wxWindow * parent ) [private]

Definition at line 389 of file Copie de wxSTLWidget_03.cxx.

References CreateReadSTLFilePanel(), CreateSegmentationPanel(), CreateSelectAPointPanel(), and CreateSmoothingPanel().

Referenced by wxSTLWidget_03().

00390 {
00391 printf("EED wxSTLWidget_03::CreateControlPanel 01\n");
00392         wxPanel *panel                  = new wxPanel(parent,-1);
00393
00394         wxNotebook *noteBook    = new wxNotebook(panel, -1);
00395 printf("EED wxSTLWidget_03::CreateControlPanel 02\n");
00396         noteBook->AddPage(CreateSelectAPointPanel(noteBook),_T("0 ->") );
00397 printf("EED wxSTLWidget_03::CreateControlPanel 03\n");
00398         noteBook->AddPage(CreateSegmentationPanel(noteBook),_T("1 ->") );
00399 printf("EED wxSTLWidget_03::CreateControlPanel 04\n");
00400         noteBook->AddPage(CreateSmoothingPanel(noteBook)   ,_T("2 ->") );
00401 printf("EED wxSTLWidget_03::CreateControlPanel 05\n");
00402         noteBook->AddPage(CreateReadSTLFilePanel(noteBook) ,_T("3 "  ) );
00403 printf("EED wxSTLWidget_03::CreateControlPanel 06\n");
00404         noteBook->SetSelection(0);
00405         noteBook->SetSize(350,250);
00406     wxFlexGridSizer *sizer = new wxFlexGridSizer(2);
00407         sizer->Add(noteBook);
00408         panel->SetSizer(sizer);
00409         panel->SetAutoLayout(true);
00410         panel->SetSize(400,600);
00411         panel->Layout();
00412
00413 printf("EED wxSTLWidget_03::CreateControlPanel 07\n");
00414         return panel;
00415 }

Here is the call graph for this function:

Here is the caller graph for this function:

wxWindow* wxSTLWidget_03::CreateReadSTLFilePanel ( wxWindow * parent ) [private]

wxWindow * wxSTLWidget_03::CreateReadSTLFilePanel ( wxWindow * parent ) [private]

Definition at line 350 of file Copie de wxSTLWidget_03.cxx.

References _sl_opacity_STL_file, OnBtnSTLFileErase(), OnBtnSTLFileLoad(), and OnOpacitySTLFile().

Referenced by CreateControlPanel().

00351 {
00352         wxPanel *panel          = new wxPanel(parent,-1);
00353
00354         wxButton *btnReadSTLFile                        = new wxButton(panel,-1,_T("Read STL File"));
00355         wxButton *btnEraseReadSTLFile           = new wxButton(panel,-1,_T("Erase STL File"));
00356         _sl_opacity_STL_file                            = new wxSlider( panel, -1, 100 , 0, 100 , wxDefaultPosition, wxSize(200,40), wxSL_HORIZONTAL | wxSL_LABELS );
00357
00358         Connect(btnReadSTLFile->GetId()                 , wxEVT_COMMAND_BUTTON_CLICKED  , (wxObjectEventFunction) &wxSTLWidget_03::OnBtnSTLFileLoad                     );
00359         Connect(btnEraseReadSTLFile->GetId()    , wxEVT_COMMAND_BUTTON_CLICKED  , (wxObjectEventFunction) &wxSTLWidget_03::OnBtnSTLFileErase                    );
00360         Connect(_sl_opacity_STL_file->GetId()   , wxEVT_SCROLL_THUMBRELEASE     , (wxObjectEventFunction) &wxSTLWidget_03::OnOpacitySTLFile                             );
00361
00362
00363     wxFlexGridSizer *sizer = new wxFlexGridSizer(2);
00364
00365         sizer->Add(new wxStaticText(panel,-1,_T("  ")));
00366         sizer->Add(new wxStaticText(panel,-1,_T("  ")));
00367         sizer->Add(new wxStaticText(panel,-1,_T("  ")));
00368         sizer->Add(new wxStaticText(panel,-1,_T("  ")));
00369
00370         sizer->Add(new wxStaticText(panel,-1,_T("-- Read STL File --")));
00371         sizer->Add(new wxStaticText(panel,-1,_T("  ")));
00372
00373         sizer->Add(new wxStaticText(panel,-1,_T("  ")));
00374         sizer->Add(new wxStaticText(panel,-1,_T("  ")));
00375
00376         sizer->Add(btnReadSTLFile );
00377         sizer->Add(btnEraseReadSTLFile );
00378         sizer->Add(new wxStaticText(panel, -1,_T(" Opacity STL File")));
00379         sizer->Add(_sl_opacity_STL_file);
00380
00381
00382         panel->SetSizer(sizer);
00383         panel->SetAutoLayout(true);
00384         panel->SetSize(400,600);
00385         panel->Layout();
00386         return panel;
00387 }

Here is the call graph for this function:

Here is the caller graph for this function:

wxWindow* wxSTLWidget_03::CreateSegmentationPanel ( wxWindow * parent ) [private]

wxWindow * wxSTLWidget_03::CreateSegmentationPanel ( wxWindow * parent ) [private]

Definition at line 193 of file Copie de wxSTLWidget_03.cxx.

References _opacity_Vol, _sl_RangeSizeSpin, OnBarMoved_range(), OnBtnExtraction(), OnBtnSaveBinaryFile(), OnEndChanged_range(), OnOpacity_Vol(), OnRangeSpin(), OnStartChanged_range(), and sl_barrange_segmentation.

Referenced by CreateControlPanel().

00194 {
00195         wxPanel *panel          = new wxPanel(parent,-1);
00196
00197
00198         _opacity_Vol            = new wxSlider( panel, -1, 40, 0, 100                            , wxDefaultPosition, wxSize(200,40), wxSL_HORIZONTAL | wxSL_LABELS );
00199         _opacity_Vol    ->SetSize(250,20);
00200         /*SIL
00201         _sl_maxSize                     = new wxSlider( panel, -1, 300 , 0, 2000 , wxDefaultPosition, wxSize(200,40), wxSL_HORIZONTAL  |  wxSL_AUTOTICKS | wxSL_LABELS );
00202         _sl_minSize                     = new wxSlider( panel, -1, 200 , 0, 2000 , wxDefaultPosition, wxSize(200,40), wxSL_HORIZONTAL  |  wxSL_AUTOTICKS | wxSL_LABELS );
00203
00204         _sl_minSizeSpin = new wxSlider(panel , -1,5,1,10,wxDefaultPosition , wxSize(25,45), wxSL_VERTICAL | wxSL_AUTOTICKS |wxSL_LEFT  );
00205         _sl_minSizeSpin->SetRange(1,8);
00206         _sl_minSizeSpin->SetValue(5);
00207
00208         _sl_maxSizeSpin = new wxSlider(panel , -1,5,1,10,wxDefaultPosition , wxSize(25,45), wxSL_VERTICAL | wxSL_AUTOTICKS |wxSL_LEFT  );
00209         _sl_maxSizeSpin->SetRange(1,8);
00210         _sl_maxSizeSpin->SetValue(5);
00211
00212         */
00213
00214         _sl_RangeSizeSpin = new wxSlider(panel , -1,5,1,10,wxDefaultPosition , wxSize(25,45), wxSL_VERTICAL | wxSL_AUTOTICKS |wxSL_LEFT  );
00215         _sl_RangeSizeSpin->SetRange(1,8);
00216         _sl_RangeSizeSpin->SetValue(5);
00217
00218
00219         //SIL//
00220         sl_barrange_segmentation = new mBarRange(panel, 300,70);
00221         sl_barrange_segmentation -> setVisibleLabels ( true );
00222         sl_barrange_segmentation -> setIfWithActualDrawed( false );
00223         sl_barrange_segmentation -> setActiveStateTo ( true );
00224         sl_barrange_segmentation -> setRepresentedValues (0,  2000);
00225         sl_barrange_segmentation -> setDeviceBlitStart (10,10);
00226         sl_barrange_segmentation -> setDeviceEndMargin(10);
00227         parent->SetBackgroundColour(wxColour(255,255,255));
00228         sl_barrange_segmentation-> setBackgroundColor( wxColour(255,255,255 ));
00229
00230
00231         wxButton *btnExtract                            = new wxButton(panel,-1,_T("Segmentation"));
00232         wxButton *btnSaveBinaryFile                     = new wxButton(panel,-1,_T("Save Binary File"));
00233
00234 //SIL// Connect(_sl_minSizeSpin->GetId()        , wxEVT_COMMAND_SLIDER_UPDATED   , (wxObjectEventFunction) &wxSTLWidget_03::OnMinSpin );
00235 //SIL// Connect(_sl_maxSizeSpin->GetId()        , wxEVT_COMMAND_SLIDER_UPDATED   , (wxObjectEventFunction) &wxSTLWidget_03::OnMaxSpin );
00236         Connect(_opacity_Vol->GetId()           , wxEVT_COMMAND_SLIDER_UPDATED  , (wxObjectEventFunction) &wxSTLWidget_03::OnOpacity_Vol                                        );
00237         Connect(btnExtract->GetId()                     , wxEVT_COMMAND_BUTTON_CLICKED  , (wxObjectEventFunction) &wxSTLWidget_03::OnBtnExtraction                                      );
00238         Connect(btnSaveBinaryFile->GetId()      , wxEVT_COMMAND_BUTTON_CLICKED  , (wxObjectEventFunction) &wxSTLWidget_03::OnBtnSaveBinaryFile                          );
00239
00240         //SIL//
00241         Connect(_sl_RangeSizeSpin->GetId()      , wxEVT_COMMAND_SLIDER_UPDATED   , (wxObjectEventFunction) &wxSTLWidget_03::OnRangeSpin );
00242         Connect(sl_barrange_segmentation->GetId(),wxEVT_TSBAR_START,(wxObjectEventFunction) (wxCommandEventFunction)  &wxSTLWidget_03::OnStartChanged_range );
00243         Connect(sl_barrange_segmentation->GetId(),wxEVT_TSBAR_END,(wxObjectEventFunction) (wxCommandEventFunction)  &wxSTLWidget_03::OnEndChanged_range );
00244         Connect(sl_barrange_segmentation->GetId(),wxEVT_TSBAR_MOVED,(wxObjectEventFunction) (wxCommandEventFunction)  &wxSTLWidget_03::OnBarMoved_range );
00245
00246     wxFlexGridSizer *sizer = new wxFlexGridSizer(2);
00247
00248         sizer->Add(new wxStaticText(panel,-1,_T("  ")));
00249         sizer->Add(new wxStaticText(panel,-1,_T("  ")));
00250
00251
00252         sizer->Add(new wxStaticText(panel,-1,_T("  - - -  Segmentation - - - ")));
00253         sizer->Add(new wxStaticText(panel,-1,_T("  ")));
00254
00255
00256         sizer->Add(new wxStaticText(panel,-1,_T("  ")));
00257         sizer->Add(new wxStaticText(panel,-1,_T("  ")));
00258
00259         /*sizer->Add(new wxStaticText(panel,-1,_T(" Threshold min")));
00260         sizer->Add(new wxStaticText(panel,-1,_T("  ")));
00261         sizer->Add(_sl_minSizeSpin, 1, wxALL|wxEXPAND, 0);*/
00262         //sizer->Add(_sl_minSize, 1, wxALL|wxEXPAND, 0);
00263
00264         sizer->Add(new wxStaticText(panel,-1,_T(" Threshold min-max")));
00265         sizer->Add(new wxStaticText(panel,-1,_T("  ")));
00266         sizer->Add(_sl_RangeSizeSpin, 1, wxALL|wxEXPAND, 0);
00267         sizer->Add(sl_barrange_segmentation,3,wxALL|wxGROW,0 );
00268
00269         //SIL//sizer->Add(new wxStaticText(panel,-1,_T(" Threshold max")));
00270         //SIL//sizer->Add(new wxStaticText(panel,-1,_T("  ")));
00271         //SIL// sizer->Add(_sl_maxSizeSpin, 1, wxALL|wxEXPAND, 0);
00272         //SIL//sizer->Add(_sl_maxSize, 1, wxALL|wxEXPAND, 0);
00273
00274         sizer->Add(btnExtract);
00275         sizer->Add(new wxStaticText(panel,-1,_T(" ")));
00276
00277         sizer->Add(new wxStaticText(panel,-1,_T("  ")));
00278         sizer->Add(new wxStaticText(panel,-1,_T("  ")));
00279         sizer->Add(new wxStaticText(panel,-1,_T("Opacity - Result Volume")));
00280         sizer->Add(_opacity_Vol);
00281
00282         sizer->Add(new wxStaticText(panel,-1,_T("  ")));
00283         sizer->Add(new wxStaticText(panel,-1,_T("  ")));
00284         sizer->Add(btnSaveBinaryFile);
00285         sizer->Add(new wxStaticText(panel,-1,_T("  ")));
00286
00287         panel->SetSizer(sizer);
00288         panel->SetAutoLayout(true);
00289         panel->SetSize(400,600);
00290         panel->Layout();
00291
00292         return panel;
00293 }

Here is the call graph for this function:

Here is the caller graph for this function:

wxWindow* wxSTLWidget_03::CreateSelectAPointPanel ( wxWindow * parent ) [private]

wxWindow * wxSTLWidget_03::CreateSelectAPointPanel ( wxWindow * parent ) [private]

Definition at line 161 of file Copie de wxSTLWidget_03.cxx.

Referenced by CreateControlPanel().

00162 {
00163 printf("EED wxSTLWidget_03::CreateSelectAPointPanel  01\n");
00164         wxPanel *panel          = new wxPanel(parent,-1);
00165
00166 printf("EED wxSTLWidget_03::CreateSelectAPointPanel  02\n");
00167
00168     wxFlexGridSizer *sizer = new wxFlexGridSizer(2);
00169 printf("EED wxSTLWidget_03::CreateSelectAPointPanel  03\n");
00170
00171         sizer->Add(new wxStaticText(panel,-1,_T("  ")));
00172         sizer->Add(new wxStaticText(panel,-1,_T("  ")));
00173 printf("EED wxSTLWidget_03::CreateSelectAPointPanel  04\n");
00174
00175         sizer->Add(new wxStaticText(panel,-1,_T("  ")));
00176         sizer->Add(new wxStaticText(panel,-1,_T("  ")));
00177 printf("EED wxSTLWidget_03::CreateSelectAPointPanel  05\n");
00178
00179         sizer->Add(new wxStaticText(panel,-1,_T(" Select a 3D Point...")));
00180         sizer->Add(new wxStaticText(panel,-1,_T("  ")));
00181 printf("EED wxSTLWidget_03::CreateSelectAPointPanel  06\n");
00182
00183         panel->SetSizer(sizer);
00184         panel->SetAutoLayout(true);
00185         panel->SetSize(400,600);
00186         panel->Layout();
00187 printf("EED wxSTLWidget_03::CreateSelectAPointPanel  07\n");
00188
00189
00190         return panel;
00191 }

Here is the caller graph for this function:

wxWindow* wxSTLWidget_03::CreateSmoothingPanel ( wxWindow * parent ) [private]

wxWindow * wxSTLWidget_03::CreateSmoothingPanel ( wxWindow * parent ) [private]

Definition at line 295 of file Copie de wxSTLWidget_03.cxx.

References _stlDeltaGaussLevel, _stlMarchingCubesLevel, OnBtnCreateFileSTL(), OnChangeSTLGaussLevel(), OnChangeSTLMarchingCubesLevel(), OnOpacitySTLExternal(), OnOpacitySTLInternal(), stlSliderDeltaGauss, stlSliderMarchingCubes, stlSliderOpacityExternal, and stlSliderOpacityInternal.

Referenced by CreateControlPanel().

00296 {
00297         wxPanel *panel          = new wxPanel(parent,-1);
00298
00299         stlSliderDeltaGauss     = new wxSlider( panel, -1, (int)(_stlDeltaGaussLevel) , 0, 300 , wxDefaultPosition, wxSize(200,40), wxSL_HORIZONTAL | wxSL_LABELS );
00300         stlSliderMarchingCubes= new wxSlider( panel, -1, (int)(_stlMarchingCubesLevel) , 0, 256 , wxDefaultPosition, wxSize(200,40), wxSL_HORIZONTAL | wxSL_LABELS );
00301         stlSliderOpacityInternal = new wxSlider(panel, -1, 100,0,100, wxDefaultPosition, wxSize(200,40), wxSL_HORIZONTAL | wxSL_LABELS);
00302         stlSliderOpacityExternal = new wxSlider(panel, -1, 100,0,100, wxDefaultPosition, wxSize(200,40), wxSL_HORIZONTAL | wxSL_LABELS);
00303         wxButton *btnFileSTL = new wxButton(panel,-1,_T("Generate STL files"));
00304
00305         Connect(btnFileSTL->GetId()                             , wxEVT_COMMAND_BUTTON_CLICKED  , (wxObjectEventFunction) &wxSTLWidget_03::OnBtnCreateFileSTL                   );
00306         Connect(stlSliderDeltaGauss->GetId()    , wxEVT_SCROLL_THUMBRELEASE             , (wxObjectEventFunction) &wxSTLWidget_03::OnChangeSTLGaussLevel                );
00307         Connect(stlSliderMarchingCubes->GetId() , wxEVT_SCROLL_THUMBRELEASE             , (wxObjectEventFunction) &wxSTLWidget_03::OnChangeSTLMarchingCubesLevel);
00308         Connect(stlSliderOpacityInternal->GetId(), wxEVT_COMMAND_SLIDER_UPDATED , (wxObjectEventFunction) &wxSTLWidget_03::OnOpacitySTLInternal                 );
00309         Connect(stlSliderOpacityExternal->GetId(), wxEVT_COMMAND_SLIDER_UPDATED , (wxObjectEventFunction) &wxSTLWidget_03::OnOpacitySTLExternal                 );
00310
00311
00312     wxFlexGridSizer *sizer = new wxFlexGridSizer(2);
00313
00314         sizer->Add(new wxStaticText(panel,-1,_T("  ")));
00315         sizer->Add(new wxStaticText(panel,-1,_T("  ")));
00316
00317         sizer->Add(new wxStaticText(panel,-1,_T("-- Smoothing --")));
00318         sizer->Add(new wxStaticText(panel,-1,_T("  ")));
00319         sizer->Add(new wxStaticText(panel,-1,_T("  ")));
00320         sizer->Add(new wxStaticText(panel,-1,_T("  ")));
00321
00322         sizer->Add(new wxStaticText(panel,-1,_T(" Delta Gauss")));
00323         sizer->Add(stlSliderDeltaGauss);
00324
00325         sizer->Add(new wxStaticText(panel,-1,_T(" Marching Cubes Level")));
00326         sizer->Add(stlSliderMarchingCubes);
00327
00328         sizer->Add(new wxStaticText(panel,-1,_T("  ")));
00329         sizer->Add(new wxStaticText(panel,-1,_T("  ")));
00330         sizer->Add(new wxStaticText(panel,-1,_T("  ")));
00331         sizer->Add(new wxStaticText(panel,-1,_T("  ")));
00332
00333         sizer->Add(new wxStaticText(panel, -1,_T(" Opacity STL Internal")));
00334         sizer->Add(stlSliderOpacityInternal);
00335
00336         sizer->Add(new wxStaticText(panel, -1,_T(" Opacity STL External")));
00337         sizer->Add(stlSliderOpacityExternal);
00338
00339         sizer->Add(btnFileSTL);
00340         sizer->Add(new wxStaticText(panel,-1,_T("  ")));
00341
00342
00343         panel->SetSizer(sizer);
00344         panel->SetAutoLayout(true);
00345         panel->SetSize(400,600);
00346         panel->Layout();
00347         return panel;
00348 }

Here is the call graph for this function:

Here is the caller graph for this function:

wxPanel* wxSTLWidget_03::CreateViewPanel ( wxWindow * parent ) [private]

wxPanel * wxSTLWidget_03::CreateViewPanel ( wxWindow * parent ) [private]

Definition at line 136 of file Copie de wxSTLWidget_03.cxx.

References marInterface::_experiment, _mar, marInterface::_parameters, _wxMaracasMPR, wxMaracasMPR::ConfigureVTK(), marExperiment::getDynData(), marDynData::getVolume(), and marParameters::getVoxelSize().

Referenced by wxSTLWidget_03().

00137 {
00138         wxPanel *panel          =       new wxPanel(parent,-1);
00139     wxBoxSizer *sizer   =       new wxBoxSizer(wxVERTICAL);
00140
00141
00142    // MPR
00143         vtkImageData *imagedata;
00144         imagedata = _mar->_experiment->getDynData( )->getVolume( )->castVtk();
00145         imagedata->Update();
00146 printf("EED wxSTLWidget_03::CreateViewPanel  01 \n");
00147         _wxMaracasMPR = new wxMaracasMPR( panel, new marImageData(imagedata), _mar->_parameters->getVoxelSize() );
00148 printf("EED wxSTLWidget_03::CreateViewPanel  02 \n");
00149         _wxMaracasMPR->ConfigureVTK();
00150 printf("EED wxSTLWidget_03::CreateViewPanel  03 \n");
00151
00152         sizer->Add(     _wxMaracasMPR , 1, wxEXPAND, 0);
00153         panel->SetSizer(sizer);
00154         panel->SetAutoLayout(true);
00155         panel->SetSize(400,400);
00156         panel->Layout();
00157 printf("EED wxSTLWidget_03::CreateViewPanel  04 \n");
00158         return panel;
00159 }

Here is the call graph for this function:

Here is the caller graph for this function:

void wxSTLWidget_03::ExtractSurface	(	int	x,
		int	y,
		int	z
	)			`[private]`

void wxSTLWidget_03::ExtractSurface	(	int	x,
		int	y,
		int	z
	)			`[private]`

Definition at line 592 of file Copie de wxSTLWidget_03.cxx.

References _2_isoActorMC6, _2_isoMapperMC6, _2_isoMC6, _connect, _connect2, _imagedata, _maxSize, _minSize, _opacity_Vol, _range, _thresh, _thresh2, _wxMaracasMPR, cast2, cast3, cast4, wxVtk3DBaseView::GetRenderer(), wxVtkMPR3DView::GetWxvtk3Dbaseview(), and wxMaracasMPR::GetWxvtkmpr3Dview_BB().

Referenced by OnBtnExtraction().

00593 {
00594
00595         double opacityvol               = ((double)_opacity_Vol->GetValue())/100;
00596 //      vtkImageData *imagedata = _mar->_experiment->getDynData( )->getVolume( )->castVtk();
00597
00598         double  puntoactualprov[3];
00599         double  espprin[3];
00600         int             extprin[6];
00601
00602
00603         puntoactualprov[0]      =       x;
00604         puntoactualprov[1]      =       y;
00605         puntoactualprov[2]      =       z;
00606
00607         _imagedata->UpdateInformation();
00608         _imagedata->SetUpdateExtent(_imagedata->GetWholeExtent());
00609         _imagedata->Update();
00610
00611         _imagedata->GetSpacing(espprin);
00612         _imagedata->GetExtent(extprin);
00613
00614
00615
00616
00617         _connect->RemoveAllSeeds ();
00618         _connect->AddSeed( (int)(puntoactualprov[0] ), (int)(puntoactualprov[1]) ,(int)( puntoactualprov[2]) );
00619         _connect->Update();
00620         cast3->Update();
00621
00622
00623
00624         _thresh->ThresholdBetween(3000, 3002 );
00625         _thresh2->ThresholdBetween(3000, 3001);
00626 //      _thresh->Update();
00627 //      _thresh2->Update();
00628
00629         _thresh->ThresholdBetween(_minSize, _range[1] );
00630         _thresh->Update();
00631
00632         _thresh2->ThresholdBetween(_minSize, _maxSize);
00633         _thresh2->Update();
00634
00635         cast2->Update();
00636         _connect2->RemoveAllSeeds ();
00637         _connect2->AddSeed( (int)(puntoactualprov[0]) , (int)(puntoactualprov[1]) , (int)(puntoactualprov[2]) );
00638         _connect2->Update();
00639         cast4->Update();
00640
00641
00642
00643
00644         // Visualisation - result volume
00645
00646     _2_isoMC6 = vtkMarchingCubes::New();
00647         _2_isoMC6->SetInput(cast4->GetOutput());
00648
00649     _2_isoMC6->SetValue(0, 128);
00650         _2_isoMC6->Update();
00651
00652         _2_isoMapperMC6 = vtkPolyDataMapper::New();
00653     _2_isoMapperMC6->SetInput(_2_isoMC6->GetOutput());
00654     _2_isoMapperMC6->ScalarVisibilityOff();
00655     _2_isoMapperMC6->ImmediateModeRenderingOn();
00656
00657         vtkRenderer *ren = _wxMaracasMPR->GetWxvtkmpr3Dview_BB()->GetWxvtk3Dbaseview()->GetRenderer();
00658
00659         if (_2_isoActorMC6!=NULL)
00660         {
00661                 ren->RemoveActor(_2_isoActorMC6);
00662         }
00663
00664
00665         _2_isoActorMC6 = vtkActor::New();
00666     _2_isoActorMC6->SetMapper(_2_isoMapperMC6);
00667     _2_isoActorMC6->GetProperty()->SetColor(1.0, 1.0, 0.5);
00668     _2_isoActorMC6->GetProperty()->SetOpacity( opacityvol );
00669
00670         // Interface Update
00671
00672         ren->AddActor(_2_isoActorMC6);
00673
00674 }

Here is the call graph for this function:

Here is the caller graph for this function:

void wxSTLWidget_03::generateSTLSurfaces ( )

Definition at line 911 of file Copie de wxSTLWidget_03.cxx.

References _stlDeltaGaussLevel, _stlMarchingCubesLevel, vtkSTLExtractor::calculate(), cast4, vtkSTLExtractor::getInnerSurface(), vtkSTLExtractor::getOuterSurface(), vtkSTLExtractor::setMarchingCubesLevel(), vtkSTLExtractor::setSigmaLevel(), vtkSTLExtractor::setVolume(), stlExterna, stlExtractor, and stlInterna.

Referenced by OnBtnExtraction(), OnChangeSTLGaussLevel(), and OnChangeSTLMarchingCubesLevel().

00912 {
00913 // EED 09Janvier2007
00914 //      stlExtractor->setVolume(_2_prgov->GetVolumen());
00915
00916         stlExtractor->setVolume(cast4->GetOutput());
00917
00918         stlExtractor->setSigmaLevel(_stlDeltaGaussLevel);
00919         stlExtractor->setMarchingCubesLevel(_stlMarchingCubesLevel);
00920         stlExtractor->calculate();
00921         stlInterna->DeepCopy(stlExtractor->getInnerSurface());
00922         stlExterna->DeepCopy(stlExtractor->getOuterSurface());
00923 }

Here is the call graph for this function:

Here is the caller graph for this function:

void wxSTLWidget_03::OnBarMoved_range ( wxCommandEvent & event )

Definition at line 756 of file Copie de wxSTLWidget_03.cxx.

References mBarRange::GetEnd(), mBarRange::GetStart(), lastResizeRef_Value, and sl_barrange_segmentation.

Referenced by CreateSegmentationPanel().

00757 {
00758         lastResizeRef_Value = (sl_barrange_segmentation->GetEnd() - sl_barrange_segmentation->GetStart())/2 ;
00759 }

Here is the call graph for this function:

Here is the caller graph for this function:

void wxSTLWidget_03::OnBtnCreateFileSTL ( wxCommandEvent & event )

Definition at line 939 of file Copie de wxSTLWidget_03.cxx.

References _mar, marInterface::_parameters, marParameters::e_installation_directory, marParameters::getStringParam(), vtkClosePolyData::New(), marInterface::saveParameters(), marParameters::setStringParam(), stlExterna, and stlInterna.

Referenced by CreateSmoothingPanel().

00940 {
00941
00942         wxString dirSTL = _mar->_parameters->getStringParam(
00943     marParameters::e_installation_directory );
00944         dirSTL = ( dirSTL == _T("NO_DIRECTORY") ) ? wxGetHomeDir( ) : dirSTL;
00945
00946
00947 //      wxDirDialog dialog( this, "Choose a directory...", ( !dirSTL.IsEmpty( ) )?dirSTL: wxGetHomeDir( ) );
00948         wxFileDialog dialog( this, _T("Choose a directory..."), dirSTL , _T(""), _T("*.*"), wxSAVE );
00949
00950
00951         if( dialog.ShowModal( ) == wxID_OK )
00952         {
00953
00954
00955                 // ------------------------------------------------------------------------
00956                 //  1.  GENERATE STL FILES
00957                 // ------------------------------------------------------------------------
00958 //              const char* fileprefix = "c:\\Creatis\\";
00959                 std::string prefix ( dialog.GetPath().mb_str(wxConvUTF8) );
00960                 std::string filename;
00961
00962                 // 1.1. Se hace un filtro triangular puesto que el stl writer solo recibe poligonos triangulares.
00963
00964         vtkTriangleFilter *filtro = vtkTriangleFilter::New();
00965                 filtro->SetInput(stlInterna);
00966                 vtkPolyDataConnectivityFilter *pdcf = vtkPolyDataConnectivityFilter::New();
00967         pdcf->SetInput( filtro->GetOutput() );
00968         vtkClosePolyData *cpd = vtkClosePolyData::New();
00969         cpd->SetInput( pdcf->GetOutput() );
00970
00971                 // 1.2 se escribe a disco el archivo stl de la superficie interna
00972         cpd->Update();
00973         vtkSTLWriter *writerI = vtkSTLWriter::New();
00974         writerI->SetInput( cpd->GetOutput() );
00975 //        prefix = fileprefix;
00976                 filename=prefix+"_internal.stl";
00977         writerI->SetFileName(filename.c_str());
00978         writerI->SetFileTypeToASCII();
00979         writerI->Write();
00980         writerI->Delete();
00981
00982                 // 1.3 se escribe a disco el archivo stl de la superficie externa
00983                 filtro->SetInput(stlExterna);
00984         cpd->Update();
00985         vtkSTLWriter *writerE = vtkSTLWriter::New();
00986         writerE->SetInput( cpd->GetOutput() );
00987 //        prefix = fileprefix;
00988                 filename=prefix+"_external.stl";
00989         writerE->SetFileName( filename.c_str() );
00990         writerE->SetFileTypeToASCII();
00991         writerE->Write();
00992         writerE->Delete();
00993
00994         filtro->Delete();
00995         cpd->Delete();
00996         pdcf->Delete();
00997         }
00998
00999         //By default *always* update e_installation_directory:
01000         _mar->_parameters->setStringParam( marParameters::e_installation_directory, dialog.GetPath( ) );
01001         _mar->saveParameters( );
01002 }

Here is the call graph for this function:

Here is the caller graph for this function:

void wxSTLWidget_03::OnBtnExtraction ( wxCommandEvent & event )

Definition at line 781 of file Copie de wxSTLWidget_03.cxx.

References _maxSize, _minSize, _wxMaracasMPR, ExtractSurface(), generateSTLSurfaces(), mBarRange::GetEnd(), mBarRange::GetStart(), wxMaracasMPR::GetVtkMPRBaseData(), vtkMPRBaseData::GetX(), vtkMPRBaseData::GetY(), vtkBaseData::GetZ(), Refresh(), and sl_barrange_segmentation.

Referenced by CreateSegmentationPanel().

00782 {
00783         /*wxBusyCursor wait;
00784         _minSize = _sl_minSize->GetValue();
00785         _maxSize = _sl_maxSize->GetValue();
00786
00787         double px=_wxMaracasMPR->GetVtkMPRBaseData()->GetX();
00788         double py=_wxMaracasMPR->GetVtkMPRBaseData()->GetY();
00789         double pz=_wxMaracasMPR->GetVtkMPRBaseData()->GetZ();
00790         ExtractSurface((int)(px),(int)(py),(int)(pz));
00791         generateSTLSurfaces(); //DHC: AFTER SEGMENTATION THE TREE, THE STL SURFACES ARE CALCULATED.
00792
00793         Refresh();
00794 */
00795         //SIL//
00796         wxBusyCursor wait;
00797         _minSize = sl_barrange_segmentation->GetStart();
00798         _maxSize = sl_barrange_segmentation->GetEnd();
00799
00800         double px=_wxMaracasMPR->GetVtkMPRBaseData()->GetX();
00801         double py=_wxMaracasMPR->GetVtkMPRBaseData()->GetY();
00802         double pz=_wxMaracasMPR->GetVtkMPRBaseData()->GetZ();
00803         ExtractSurface((int)(px),(int)(py),(int)(pz));
00804         generateSTLSurfaces(); //DHC: AFTER SEGMENTATION THE TREE, THE STL SURFACES ARE CALCULATED.
00805
00806         Refresh();
00807 }

Here is the call graph for this function:

Here is the caller graph for this function:

void wxSTLWidget_03::OnBtnSaveBinaryFile ( wxCommandEvent & event )

Definition at line 762 of file Copie de wxSTLWidget_03.cxx.

References _mar, marInterface::_parameters, cast4, marParameters::e_installation_directory, and marParameters::getStringParam().

Referenced by CreateSegmentationPanel().

00763 {
00764         wxString dirSTL = _mar->_parameters->getStringParam(
00765     marParameters::e_installation_directory );
00766         dirSTL = ( dirSTL == _T("NO_DIRECTORY") ) ? wxGetHomeDir( ) : dirSTL;
00767         wxFileDialog dialog( this, _T("Choose a directory..."), ( !dirSTL.IsEmpty( ) )?
00768         dirSTL: wxGetHomeDir( ) );
00769
00770         if( dialog.ShowModal( ) == wxID_OK )
00771         {
00772                 vtkMetaImageWriter  *writer= vtkMetaImageWriter::New();
00773                 writer->SetFileName( dialog.GetPath().mb_str(wxConvUTF8) );
00774                 writer->SetInput(cast4->GetOutput());
00775                 writer->Write();
00776                 writer->Delete();
00777         }
00778 }

Here is the call graph for this function:

Here is the caller graph for this function:

void wxSTLWidget_03::OnBtnSTLFileErase ( wxCommandEvent & event )

Definition at line 838 of file Copie de wxSTLWidget_03.cxx.

References Refresh(), and Reset_vtk_STLFile().

Referenced by CreateReadSTLFilePanel().

00839 {
00840         Reset_vtk_STLFile();
00841         Refresh();
00842 }

Here is the call graph for this function:

Here is the caller graph for this function:

void wxSTLWidget_03::OnBtnSTLFileLoad ( wxCommandEvent & event )

Definition at line 844 of file Copie de wxSTLWidget_03.cxx.

References _loadActorSTL, _loadSTLMapper, _mar, marInterface::_parameters, _wxMaracasMPR, marParameters::e_installation_directory, wxVtk3DBaseView::GetRenderer(), marParameters::getStringParam(), wxVtkMPR3DView::GetWxvtk3Dbaseview(), wxMaracasMPR::GetWxvtkmpr3Dview_BB(), Reset_vtk_STLFile(), marInterface::saveParameters(), and marParameters::setStringParam().

Referenced by CreateReadSTLFilePanel().

00845 {
00846         wxString dirSTL = _mar->_parameters->getStringParam(
00847     marParameters::e_installation_directory );
00848         dirSTL = ( dirSTL == _T("NO_DIRECTORY") ) ? wxGetHomeDir( ) : dirSTL;
00849         wxFileDialog dialog( this, _T("Choose a directory..."), ( !dirSTL.IsEmpty( ) )?
00850         dirSTL: wxGetHomeDir( ) );
00851
00852         if( dialog.ShowModal( ) == wxID_OK )
00853         {
00854                 Reset_vtk_STLFile();
00855                 vtkSTLReader *imgReader= vtkSTLReader::New();
00856                 imgReader->SetFileName( dialog.GetPath().mb_str(wxConvUTF8) );
00857                 _loadSTLMapper = vtkPolyDataMapper::New();
00858                 _loadSTLMapper->SetInput(imgReader->GetOutput());
00859                 _loadActorSTL = vtkActor::New();
00860                 _loadActorSTL->SetMapper(_loadSTLMapper);
00861                 _loadActorSTL->GetProperty()->SetColor( 1, 0, 0);
00862                 _loadActorSTL->GetProperty()->SetOpacity( 0.5 );
00863                 vtkRenderer *ren = _wxMaracasMPR->GetWxvtkmpr3Dview_BB()->GetWxvtk3Dbaseview()->GetRenderer();
00864                 ren->AddActor(_loadActorSTL);
00865                 imgReader->Delete();
00866         }
00867         //By default *always* update e_installation_directory:
00868         _mar->_parameters->setStringParam( marParameters::e_installation_directory, dialog.GetPath( ) );
00869         _mar->saveParameters( );
00870 }

Here is the call graph for this function:

Here is the caller graph for this function:

void wxSTLWidget_03::OnChangeSTLGaussLevel ( wxScrollEvent & event )

Definition at line 1005 of file Copie de wxSTLWidget_03.cxx.

References _stlDeltaGaussLevel, generateSTLSurfaces(), Refresh(), and stlSliderDeltaGauss.

Referenced by CreateSmoothingPanel().

01006 {
01007         wxBusyCursor wait;
01008         _stlDeltaGaussLevel  = ((double)stlSliderDeltaGauss->GetValue())/100;
01009         generateSTLSurfaces();
01010         Refresh();
01011 }

Here is the call graph for this function:

Here is the caller graph for this function:

void wxSTLWidget_03::OnChangeSTLMarchingCubesLevel ( wxScrollEvent & event )

Definition at line 1014 of file Copie de wxSTLWidget_03.cxx.

References _stlMarchingCubesLevel, generateSTLSurfaces(), Refresh(), and stlSliderMarchingCubes.

Referenced by CreateSmoothingPanel().

01015 {
01016         wxBusyCursor wait;
01017         _stlMarchingCubesLevel = ((double)stlSliderMarchingCubes->GetValue());
01018         generateSTLSurfaces();
01019         Refresh();
01020
01021 }

Here is the call graph for this function:

Here is the caller graph for this function:

void wxSTLWidget_03::OnEndChanged_range ( wxCommandEvent & event )

Definition at line 751 of file Copie de wxSTLWidget_03.cxx.

References mBarRange::GetEnd(), lastResizeRef_Value, and sl_barrange_segmentation.

Referenced by CreateSegmentationPanel().

00752 {
00753         lastResizeRef_Value = sl_barrange_segmentation->GetEnd();
00754 }

Here is the call graph for this function:

Here is the caller graph for this function:

void wxSTLWidget_03::OnJoinRegions ( wxCommandEvent & event )

void wxSTLWidget_03::OnMaxSpin ( wxScrollEvent & event )

Definition at line 708 of file Copie de wxSTLWidget_03.cxx.

00709 {
00710         /*wxSlider *sl_A=_sl_maxSize;
00711         wxSlider *sl_B=_sl_maxSizeSpin;
00712         int value = sl_A->GetValue();
00713         int delta = (int)pow( 4 , sl_B->GetValue() );
00714         int min=value - delta/2;
00715         int max=value + delta/2;
00716         if (min<0)
00717         {
00718                 min=0;
00719                 max=delta;
00720         }
00721         sl_A->SetRange(min,max);*/
00722 }

void wxSTLWidget_03::OnMinSpin ( wxScrollEvent & event )

Definition at line 687 of file Copie de wxSTLWidget_03.cxx.

00688 {
00689         /*wxSlider *sl_A=_sl_minSize;
00690         wxSlider *sl_B=_sl_minSizeSpin;
00691         int value = sl_A->GetValue();
00692         int delta=(int)pow( 4 , sl_B->GetValue() );
00693         int min=value - delta/2;
00694         int max=value + delta/2;
00695         if (min<0)
00696         {
00697                 min=0;
00698                 max=delta;
00699         }
00700         sl_A->SetRange(min,max);
00701
00702
00703         */
00704 }

void wxSTLWidget_03::OnOpacity_Vol ( wxScrollEvent & event )

Definition at line 677 of file Copie de wxSTLWidget_03.cxx.

References _2_isoActorMC6, _opacity_Vol, and Refresh().

Referenced by CreateSegmentationPanel().

00678 {
00679         if (_2_isoActorMC6!=NULL){
00680                 double value = ((double)_opacity_Vol->GetValue())/100;
00681                 _2_isoActorMC6->GetProperty( )->SetOpacity( value );
00682                 Refresh();
00683         }
00684 }

Here is the call graph for this function:

Here is the caller graph for this function:

void wxSTLWidget_03::OnOpacitySTLExternal ( wxScrollEvent & event )

Definition at line 926 of file Copie de wxSTLWidget_03.cxx.

References actorExternal, Refresh(), and stlSliderOpacityExternal.

Referenced by CreateSmoothingPanel().

00926                                                              {
00927         double value = ((double)stlSliderOpacityExternal->GetValue())/100;
00928     actorExternal->GetProperty( )->SetOpacity( value );
00929         Refresh();
00930 }

Here is the call graph for this function:

Here is the caller graph for this function:

void wxSTLWidget_03::OnOpacitySTLFile ( wxScrollEvent & event )

Definition at line 810 of file Copie de wxSTLWidget_03.cxx.

References _loadActorSTL, _sl_opacity_STL_file, and Refresh().

Referenced by CreateReadSTLFilePanel().

00811 {
00812         if (_loadActorSTL!=NULL)
00813         {
00814                 double value = ((double)_sl_opacity_STL_file->GetValue())/100;
00815                 _loadActorSTL->GetProperty( )->SetOpacity( value );
00816                 Refresh();
00817         }
00818 }

Here is the call graph for this function:

Here is the caller graph for this function:

void wxSTLWidget_03::OnOpacitySTLInternal ( wxScrollEvent & event )

Definition at line 933 of file Copie de wxSTLWidget_03.cxx.

References actorInternal, Refresh(), and stlSliderOpacityInternal.

Referenced by CreateSmoothingPanel().

00933                                                              {
00934         double value = ((double)stlSliderOpacityInternal->GetValue())/100;
00935     actorInternal->GetProperty( )->SetOpacity( value );
00936         Refresh();
00937 }

Here is the call graph for this function:

Here is the caller graph for this function:

void wxSTLWidget_03::OnRangeSpin ( wxScrollEvent & event )

Definition at line 726 of file Copie de wxSTLWidget_03.cxx.

References _sl_RangeSizeSpin, lastResizeRef_Value, maxRangeValue, minRangeValue, mBarRange::setRepresentedValues(), and sl_barrange_segmentation.

Referenced by CreateSegmentationPanel().

00727 {
00728         wxSlider *sl_B=_sl_RangeSizeSpin;
00729
00730         int value = lastResizeRef_Value;
00731         int delta = (int)pow( 4 , sl_B->GetValue() );
00732         int startResized = value - delta/2;
00733         int endResized = value + delta/2;
00734
00735         if( startResized < minRangeValue )
00736                 startResized = minRangeValue;
00737
00738         if( endResized > maxRangeValue )
00739                 endResized = maxRangeValue;
00740
00741         sl_barrange_segmentation->setRepresentedValues(startResized,endResized);
00742         sl_barrange_segmentation -> RefreshForce();
00743 }

Here is the call graph for this function:

Here is the caller graph for this function:

void wxSTLWidget_03::OnStartChanged_range ( wxCommandEvent & event )

Definition at line 746 of file Copie de wxSTLWidget_03.cxx.

References mBarRange::GetStart(), lastResizeRef_Value, and sl_barrange_segmentation.

Referenced by CreateSegmentationPanel().

00747 {
00748         lastResizeRef_Value = sl_barrange_segmentation->GetStart();
00749 }

Here is the call graph for this function:

Here is the caller graph for this function:

void wxSTLWidget_03::Refresh ( )

Definition at line 417 of file Copie de wxSTLWidget_03.cxx.

References _wxMaracasMPR, and wxMaracasMPR::RefreshView().

Referenced by OnBtnExtraction(), OnBtnSTLFileErase(), OnChangeSTLGaussLevel(), OnChangeSTLMarchingCubesLevel(), OnOpacity_Vol(), OnOpacitySTLExternal(), OnOpacitySTLFile(), and OnOpacitySTLInternal().

00418 {
00419         if (_wxMaracasMPR!=NULL){
00420                 _wxMaracasMPR->RefreshView();
00421         }
00422 }

Here is the call graph for this function:

Here is the caller graph for this function:

void wxSTLWidget_03::Reset_vtk_STLFile ( )

Definition at line 820 of file Copie de wxSTLWidget_03.cxx.

References _loadActorSTL, _loadSTLMapper, _wxMaracasMPR, wxVtk3DBaseView::GetRenderer(), wxVtkMPR3DView::GetWxvtk3Dbaseview(), and wxMaracasMPR::GetWxvtkmpr3Dview_BB().

Referenced by OnBtnSTLFileErase(), OnBtnSTLFileLoad(), and ~wxSTLWidget_03().

00821 {
00822         // Remove
00823         vtkRenderer *ren = _wxMaracasMPR->GetWxvtkmpr3Dview_BB()->GetWxvtk3Dbaseview()->GetRenderer();
00824     if (_loadActorSTL){
00825                 ren->RemoveActor(_loadActorSTL);
00826         }
00827
00828         // Delete
00829         if (_loadSTLMapper              ) {     _loadSTLMapper          -> Delete(); }
00830         if (_loadActorSTL               ) {     _loadActorSTL           -> Delete(); }
00831
00832         // Init
00833         _loadSTLMapper          = NULL;
00834         _loadActorSTL           = NULL;
00835
00836 }

Here is the call graph for this function:

Here is the caller graph for this function:

void wxSTLWidget_03::ResetTree2_JF ( ) [private]

Definition at line 557 of file Copie de wxSTLWidget_03.cxx.

References _2_isoActorMC6, _2_isoMapperMC6, _2_isoMC6, _2_mapfinal, _2_stripfinal, _wxMaracasMPR, wxVtk3DBaseView::GetRenderer(), wxVtkMPR3DView::GetWxvtk3Dbaseview(), and wxMaracasMPR::GetWxvtkmpr3Dview_BB().

Referenced by ~wxSTLWidget_03().

00558 {
00559         // Remove
00560         vtkRenderer *ren = _wxMaracasMPR->GetWxvtkmpr3Dview_BB()->GetWxvtk3Dbaseview()->GetRenderer();
00561
00562     if (_2_isoActorMC6){
00563                 ren->RemoveActor(_2_isoActorMC6);
00564         }
00565     if (_2_stripfinal){
00566                 ren->RemoveActor(_2_stripfinal);
00567         }
00568
00569         // Delete
00570 //      if (_2_prgov            ) {     _2_prgov                -> Delete(); }
00571         if (_2_mapfinal         ) {     _2_mapfinal             -> Delete(); }
00572         if (_2_stripfinal       ) {     _2_stripfinal   -> Delete(); }
00573         if (_2_isoMapperMC6     ) {     _2_isoMapperMC6 -> Delete(); }
00574         if (_2_isoActorMC6      ) {     _2_isoActorMC6  -> Delete(); }
00575         if (_2_isoMC6           ) {     _2_isoMC6               -> Delete(); }
00576
00577         // Init
00578 //      _2_prgov                = NULL;
00579         _2_mapfinal             = NULL;
00580         _2_stripfinal   = NULL;
00581         _2_isoMapperMC6 = NULL;
00582         _2_isoActorMC6  = NULL;
00583         _2_isoMC6               = NULL;
00584 }

Here is the call graph for this function:

Here is the caller graph for this function:

void wxSTLWidget_03::setImage ( vtkImageData * img )

Definition at line 203 of file wxSTLWidget_03.cxx.

References _wxMaracasMPR, ConfigureProcessing(), ConfigureSTL(), wxMaracasMPR::ConfigureVTK(), and wxMaracasMPR::setImageData().

00203                                               {
00204
00205         _wxMaracasMPR->setImageData(img, 1);
00206         _wxMaracasMPR->ConfigureVTK();
00207
00208
00209         this->ConfigureProcessing(img,0,0,0);
00210         this->ConfigureSTL();
00211
00212         _wxMaracasMPR->Refresh();
00213
00214         //this->Refresh();
00215 }

Here is the call graph for this function:

Member Data Documentation

vtkActor * wxSTLWidget_03::_2_isoActorMC6 [private]

Definition at line 104 of file Copie de wxSTLWidget_03.h.

Referenced by ExtractSurface(), OnOpacity_Vol(), ResetTree2_JF(), and wxSTLWidget_03().

vtkPolyDataMapper * wxSTLWidget_03::_2_isoMapperMC6 [private]

Definition at line 103 of file Copie de wxSTLWidget_03.h.

Referenced by ExtractSurface(), ResetTree2_JF(), and wxSTLWidget_03().

vtkMarchingCubes * wxSTLWidget_03::_2_isoMC6 [private]

Definition at line 105 of file Copie de wxSTLWidget_03.h.

Referenced by ExtractSurface(), ResetTree2_JF(), and wxSTLWidget_03().

vtkPolyDataMapper * wxSTLWidget_03::_2_mapfinal [private]

Definition at line 101 of file Copie de wxSTLWidget_03.h.

Referenced by ResetTree2_JF(), and wxSTLWidget_03().

vtkActor * wxSTLWidget_03::_2_stripfinal [private]

Definition at line 102 of file Copie de wxSTLWidget_03.h.

Referenced by ResetTree2_JF(), and wxSTLWidget_03().

vtkImageCast* wxSTLWidget_03::_cast [private]

Definition at line 101 of file wxSTLWidget_03.h.

Referenced by ConfigureProcessing(), and wxSTLWidget_03().

vtkImageSeedConnectivity * wxSTLWidget_03::_connect [private]

Definition at line 96 of file Copie de wxSTLWidget_03.h.

Referenced by ConfigureProcessing(), ExtractSurface(), and wxSTLWidget_03().

vtkImageSeedConnectivity * wxSTLWidget_03::_connect2 [private]

Definition at line 97 of file Copie de wxSTLWidget_03.h.

Referenced by ConfigureProcessing(), ExtractSurface(), and wxSTLWidget_03().

vtkImageData * wxSTLWidget_03::_imagedata [private]

Definition at line 89 of file Copie de wxSTLWidget_03.h.

Referenced by ConfigureProcessing(), ExtractSurface(), and wxSTLWidget_03().

wxVtk3DBaseView * wxSTLWidget_03::_imageviewer3D [private]

Definition at line 131 of file Copie de wxSTLWidget_03.h.

Referenced by wxSTLWidget_03().

vtkActor * wxSTLWidget_03::_loadActorSTL [private]

Definition at line 112 of file Copie de wxSTLWidget_03.h.

Referenced by OnBtnSTLFileLoad(), OnOpacitySTLFile(), Reset_vtk_STLFile(), and wxSTLWidget_03().

vtkPolyDataMapper * wxSTLWidget_03::_loadSTLMapper [private]

Definition at line 111 of file Copie de wxSTLWidget_03.h.

Referenced by OnBtnSTLFileLoad(), Reset_vtk_STLFile(), and wxSTLWidget_03().

marInterface* wxSTLWidget_03::_mar [private]

Definition at line 136 of file Copie de wxSTLWidget_03.h.

Referenced by ConfigureVTK(), CreateViewPanel(), OnBtnCreateFileSTL(), OnBtnSaveBinaryFile(), OnBtnSTLFileLoad(), and wxSTLWidget_03().

int wxSTLWidget_03::_maxSize [private]

Definition at line 107 of file Copie de wxSTLWidget_03.h.

Referenced by ExtractSurface(), OnBtnExtraction(), and wxSTLWidget_03().

int wxSTLWidget_03::_minSize [private]

Definition at line 108 of file Copie de wxSTLWidget_03.h.

Referenced by ExtractSurface(), OnBtnExtraction(), and wxSTLWidget_03().

wxSlider * wxSTLWidget_03::_opacity_Vol [private]

Definition at line 115 of file Copie de wxSTLWidget_03.h.

Referenced by CreateSegmentationPanel(), ExtractSurface(), and OnOpacity_Vol().

double wxSTLWidget_03::_range [private]

Definition at line 90 of file Copie de wxSTLWidget_03.h.

Referenced by ConfigureProcessing(), and ExtractSurface().

double wxSTLWidget_03::_sensibility_JF [private]

Definition at line 106 of file Copie de wxSTLWidget_03.h.

wxSlider * wxSTLWidget_03::_sl_maxSize [private]

Definition at line 117 of file Copie de wxSTLWidget_03.h.

wxSlider * wxSTLWidget_03::_sl_maxSizeSpin [private]

Definition at line 119 of file Copie de wxSTLWidget_03.h.

wxSlider * wxSTLWidget_03::_sl_minSize [private]

Definition at line 116 of file Copie de wxSTLWidget_03.h.

wxSlider * wxSTLWidget_03::_sl_minSizeSpin [private]

Definition at line 118 of file Copie de wxSTLWidget_03.h.

wxSlider * wxSTLWidget_03::_sl_opacity_STL_file [private]

Definition at line 177 of file Copie de wxSTLWidget_03.h.

Referenced by CreateReadSTLFilePanel(), OnOpacitySTLFile(), and wxSTLWidget_03().

wxSlider * wxSTLWidget_03::_sl_RangeSizeSpin [private]

Definition at line 120 of file Copie de wxSTLWidget_03.h.

Referenced by CreateSegmentationPanel(), and OnRangeSpin().

double wxSTLWidget_03::_stlDeltaGaussLevel [private]

Definition at line 157 of file Copie de wxSTLWidget_03.h.

Referenced by CreateSmoothingPanel(), generateSTLSurfaces(), OnChangeSTLGaussLevel(), and wxSTLWidget_03().

double wxSTLWidget_03::_stlMarchingCubesLevel [private]

Definition at line 158 of file Copie de wxSTLWidget_03.h.

Referenced by CreateSmoothingPanel(), generateSTLSurfaces(), OnChangeSTLMarchingCubesLevel(), and wxSTLWidget_03().

vtkImageThreshold * wxSTLWidget_03::_thresh [private]

Definition at line 94 of file Copie de wxSTLWidget_03.h.

Referenced by ConfigureProcessing(), ExtractSurface(), and wxSTLWidget_03().

vtkImageThreshold * wxSTLWidget_03::_thresh2 [private]

Definition at line 95 of file Copie de wxSTLWidget_03.h.

Referenced by ConfigureProcessing(), ExtractSurface(), and wxSTLWidget_03().

wxMaracasMPR * wxSTLWidget_03::_wxMaracasMPR [private]

Definition at line 137 of file Copie de wxSTLWidget_03.h.

Referenced by ConfigureSTL(), CreateViewPanel(), ExtractSurface(), OnBtnExtraction(), OnBtnSTLFileLoad(), Refresh(), Reset_vtk_STLFile(), ResetTree2_JF(), setImage(), and wxSTLWidget_03().

vtkActor * wxSTLWidget_03::actorExternal [private]

Definition at line 172 of file Copie de wxSTLWidget_03.h.

Referenced by ConfigureSTL(), OnOpacitySTLExternal(), and wxSTLWidget_03().

vtkActor * wxSTLWidget_03::actorInternal [private]

Definition at line 168 of file Copie de wxSTLWidget_03.h.

Referenced by ConfigureSTL(), OnOpacitySTLInternal(), and wxSTLWidget_03().

vtkImageData * wxSTLWidget_03::arteryImageData [private]

Definition at line 185 of file Copie de wxSTLWidget_03.h.

Referenced by wxSTLWidget_03().

vtkImageCast * wxSTLWidget_03::cast2 [private]

Definition at line 91 of file Copie de wxSTLWidget_03.h.

Referenced by ConfigureProcessing(), ExtractSurface(), and wxSTLWidget_03().

vtkImageCast * wxSTLWidget_03::cast3 [private]

Definition at line 92 of file Copie de wxSTLWidget_03.h.

Referenced by ConfigureProcessing(), ExtractSurface(), and wxSTLWidget_03().

vtkImageCast * wxSTLWidget_03::cast4 [private]

Definition at line 93 of file Copie de wxSTLWidget_03.h.

Referenced by ConfigureProcessing(), ExtractSurface(), generateSTLSurfaces(), OnBtnSaveBinaryFile(), and wxSTLWidget_03().

vtkPolyDataMapper * wxSTLWidget_03::dsm1 [private]

Definition at line 167 of file Copie de wxSTLWidget_03.h.

Referenced by ConfigureSTL(), and wxSTLWidget_03().

vtkPolyDataMapper * wxSTLWidget_03::dsm2 [private]

Definition at line 171 of file Copie de wxSTLWidget_03.h.

Referenced by ConfigureSTL(), and wxSTLWidget_03().

vtkActor * wxSTLWidget_03::joinActor [private]

Definition at line 189 of file Copie de wxSTLWidget_03.h.

Referenced by wxSTLWidget_03().

vtkJoiner * wxSTLWidget_03::joiner [private]

Definition at line 186 of file Copie de wxSTLWidget_03.h.

Referenced by wxSTLWidget_03().

vtkPolyDataMapper * wxSTLWidget_03::joinMapper [private]

Definition at line 188 of file Copie de wxSTLWidget_03.h.

Referenced by wxSTLWidget_03().

vtkMarchingCubes * wxSTLWidget_03::joinMarchingCubes [private]

Definition at line 187 of file Copie de wxSTLWidget_03.h.

Referenced by wxSTLWidget_03().

int wxSTLWidget_03::lastResizeRef_Value [private]

Definition at line 127 of file Copie de wxSTLWidget_03.h.

Referenced by ConfigureProcessing(), OnBarMoved_range(), OnEndChanged_range(), OnRangeSpin(), and OnStartChanged_range().

int wxSTLWidget_03::maxRangeValue [private]

Definition at line 129 of file Copie de wxSTLWidget_03.h.

Referenced by ConfigureProcessing(), and OnRangeSpin().

int wxSTLWidget_03::minRangeValue [private]

Definition at line 128 of file Copie de wxSTLWidget_03.h.

Referenced by ConfigureProcessing(), and OnRangeSpin().

mBarRange * wxSTLWidget_03::sl_barrange_segmentation [private]

Definition at line 126 of file Copie de wxSTLWidget_03.h.

Referenced by ConfigureProcessing(), CreateSegmentationPanel(), OnBarMoved_range(), OnBtnExtraction(), OnEndChanged_range(), OnRangeSpin(), OnStartChanged_range(), and wxSTLWidget_03().

vtkPolyData * wxSTLWidget_03::stlExterna [private]

Definition at line 162 of file Copie de wxSTLWidget_03.h.

Referenced by ConfigureSTL(), generateSTLSurfaces(), OnBtnCreateFileSTL(), and wxSTLWidget_03().

vtkSTLExtractor * wxSTLWidget_03::stlExtractor [private]

Definition at line 175 of file Copie de wxSTLWidget_03.h.

Referenced by ConfigureSTL(), generateSTLSurfaces(), and wxSTLWidget_03().

vtkPolyData * wxSTLWidget_03::stlInterna [private]

Definition at line 161 of file Copie de wxSTLWidget_03.h.

Referenced by ConfigureSTL(), generateSTLSurfaces(), OnBtnCreateFileSTL(), and wxSTLWidget_03().

wxSlider * wxSTLWidget_03::stlSliderDeltaGauss [private]

Definition at line 164 of file Copie de wxSTLWidget_03.h.

Referenced by CreateSmoothingPanel(), OnChangeSTLGaussLevel(), and wxSTLWidget_03().

wxSlider * wxSTLWidget_03::stlSliderMarchingCubes [private]

Definition at line 165 of file Copie de wxSTLWidget_03.h.

Referenced by CreateSmoothingPanel(), OnChangeSTLMarchingCubesLevel(), and wxSTLWidget_03().

wxSlider * wxSTLWidget_03::stlSliderOpacityExternal [private]

Definition at line 173 of file Copie de wxSTLWidget_03.h.

Referenced by CreateSmoothingPanel(), OnOpacitySTLExternal(), and wxSTLWidget_03().

wxSlider * wxSTLWidget_03::stlSliderOpacityInternal [private]

Definition at line 169 of file Copie de wxSTLWidget_03.h.

Referenced by CreateSmoothingPanel(), OnOpacitySTLInternal(), and wxSTLWidget_03().

The documentation for this class was generated from the following files:

/home/davila/Creatis/creaMaracasVisu/lib/maracasVisuLib/src/interface/wxWindows/widgets/include/Copie de wxSTLWidget_03.h
/home/davila/Creatis/creaMaracasVisu/lib/maracasVisuLib/src/interface/wxWindows/widgets/wxSTLWidget_03.h
/home/davila/Creatis/creaMaracasVisu/lib/maracasVisuLib/src/interface/wxWindows/widgets/include/Copie de wxSTLWidget_03.cxx
/home/davila/Creatis/creaMaracasVisu/lib/maracasVisuLib/src/interface/wxWindows/widgets/wxSTLWidget_03.cxx

wxSTLWidget_03 Class Reference

Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
