Abstract class that handles views, attributes and previews (GUI) for Gimmick. More...

#include <creaImageIOGimmickView.h>

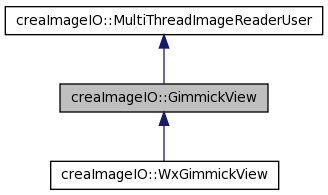

Inheritance diagram for creaImageIO::GimmickView:

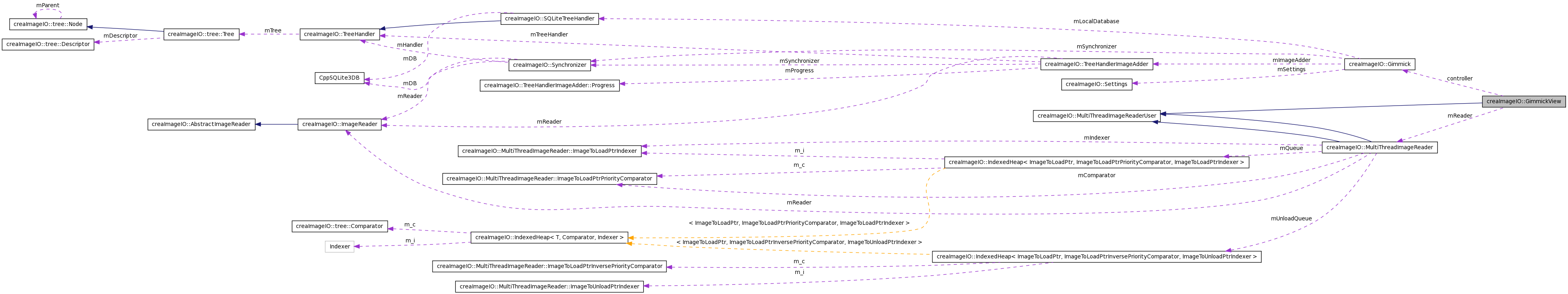

Collaboration diagram for creaImageIO::GimmickView:

Classes
struct	ImageEventType
Public Types
typedef std::map< std::string, TreeView * >	TreeViewMapType
typedef boost::signal< void(bool)>	ValidationSignalType
typedef ValidationSignalType::slot_function_type	ValidationCallbackType
typedef std::vector < DicomDatabase * >	DicomDatabaseListType
	Type of list of DicomDatabase.
enum	EventType { ThreadedReaderStarted, ThreadedReaderStopped, ImageLoaded, ImageUnloaded, Error, ThreadedReaderStarted, ThreadedReaderStopped, ImageLoaded, ImageUnloaded, Error }
enum	EventType { ThreadedReaderStarted, ThreadedReaderStopped, ImageLoaded, ImageUnloaded, Error, ThreadedReaderStarted, ThreadedReaderStopped, ImageLoaded, ImageUnloaded, Error }
Public Member Functions
	GimmickView (boost::shared_ptr< Gimmick >, int number_of_threads=0)
	Ctor.
virtual	~GimmickView ()
	Virtual destructor.
virtual void	Initialize ()
TreeViewMapType &	GetTreeViewMap ()
	Returns the TreeViewMap (ref).
const TreeViewMapType &	GetTreeViewMap () const
	Returns the TreeViewMap (const ref).
virtual void	Finalize ()
	Finalize.
int	GetMaximalPriority ()
	Returns the maximal priority.
virtual void	GetSelectedImagesInVector (std::vector< vtkImageData * > &s, int dim)
	Adds the selected Images to the given vector.
virtual void	GetSelectedImages (std::vector< vtkImageData * > &s, int dim)
	Adds the selected Images to the given vector and validates to see if they comply with the given parameter (4D).
virtual void	GetSelectedFiles (std::vector< std::string > &s)
virtual void	GetImages (int dim, std::vector< std::string > files, std::vector< vtkImageData * > &s)
virtual void	OnSelectionChange (const std::vector< tree::Node * > &s, bool isSelection, int selection, bool mProcess)

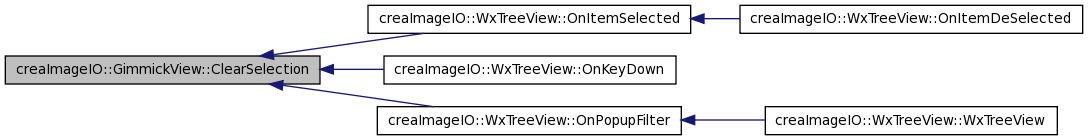

virtual void	ClearSelection ()
virtual void	AddIgnoreFile (tree::Node *toRemove)
	Adds a file to ignore.
virtual void	CopyFiles (const std::vector< std::string > &filenames)
	Copies selected files.
virtual void	CreateEditFieldsDialog (tree::Node *node, std::vector< std::string > names, std::vector< std::string > keys)
	Edits the fields of a given node.
virtual void	Anonymize (std::vector< std::string > i_filenames, int type)
	Anonymize or de-anonymize data.
virtual void	DumpTags (const std::string filename)
	Display all Dicom Tags.
virtual void	ExportToStorage (const std::vector< std::string > keys)
	Edits the fields of a given node.
virtual void	SaveAs (const std::vector< std::string > &filenames)
	Copies selected files.
bool	NoValidateSelected ()
	No selected image.
bool	ValidateSelected (tree::Node *sel, int min_dim, int max_dim)
	Validates the dimension compliance of the images with the maximum and minimum given, and between their sizes.
void	ReadImagesNotThreaded (std::vector< vtkImageData * > &s, std::vector< std::string > files, int dim)
	Reads the vector of images, builds it in the dimension required and returns them in the supplied vector.
void	ReadImagesNotThreadedInVector (std::vector< vtkImageData * > &s, std::vector< std::string > files, int dim)
	Reads the vector of images, builds it in the dimension required and returns them in the supplied vector.
void	RequestReading (tree::Node *n, int prio, int selection_index, boost::shared_ptr< ImagePointerHolder > p)
	current selection (-1 if not in selection)
std::string	GetMessage ()
	Obtains the message of the state.
void	SetMessage (std::string mess)
	Obtains the message of the state.
void	ResetExtent ()
	Resets the data of the extent and begins a new selection.
void	CreateTreeViews ()
	Create the tree views.
void	CreateSingleTreeView (std::string &i_name)
	Create a tree view with a given name.
virtual void	CreateTreeView (TreeHandler *)
	Create the tree view for TreeHandler provided.
virtual void	UpdateTreeViewLevel (const std::string &, int l)
void	OnMultiThreadImageReaderEvent (const std::string &filename, MultiThreadImageReaderUser::EventType t, vtkImageData *image)
vtkImageData *	GetDefaultImage ()
void	ConnectValidationObserver (ValidationCallbackType callback)
void	modifyValidationSignal (bool ivalid)
void	readImages (std::vector< OutStrGimmick > &o_output, std::vector< std::string > im, OutputAttr i_attr, int i_dim, double i_zspc)
bool	isSingle (const std::string i_file)
void	stopReader ()
	GimmickView ()
	Ctor.
virtual	~GimmickView ()
	Virtual destructor.
virtual int	GetSelectionSize ()
	Returns the size of the current selection.
virtual bool	IsSelectionValid ()
	Returns true if there is a valid selection.
virtual void	GetSelectedFiles (std::vector< std::string > &)
	Returns the vector of full filenames of selected images.
virtual void	GetSelectedImages (std::vector< vtkImageData * > &)
	Returns the vector of images corresponding to selection.
virtual void	GetSelectedDicomNodes (std::vector< DicomNode * > &)
	Returns the vector of DicomNode corresponding to selection.
virtual DicomNode *	GetDicomNodeOfItem (const TreeItemId &i)
	Returns the DicomNode corresponding to the tree item.
virtual DicomDatabaseListType &	GetDicomDatabaseList ()
	Returns the list of DicomDatabase open.
virtual const DicomDatabaseListType &	GetDicomDatabaseList () const
	Returns the list of DicomDatabase open (const).
virtual void	LoadOrCreateFavoritesDatabase ()
	Loads or creates a favorites database.
void	MultiThreadImageReaderEventLock ()
void	MultiThreadImageReaderEventLock ()
void	MultiThreadImageReaderEventUnlock ()
void	MultiThreadImageReaderEventUnlock ()
wxMutex &	GetMultiThreadImageReaderUserMutex ()
QMutex *	GetMultiThreadImageReaderUserMutex ()
Protected Member Functions
virtual void	OpenOrNewDatabase (bool open)
	Opens an existing database, or else, creates a local database.
virtual void	ShowHelp ()
	Shows the help.
virtual void	RebuildView ()
virtual void	UpdateDicomDatabaseView (DicomDatabase *)
virtual void	UpdateDicomNodeView (DicomNode *n, const TreeItemId &parent)
Private Types
typedef void(*	readXD )(std::vector< OutStrGimmick > &, std::vector< std::string >, OutputAttr, double)
typedef std::map< std::string, ImageEventType >	ImageEventTypeMap
typedef std::deque < ImageEventType >	ImageEventQueueType
typedef WxGimmickTreeItemData	TreeItemData
	Type definition of the data regarding the tree.
typedef WxGimmickDicomNodeData	NodeData
	Type definition of the data insid a node of the tree.
Private Member Functions

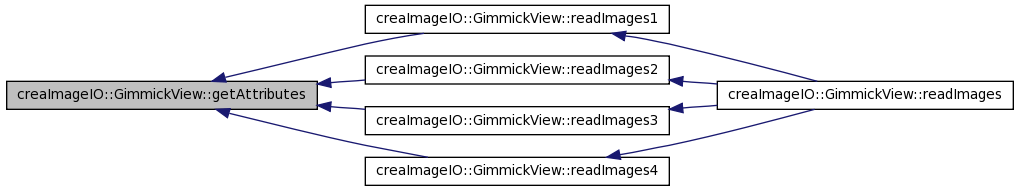

void	getAttributes (const std::string i_file, std::map< std::string, std::string > &o_infos, OutputAttr i_attr)
virtual void	readImages2 (std::vector< OutStrGimmick > &o_output, std::vector< std::string > im, OutputAttr i_attr, double i_zspc)
virtual void	readImages3 (std::vector< OutStrGimmick > &o_output, std::vector< std::string > im, OutputAttr i_attr, double i_zspc)
virtual void	readImages4 (std::vector< OutStrGimmick > &o_output, std::vector< std::string > im, OutputAttr i_attr)
virtual void	readImages1 (std::vector< OutStrGimmick > &o_output, std::vector< std::string > im, OutputAttr i_attr)
const std::string &	GetDatabaseExtension ()
	Gets the extension of the database.
virtual void	SetDatabaseExtension (const std::string &ext)
	Sets the extension of the database.
virtual void	ShowImage (vtkImageData *image)
	Shows the image sent as a parameter.
void	CreateUserSettingsDirectory ()
	Creates the user settings directory.
const std::string &	GetUserSettingsDirectory ()
	Obtains the user settings directory.
virtual void	ShowInformation (DicomNode *)
	Shows the Information regarding the node sent as a parameter.
TreeItemData *	GetItemData (const TreeItemId &id)
	Gets the item data of the tree item passed as a parameter.
Private Attributes
boost::shared_ptr< Gimmick >	mGimmick
	Controller which manages the interaction with the model.
TreeViewMapType	mTreeViewMap
	The views.
std::string	mMess
	The message that results from the validation.
MultiThreadImageReader	mReader
	Multi-thread image reader.
ImageEventTypeMap	mImageEventMap
boost::shared_ptr< ImageExtent >	mImageExtent
	The current image extent.
ValidationSignalType	mValidationSignal
	The validation signal.
bool	valid
	Boolean that determines if the selection is valid.
bool	mReaderStarted
	Boolean that determines if the reader has been started.
int	mSelectionType
int	mSelectionMaxImageDimension
int	mCurrentSelectionImageSize [4]
DicomDatabaseListType	mDicomDatabaseList
	Existent Database List.
DicomDatabase *	mFavoriteDatabase
	Favorites database.
std::string	mDatabaseListFile
	Path to the database list file.
std::string	mDatabaseExtension
	Extension of the database.
bool	mJustStarted
int	mFirstDicomDatabaseIconIndex
vtkImageViewer2 *	mViewer
int	mx1
int	mx2
int	my1
int	my2
int	mz1
int	mz2
double	mspx
double	mspy
double	mspz
std::map< std::string, DicomNode * >	mImageFileNameToNode
Gimmick *	controller
Friends
class	ThreadedImageReader
class	MultiThreadImageReader

Detailed Description

Abstract class that handles views, attributes and previews (GUI) for Gimmick.

Definition at line 54 of file creaImageIOGimmickView.h.

Member Typedef Documentation

typedef std::vector<DicomDatabase*> creaImageIO::GimmickView::DicomDatabaseListType

Type of list of DicomDatabase.

Definition at line 37 of file OldcreaImageIOGimmickView.h.

typedef std::deque<ImageEventType> creaImageIO::GimmickView::ImageEventQueueType [private]

Definition at line 255 of file creaImageIOGimmickView.h.

typedef std::map<std::string,ImageEventType> creaImageIO::GimmickView::ImageEventTypeMap [private]

Definition at line 249 of file creaImageIOGimmickView.h.

typedef WxGimmickDicomNodeData creaImageIO::GimmickView::NodeData [private]

Type definition of the data insid a node of the tree.

Definition at line 114 of file OldcreaImageIOGimmickView.h.

typedef void(* creaImageIO::GimmickView::readXD)(std::vector< OutStrGimmick > &, std::vector< std::string >, OutputAttr, double) [private]

Definition at line 204 of file creaImageIOGimmickView.h.

typedef WxGimmickTreeItemData creaImageIO::GimmickView::TreeItemData [private]

Type definition of the data regarding the tree.

Definition at line 110 of file OldcreaImageIOGimmickView.h.

typedef std::map<std::string, TreeView*> creaImageIO::GimmickView::TreeViewMapType

Type of map from View name to TreeView* (This map is equivalent for Views of the TreeHandlerMap of Gimmick)

Definition at line 68 of file creaImageIOGimmickView.h.

typedef ValidationSignalType::slot_function_type creaImageIO::GimmickView::ValidationCallbackType

Definition at line 179 of file creaImageIOGimmickView.h.

typedef boost::signal<void (bool)> creaImageIO::GimmickView::ValidationSignalType

Definition at line 178 of file creaImageIOGimmickView.h.

Member Enumeration Documentation

enum creaImageIO::MultiThreadImageReaderUser::EventType [inherited]

Enumerator:

ThreadedReaderStarted
ThreadedReaderStopped
ImageLoaded
ImageUnloaded
Error
ThreadedReaderStarted
ThreadedReaderStopped
ImageLoaded
ImageUnloaded
Error

Reimplemented in creaImageIO::WxGimmickView.

Definition at line 34 of file creaImageIOMultiThreadImageReader.h.

      {
        ThreadedReaderStarted,
        ThreadedReaderStopped,
        ImageLoaded,
        ImageUnloaded,
        Error
      }

enum creaImageIO::MultiThreadImageReaderUser::EventType [inherited]

Enumerator:

ThreadedReaderStarted
ThreadedReaderStopped
ImageLoaded
ImageUnloaded
Error
ThreadedReaderStarted
ThreadedReaderStopped
ImageLoaded
ImageUnloaded
Error

Reimplemented in creaImageIO::WxGimmickView.

Definition at line 34 of file creaImageIOQMultiThreadImageReader.h.

      {
        ThreadedReaderStarted,
        ThreadedReaderStopped,
        ImageLoaded,
        ImageUnloaded,
        Error
      }

Constructor & Destructor Documentation

creaImageIO::GimmickView::GimmickView	(	boost::shared_ptr< Gimmick >	gimmick,
		int	number_of_threads = `0`
	)

Ctor.

Definition at line 75 of file creaImageIOGimmickView.cpp.

References GimmickDebugMessage.

    : mGimmick(gimmick),
          mReader(threads)
  {
    GimmickDebugMessage(1,"GimmickView::GimmickView"
                        <<std::endl);
        // Anciently started the threads ...
    // Threads now automatically start at first image request
    //mReader.Start();

  }

creaImageIO::GimmickView::~GimmickView ( ) [virtual]

Virtual destructor.

Destructor.

Definition at line 90 of file creaImageIOGimmickView.cpp.

References GimmickDebugMessage.

  {
    GimmickDebugMessage(1,"GimmickView::~GimmickView"
                        <<std::endl);
  }

creaImageIO::GimmickView::GimmickView ( )

Ctor.

virtual creaImageIO::GimmickView::~GimmickView ( ) [virtual]

Virtual destructor.

Member Function Documentation

virtual void creaImageIO::GimmickView::AddIgnoreFile ( tree::Node * toRemove ) [inline, virtual]

Adds a file to ignore.

Reimplemented in creaImageIO::WxGimmickView.

Definition at line 103 of file creaImageIOGimmickView.h.

References GimmickError.

Referenced by creaImageIO::WxTreeView::RemoveSelected().

          { GimmickError("INTERNAL ERROR : AddIgnoreFile not implemented"); }

Here is the caller graph for this function:

virtual void creaImageIO::GimmickView::Anonymize	(	std::vector< std::string >	i_filenames,
		int	type
	)			`[inline, virtual]`

Anonymize or de-anonymize data.

Definition at line 115 of file creaImageIOGimmickView.h.

References GimmickError.

          { GimmickError("INTERNAL ERROR : Anonymize not implemented"); }

virtual void creaImageIO::GimmickView::ClearSelection ( ) [inline, virtual]

Reimplemented in creaImageIO::WxGimmickView.

Definition at line 99 of file creaImageIOGimmickView.h.

References GimmickError.

Referenced by creaImageIO::WxTreeView::OnItemSelected(), creaImageIO::WxTreeView::OnKeyDown(), and creaImageIO::WxTreeView::OnPopupFilter().

      { GimmickError("INTERNAL ERROR : ClearSelection not implemented"); }

Here is the caller graph for this function:

void creaImageIO::GimmickView::ConnectValidationObserver ( ValidationCallbackType callback )

Adds the function f to the list of functions to call when the addition progresses. f is of type ProgressCallbackType which is: void (*ProgressCallbackType)(Progress&) To pass a member function 'f' of an instance 'c' of a class 'C' as callback you have to 'bind' it, i.e. call: ConnectValidationObserver ( boost::bind( &C::f , c, _1 ) );

Definition at line 827 of file creaImageIOGimmickView.cpp.

References mValidationSignal.

Referenced by creaImageIO::WxGimmickPanel::WxGimmickPanel(), and creaImageIO::WxGimmickReaderDialog::WxGimmickReaderDialog().

  {
    mValidationSignal.connect(callback);
  }

Here is the caller graph for this function:

virtual void creaImageIO::GimmickView::CopyFiles ( const std::vector< std::string > & filenames ) [inline, virtual]

Copies selected files.

Reimplemented in creaImageIO::WxGimmickView.

Definition at line 107 of file creaImageIOGimmickView.h.

References GimmickError.

Referenced by creaImageIO::WxTreeView::OnLocalCopy().

          { GimmickError("INTERNAL ERROR : CopyFiles not implemented"); }

Here is the caller graph for this function:

virtual void creaImageIO::GimmickView::CreateEditFieldsDialog	(	tree::Node *	node,
		std::vector< std::string >	names,
		std::vector< std::string >	keys
	)			`[inline, virtual]`

Edits the fields of a given node.

Reimplemented in creaImageIO::WxGimmickView.

Definition at line 111 of file creaImageIOGimmickView.h.

References GimmickError.

Referenced by creaImageIO::WxTreeView::OnEditField().

          { GimmickError("INTERNAL ERROR : EditFields not implemented"); }

Here is the caller graph for this function:

void creaImageIO::GimmickView::CreateSingleTreeView ( std::string & i_name )

Create a tree view with a given name.

Definition at line 130 of file creaImageIOGimmickView.cpp.

References CreateTreeView(), and mGimmick.

  {
        this->CreateTreeView(mGimmick->GetTreeHandlerMap()[i_name]);

  }

Here is the call graph for this function:

virtual void creaImageIO::GimmickView::CreateTreeView ( TreeHandler * ) [inline, virtual]

Create the tree view for TreeHandler provided.

Reimplemented in creaImageIO::WxGimmickView.

Definition at line 163 of file creaImageIOGimmickView.h.

References GimmickError.

Referenced by CreateSingleTreeView(), and CreateTreeViews().

      { GimmickError("INTERNAL ERROR : CreateTreeView not implemented"); }

Here is the caller graph for this function:

void creaImageIO::GimmickView::CreateTreeViews ( )

Create the tree views.

Definition at line 117 of file creaImageIOGimmickView.cpp.

References CreateTreeView(), GimmickMessage, and mGimmick.

Referenced by creaImageIO::WxGimmickView::WxGimmickView().

  {
    GimmickMessage(2,"Creating the tree views"<<std::endl);
    Gimmick::TreeHandlerMapType::const_iterator i;
    for (i = mGimmick->GetTreeHandlerMap().begin();
         i!= mGimmick->GetTreeHandlerMap().end();
         ++i)
      {
        this->CreateTreeView(i->second);
      }
  }

Here is the call graph for this function:

Here is the caller graph for this function:

void creaImageIO::GimmickView::CreateUserSettingsDirectory ( ) [inline, private]

Creates the user settings directory.

Definition at line 77 of file OldcreaImageIOGimmickView.h.

{ return; }

virtual void creaImageIO::GimmickView::DumpTags ( const std::string filename ) [inline, virtual]

Display all Dicom Tags.

Reimplemented in creaImageIO::WxGimmickView.

Definition at line 119 of file creaImageIOGimmickView.h.

References GimmickError.

Referenced by creaImageIO::WxTreeView::OnDumpTags().

          {GimmickError("INTERNAL ERROR : DumpTags not implemented"); }

Here is the caller graph for this function:

virtual void creaImageIO::GimmickView::ExportToStorage ( const std::vector< std::string > keys ) [inline, virtual]

Edits the fields of a given node.

Reimplemented in creaImageIO::WxGimmickView.

Definition at line 123 of file creaImageIOGimmickView.h.

References GimmickError.

Referenced by creaImageIO::WxTreeView::OnExportToStorage().

          { GimmickError("INTERNAL ERROR : ExportToStorage not implemented"); }

Here is the caller graph for this function:

void creaImageIO::GimmickView::Finalize ( ) [virtual]

Finalize.

Definition at line 109 of file creaImageIOGimmickView.cpp.

  {
  }

void creaImageIO::GimmickView::getAttributes	(	const std::string	i_file,
		std::map< std::string, std::string > &	o_infos,
		OutputAttr	i_attr
	)			`[private]`

Definition at line 439 of file creaImageIOGimmickView.cpp.

References creaImageIO::MultiThreadImageReader::getAttributes(), creaImageIO::OutputAttr::inside, mGimmick, mReader, and creaImageIO::OutputAttr::outside.

Referenced by readImages1(), readImages2(), readImages3(), and readImages4().

        {
                if(i_attr.inside.size() >0)
                {
                        mGimmick->GetAttributes(i_file,o_infos,i_attr);
                }
                if(i_attr.outside.size()>0)
                {
                        mReader.getAttributes(i_file,o_infos, i_attr.outside);
                }
        }

Here is the call graph for this function:

Here is the caller graph for this function:

const std::string& creaImageIO::GimmickView::GetDatabaseExtension ( ) [inline, private]

Gets the extension of the database.

Definition at line 53 of file OldcreaImageIOGimmickView.h.

{ return null; }

vtkImageData* creaImageIO::GimmickView::GetDefaultImage ( ) [inline]

Definition at line 175 of file creaImageIOGimmickView.h.

References creaImageIO::MultiThreadImageReader::GetImage(), and mReader.

Referenced by OnMultiThreadImageReaderEvent(), creaImageIO::WxGimmickView::OnRemove(), and creaImageIO::WxGimmickView::WxGimmickView().

{ return mReader.GetImage(""); }

Here is the call graph for this function:

Here is the caller graph for this function:

virtual DicomDatabaseListType& creaImageIO::GimmickView::GetDicomDatabaseList ( ) [inline, virtual]

Returns the list of DicomDatabase open.

Definition at line 39 of file OldcreaImageIOGimmickView.h.

    { return null; }

virtual const DicomDatabaseListType& creaImageIO::GimmickView::GetDicomDatabaseList ( ) const [inline, virtual]

Returns the list of DicomDatabase open (const).

Definition at line 42 of file OldcreaImageIOGimmickView.h.

    { return null; }

virtual DicomNode* creaImageIO::GimmickView::GetDicomNodeOfItem ( const TreeItemId & i ) [virtual]

Returns the DicomNode corresponding to the tree item.

virtual void creaImageIO::GimmickView::GetImages	(	int	dim,
		std::vector< std::string >	files,
		std::vector< vtkImageData * > &	s
	)			`[inline, virtual]`

Definition at line 93 of file creaImageIOGimmickView.h.

References GimmickError.

      { GimmickError("INTERNAL ERROR : GetImages not implemented"); }

TreeItemData* creaImageIO::GimmickView::GetItemData ( const TreeItemId & id ) [inline, private]

Gets the item data of the tree item passed as a parameter.

Definition at line 112 of file OldcreaImageIOGimmickView.h.

{ return null; }

int creaImageIO::GimmickView::GetMaximalPriority ( ) [inline]

Returns the maximal priority.

Definition at line 80 of file creaImageIOGimmickView.h.

References creaImageIO::MultiThreadImageReader::GetMaximalPriority(), and mReader.

{return mReader.GetMaximalPriority();}

Here is the call graph for this function:

std::string creaImageIO::GimmickView::GetMessage ( ) [inline]

Obtains the message of the state.

Definition at line 148 of file creaImageIOGimmickView.h.

References mMess.

{return mMess;}

wxMutex& creaImageIO::MultiThreadImageReaderUser::GetMultiThreadImageReaderUserMutex ( ) [inline, inherited]

Definition at line 57 of file creaImageIOMultiThreadImageReader.h.

Referenced by creaImageIO::MultiThreadImageReader::GetMaximalPriority(), creaImageIO::MultiThreadImageReader::Request(), creaImageIO::MultiThreadImageReader::SignalImageRead(), creaImageIO::MultiThreadImageReader::Start(), and creaImageIO::MultiThreadImageReader::Stop().

    { return mMultiThreadImageReaderUserMutex; }

Here is the caller graph for this function:

QMutex* creaImageIO::MultiThreadImageReaderUser::GetMultiThreadImageReaderUserMutex ( ) [inline, inherited]

Definition at line 57 of file creaImageIOQMultiThreadImageReader.h.

    { return &mMultiThreadImageReaderUserMutex; }

virtual void creaImageIO::GimmickView::GetSelectedDicomNodes ( std::vector< DicomNode * > & ) [inline, virtual]

Returns the vector of DicomNode corresponding to selection.

Definition at line 31 of file OldcreaImageIOGimmickView.h.

{ return; }

virtual void creaImageIO::GimmickView::GetSelectedFiles ( std::vector< std::string > & s ) [inline, virtual]

Reimplemented in creaImageIO::WxGimmickView.

Definition at line 90 of file creaImageIOGimmickView.h.

References GimmickError.

      { GimmickError("INTERNAL ERROR : GetSelectedFiles not implemented"); }

virtual void creaImageIO::GimmickView::GetSelectedFiles ( std::vector< std::string > & ) [inline, virtual]

Returns the vector of full filenames of selected images.

Reimplemented in creaImageIO::WxGimmickView.

Definition at line 27 of file OldcreaImageIOGimmickView.h.

{ return; }

virtual void creaImageIO::GimmickView::GetSelectedImages ( std::vector< vtkImageData * > & ) [inline, virtual]

Returns the vector of images corresponding to selection.

Definition at line 29 of file OldcreaImageIOGimmickView.h.

{ return; }

virtual void creaImageIO::GimmickView::GetSelectedImages	(	std::vector< vtkImageData * > &	s,
		int	dim
	)			`[inline, virtual]`

Adds the selected Images to the given vector and validates to see if they comply with the given parameter (4D).

Reimplemented in creaImageIO::WxGimmickView.

Definition at line 87 of file creaImageIOGimmickView.h.

References GimmickError.

          { GimmickError("INTERNAL ERROR : GetSelectedImages not implemented"); }

virtual void creaImageIO::GimmickView::GetSelectedImagesInVector	(	std::vector< vtkImageData * > &	s,
		int	dim
	)			`[inline, virtual]`

Adds the selected Images to the given vector.

Reimplemented in creaImageIO::WxGimmickView.

Definition at line 83 of file creaImageIOGimmickView.h.

References GimmickError.

        { GimmickError("INTERNAL ERROR : GetSelectedImagesInVector not implemented"); }

virtual int creaImageIO::GimmickView::GetSelectionSize ( ) [inline, virtual]

Returns the size of the current selection.

Definition at line 23 of file OldcreaImageIOGimmickView.h.

{ return 0; }

TreeViewMapType& creaImageIO::GimmickView::GetTreeViewMap ( ) [inline]

Returns the TreeViewMap (ref).

Definition at line 71 of file creaImageIOGimmickView.h.

References mTreeViewMap.

Referenced by creaImageIO::WxGimmickView::CreateIconList(), creaImageIO::WxGimmickView::ExportImages(), creaImageIO::WxGimmickView::getSelectedFiles(), creaImageIO::WxGimmickView::GetSelectedImagesInVector(), creaImageIO::WxGimmickView::OnSaveSettingsCallback(), and UpdateTreeViewLevel().

{ return mTreeViewMap; }

Here is the caller graph for this function:

const TreeViewMapType& creaImageIO::GimmickView::GetTreeViewMap ( ) const [inline]

Returns the TreeViewMap (const ref).

Definition at line 73 of file creaImageIOGimmickView.h.

References mTreeViewMap.

      { return mTreeViewMap; }

const std::string& creaImageIO::GimmickView::GetUserSettingsDirectory ( ) [inline, private]

Obtains the user settings directory.

Definition at line 79 of file OldcreaImageIOGimmickView.h.

{ return null; }

void creaImageIO::GimmickView::Initialize ( ) [virtual]

Initializes the view : Creates the TreeViews for all the TreeHandler of the Controller

Definition at line 101 of file creaImageIOGimmickView.cpp.

References mReaderStarted.

Referenced by creaImageIO::WxGimmickFrame::WxGimmickFrame(), creaImageIO::WxGimmickPanel::WxGimmickPanel(), and creaImageIO::WxGimmickReaderDialog::WxGimmickReaderDialog().

  {
        mReaderStarted=false;
  }

Here is the caller graph for this function:

virtual bool creaImageIO::GimmickView::IsSelectionValid ( ) [inline, virtual]

Returns true if there is a valid selection.

Definition at line 25 of file OldcreaImageIOGimmickView.h.

{ return false; }

bool creaImageIO::GimmickView::isSingle ( const std::string i_file )

Definition at line 419 of file creaImageIOGimmickView.cpp.

References creaImageIO::MultiThreadImageReader::GetImage(), and mReader.

Referenced by readImages().

        {
                bool bres = true;
                vtkImageData* first = mReader.GetImage( i_file);
                int dim[3];
                first->GetDimensions(dim);
                if (dim[2] > 1)
                {
                        bres = false;
                }
                else
                {
                }
                return bres;
        }

Here is the call graph for this function:

Here is the caller graph for this function:

virtual void creaImageIO::GimmickView::LoadOrCreateFavoritesDatabase ( ) [inline, virtual]

Loads or creates a favorites database.

Definition at line 74 of file OldcreaImageIOGimmickView.h.

{ return; }

void creaImageIO::GimmickView::modifyValidationSignal ( bool ivalid )

Definition at line 293 of file creaImageIOGimmickView.cpp.

References mValidationSignal.

Referenced by NoValidateSelected(), creaImageIO::WxTreeView::RemoveSelected(), and ValidateSelected().

  {

          mValidationSignal(ivalid);
  }

Here is the caller graph for this function:

void creaImageIO::MultiThreadImageReaderUser::MultiThreadImageReaderEventLock ( ) [inline, inherited]

Definition at line 53 of file creaImageIOQMultiThreadImageReader.h.

    { mMultiThreadImageReaderUserMutex.lock(); }

void creaImageIO::MultiThreadImageReaderUser::MultiThreadImageReaderEventLock ( ) [inline, inherited]

Definition at line 53 of file creaImageIOMultiThreadImageReader.h.

Referenced by creaImageIO::ThreadedImageReader::Entry().

    { mMultiThreadImageReaderUserMutex.Lock(); }

Here is the caller graph for this function:

void creaImageIO::MultiThreadImageReaderUser::MultiThreadImageReaderEventUnlock ( ) [inline, inherited]

Definition at line 55 of file creaImageIOQMultiThreadImageReader.h.

    { mMultiThreadImageReaderUserMutex.unlock(); }

void creaImageIO::MultiThreadImageReaderUser::MultiThreadImageReaderEventUnlock ( ) [inline, inherited]

Definition at line 55 of file creaImageIOMultiThreadImageReader.h.

Referenced by creaImageIO::ThreadedImageReader::Entry().

    { mMultiThreadImageReaderUserMutex.Unlock(); }

Here is the caller graph for this function:

bool creaImageIO::GimmickView::NoValidateSelected ( )

No selected image.

Definition at line 195 of file creaImageIOGimmickView.cpp.

References GimmickDebugMessage, modifyValidationSignal(), SetMessage(), and valid.

  {
        GimmickDebugMessage(2,"Validating selected"<<std::endl);
        std::string mMessage;
        mMessage="Cannot have 0 images selected!";
        valid=false;
        modifyValidationSignal(valid);
        SetMessage(mMessage);
        return valid;
  }

Here is the call graph for this function:

void creaImageIO::GimmickView::OnMultiThreadImageReaderEvent	(	const std::string &	filename,
		MultiThreadImageReaderUser::EventType	type,
		vtkImageData *	image
	)			`[virtual]`

The virtual method to overload by MultiThreadImageReader users It is called when an image has been loaded or unloaded Provides : The image file name which was requested The type of event If type==ImageLoaded the image pointer, else NULL pointer

Reimplemented from creaImageIO::MultiThreadImageReaderUser.

Definition at line 755 of file creaImageIOGimmickView.cpp.

References creaImageIO::MultiThreadImageReaderUser::Error, GetDefaultImage(), GimmickDebugMessage, GimmickMessage, creaImageIO::GimmickView::ImageEventType::image, creaImageIO::MultiThreadImageReaderUser::ImageLoaded, creaImageIO::MultiThreadImageReaderUser::ImageUnloaded, mImageEventMap, and creaImageIO::GimmickView::ImageEventType::pointerHolder.

  {
    GimmickDebugMessage(7,
                        "MultiThreadImageReader event : "<<e<<std::endl);
        if (e==ImageLoaded)
        {
                if (filename.size()==0)
                {
                  //What to do in this case?
                  /*
                        GimmickDebugMessage(5,
                                        "Pushing unknown image in queue"
                                        <<std::endl);
                        mImageEventQueue.push_back(ImageEventType(image));*/
                        return;
                }
                ImageEventTypeMap::iterator i;
//JCP 22-06-2009, test mImageEventMap.size() > 0
                if(mImageEventMap.size()>0){
                        i = mImageEventMap.find(filename);
                        if (i!=mImageEventMap.end())
                        {
                                GimmickDebugMessage(5,
                                                "Putting image of file '"<<filename<<"' on pointer"
                                                <<std::endl);
                                ImageEventType ie(i->second);
                                ie.image = image;
                                ie.pointerHolder->Set(ie.image);
                                //mImageEventMap.erase(i);
                        }
                }
        }
        else if (e==Error)
        {
                std::string mess="ERROR: MultiThreadImageReader: Cannot read image in file ";
                mess+=filename;
                mess+="\n";
                GimmickMessage(1,mess);
                ImageEventTypeMap::iterator i;
                i = mImageEventMap.find(filename);
                if (i!=mImageEventMap.end())
                {
                ImageEventType ie(i->second);
                ie.image = image;
                ie.pointerHolder->Set(GetDefaultImage());
                //mImageEventMap.erase(i);
                }
        }

        else if (e==ImageUnloaded)
        {
                std::string mess="Unloaded image in file ";
                mess+=filename;
                mess+="\n";
                GimmickMessage(1,mess);
                                ImageEventTypeMap::iterator i;
                i = mImageEventMap.find(filename);
                if (i!=mImageEventMap.end())
                {
                ImageEventType ie(i->second);
                ie.image = image;
                ie.pointerHolder->Set(GetDefaultImage());
                //mImageEventMap.erase(i);
                }
        }
  }

Here is the call graph for this function:

virtual void creaImageIO::GimmickView::OnSelectionChange	(	const std::vector< tree::Node * > &	s,
		bool	isSelection,
		int	selection,
		bool	mProcess
	)			`[inline, virtual]`

Reimplemented in creaImageIO::WxGimmickView.

Definition at line 96 of file creaImageIOGimmickView.h.

References GimmickError.

Referenced by creaImageIO::WxTreeView::ValidateSelectedImages().

      { GimmickError("INTERNAL ERROR : OnSelectionChange not implemented"); }

Here is the caller graph for this function:

virtual void creaImageIO::GimmickView::OpenOrNewDatabase ( bool open ) [inline, protected, virtual]

Opens an existing database, or else, creates a local database.

Definition at line 47 of file OldcreaImageIOGimmickView.h.

{ return; }

void creaImageIO::GimmickView::readImages	(	std::vector< OutStrGimmick > &	o_output,
		std::vector< std::string >	im,
		OutputAttr	i_attr,
		int	i_dim,
		double	i_zspc
	)

Definition at line 622 of file creaImageIOGimmickView.cpp.

References isSingle(), readImages1(), readImages2(), readImages3(), and readImages4().

        {
                int size = im.size();
                if ( size == 0)
                {
                        return;
                }
                else if (size == 1)
                {
                        // Simplest case
                        // Only one image : give it
                        // But take in count multiframe possibility
                        if ( isSingle(im.front()) || i_dim != 1)
                        {
                                 readImages1(o_output,im, i_attr);
                        }
                        else
                        {
                                readImages2(o_output,im, i_attr,i_zspc);
                        }

                }
                else
                {
                        // multiple or single frame
                        if ( isSingle(im.front()) )
                        {
                                //we deal with 2D images
                                if(i_dim == 1)
                                {
                                        // 2D to 3D
                                        readImages3(o_output,im, i_attr,i_zspc);
                                }
                                else
                                {
                                        readImages1(o_output,im, i_attr);
                                }
                        }
                        else
                        {
                                // we deal with multiple frames n x (2D x T)
                                // Differents outputs are avaialable
                                if(i_dim == 1)
                                {
                                        // put all in one output
                                        readImages3(o_output,im, i_attr,i_zspc);

                                }
                                else if( i_dim == 2)
                                {
                                        // put in a vector of n x T (2D)
                                        readImages2(o_output,im, i_attr,i_zspc);
                                }
                                else if( i_dim == 3)
                                {
                                        // put in a vector of n (2D x T)
                                        // No transformations.
                                        readImages1(o_output,im, i_attr);
                                }
                                else
                                {
                                        // put in a vector of T (2D x n)
                                        readImages4(o_output,im, i_attr);
                                }
                        }
                }
        }

Here is the call graph for this function:

void creaImageIO::GimmickView::readImages1	(	std::vector< OutStrGimmick > &	o_output,
		std::vector< std::string >	im,
		OutputAttr	i_attr
	)			`[private, virtual]`

Definition at line 454 of file creaImageIOGimmickView.cpp.

References getAttributes(), creaImageIO::MultiThreadImageReader::GetImage(), creaImageIO::OutStrGimmick::img, creaImageIO::OutStrGimmick::infos, mReader, and creaImageIO::OutputAttr::mult.

Referenced by readImages().

        {
                std::vector<std::string>::iterator it;
                for (it=im.begin(); it!=im.end(); ++it)
                {
                        OutStrGimmick out;
                        out.img = vtkImageData::New();
                        out.img->ShallowCopy(mReader.GetImage(*it));
                        if(i_attr.mult)
                                getAttributes((*it),out.infos,i_attr);
                        o_output.push_back(out);
                }
                // If we want only one output information structure, we set it outside the loop
                if(!i_attr.mult)
                {
                        getAttributes(im.front(), o_output.front().infos, i_attr);
                }

        }

Here is the call graph for this function:

Here is the caller graph for this function:

void creaImageIO::GimmickView::readImages2	(	std::vector< OutStrGimmick > &	o_output,
		std::vector< std::string >	im,
		OutputAttr	i_attr,
		double	i_zspc
	)			`[private, virtual]`

Definition at line 526 of file creaImageIOGimmickView.cpp.

References getAttributes(), creaImageIO::MultiThreadImageReader::GetImage(), creaImageIO::OutStrGimmick::img, mReader, and creaImageIO::OutputAttr::mult.

Referenced by readImages().

        {
                vtkImageData* first = mReader.GetImage( im.front());
                int dim[3];
                first->GetDimensions(dim);
                // differents formats char , short, etc...
                // differents components 1..3  ex. jpg ->RGB 3
                unsigned long imsize = dim[0] * dim[1];
                imsize = imsize * first->GetScalarSize() * first->GetNumberOfScalarComponents();

                // Order the file name vector already did with the OutputModel!!!
                std::vector<std::string>::iterator it;
                std::vector<OutStrGimmick>::iterator it_out = o_output.begin();

                for (it=im.begin(); it!=im.end(); ++it, it_out += dim[2])
                {
                        vtkImageData* cur = mReader.GetImage( (*it) );
                        for (int slice= 0 ; slice <dim[2]; slice++)
                        {
                                OutStrGimmick out;
                                out.img = vtkImageData::New();
                                out.img->SetScalarType(first->GetScalarType());

                                out.img->SetNumberOfScalarComponents(first->GetNumberOfScalarComponents());
                                int ext[6];
                                first->GetWholeExtent(ext);  // send also 0,0 in Z
                                ext[5] = 0;
                                out.img->SetExtent(ext);

                                out.img->SetDimensions(dim[0], dim[1], 1 );
                                out.img->AllocateScalars();
                                out.img->Update();
                                memcpy(out.img->GetScalarPointer(0,0,0), cur->GetScalarPointer(0,0,slice), imsize);
                                o_output.push_back(out);
                        }
                        if(i_attr.mult)
                                getAttributes((*it),(*it_out).infos,i_attr);
                }
                if(!i_attr.mult)
                {
                        getAttributes(im.front(), o_output.front().infos,i_attr);
                }

        }

Here is the call graph for this function:

Here is the caller graph for this function:

void creaImageIO::GimmickView::readImages3	(	std::vector< OutStrGimmick > &	o_output,
		std::vector< std::string >	im,
		OutputAttr	i_attr,
		double	i_zspc
	)			`[private, virtual]`

!!!out.img->SetSpacing(i_zspc);

Definition at line 478 of file creaImageIOGimmickView.cpp.

References getAttributes(), creaImageIO::MultiThreadImageReader::GetImage(), creaImageIO::OutStrGimmick::img, creaImageIO::OutStrGimmick::infos, and mReader.

Referenced by readImages().

        {
                OutStrGimmick out;
                vtkImageData* first = mReader.GetImage( im.front());
                out.img  = vtkImageData::New();
                out.img->SetScalarType(first->GetScalarType());
                out.img->SetNumberOfScalarComponents(first->GetNumberOfScalarComponents());
                int ext[6];
                first->GetWholeExtent(ext);  // send also 0,0 in Z
                if(ext[5] == 0)
                {
                        ext[5] = im.size()-1;
                }
                else
                {
                        ext[5] = ext[5] * im.size()-1; // to deal with multiframes
                }
                out.img->SetExtent(ext);
                int dim[3];
                first->GetDimensions(dim);
                out.img->SetDimensions(dim[0], dim[1], im.size() );
                out.img->AllocateScalars();
                out.img->Update();
                unsigned long imsize = dim[0] * dim[1];
                imsize = imsize * dim[2] ;  // deal with multiframes here
                // differents formats char , short, etc...
                // differents components 1..3  ex. jpg ->RGB 3
                imsize = imsize * first->GetScalarSize() * first->GetNumberOfScalarComponents();
                // Order the file name vector already did with the OutputModel!!!
                int slice = 0;
                std::vector<std::string>::iterator it;
                for (it=im.begin(); it!=im.end(); ++it)
                {
                        vtkImageData* cur = mReader.GetImage( (*it) );
                        memcpy(out.img->GetScalarPointer(0,0,slice), cur->GetScalarPointer(0,0,0), imsize);
                        slice++;
                }
                getAttributes(im.front(),out.infos, i_attr);
                o_output.push_back(out);
        }

Here is the call graph for this function:

Here is the caller graph for this function:

void creaImageIO::GimmickView::readImages4	(	std::vector< OutStrGimmick > &	o_output,
		std::vector< std::string >	im,
		OutputAttr	i_attr
	)			`[private, virtual]`

Definition at line 575 of file creaImageIOGimmickView.cpp.

References getAttributes(), creaImageIO::MultiThreadImageReader::GetImage(), creaImageIO::OutStrGimmick::img, mReader, and creaImageIO::OutputAttr::mult.

Referenced by readImages().

        {
                std::vector<std::string>::iterator it;
                std::vector<OutStrGimmick>::iterator it_out = o_output.begin();
                vtkImageData* first = mReader.GetImage( im.front());
                int dim[3];
                first->GetDimensions(dim);

                for (int slice= 0 ; slice <dim[2]; slice++)
                {
                        OutStrGimmick out;
                        out.img = vtkImageData::New();
                        out.img->SetScalarType(first->GetScalarType());
                        out.img->SetNumberOfScalarComponents(first->GetNumberOfScalarComponents());

                        int ext[6];
                        first->GetWholeExtent(ext);  // send also 0,0 in Z
                        ext[5] = 0;
                        out.img->SetExtent(ext);

                        out.img->SetDimensions(dim[0], dim[1], im.size() );
                        out.img->AllocateScalars();
                        out.img->Update();
                        unsigned long imsize = dim[0] * dim[1];
                        imsize = imsize * first->GetScalarSize() * first->GetNumberOfScalarComponents();
                        int index = 0;

                        for (it=im.begin(); it!=im.end(); ++it, index ++)
                        {
                                vtkImageData* cur = mReader.GetImage( (*it) );
                                memcpy(out.img->GetScalarPointer(0,0,index), cur->GetScalarPointer(0,0,slice), imsize);
                                o_output.push_back(out);
                        }
                }
                if(!i_attr.mult) // No sense to take informations in all images
                {
                        getAttributes(im.front(), o_output.front().infos,i_attr);
                }

        }

Here is the call graph for this function:

Here is the caller graph for this function:

void creaImageIO::GimmickView::ReadImagesNotThreaded	(	std::vector< vtkImageData * > &	s,
		std::vector< std::string >	files,
		int	dim
	)

Reads the vector of images, builds it in the dimension required and returns them in the supplied vector.

Reads Images (Non Threaded).

Definition at line 306 of file creaImageIOGimmickView.cpp.

References creaImageIO::MultiThreadImageReader::GetImage(), mReader, and stopReader().

{
        stopReader();
/* remember!

#define GIMMICK_NO_IMAGE_SELECTION 0
#define GIMMICK_2D_IMAGE_SELECTION 2
#define GIMMICK_3D_IMAGE_SELECTION 3
#define GIMMICK_4D_IMAGE_SELECTION 4

#define NATIVE 0
#define _2D    2
#define _3D    3

*/
        // Create the output data
        if (im.size()==1)
        {
                vtkImageData * out=vtkImageData::New();
                out->ShallowCopy(mReader.GetImage(im.front()));
                s.push_back(out);
        }
    else if (im.size()>1) // Test inutile ? JPR
        {
                vtkImageData* first = mReader.GetImage( im.front());
                if (dimension == 2)
                {
                 // n3D
                    std::vector<std::string>::iterator it;
                        for (it=im.begin(); it!=im.end(); ++it)
                        {
                                vtkImageData* out = vtkImageData::New();
                                out->ShallowCopy(mReader.GetImage(*it));
                                s.push_back(out);
                        }
                }
                else
                {
                        // n*2D to 3D
                        vtkImageData* out = vtkImageData::New();
//                      out->CopyStructure(first);
                        out->SetScalarType(first->GetScalarType());
                        out->SetNumberOfScalarComponents(first->GetNumberOfScalarComponents());
                        int ext[6];
                        //first->GetExtent(ext);  // JPR
                        first->GetWholeExtent(ext);  // renvoie egalement 0,0 en Z // JPR

                        if(ext[5] == 0)
                        {
                                ext[5] = im.size()-1;
                        }
                        else
                        {
                                ext[5] = ext[5] * im.size()-1; // to deal with multiframes - JPR
                        }
                        out->SetExtent(ext);

                        // LG : TODO : Z Spacing  ?

                        int dim[3];
                        first->GetDimensions(dim);

                        out->SetDimensions(dim[0], dim[1], im.size() );
                        out->AllocateScalars();
                        out->Update();

                        unsigned long imsize = dim[0] * dim[1];
                        imsize = imsize * dim[2] ;  // deal with multiframes // JPR


//EED 03-11-2009
                        // differents formats char , short, etc...
                        // differents components 1..3  ex. jpg ->RGB 3
                        imsize = imsize * first->GetScalarSize() * first->GetNumberOfScalarComponents();


                        // Order the file name vector

                        double spc[3];
                        first->GetSpacing(spc);

                        // OrderTheFileNameVector is not here anymore.
                        // Try orderFilesWithZSpacing from OutputModel FCY
                        // spc[2]=OrderTheFileNameVector(im);
                        spc[2] =1;

                        out->SetSpacing(spc);

                        int slice = 0;
                        std::vector<std::string>::iterator it;

                        for (it=im.begin(); it!=im.end(); ++it)
                        {
                                vtkImageData* cur = mReader.GetImage( (*it) );
                                memcpy(out->GetScalarPointer(0,0,slice), cur->GetScalarPointer(0,0,0), imsize);
                                slice++;
                        }
                        s.push_back(out);

                }  // dimension == 3

        }  // size >1

}

Here is the call graph for this function:

void creaImageIO::GimmickView::ReadImagesNotThreadedInVector	(	std::vector< vtkImageData * > &	s,
		std::vector< std::string >	files,
		int	dim
	)

Reads the vector of images, builds it in the dimension required and returns them in the supplied vector.

Definition at line 693 of file creaImageIOGimmickView.cpp.

References creaImageIO::MultiThreadImageReader::GetImage(), GimmickDebugMessage, and mReader.

Referenced by creaImageIO::WxGimmickView::getSelectedFiles().

{
        // Create the output data
        if (im.size()==1)
        {
                // Only one image : give it
                vtkImageData* out = vtkImageData::New();
                GimmickDebugMessage(3, "State Check: Full Filename: "
                                                <<im.front()
                                                <<std::endl);
                out->ShallowCopy(mReader.GetImage(im.front()));
                s.push_back( out );
        }
        else if (im.size()>1) // Test inutile ? JPR
        {
                vtkImageData* first = mReader.GetImage( im.front());
                if (dimension == 2)
                {
                 // n3D
                  std::vector<std::string>::iterator it;
                        for (it=im.begin(); it!=im.end(); ++it)
                        {
                                vtkImageData* out = vtkImageData::New();
                                out->ShallowCopy(mReader.GetImage(*it));
                                s.push_back(out);
                        }
                }
                else
                {
                        // n2D to 3D // NO!
                        // n *2D + T in a vector :

                        std::vector<std::string>::iterator it;
                        for (it=im.begin(); it!=im.end(); ++it)
                        {
                                vtkImageData* out = mReader.GetImage( (*it));
                                s.push_back(out);
                        }
                }
        }
}

Here is the call graph for this function:

Here is the caller graph for this function:

virtual void creaImageIO::GimmickView::RebuildView ( ) [inline, protected, virtual]

Completely rebuilds the view with current DicomDatabaseList

Definition at line 97 of file OldcreaImageIOGimmickView.h.

{ return; }

void creaImageIO::GimmickView::RequestReading	(	tree::Node *	n,
		int	prio,
		int	selection_index,
		boost::shared_ptr< ImagePointerHolder >	p
	)

current selection (-1 if not in selection)

Requests the reading of an image.

Requests the reading of an image with priority and index in the

Definition at line 738 of file creaImageIOGimmickView.cpp.

References creaImageIO::tree::Node::GetAttribute(), mImageEventMap, mReader, mReaderStarted, creaImageIO::GimmickView::ImageEventType::pointerHolder, creaImageIO::MultiThreadImageReader::Request(), and creaImageIO::MultiThreadImageReader::Start().

  {
          if(!mReaderStarted)
          {
                mReader.Start();
                mReaderStarted=true;
          }
    ImageEventType t(n,selection_index);
        t.pointerHolder = p;
    mImageEventMap[n->GetAttribute("FullFileName")] = t;
    mReader.Request(this,n->GetAttribute("FullFileName"),prio);
  }

Here is the call graph for this function:

void creaImageIO::GimmickView::ResetExtent ( )

Resets the data of the extent and begins a new selection.

Clears the status and begins a new selection process.

Definition at line 156 of file creaImageIOGimmickView.cpp.

References mImageExtent, and valid.

Referenced by creaImageIO::WxGimmickView::OnRemove().

  {
          if(mImageExtent!=0)
          {
                  mImageExtent.reset();
          }
          valid=true;
  }

Here is the caller graph for this function:

virtual void creaImageIO::GimmickView::SaveAs ( const std::vector< std::string > & filenames ) [inline, virtual]

Copies selected files.

Definition at line 127 of file creaImageIOGimmickView.h.

References GimmickError.

          { GimmickError("INTERNAL ERROR : SaveAs not implemented"); }

virtual void creaImageIO::GimmickView::SetDatabaseExtension ( const std::string & ext ) [inline, private, virtual]

Sets the extension of the database.

Definition at line 55 of file OldcreaImageIOGimmickView.h.

{ return; }

void creaImageIO::GimmickView::SetMessage ( std::string mess ) [inline]

Obtains the message of the state.

Definition at line 151 of file creaImageIOGimmickView.h.

References mMess.

Referenced by NoValidateSelected(), and ValidateSelected().

{mMess=mess;}

Here is the caller graph for this function:

virtual void creaImageIO::GimmickView::ShowHelp ( ) [protected, virtual]

Shows the help.

virtual void creaImageIO::GimmickView::ShowImage ( vtkImageData * image ) [inline, private, virtual]

Shows the image sent as a parameter.

Definition at line 65 of file OldcreaImageIOGimmickView.h.

{ return; }

virtual void creaImageIO::GimmickView::ShowInformation ( DicomNode * ) [inline, private, virtual]

Shows the Information regarding the node sent as a parameter.

Definition at line 88 of file OldcreaImageIOGimmickView.h.

{ return; }

void creaImageIO::GimmickView::stopReader ( )

Definition at line 299 of file creaImageIOGimmickView.cpp.

References mReader, and creaImageIO::MultiThreadImageReader::Stop().

Referenced by ReadImagesNotThreaded().

  {
          mReader.Stop();
  }

Here is the call graph for this function:

Here is the caller graph for this function:

virtual void creaImageIO::GimmickView::UpdateDicomDatabaseView ( DicomDatabase * ) [inline, protected, virtual]

Recursively updates the part of the view corresponding to the DicomDatabase passed i.e. creates items for the DicomNode which do not have deletes obsolete items (whose DicomNode has been deleted)

Definition at line 102 of file OldcreaImageIOGimmickView.h.

{ return; }

virtual void creaImageIO::GimmickView::UpdateDicomNodeView	(	DicomNode *	n,
		const TreeItemId &	parent
	)			`[inline, protected, virtual]`

Recursively updates the part of the view corresponding to the DicomNode provided. parent is its parent in the tree (where to insert / remove it)

Definition at line 106 of file OldcreaImageIOGimmickView.h.

{ return; }

void creaImageIO::GimmickView::UpdateTreeViewLevel	(	const std::string &	t,
		int	l
	)			`[virtual]`

Updates the TreeView of given name from level l to bottom (calls the virtual method TreeView::UpdateLevel(l))

Updates the TreeView of given name from level l to bottom (calls the virtual method TreeView::Update())

Definition at line 142 of file creaImageIOGimmickView.cpp.

References GetTreeViewMap(), and GimmickError.

Referenced by creaImageIO::WxGimmickView::StopListeningThread().

  {
    TreeViewMapType::iterator i;
    i = GetTreeViewMap().find(t);
    if ( i == GetTreeViewMap().end() )
      {
        GimmickError("INTERNAL ERROR : GimmickView::UpdateTreeView : '"
                     <<t<<"' is not in TreeViewMap");
      }
    i->second->UpdateLevel(l);
  }

Here is the call graph for this function:

Here is the caller graph for this function:

bool creaImageIO::GimmickView::ValidateSelected	(	tree::Node *	sel,
		int	min_dim,
		int	max_dim
	)

Validates the dimension compliance of the images with the maximum and minimum given, and between their sizes.

Validates the dimension compliance of the images with the maximum and minimum given, and between their sizes

Definition at line 209 of file creaImageIOGimmickView.cpp.

References GimmickDebugMessage, mImageExtent, modifyValidationSignal(), SetMessage(), and valid.

  {
        GimmickDebugMessage(2,"Validating selected"<<std::endl);
        std::string mMessage;

        if(sel==0)
        {
                mMessage="Cannot have 0 images selected!";
                valid=false;
        }
        else
        {
                        boost::shared_ptr<ImageExtent> ie=boost::shared_ptr<ImageExtent>(new ImageExtent((*sel).GetAttribute("D0028_0010"),
                                                                        (*sel).GetAttribute("D0028_0011"),
                                                                        (*sel).GetAttribute("D0028_0012"),
                                                                        ""));

        if(mImageExtent==0)
        {
                mImageExtent=ie;
                if((mImageExtent->Get(min_dim-1)<2)||(mImageExtent->Get(max_dim)>1))
                {
                        valid=false;
                }
                else
                {
                        std::stringstream out;
                        out << mImageExtent->GetDimension() << "D image " << mImageExtent->Get(0) << "x"<< mImageExtent->Get(1) << "x"<< mImageExtent->Get(2) <<" selected";
                        mMessage = out.str();
                        mImageExtent->SetDimension(2);
                        valid=true;
                }
        }
        else
        {
                if(mImageExtent->IsCompatible(*ie))
                {
                        if(mImageExtent->GetDimension()==max_dim && mImageExtent->Get(max_dim)>2)
                        {
                                std::stringstream out;
                                out<<"Cannot add this image to selection : would result in a "<<mImageExtent->GetDimension()+1<<"D image!";
                                mMessage=out.str();
                                valid=false;
                        }
                        else if(max_dim<3)
                        {
                                std::stringstream out;
                                out<<"Selecting "<<mImageExtent->GetDimension()<<"D images is not allowed !";
                                mMessage=out.str();
                                valid=false;
                        }
                        else if(min_dim==3 && (ie->Get(2)+mImageExtent->Get(2))<2)
                        {
                                std::stringstream out;
                                out << "Cannot build the selection as it would result in a ";
                                out << mImageExtent->GetDimension();
                                out << "D image, and the minimum is ";
                                out << min_dim;
                                out << "D!";
                                mMessage=out.str();
                                valid=false;
                        }
                        else
                        {
                                mImageExtent->Add(*ie);
                                std::stringstream out;
                                out << mImageExtent->GetDimension() << "D image " << mImageExtent->Get(0) << "x"<< mImageExtent->Get(1) << "x"<< mImageExtent->Get(2) <<" selected";
                                mMessage = out.str();
                        }
                }
                else
                {
                        mMessage="The selected images are not compatible.";
                        valid=false;
                }
          }
        }

        modifyValidationSignal(valid);
        SetMessage(mMessage);
        return valid;
  }

Here is the call graph for this function:

Friends And Related Function Documentation

MultiThreadImageReader [friend, inherited]

Definition at line 29 of file creaImageIOMultiThreadImageReader.h.

ThreadedImageReader [friend, inherited]

Reimplemented in creaImageIO::MultiThreadImageReader.

Definition at line 28 of file creaImageIOMultiThreadImageReader.h.

Member Data Documentation

Gimmick* creaImageIO::GimmickView::controller [private]

Definition at line 153 of file OldcreaImageIOGimmickView.h.

int creaImageIO::GimmickView::mCurrentSelectionImageSize[4] [private]

Definition at line 124 of file OldcreaImageIOGimmickView.h.

std::string creaImageIO::GimmickView::mDatabaseExtension [private]

Extension of the database.

Definition at line 134 of file OldcreaImageIOGimmickView.h.

std::string creaImageIO::GimmickView::mDatabaseListFile [private]

Path to the database list file.

Definition at line 132 of file OldcreaImageIOGimmickView.h.

DicomDatabaseListType creaImageIO::GimmickView::mDicomDatabaseList [private]

Existent Database List.

Definition at line 127 of file OldcreaImageIOGimmickView.h.

DicomDatabase* creaImageIO::GimmickView::mFavoriteDatabase [private]

Favorites database.

Definition at line 129 of file OldcreaImageIOGimmickView.h.

int creaImageIO::GimmickView::mFirstDicomDatabaseIconIndex [private]

Definition at line 138 of file OldcreaImageIOGimmickView.h.

boost::shared_ptr< Gimmick> creaImageIO::GimmickView::mGimmick [private]

Controller which manages the interaction with the model.

Reimplemented in creaImageIO::WxGimmickView.

Definition at line 222 of file creaImageIOGimmickView.h.

Referenced by CreateSingleTreeView(), CreateTreeViews(), and getAttributes().

ImageEventTypeMap creaImageIO::GimmickView::mImageEventMap [private]

Map of images' names to ImageEventType Used to associated a filename to a the data of a request

Definition at line 252 of file creaImageIOGimmickView.h.

Referenced by OnMultiThreadImageReaderEvent(), and RequestReading().

boost::shared_ptr<ImageExtent> creaImageIO::GimmickView::mImageExtent [private]

The current image extent.

Definition at line 260 of file creaImageIOGimmickView.h.

Referenced by ResetExtent(), and ValidateSelected().

std::map<std::string,DicomNode*> creaImageIO::GimmickView::mImageFileNameToNode [private]

Definition at line 150 of file OldcreaImageIOGimmickView.h.

bool creaImageIO::GimmickView::mJustStarted [private]

Definition at line 136 of file OldcreaImageIOGimmickView.h.

std::string creaImageIO::GimmickView::mMess [private]

The message that results from the validation.

Definition at line 228 of file creaImageIOGimmickView.h.

Referenced by GetMessage(), and SetMessage().

MultiThreadImageReader creaImageIO::GimmickView::mReader [private]

Multi-thread image reader.

Definition at line 231 of file creaImageIOGimmickView.h.

Referenced by getAttributes(), GetDefaultImage(), GetMaximalPriority(), isSingle(), readImages1(), readImages2(), readImages3(), readImages4(), ReadImagesNotThreaded(), ReadImagesNotThreadedInVector(), RequestReading(), and stopReader().

bool creaImageIO::GimmickView::mReaderStarted [private]

Boolean that determines if the reader has been started.

Definition at line 269 of file creaImageIOGimmickView.h.

Referenced by Initialize(), and RequestReading().

int creaImageIO::GimmickView::mSelectionMaxImageDimension [private]

Definition at line 123 of file OldcreaImageIOGimmickView.h.

int creaImageIO::GimmickView::mSelectionType [private]

Definition at line 122 of file OldcreaImageIOGimmickView.h.

double creaImageIO::GimmickView::mspx [private]

Definition at line 144 of file OldcreaImageIOGimmickView.h.

double creaImageIO::GimmickView::mspy [private]

Definition at line 144 of file OldcreaImageIOGimmickView.h.

double creaImageIO::GimmickView::mspz [private]

Definition at line 144 of file OldcreaImageIOGimmickView.h.

TreeViewMapType creaImageIO::GimmickView::mTreeViewMap [private]

The views.

Definition at line 225 of file creaImageIOGimmickView.h.

Referenced by GetTreeViewMap().

ValidationSignalType creaImageIO::GimmickView::mValidationSignal [private]

The validation signal.

Definition at line 263 of file creaImageIOGimmickView.h.

Referenced by ConnectValidationObserver(), and modifyValidationSignal().

vtkImageViewer2* creaImageIO::GimmickView::mViewer [private]

Reimplemented in creaImageIO::WxGimmickView.

Definition at line 141 of file OldcreaImageIOGimmickView.h.

int creaImageIO::GimmickView::mx1 [private]

Definition at line 143 of file OldcreaImageIOGimmickView.h.

int creaImageIO::GimmickView::mx2 [private]

Definition at line 143 of file OldcreaImageIOGimmickView.h.

int creaImageIO::GimmickView::my1 [private]

Definition at line 143 of file OldcreaImageIOGimmickView.h.

int creaImageIO::GimmickView::my2 [private]

Definition at line 143 of file OldcreaImageIOGimmickView.h.

int creaImageIO::GimmickView::mz1 [private]

Definition at line 143 of file OldcreaImageIOGimmickView.h.

int creaImageIO::GimmickView::mz2 [private]

Definition at line 143 of file OldcreaImageIOGimmickView.h.

bool creaImageIO::GimmickView::valid [private]

Boolean that determines if the selection is valid.

Definition at line 266 of file creaImageIOGimmickView.h.

Referenced by NoValidateSelected(), ResetExtent(), and ValidateSelected().

The documentation for this class was generated from the following files:

/home/davila/Creatis/All7/creatools_source/creaImageIO/src/creaImageIOGimmickView.h
/home/davila/Creatis/All7/creatools_source/creaImageIO/src/OldcreaImageIOGimmickView.h
/home/davila/Creatis/All7/creatools_source/creaImageIO/src/creaImageIOGimmickView.cpp

creaImageIO::GimmickView Class Reference [View]

Classes

Public Types

Public Member Functions

Protected Member Functions

Private Types

Private Member Functions

Private Attributes

Friends

Detailed Description

Member Typedef Documentation

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation

creaImageIO::GimmickView Class Reference
[View]
